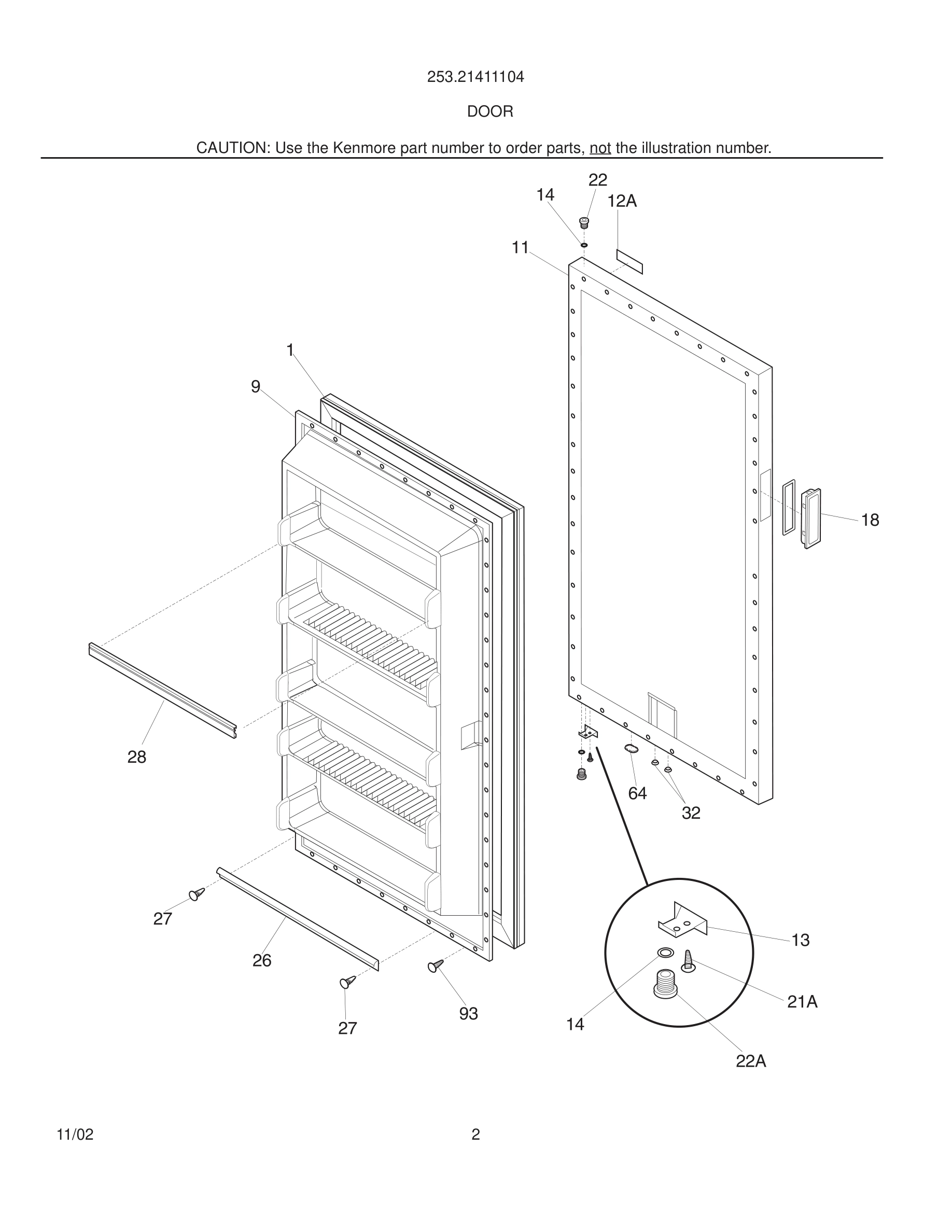

Model Kenmore 253.21411104 FREEZER – Common Parts & Diagrams

*
Insulation,drain tube
Insulation,drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve,suction line
Sleeve,suction line WCI 216502500 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216890900 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
18
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket,evap cover
Gasket,evap cover WCI 216204900 Contact Us For Availability
View on Model
19
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
View on Model
21#
Control,temperature
Control,temperature WCI 216788000 No Longer Available
View on Model
22
Clamp,cap tube ,cold control
Clamp,cap tube ,cold control WCI 216823500 Contact Us For Availability
View on Model
24
Bracket
Bracket WCI 08016580 Contact Us For Availability
View on Model
26
Ramp,door closer
Ramp,door closer WCI 216503300 Contact Us For Availability
View on Model
32
Valve,breather ,door base
Valve,breather ,door base WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
38
Hinge,plate ,top
Hinge,plate ,top WCI 216808900 Contact Us For Availability
View on Model
42
Shelf,16.69 X 23.88 WH,16.69x23.88 ,white
Shelf,16.69 X 23.88 WH,16.69x23.88 ,white WCI 216546100 Contact Us For Availability
View on Model
42A
Shelf,14.50 X 23.88 WH,14.50x23.88 ,white
Shelf,14.50 X 23.88 WH,14.50x23.88 ,white WCI 216546200 Contact Us For Availability
View on Model
49
Trivet
Trivet WCI 216278800 Contact Us For Availability
View on Model
50
Bracket,fan motor mount
Bracket,fan motor mount WCI 216394000 Contact Us For Availability
View on Model
53
Cover terminal,cover-comp term
Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability
View on Model
64
Plug-button,hole filler ,door base
Plug-button,hole filler ,door base WCI 216403700 Contact Us For Availability
View on Model
80
Bracket,control
Bracket,control WCI 06594601 Contact Us For Availability
View on Model
87
Screw,ph truss head ,6-32(T) x 0.500 ,thread
Screw,ph truss head ,6-32(T) x 0.500 ,thread WCI 08037849 Contact Us For Availability
View on Model
93A
Screw,round head sems ,10-32 x 0.375
Screw,round head sems ,10-32 x 0.375 WCI 5303302760 Contact Us For Availability
View on Model
101
Top Hinge Kit
Top Hinge Kit WCI 216835200 Contact Us For Availability
View on Model
132
Screw,6-20AB x 3/8
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
