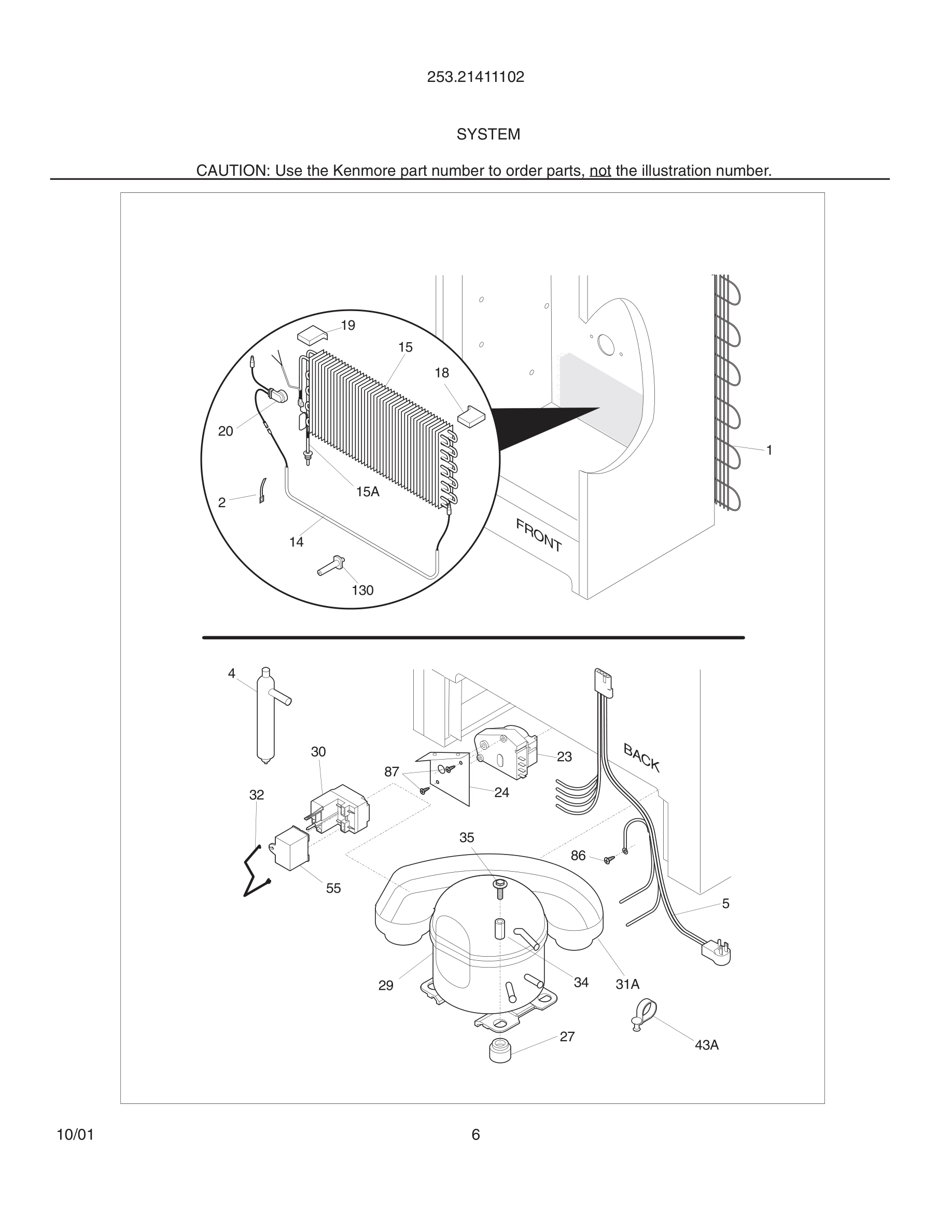

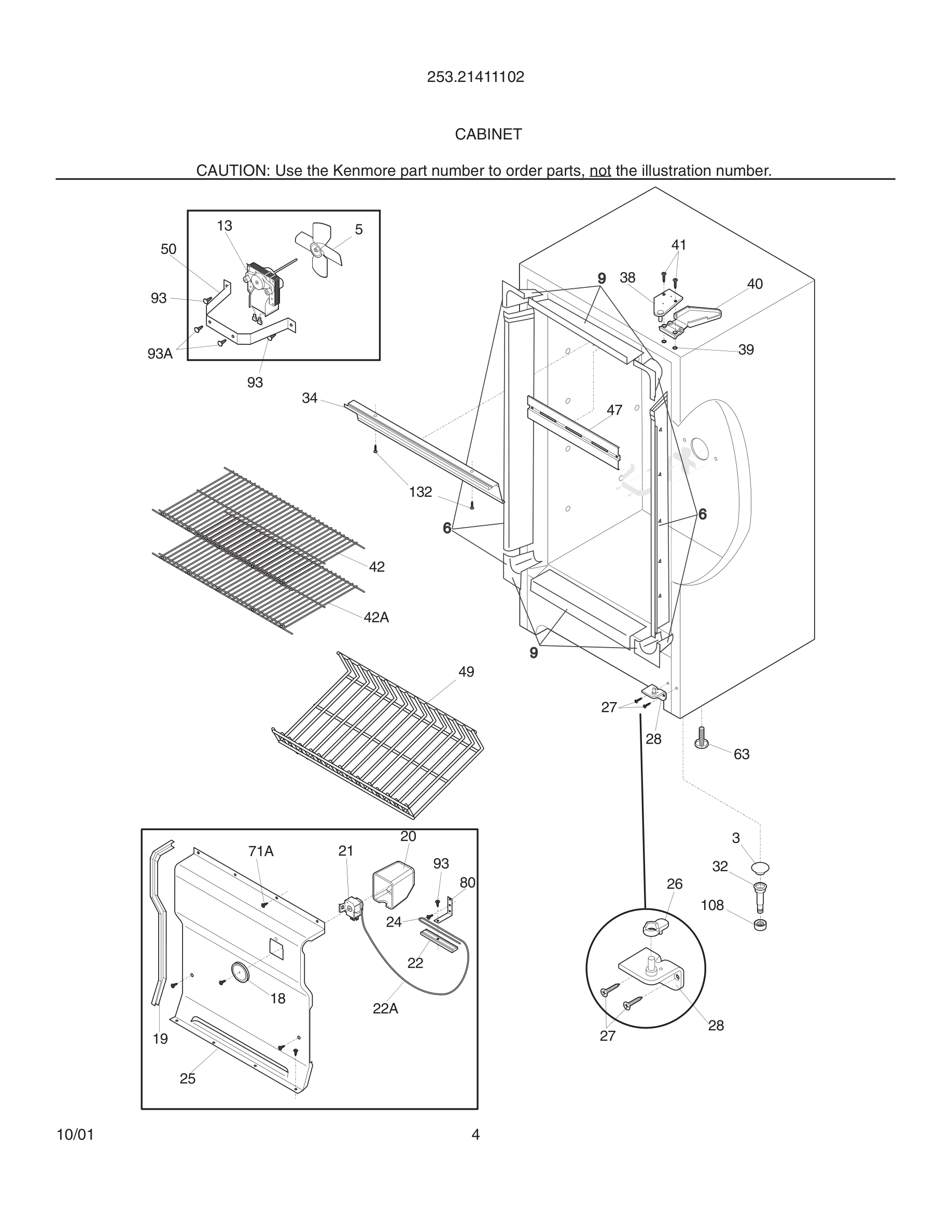

Model Kenmore 253.21411102 FREEZER – Common Parts & Diagrams

*
Insulation,drain tube
Insulation,drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve-tube insert
Sleeve-tube insert WCI 216502500 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216821700 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
18
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket,evap cover
Gasket,evap cover WCI 216204900 Contact Us For Availability
View on Model
19
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216788000 No Longer Available
View on Model
24
Bracket
Bracket WCI 08016580 Contact Us For Availability
View on Model
26
Ramp,closer ,door
Ramp,closer ,door WCI 216503300 Contact Us For Availability
View on Model
29#
Compressor,w/o electricals
Compressor,w/o electricals WCI 216784300 Contact Us For Availability
View on Model
32
Valve-breather
Valve-breather WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216808900 Contact Us For Availability
View on Model
41
Screw-top hinge
Screw-top hinge WCI 5303212937 Contact Us For Availability
View on Model
42
Shelf,16.69 X 23.88 WH,16.69x23.88 ,white
Shelf,16.69 X 23.88 WH,16.69x23.88 ,white WCI 216546100 Contact Us For Availability
View on Model
42A
Shelf,14.50 X 23.88 WH,14.50x23.88 ,white
Shelf,14.50 X 23.88 WH,14.50x23.88 ,white WCI 216546200 Contact Us For Availability
View on Model
49
Trivet
Trivet WCI 216278800 Contact Us For Availability
View on Model
50
Bracket-motor mtg fan
Bracket-motor mtg fan WCI 216394000 Contact Us For Availability
View on Model
64
Plug-button,base door
Plug-button,base door WCI 216403700 Contact Us For Availability
View on Model
80
Bracket,control
Bracket,control WCI 06594601 Contact Us For Availability
View on Model
87
Screw
Screw WCI 08037849 Contact Us For Availability
View on Model
93A
Screw
Screw WCI 5303302760 Contact Us For Availability
View on Model
108
Trap-drain
Trap-drain WCI 216388600 Contact Us For Availability
View on Model
130
Support-evaporator
Support-evaporator WCI 216730400 Contact Us For Availability
View on Model
132
Screw,6-20AB x 3/8
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
