Model Kenmore 253.21211101 FREEZER – Common Parts & Diagrams

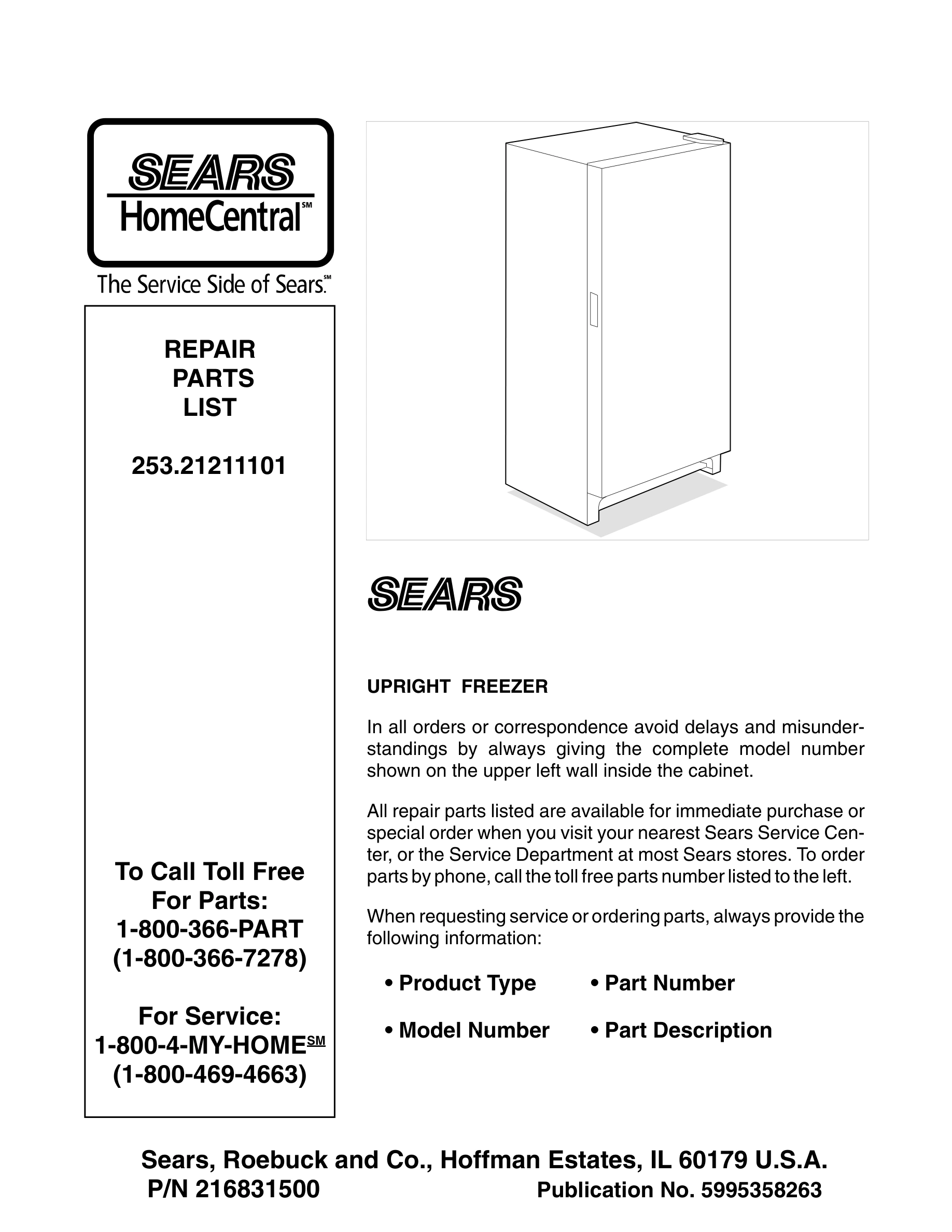

01 - COVER

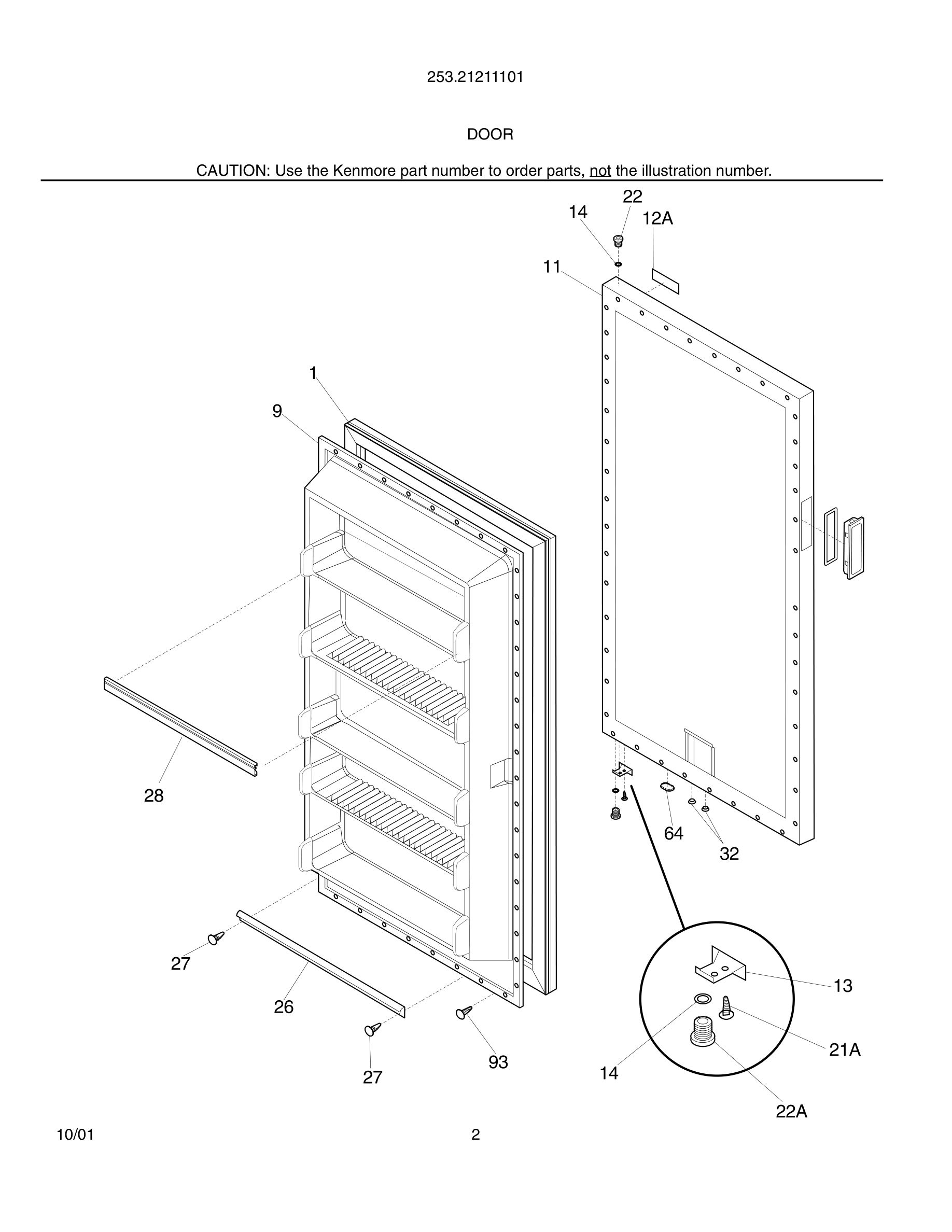

03 - DOOR

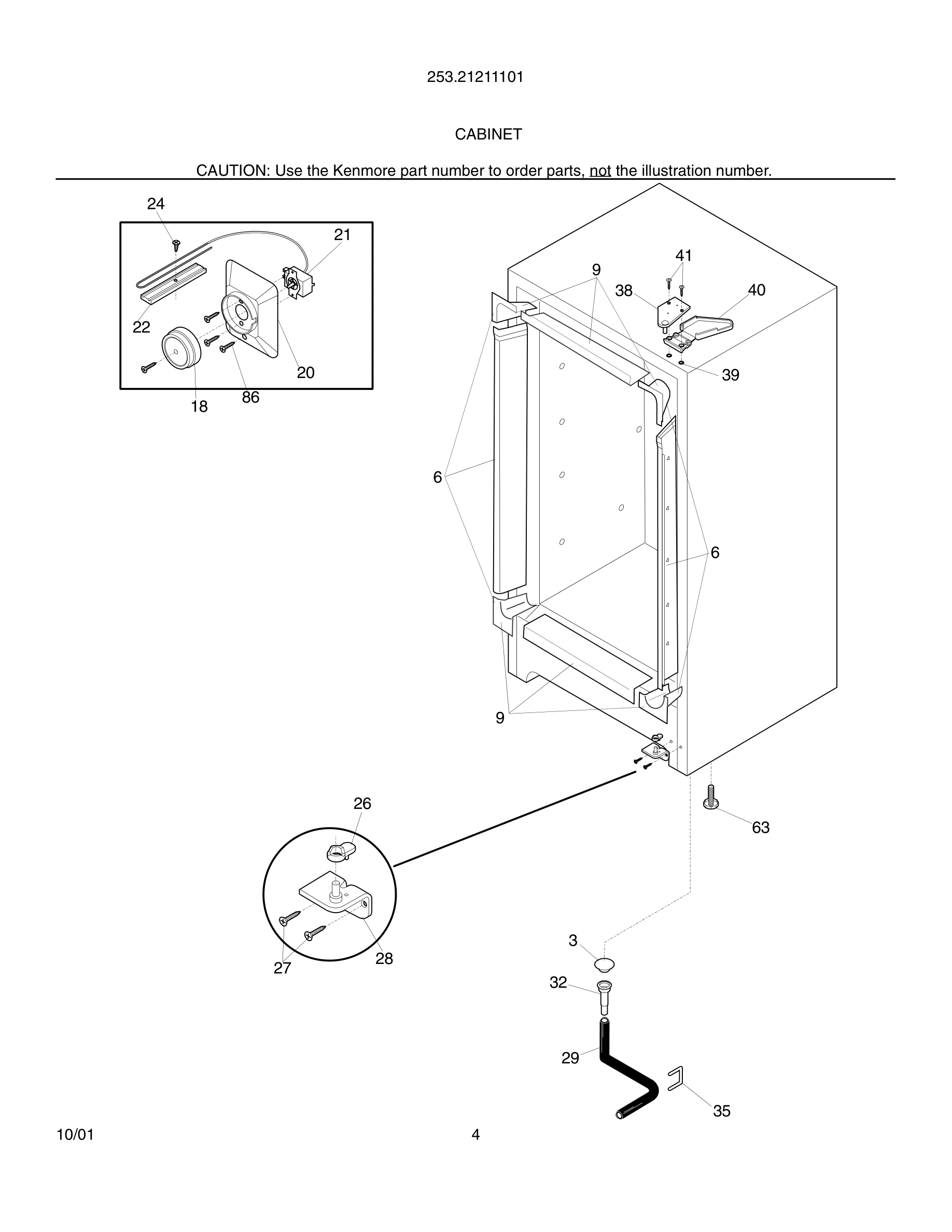

05 - CABINET

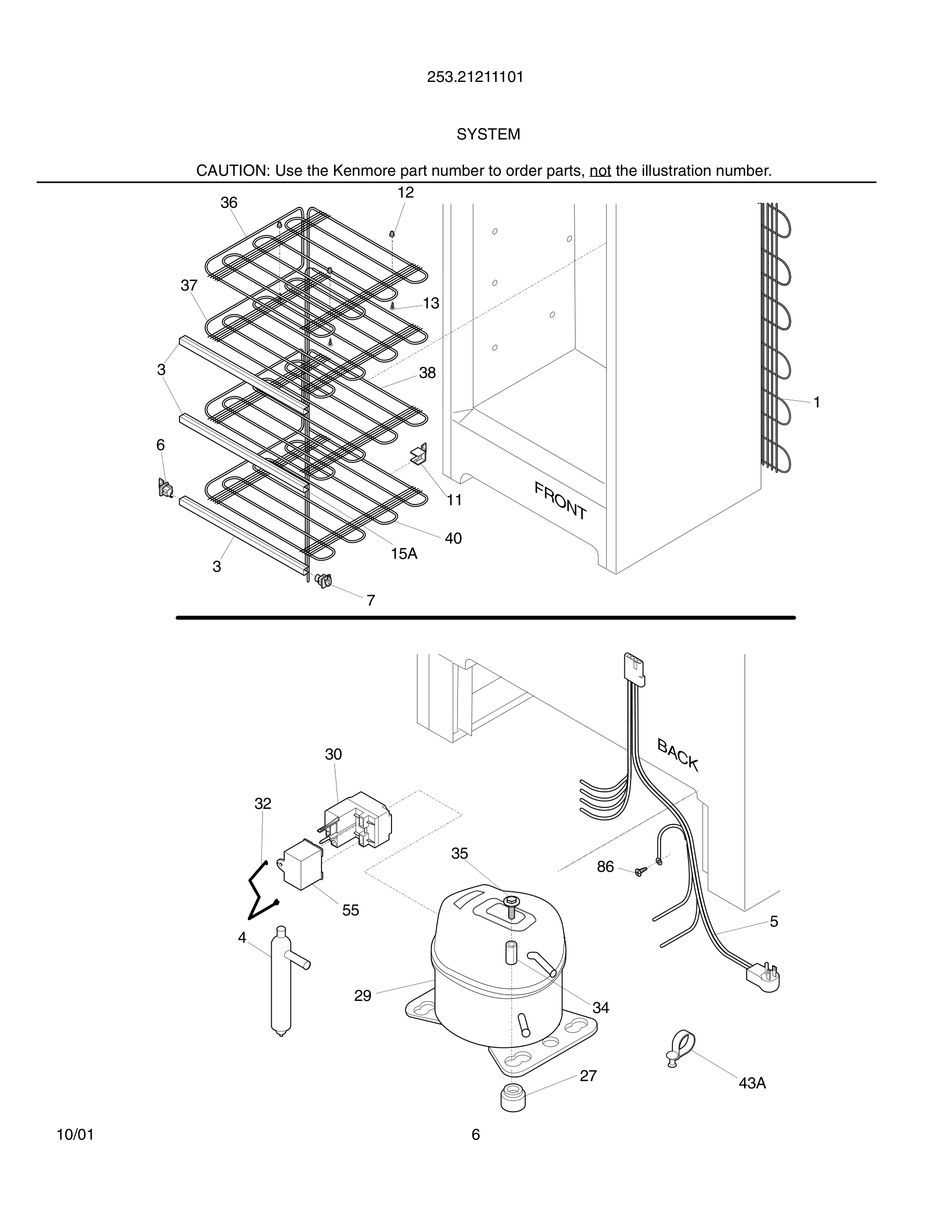

07 - SYSTEM
Common parts from model Kenmore 253.21211101 FREEZER
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Sleeve-tube insert WCI 216502500 Contact Us For Availability
3
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
5#
Harness,electrical WCI 216791400 Contact Us For Availability
11
Support-rear shelf WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
13
Screw,hex sems ,8-18AB x 1.00 ,evap WCI 216138900 Contact Us For Availability
15A
Heat Exchanger WCI 216404900 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
28
Hinge-bottom WCI 216247400 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
32
Clip,controller WCI 216694500 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
36
Grid-top evaporator WCI 216069700 Contact Us For Availability
37#
Shelf-top evaporator WCI 216069800 Contact Us For Availability
38
Hinge-upper WCI 5303925086 Contact Us For Availability
38#
Shelf-middle evaporator WCI 216069900 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
40
Cover-hinge WCI 5303212912 Contact Us For Availability
40#
Shelf-bottom evaporator WCI 216070000 Contact Us For Availability
41
Screw-top hinge WCI 5303212937 Contact Us For Availability
55
Capacitor-run,180 VAC ,15 microfarad WCI 216696700 Contact Us For Availability
64
Plug-button,base door WCI 216403700 Contact Us For Availability
× ![]()
