Model Kenmore 253.21021103 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

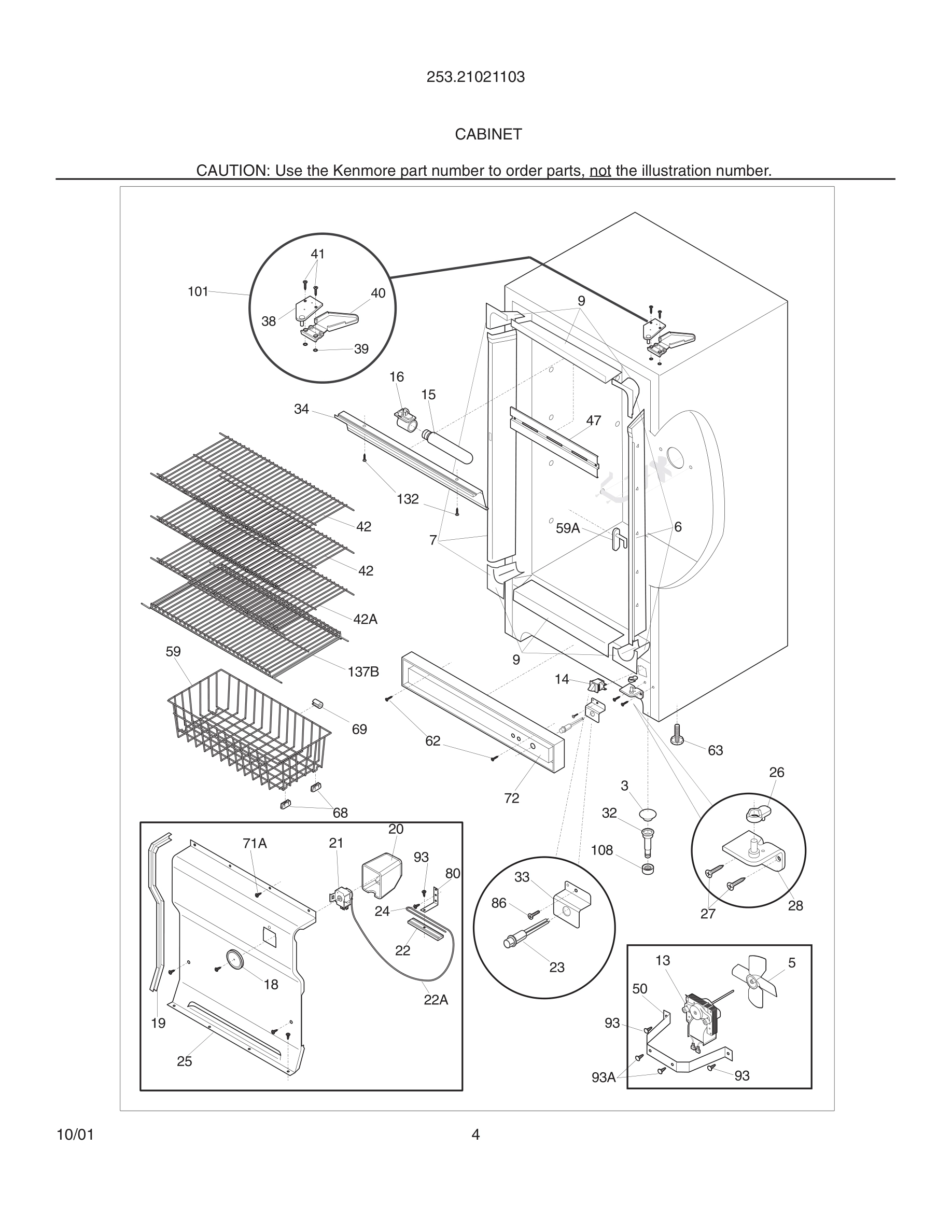

05 - CABINET
Common parts from model Kenmore 253.21021103 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
19
Gasket-cover evap WCI 216204901 Contact Us For Availability
22
Clamp,cap tube ,cold control WCI 216823500 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
33*
Bracket,signal light WCI 216511601 Contact Us For Availability
34
Shield-light WCI 216816200 Contact Us For Availability
38
Hinge-upper WCI 216808900 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
42
Shelf,wire ,16.69x26.88 ,white ,(3) WCI 216458500 Contact Us For Availability
42A
Shelf,14.50x27.88 ,WH WCI 216458400 Contact Us For Availability
50
Bracket-motor mtg fan WCI 216394000 Contact Us For Availability
59
Basket WCI 216826500 Contact Us For Availability
59A
Stop-basket WCI 09948791 No Longer Available
64
Plug-button,base door WCI 216403700 Contact Us For Availability
72
Shelf,tilt out ,wire WCI 216514100 Contact Us For Availability
72
Grille/Kickplate WCI 216511500 Contact Us For Availability
80
Bracket,control WCI 06594601 Contact Us For Availability
93A
Screw WCI 5303302760 Contact Us For Availability
101
Kit-top hinge WCI 216835200 Contact Us For Availability
108
Trap-drain WCI 216388600 Contact Us For Availability
132
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
137B
Shelf-fixed w/frame,white WCI 216546000 Contact Us For Availability
× ![]()
