Model Electrolux 253.19821991 Chest Freezer (Kenmore 25319821991) – Common Parts & Diagrams
CABINET
CABINET
All Parts
All Parts
SYSTEM

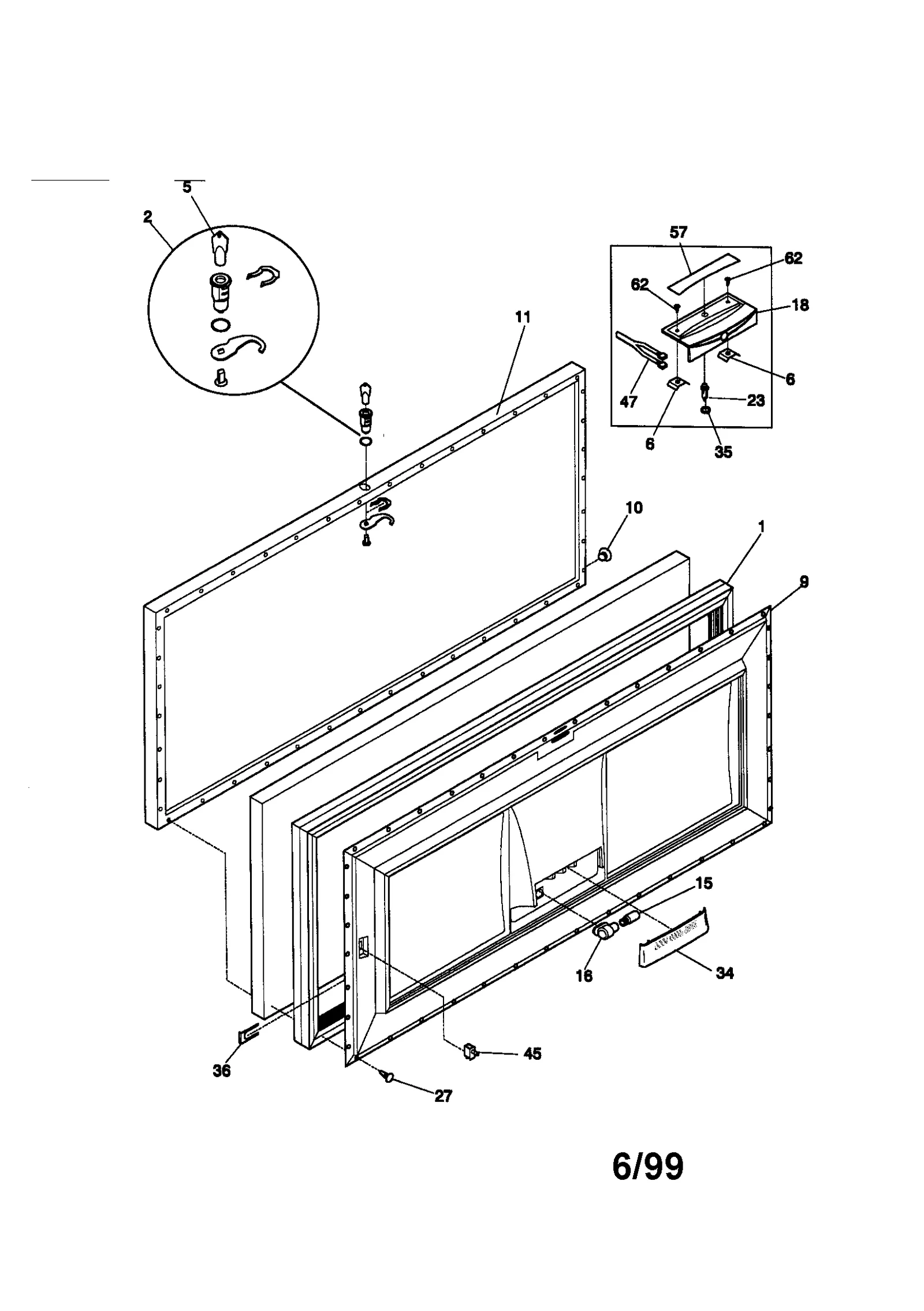

DOOR
Common parts from model Electrolux 253.19821991 Chest Freezer (Kenmore 25319821991)
1
Latch (White) WCI 5303208488 Contact Us For Availability
1
Freezer Condenser Coil WCI 5303280307 Contact Us For Availability
1A
Supprt Latch WCI 216080800 Contact Us For Availability
2
Freezer Drain Hose Adapter WCI 216269500 Contact Us For Availability
2
Lock WCI 5303925107 Contact Us For Availability
3
Freezer Drain Plug WCI 216502600 Contact Us For Availability
4
Plug WCI 216073900 Contact Us For Availability
5
Main Harness WCI 216641600 Contact Us For Availability
6
Molding WCI 216111100 Contact Us For Availability
6
Washer WCI 5303269745 Contact Us For Availability
7
Molding WCI 216111700 Contact Us For Availability
9
Panel WCI 216059101 Contact Us For Availability
10
Plug Button (White) WCI 216141101 Contact Us For Availability
11
Wht Breaker WCI 216110800 Contact Us For Availability
11
Outer Panel WCI 216130013 Contact Us For Availability
16
Socket WCI 216039700 Contact Us For Availability
18
Control Knob WCI 216591602 Contact Us For Availability
18
Freezer Door Handle WCI 216204800 Contact Us For Availability
21
Temperature Control WCI 216532100 Contact Us For Availability
22
Clip WCI 216056400 Contact Us For Availability
23
Power Light WCI 216205300 Contact Us For Availability
28
Support WCI 5303212615 Contact Us For Availability
29
Compressor WCI 216470500 Contact Us For Availability
30
Freezer Breaker Trim, Corner WCI 216110700 Contact Us For Availability
30
Freezer Compressor Start Relay WCI 216649302 Contact Us For Availability
32
Refrigeration Appliance Compressor Terminal C WCI 216649100 Contact Us For Availability
34
Freezer Condenser Coil Spacer WCI 5303298960 Contact Us For Availability
34
Light Shield WCI 216578500 Contact Us For Availability
35
Signal Washer WCI 216205400 Contact Us For Availability
36
Freezer Door Switch Clip WCI 5306599968 Contact Us For Availability
42
Washer WCI 216232700 Contact Us For Availability
45
Freezer Defrost Switch WCI 3201509 Contact Us For Availability
47
Screw WCI 08016776 Contact Us For Availability
47
Light Harness WCI 216653100 Contact Us For Availability
48
Solenoid WCI 3201514 Contact Us For Availability
49
Clip WCI 3201513 Contact Us For Availability
50
Ground Wire WCI 216533700 Contact Us For Availability
51
Valve WCI 216161900 Contact Us For Availability
57
Decorative Overlay WCI 216508500 Contact Us For Availability
59
Basket WCI 216080300 Contact Us For Availability
75
Freezer Access Panel (White) WCI 216034301 Contact Us For Availability
85
Freezer Wire Harness WCI 216533500 Contact Us For Availability
94
Frost Indicator WCI 216140400 Contact Us For Availability
NI
Freezer Breaker Strip Insulation WCI 5303925098 Contact Us For Availability
NI
Energy Guide WCI 216487712 Contact Us For Availability
NI
Service Data Sheet WCI 216663300 Contact Us For Availability
NI
Parts List WCI 5995318317 Contact Us For Availability
× ![]()
