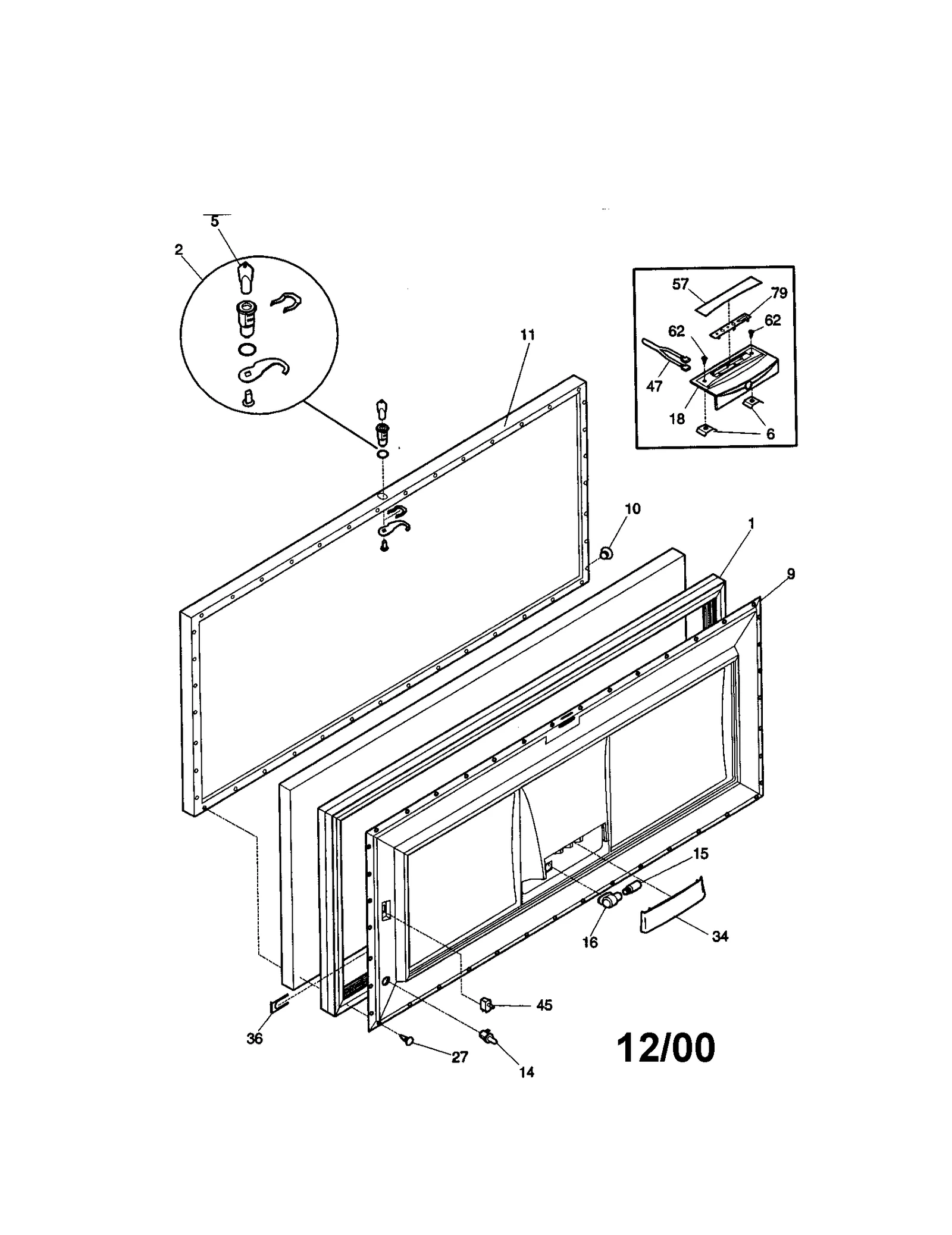

Model Electrolux 253.18351005 Freezer (Kenmore 25318351005) – Common Parts & Diagrams

1
Freezer Lid Gasket
Freezer Lid Gasket WCI 216469401 Contact Us For Availability
View on Model
2
Freezer Drain Hose Adapter
Freezer Drain Hose Adapter WCI 216269500 Contact Us For Availability
View on Model
2
Lock
Lock WCI 5303925107 Contact Us For Availability
View on Model
3
Freezer Drain Plug
Freezer Drain Plug WCI 216502600 Contact Us For Availability
View on Model
5
Freezer Wire Harness
Freezer Wire Harness WCI 216755600 Contact Us For Availability
View on Model
6
Washer
Washer WCI 5303269745 Contact Us For Availability
View on Model
9
Inner Panel
Inner Panel WCI 216688001 Contact Us For Availability
View on Model
10
Plug Button (White)
Plug Button (White) WCI 216141101 Contact Us For Availability
View on Model
11
Outer Lid Panel
Outer Lid Panel WCI 216130216 Contact Us For Availability
View on Model
16
Light Socket
Light Socket WCI 216684000 Contact Us For Availability
View on Model
18
Handle
Handle WCI 216204000 Contact Us For Availability
View on Model
21
Temperature Control
Temperature Control WCI 216562400 Contact Us For Availability
View on Model
22
Clip
Clip WCI 216056400 Contact Us For Availability
View on Model
28
Support
Support WCI 5303212615 Contact Us For Availability
View on Model
30
Freezer Breaker Trim, Corner
Freezer Breaker Trim, Corner WCI 216110700 Contact Us For Availability
View on Model
30
Freezer Electronic Control Board
Freezer Electronic Control Board WCI 216649303 Contact Us For Availability
View on Model
34
Light Shield
Light Shield WCI 216578500 Contact Us For Availability
View on Model
36
Freezer Door Switch Clip
Freezer Door Switch Clip WCI 5306599968 Contact Us For Availability
View on Model
42
Washer
Washer WCI 216232700 Contact Us For Availability
View on Model
45
Freezer Defrost Switch
Freezer Defrost Switch WCI 3201509 Contact Us For Availability
View on Model
47
Light Harness
Light Harness WCI 216756700 Contact Us For Availability
View on Model
48
Solenoid
Solenoid WCI 216700800 Contact Us For Availability
View on Model
49
Nut
Nut WCI 216722800 Contact Us For Availability
View on Model
51
Freezer Defrost Valve
Freezer Defrost Valve WCI 216718400 Contact Us For Availability
View on Model
54
Module
Module WCI 216264400 Contact Us For Availability
View on Model
57
Overlay
Overlay WCI 216508600 Contact Us For Availability
View on Model
59
Basket
Basket WCI 216080300 Contact Us For Availability
View on Model
59A
Freezer Basket
Freezer Basket WCI 216080700 Contact Us For Availability
View on Model
75
Freezer Access Panel (White)
Freezer Access Panel (White) WCI 216034301 Contact Us For Availability
View on Model
79
Module
Module WCI 216172100 Contact Us For Availability
View on Model
94
Frost Indicator
Frost Indicator WCI 216140400 Contact Us For Availability
View on Model
100
Track
Track WCI 216082000 Contact Us For Availability
View on Model
NI
Freezer Breaker Strip Insulation
Freezer Breaker Strip Insulation WCI 5303925098 Contact Us For Availability
View on Model
NI
Freezer Owner's Manual
Freezer Owner's Manual WCI 216742200 Contact Us For Availability
View on Model
NI
Service Data Sheet
Service Data Sheet WCI 216759200 Contact Us For Availability
View on Model
NI
Freezer Condenser Coil Spacer
Freezer Condenser Coil Spacer WCI 5303298960 Contact Us For Availability
View on Model
NI
Parts List
Parts List WCI 5995342390 Contact Us For Availability
View on Model
