Model Kenmore 253.16949106 FREEZER – Common Parts & Diagrams

Common parts from model Kenmore 253.16949106 FREEZER

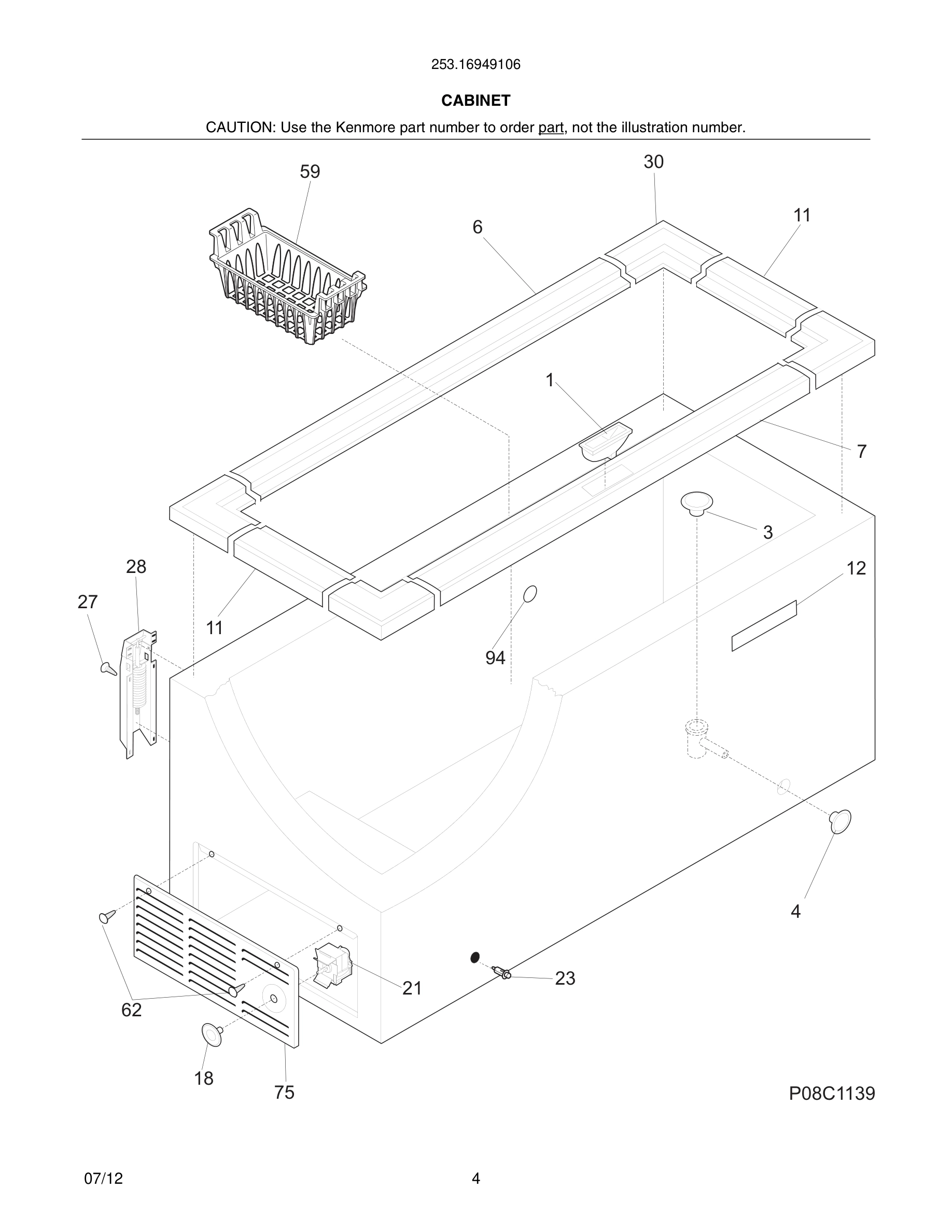

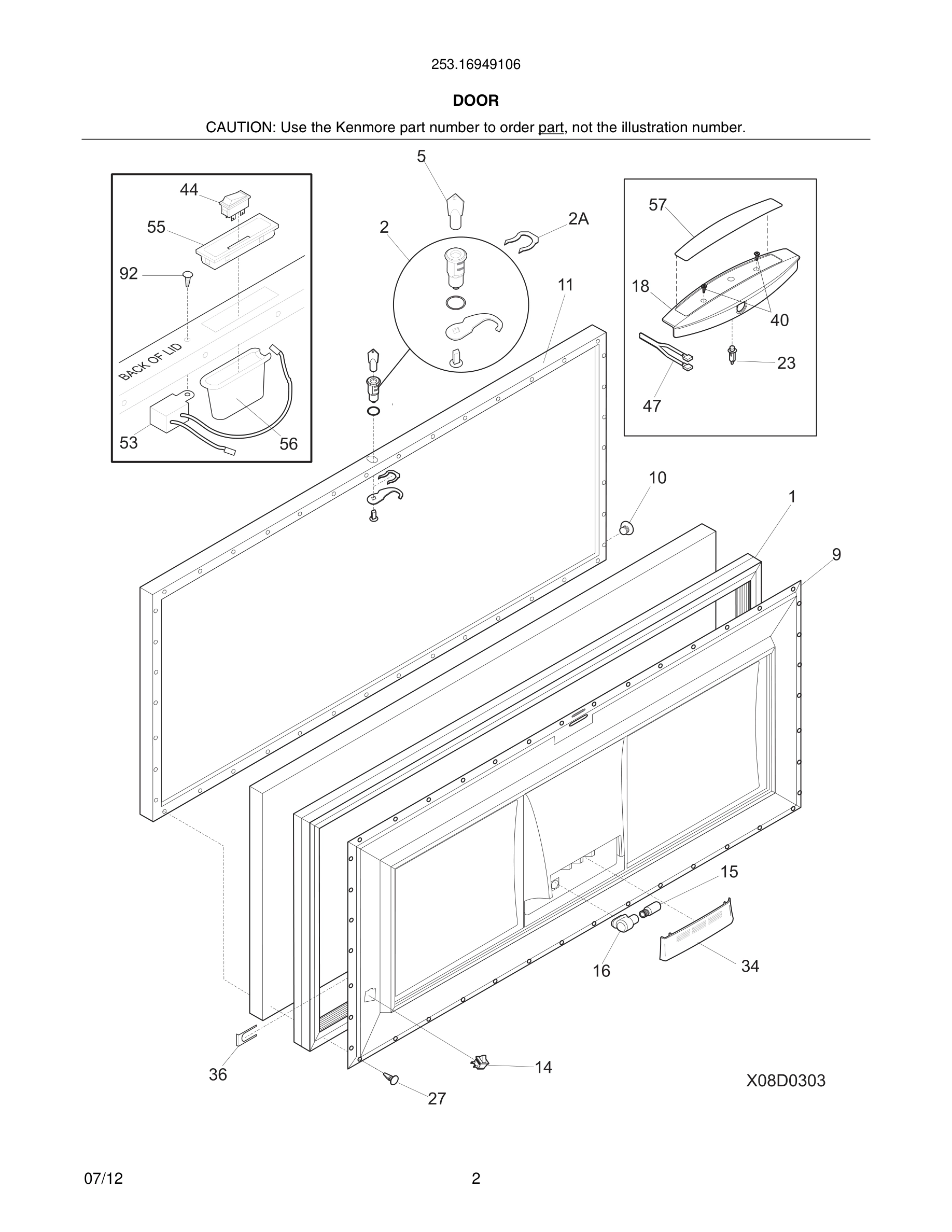

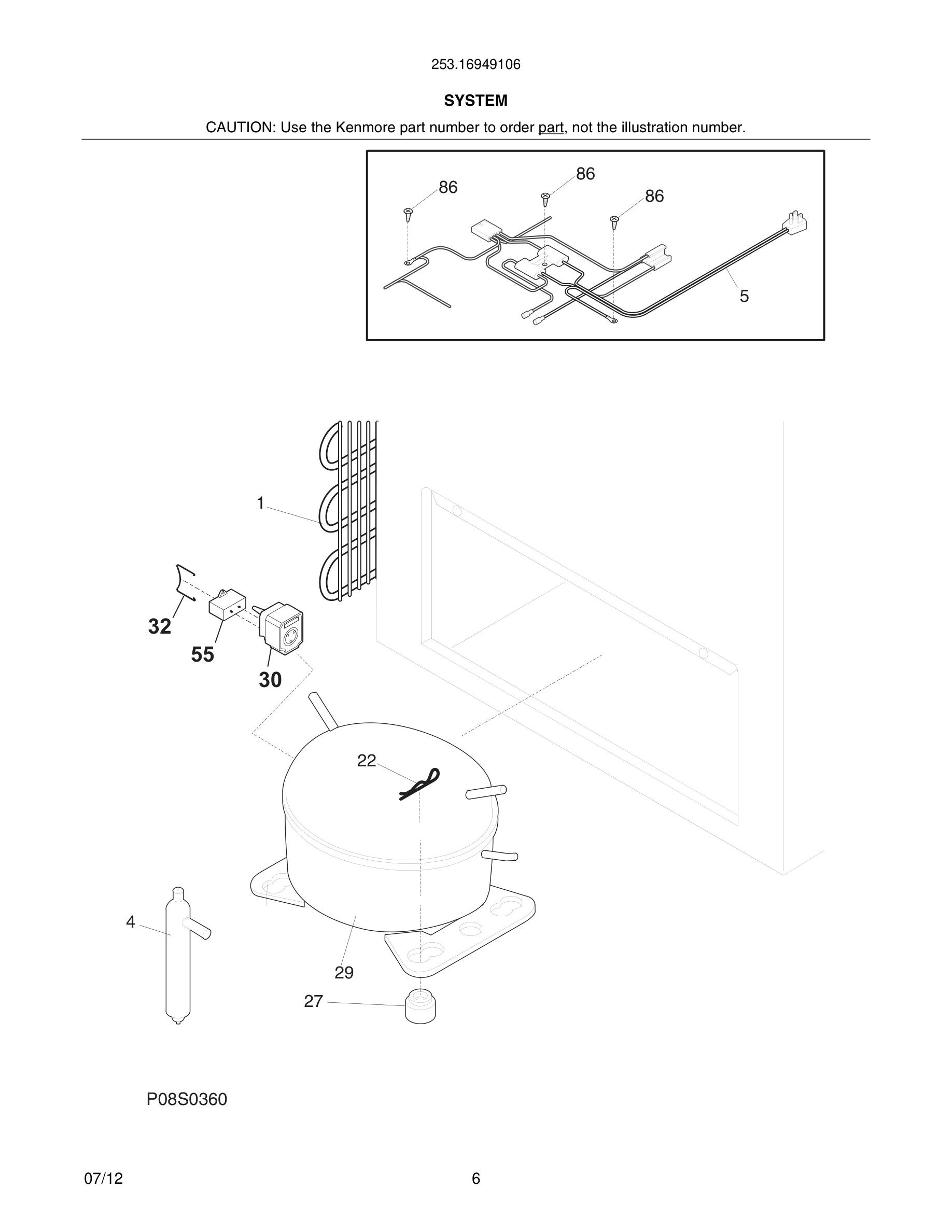

01 - COVER

Print

• This Diagram
• All Diagrams

*

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 View Details $13.61

View on Model

*

Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability

View on Model

1

GASKET C09 BLACK WCI 216481014 Contact Us For Availability

View on Model

1#

Condenser WCI 5300120781 Contact Us For Availability

View on Model

2

Lock Assy WCI 297090200 Contact Us For Availability

View on Model

2A

297090900 Frigidaire Freezer Clip Backorder WCI 297090900 View Details $6.80

View on Model

3

Plug, drain, interior WCI 216502600 Contact Us For Availability

View on Model

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 View Details $16.79

View on Model

5

297147700 Frigidaire Freezer Plastic Door Key In Stock WCI 297147700 View Details $4.73

View on Model

5#

Harness, main WCI 297415001 Contact Us For Availability

View on Model

9

Panel-inner door, frzr WCI 216967500 Contact Us For Availability

View on Model

11

Lid, black WCI 216117936 Contact Us For Availability

View on Model

12

Nameplate, black, Kenmore WCI 242052402 Contact Us For Availability

View on Model

14

216822900 Frigidaire Refrigerator Switch In Stock WCI 216822900 View Details $44.37

View on Model

15

241552802 Frigidaire Refrigerator Light Bulb Backorder WCI 241552802 View Details $25.37

View on Model

16

297139501 Frigidaire Refrigerator Socket Backorder WCI 297139501 View Details $12.20

View on Model

22

242037701 Frigidaire Refrigerator Compressor In Stock WCI 242037701 View Details $1.78

View on Model

23

Light-signal, amber WCI 216212711 Contact Us For Availability

View on Model

27

216337701 Frigidaire Refrigerator Screw Backorder WCI 216337701 View Details $8.58

View on Model

27

216498900 Frigidaire Refrigerator Grommet In Stock WCI 216498900 View Details $8.15

View on Model

27

5303212828 Frigidaire Refrigerator Primary Cl In Stock WCI 5303212828 View Details $10.41

View on Model

27*

5304406520 Frigidaire Refrigerator Clip 40 Pa In Stock WCI 5304406520 View Details $81.17

View on Model

29#

5304507765 Frigidaire Refrigerator Compressor In Stock WCI 5304507765 View Details $424.82

View on Model

30

216954235 Frigidaire Refrigerator Compressor In Stock WCI 216954235 View Details $51.56

View on Model

32

5304497418 Frigidaire Refrigerator Clip Backorder WCI 5304497418 View Details $5.86

View on Model

34

Shield, light WCI 297013900 Contact Us For Availability

View on Model

40

Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability

View on Model

55

297286812 Frigidaire Run Capacitor Assembly In Stock WCI 297286812 View Details $7.03

View on Model

59

216848200 Frigidaire Freezer Basket In Stock WCI 216848200 View Details $33.98

View on Model

62

216858001 Frigidaire Refrigerator Screw In Stock WCI 216858001 View Details $6.80

View on Model

86

Screw, PH, 8-32 x 1/2, wiring harness WCI 216707801 Contact Us For Availability

View on Model

94

Lens, frost indicator, blue WCI 216140400 Contact Us For Availability

View on Model

×
