Model Kenmore 253.16582100 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

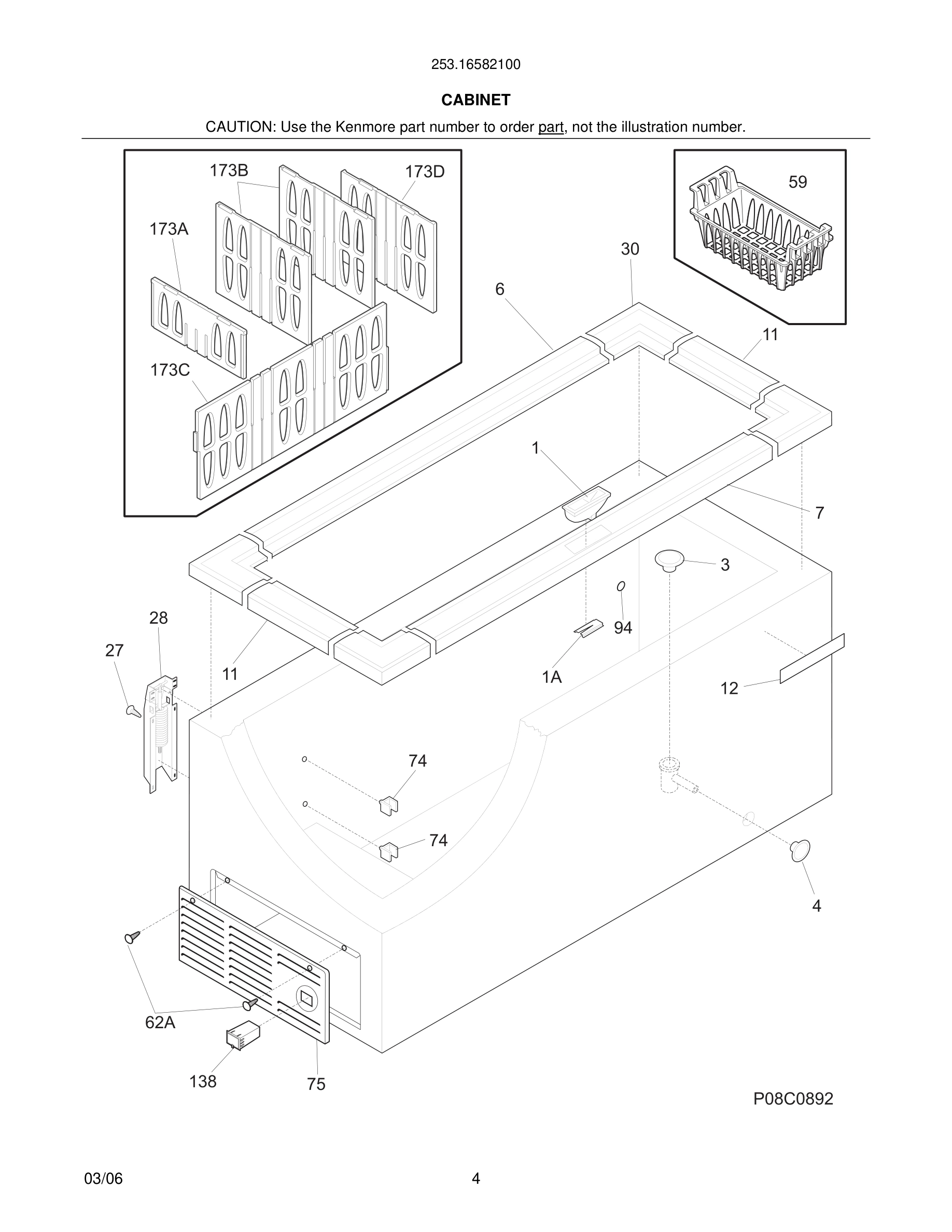

05 - CABINET

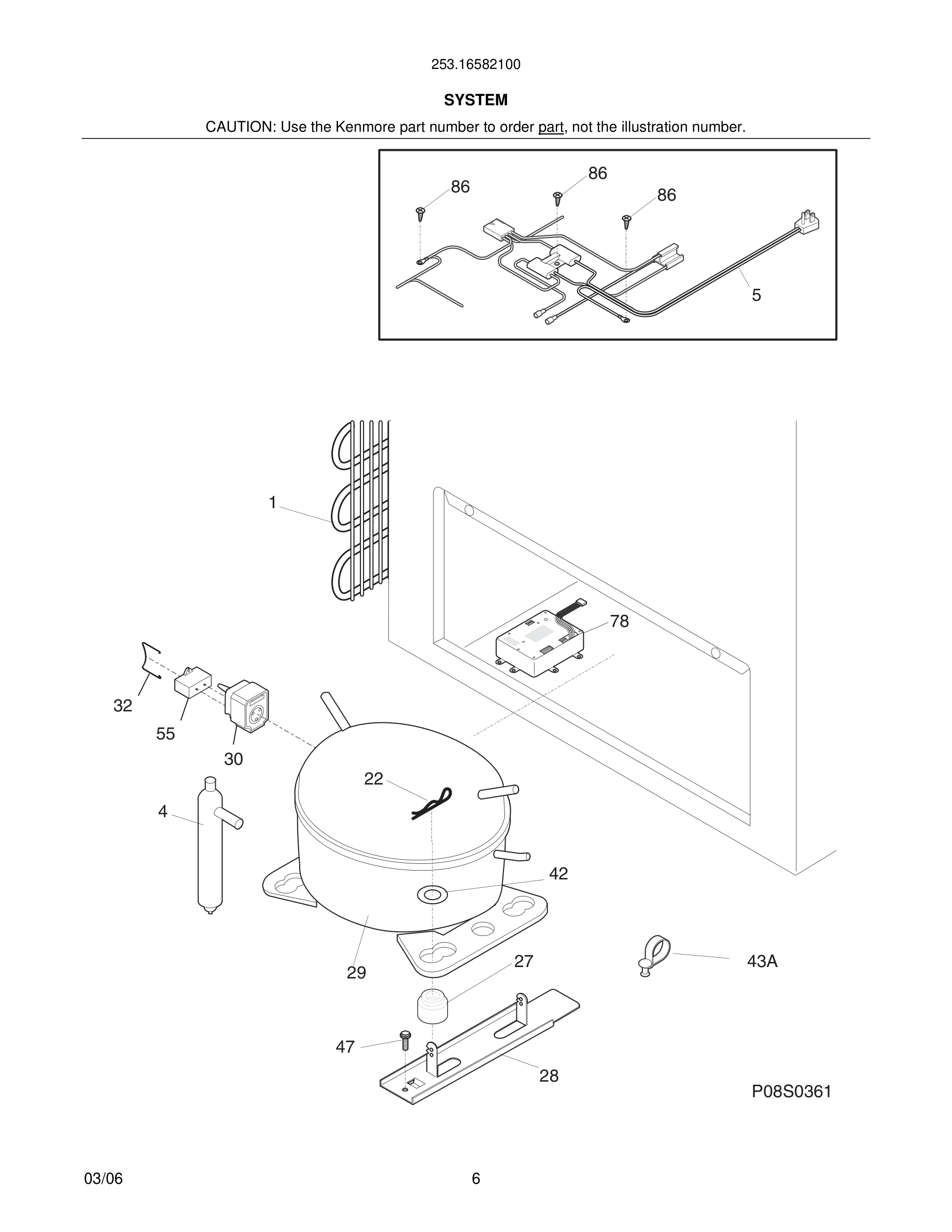

07 - SYSTEM
Common parts from model Kenmore 253.16582100 FREEZER
*
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
*
Wire, battery WCI 216955400 Contact Us For Availability
*
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
1
Gasket-door, white WCI 216469301 Contact Us For Availability
1
Catch-lock, white WCI 216909800 Contact Us For Availability
1A
Support, lock catch clip WCI 216818900 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
4
Plug, drain, exterior WCI 297013600 Contact Us For Availability
5#
Harness-main WCI 297022900 Contact Us For Availability
9
Panel-inner\lid door, white WCI 216910702 Contact Us For Availability
10
Plug button, 1/4", white WCI 216923001 No Longer Available
11
Panel-outer door, white WCI 216032423 Contact Us For Availability
18
Handle, white WCI 216944101 Contact Us For Availability
22
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
28
Support, compressor WCI 5303212615 Contact Us For Availability
30#
Controller WCI 297048300 Contact Us For Availability
40
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
42
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
47#
Harness, electrical, lid WCI 216955100 Contact Us For Availability
59
Basket, blue, (3) WCI 216916203 Contact Us For Availability
94
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
138
Holder-battery, assy WCI 216856800 Contact Us For Availability
173A
Divider, chest, step WCI 297063000 Contact Us For Availability
173B
Divider, small chest, (2) WCI 297063100 Contact Us For Availability
173C
Divider WCI 297063301 Contact Us For Availability
173D
Divider, Divider End WCI 297073100 Contact Us For Availability
× ![]()
