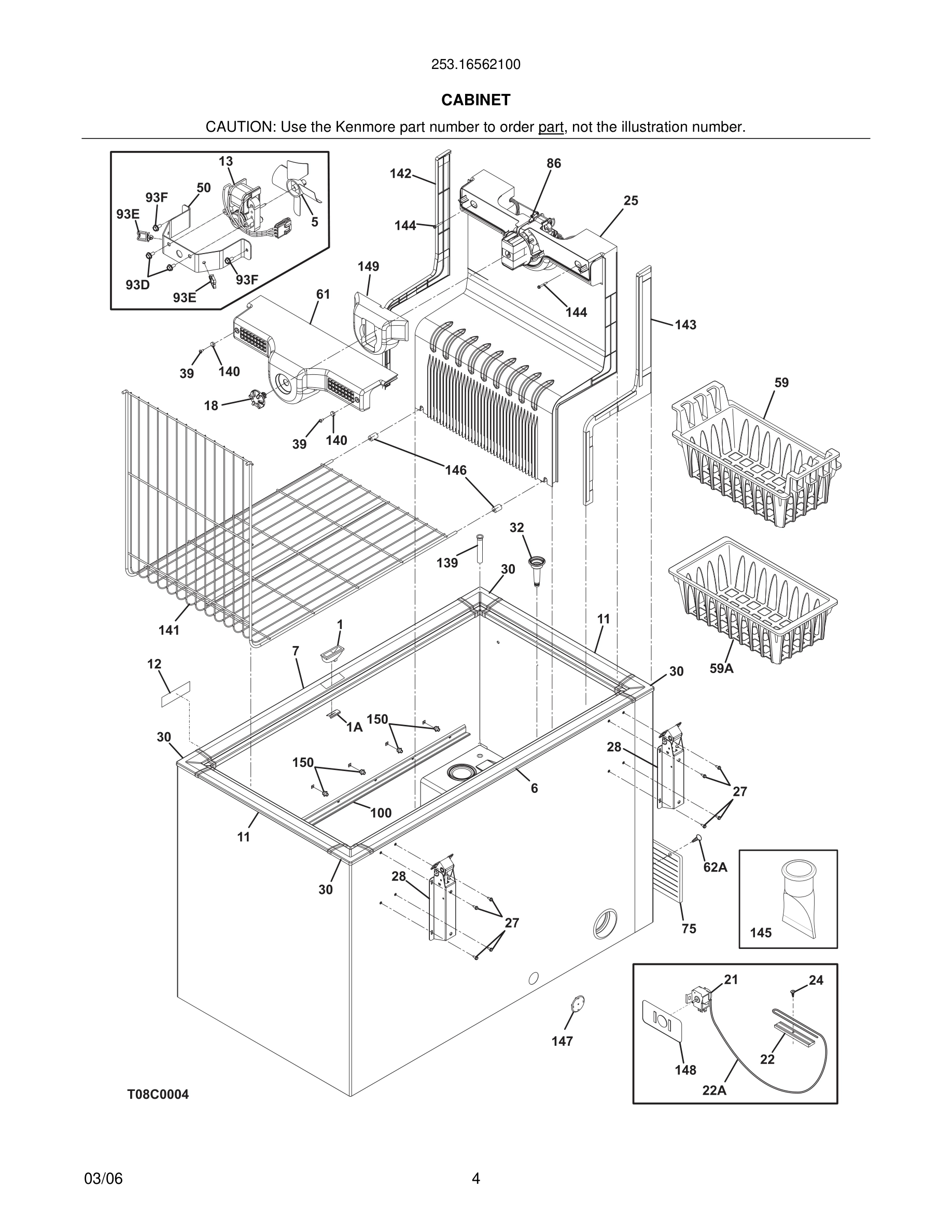

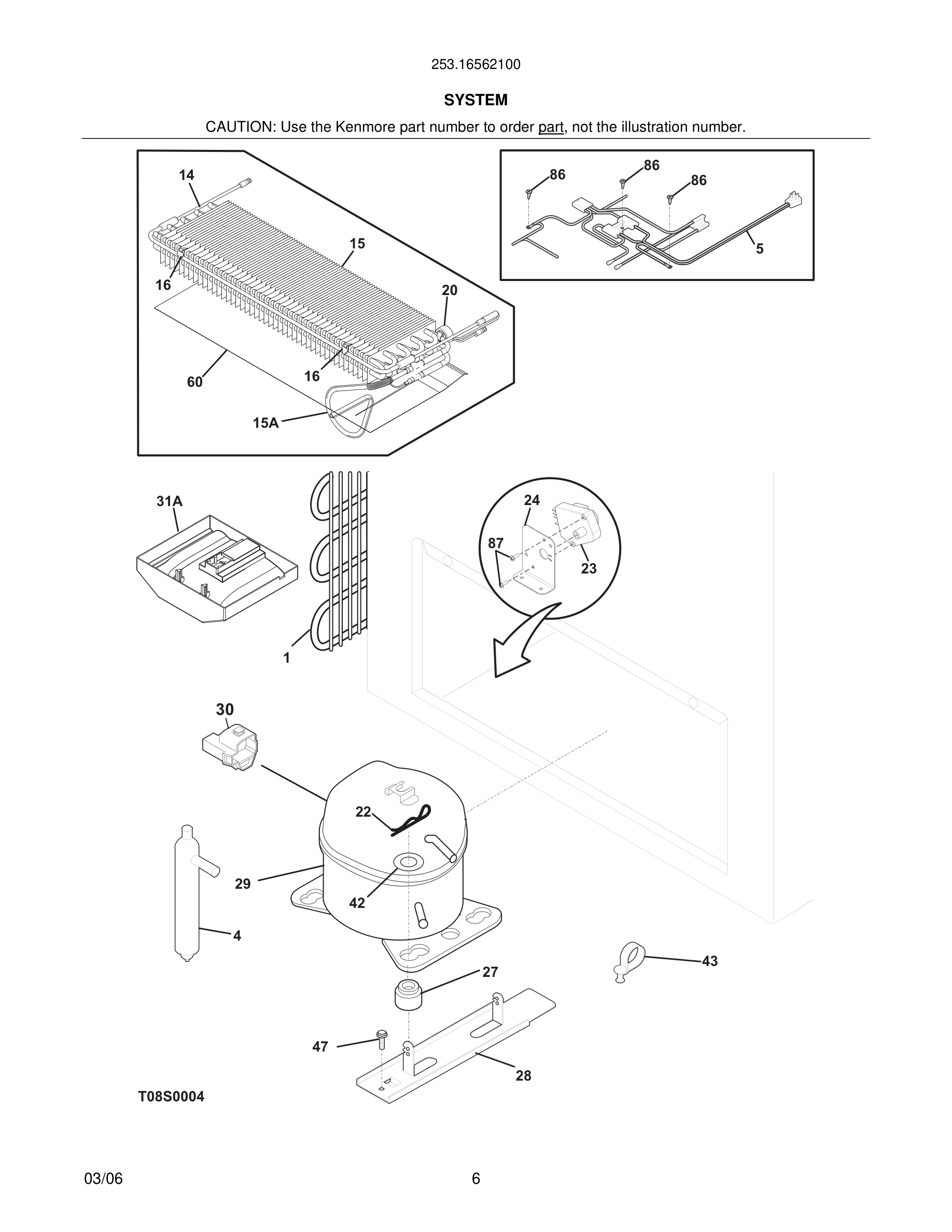

Model Kenmore 253.16562100 FREEZER – Common Parts & Diagrams

*
Insulation-door, fiberglass, (bulk)
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
View on Model
*
Spacer-tube, 0.237" ID
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
1
Catch-lock, white
Catch-lock, white WCI 216909800 Contact Us For Availability
View on Model
1A
Support, lock catch clip
Support, lock catch clip WCI 216818900 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 297023000 Contact Us For Availability
View on Model
9
Panel-inner door, frzr
Panel-inner door, frzr WCI 216829304 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
11
Lid, white
Lid, white WCI 216129931 Contact Us For Availability
View on Model
14#
Heater-defrost
Heater-defrost WCI 216967700 Contact Us For Availability
View on Model
15#
Evaporator, 2 pass
Evaporator, 2 pass WCI 216965200 Contact Us For Availability
View on Model
15A
Heat Exchanger
Heat Exchanger WCI 297031600 Contact Us For Availability
View on Model
18
Handle, white
Handle, white WCI 216884802 Contact Us For Availability
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
24
Bracket-timer
Bracket-timer WCI 216968500 Contact Us For Availability
View on Model
28
Support, compressor
Support, compressor WCI 5303212615 Contact Us For Availability
View on Model
30
Breaker, corners
Breaker, corners WCI 216110700 Contact Us For Availability
View on Model
31A
Pan-drain, evaporator
Pan-drain, evaporator WCI 216968800 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
42
Washer, flat, 1"OD x 0.531"ID
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
View on Model
50
Bracket, fan motor mount
Bracket, fan motor mount WCI 216964800 Contact Us For Availability
View on Model
59
Basket, upper, (2)
Basket, upper, (2) WCI 216916200 Contact Us For Availability
View on Model
60
Shield-heat
Shield-heat WCI 216964900 Contact Us For Availability
View on Model
61
Cover, airflow
Cover, airflow WCI 216965600 Contact Us For Availability
View on Model
75
Panel-access, white
Panel-access, white WCI 216034307 Contact Us For Availability
View on Model
87
Screw, ph truss head, 6-32(T) x 0.500, thread
Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability
View on Model
93E
Clip, wire
Clip, wire WCI 216327800 Contact Us For Availability
View on Model
100
Track-basket
Track-basket WCI 216995200 Contact Us For Availability
View on Model
139
Sleeve, suction line
Sleeve, suction line WCI 216965800 Contact Us For Availability
View on Model
140
Cover-screw
Cover-screw WCI 216968300 Contact Us For Availability
View on Model
141
Trivet, floor vent
Trivet, floor vent WCI 216968400 Contact Us For Availability
View on Model
142
Spacer, left, with tape
Spacer, left, with tape WCI 216989300 Contact Us For Availability
View on Model
143
Spacer, right, with tape
Spacer, right, with tape WCI 216989400 Contact Us For Availability
View on Model
145
Drain, valve
Drain, valve WCI 216968600 Contact Us For Availability
View on Model
146
Spacer, shelf
Spacer, shelf WCI 216314502 Contact Us For Availability
View on Model
147
Plug, foam
Plug, foam WCI 216650200 Contact Us For Availability
View on Model
148
Bracket, cold control
Bracket, cold control WCI 216964700 Contact Us For Availability
View on Model
149
Cover, molded, foam
Cover, molded, foam WCI 216965700 Contact Us For Availability
View on Model
150
Support, track-basket
Support, track-basket WCI 216997400 Contact Us For Availability
View on Model
