Model Kenmore 253.16542100 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

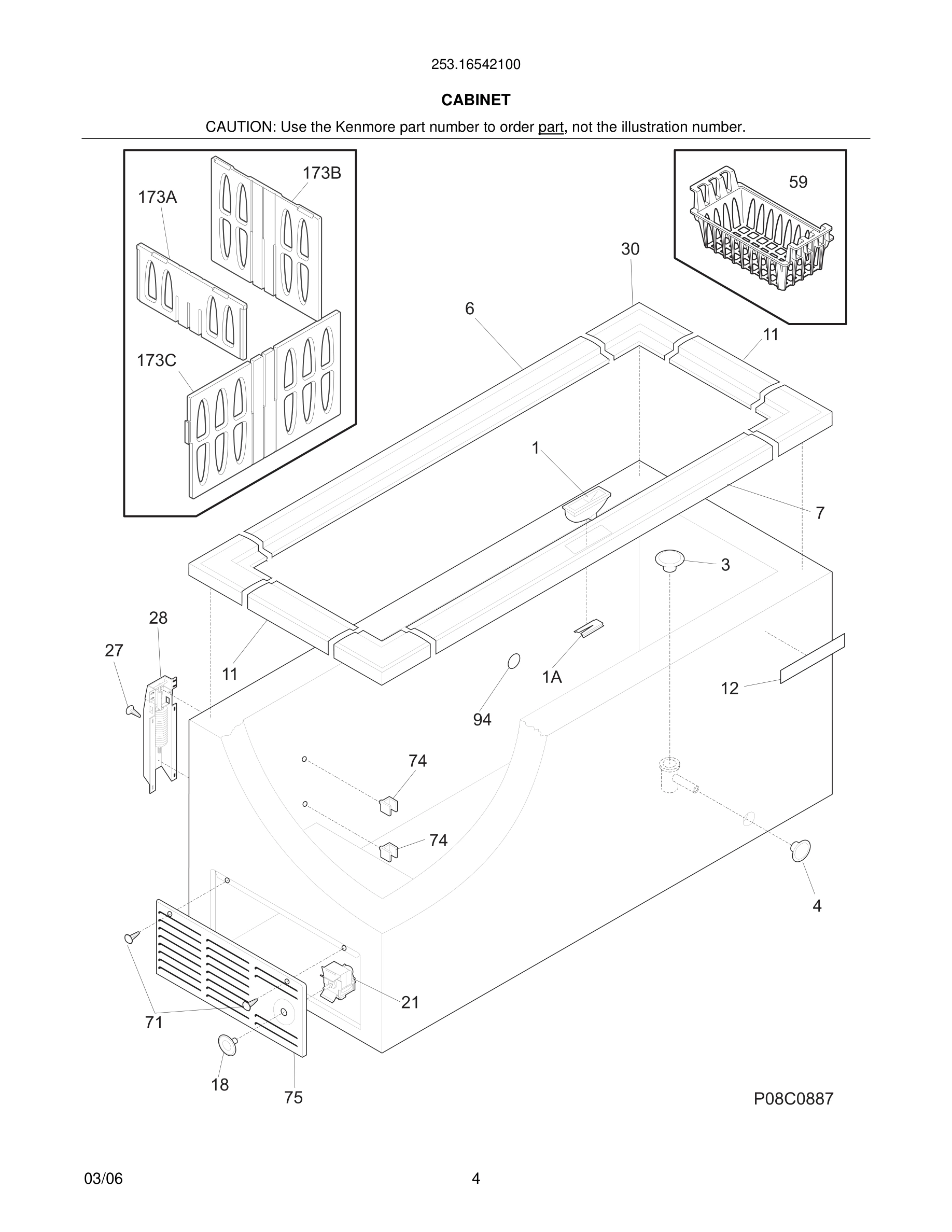

05 - CABINET

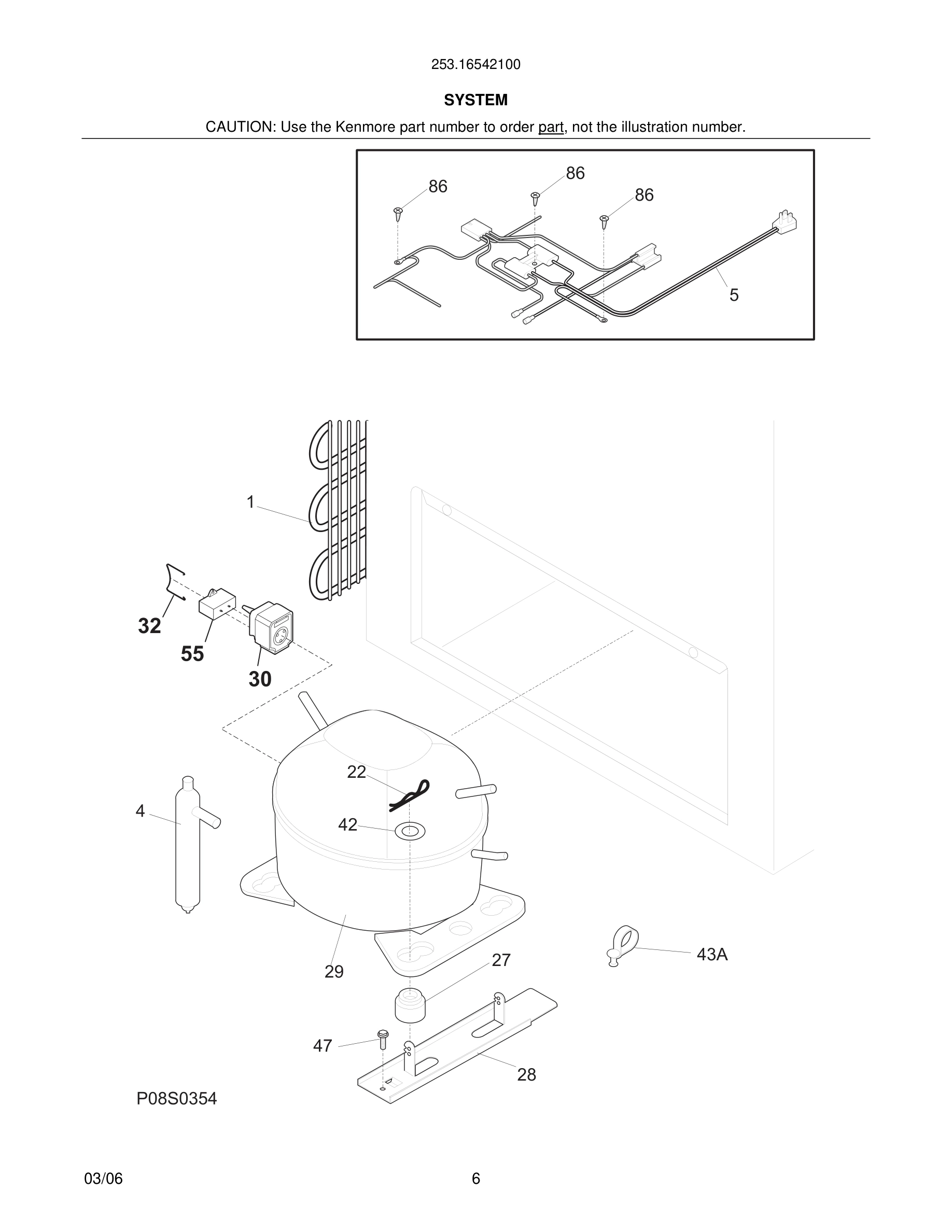

07 - SYSTEM
Common parts from model Kenmore 253.16542100 FREEZER
*
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
1
Catch-lock, white WCI 216909800 Contact Us For Availability
1A
Support, lock catch clip WCI 216818900 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
4
Plug, drain, exterior WCI 297013600 Contact Us For Availability
5#
Harness-main WCI 216987300 Contact Us For Availability
9
Panel-inner door, frzr WCI 216829304 Contact Us For Availability
10
Plug button, 1/4", white WCI 216923001 No Longer Available
11
Lid, white WCI 216129931 Contact Us For Availability
18
Handle, white WCI 216884802 Contact Us For Availability
22
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
28
Support, compressor WCI 5303212615 Contact Us For Availability
30
Controller WCI 216954210 No Longer Available
32
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
40
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
42
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
59
Basket, blue, (2) WCI 216916203 Contact Us For Availability
75
Panel, access, white WCI 216034301 Contact Us For Availability
173A
Divider, chest, step WCI 297063000 Contact Us For Availability
173B
Divider, small chest WCI 297063100 Contact Us For Availability
173C
Divider WCI 297063200 Contact Us For Availability
× ![]()
