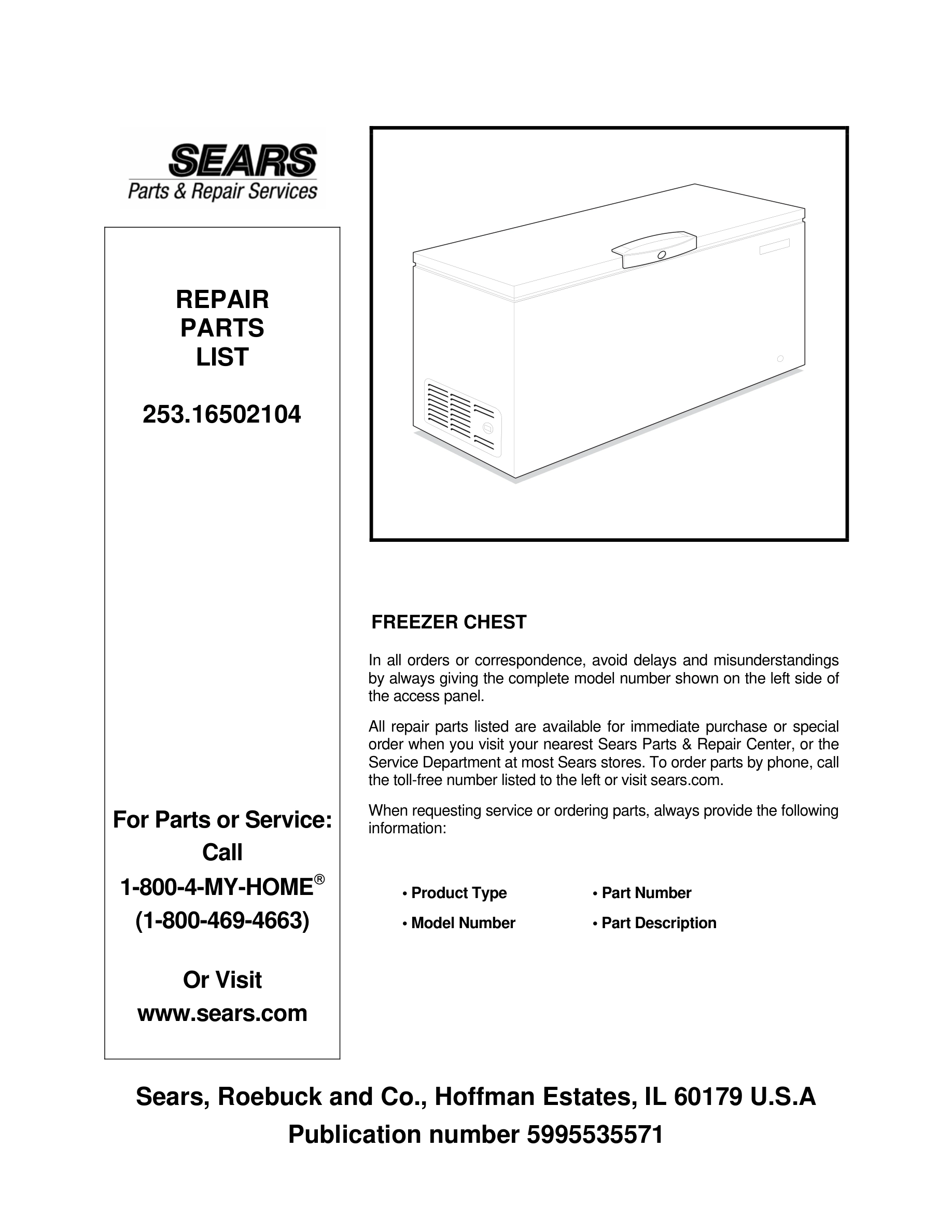

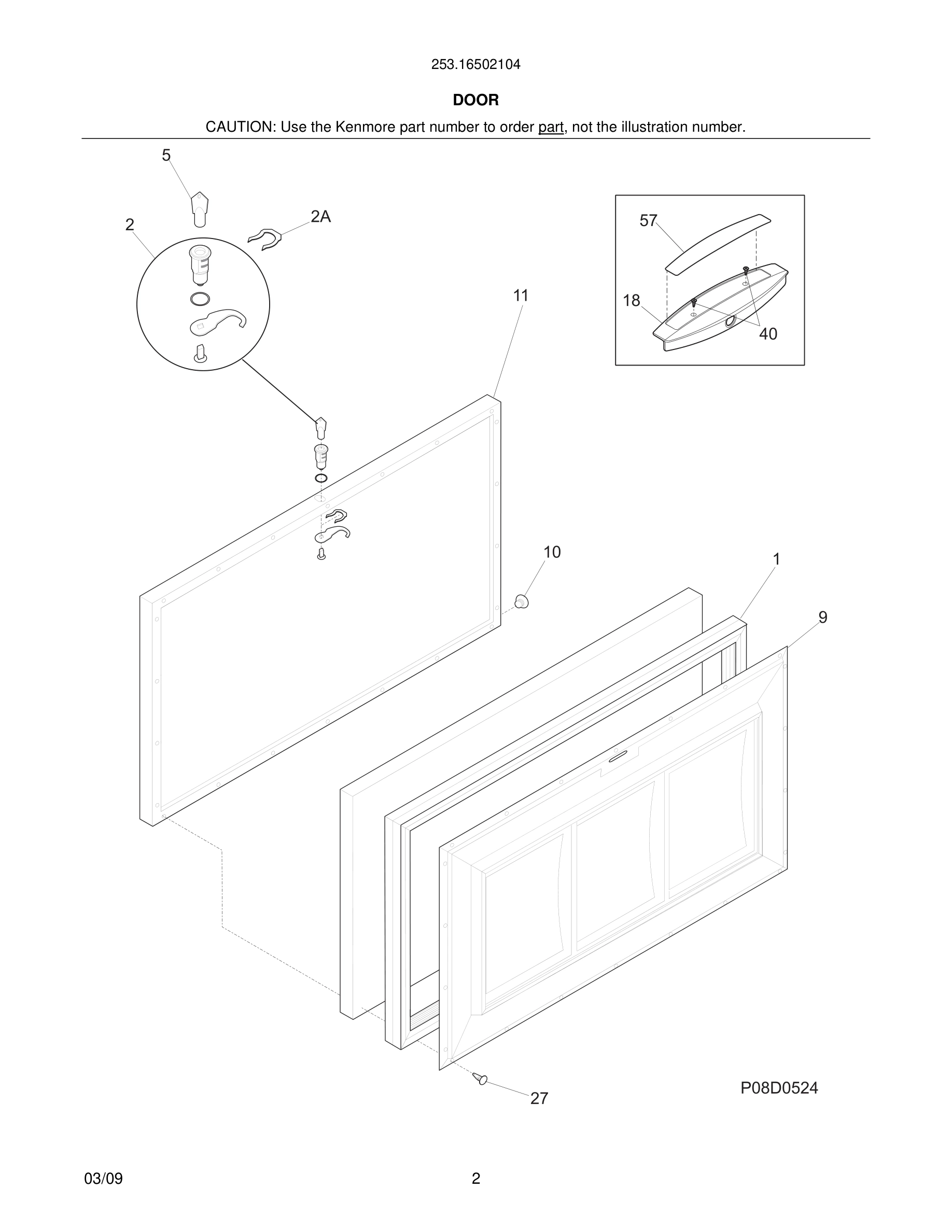

Model Kenmore 253.16502104 FREEZER – Common Parts & Diagrams

*
Screw, PH, 8-32 x 1/2, wiring harness
Screw, PH, 8-32 x 1/2, wiring harness WCI 216707801 Contact Us For Availability
View on Model
1
Gasket-door, white
Gasket-door, white WCI 216480801 Contact Us For Availability
View on Model
1
Catch-lock, white
Catch-lock, white WCI 297014100 Contact Us For Availability
View on Model
1
Condenser
Condenser WCI 5300120779 Contact Us For Availability
View on Model
2
Lock Assy
Lock Assy WCI 297090200 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
4
Plug, drain, exterior
Plug, drain, exterior WCI 297013600 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216952100 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
18
Handle, white
Handle, white WCI 216884802 Contact Us For Availability
View on Model
30
Controller
Controller WCI 216954217 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
55
Capacitor, run
Capacitor, run WCI 218909911 Contact Us For Availability
View on Model
85
Wire-ground
Wire-ground WCI 216818300 Contact Us For Availability
View on Model
86
Screw, 8-18 X 1/2
Screw, 8-18 X 1/2 WCI 216707701 Contact Us For Availability
View on Model
94
Lens, frost indicator, blue
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
View on Model
