Model Kenmore 253.16092101 FREEZER – Common Parts & Diagrams

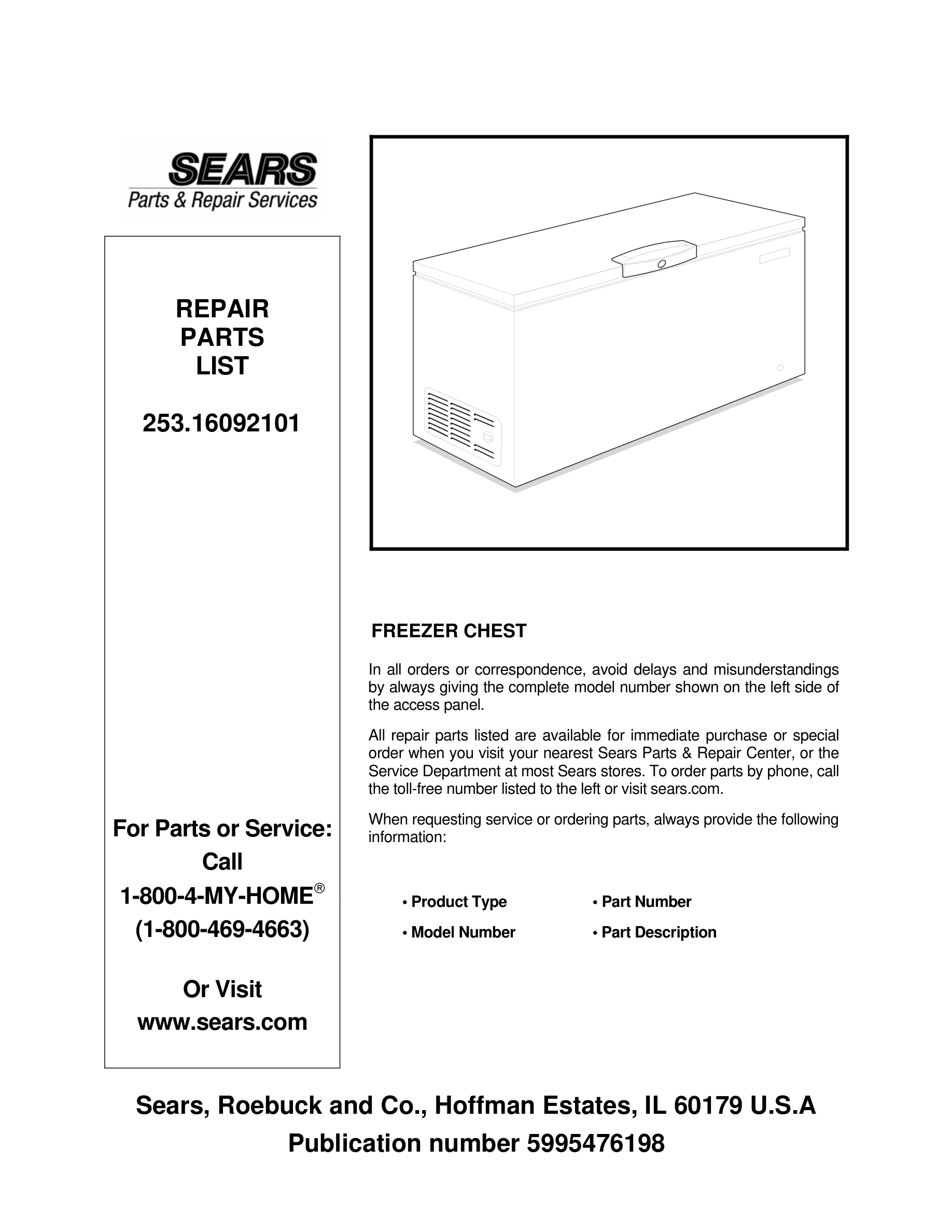

01 - COVER

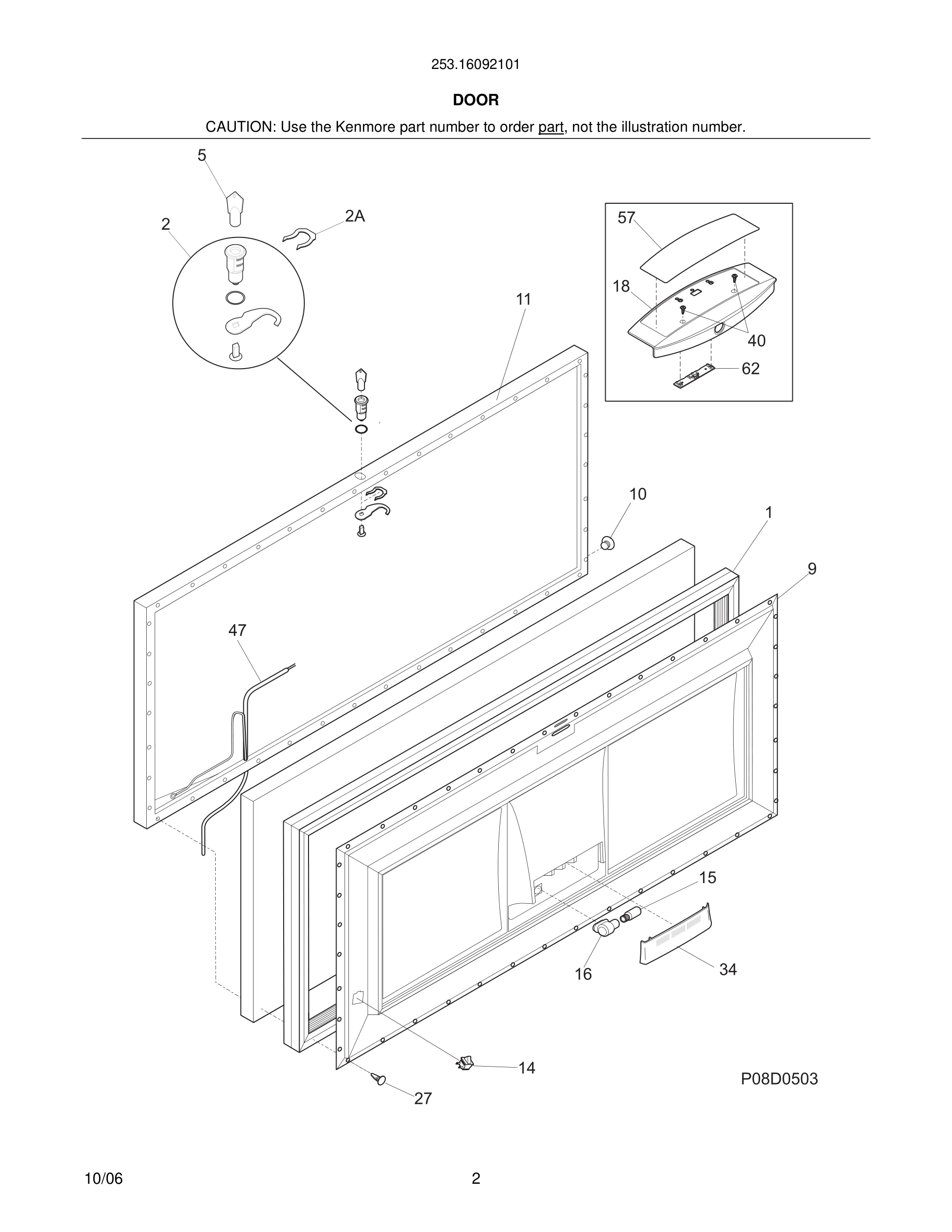

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.16092101 FREEZER
*
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
*
Wire, battery WCI 216955400 Contact Us For Availability
*
Spacer-tube WCI 297102800 Contact Us For Availability
1
Catch-lock WCI 216954500 Contact Us For Availability
1#
Condenser WCI 5303280307 Contact Us For Availability
2
Lock Assy WCI 297090100 Contact Us For Availability
2
Adapter, drain hose WCI 216269500 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
4
Plug, drain, exterior WCI 297013600 Contact Us For Availability
5#
Harness-main WCI 297022900 Contact Us For Availability
9
Panel-lid WCI 216851304 Contact Us For Availability
10
Plug button, 1/4", white WCI 216923001 No Longer Available
18
Handle, white WCI 216944101 Contact Us For Availability
22
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
28
Support, compressor WCI 5303212615 Contact Us For Availability
30#
Controller WCI 297048300 Contact Us For Availability
40
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
42
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
47#
Harness, electrical, lid WCI 216955100 Contact Us For Availability
59
Basket, blue/gray, upper, (3) WCI 216916203 Contact Us For Availability
138
Holder-battery, assy WCI 216856800 Contact Us For Availability
× ![]()
