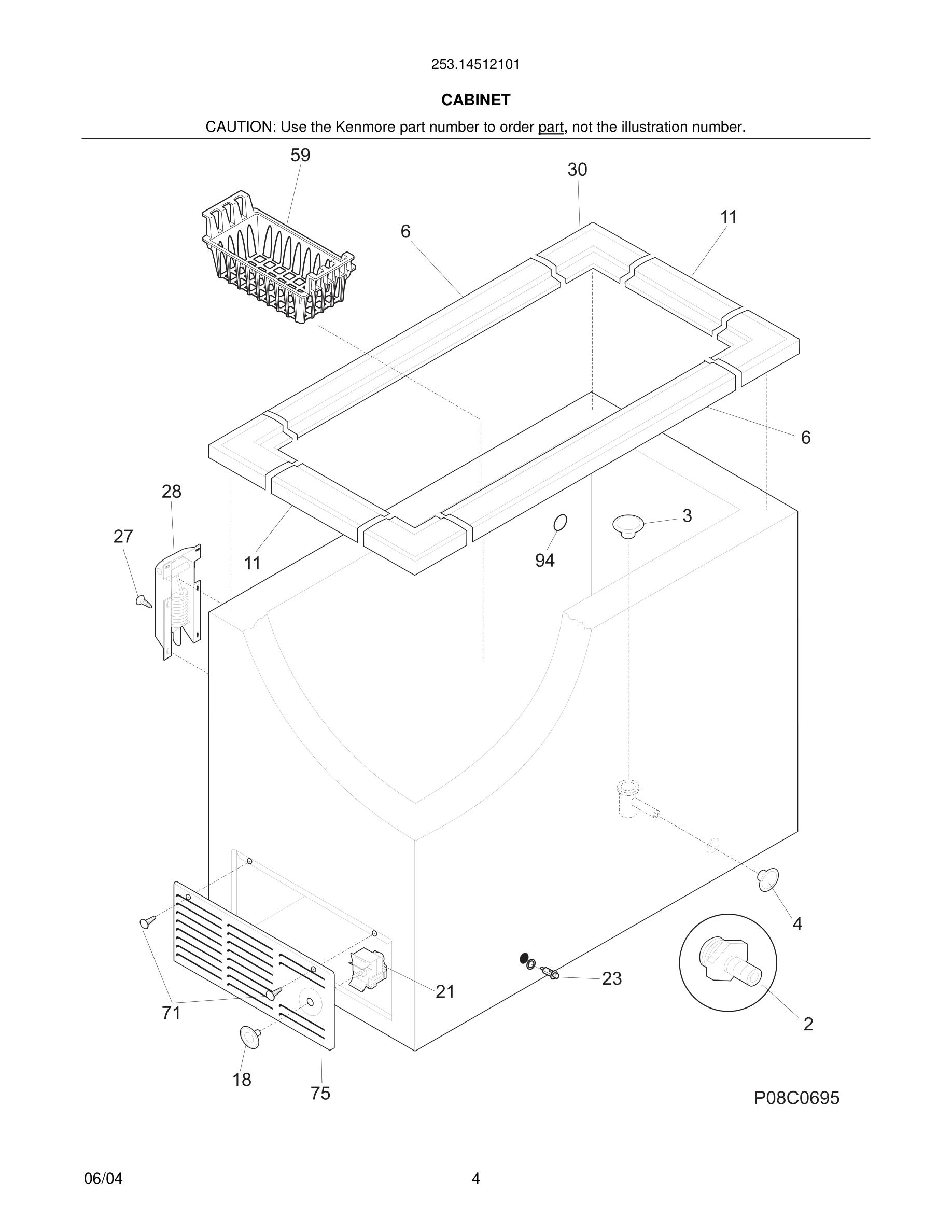

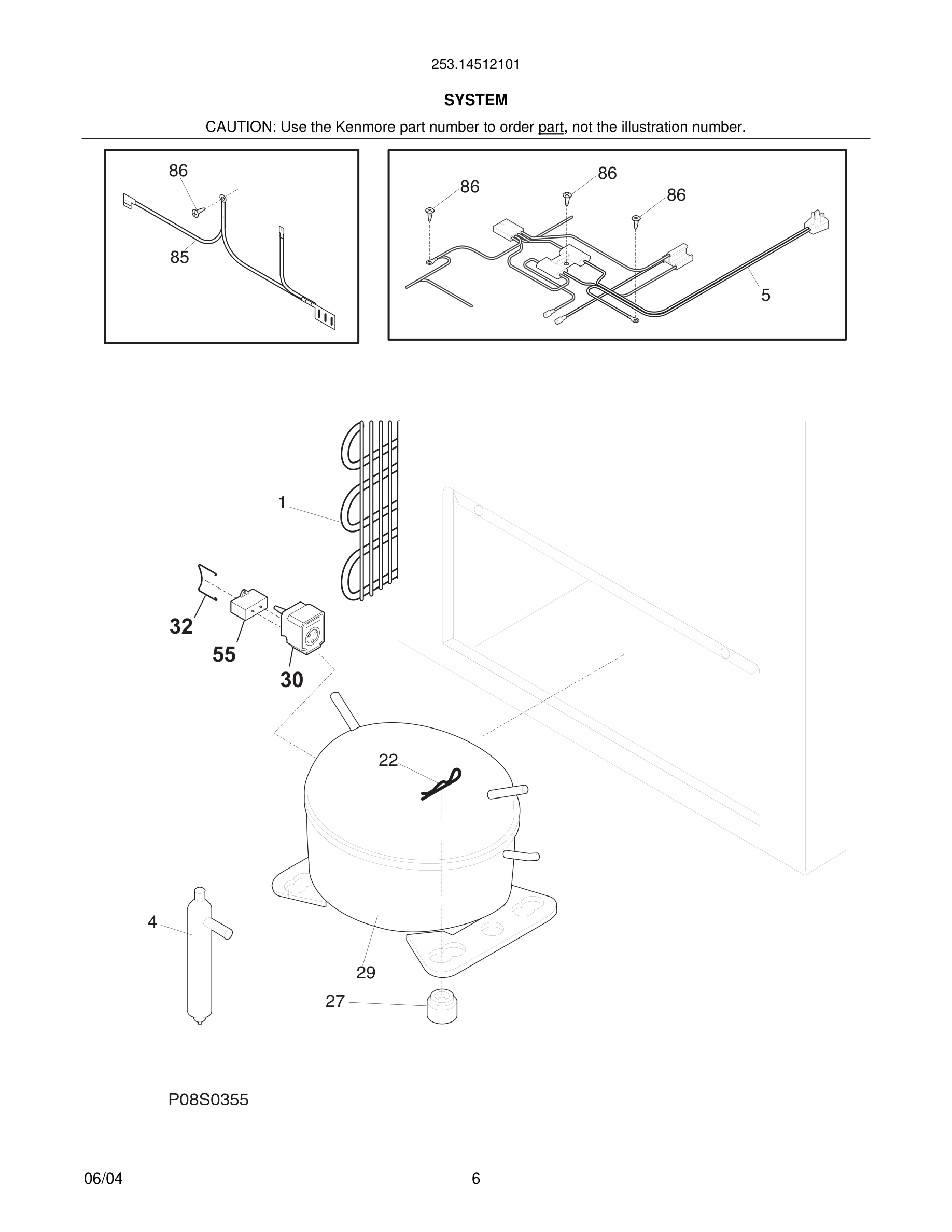

Model Kenmore 253.14512101 FREEZER – Common Parts & Diagrams

*
Screw, PH, 8-32 x 1/2, wiring harness
Screw, PH, 8-32 x 1/2, wiring harness WCI 216707800 Contact Us For Availability
View on Model
1
Gasket-door, white
Gasket-door, white WCI 216480801 Contact Us For Availability
View on Model
1
Condenser
Condenser WCI 5300120779 Contact Us For Availability
View on Model
2
Adapter, drain hose
Adapter, drain hose WCI 216269500 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216952100 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
11
Panel-lid
Panel-lid WCI 216106006 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
23
Light-signal, round
Light-signal, round WCI 216738400 Contact Us For Availability
View on Model
28
Hinge Assy
Hinge Assy WCI 216478800 Contact Us For Availability
View on Model
30
Breaker-corners, white
Breaker-corners, white WCI 216105500 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
75
Panel-access, white
Panel-access, white WCI 216782000 Contact Us For Availability
View on Model
85
Wire-ground
Wire-ground WCI 216818300 Contact Us For Availability
View on Model
86
Screw, 8-18 X 1/2
Screw, 8-18 X 1/2 WCI 216707700 Contact Us For Availability
View on Model
94
Lens, frost indicator, blue
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
View on Model
