Model Kenmore 253.14092101 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

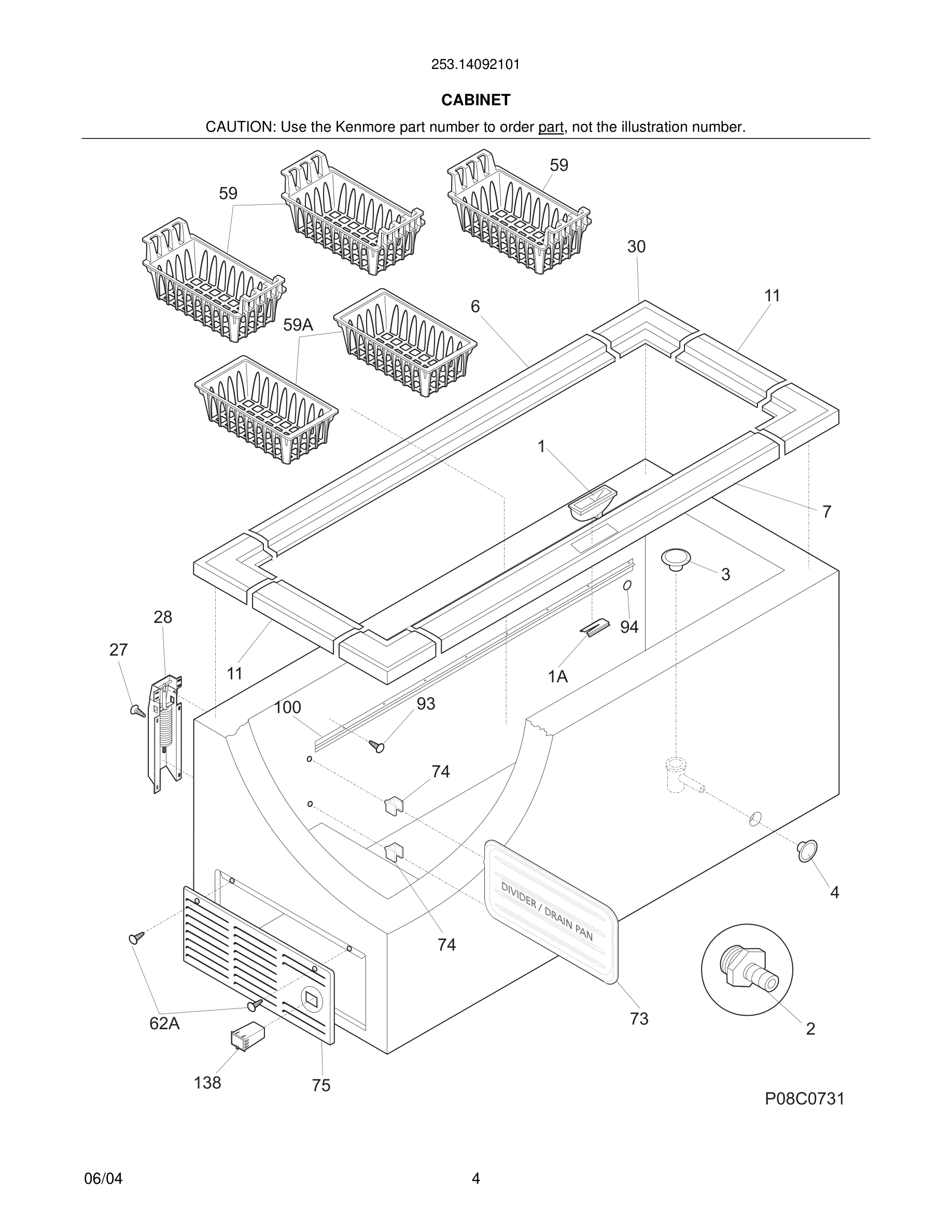

05 - CABINET

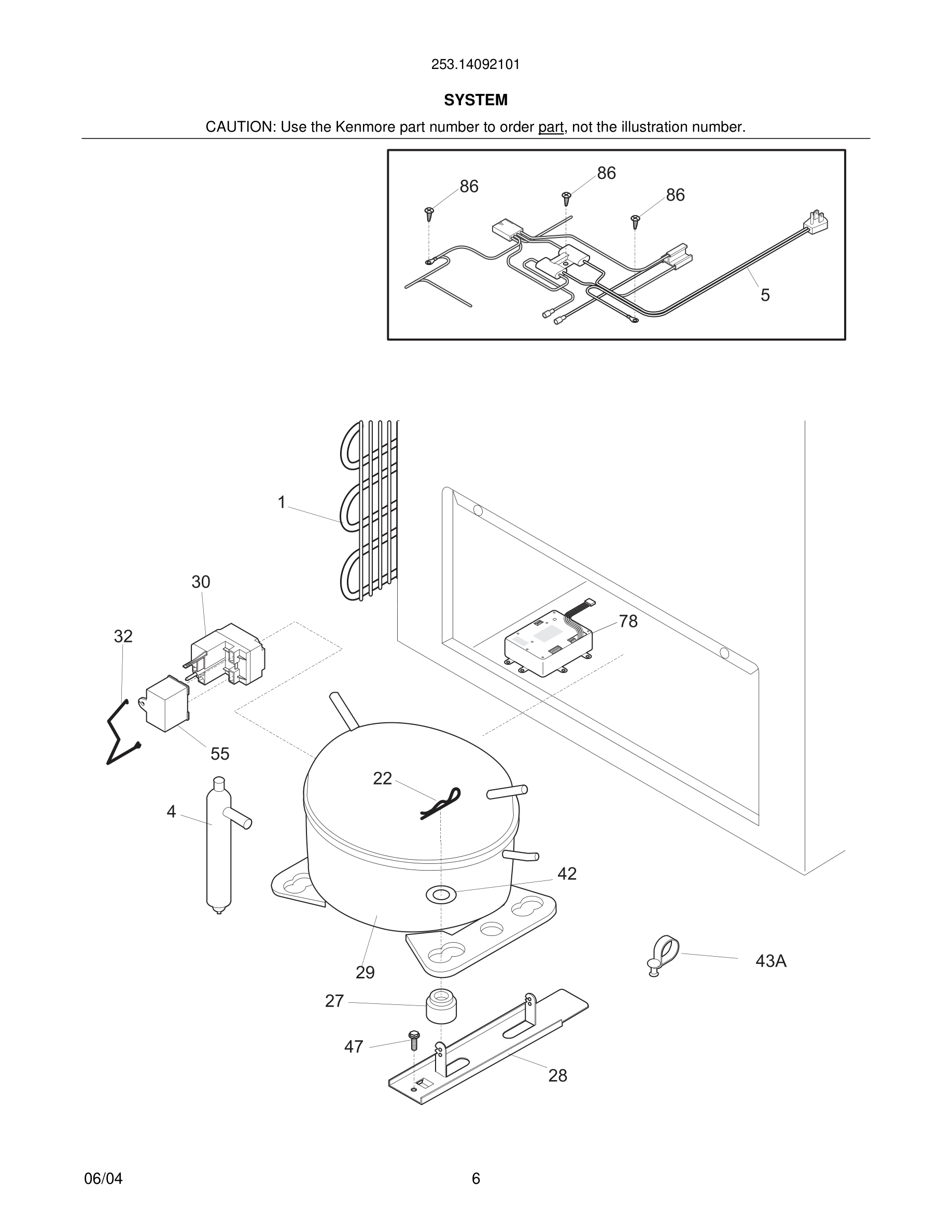

07 - SYSTEM
Common parts from model Kenmore 253.14092101 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
*
Wire, battery WCI 216955400 Contact Us For Availability
*
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
1
Catch-lock, white WCI 216909800 Contact Us For Availability
1#
Condenser WCI 5303280307 Contact Us For Availability
1A
Support, lock catch clip WCI 216818900 Contact Us For Availability
2
Adapter, drain hose WCI 216269500 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
5#
Harness-main WCI 216955000 Contact Us For Availability
9
Panel-lid WCI 216851304 Contact Us For Availability
10
Plug button, 1/4", white WCI 216923001 No Longer Available
22
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
28
Support, compressor WCI 5303212615 Contact Us For Availability
30
Breaker, corners WCI 216110700 Contact Us For Availability
32
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
40
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
42
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
47#
Harness, electrical, lid WCI 216955100 Contact Us For Availability
59
Basket, upper, (3) WCI 216916200 Contact Us For Availability
73
Divider/drain pan WCI 216128200 Contact Us For Availability
74
Support, divider, (4) WCI 216486700 Contact Us For Availability
75
Panel-access, white WCI 216034305 Contact Us For Availability
94
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
100
Track-basket WCI 216205102 Contact Us For Availability
138
Holder-battery, assy WCI 216856800 Contact Us For Availability
× ![]()
