Model Kenmore 253.13911101 FREEZER – Common Parts & Diagrams

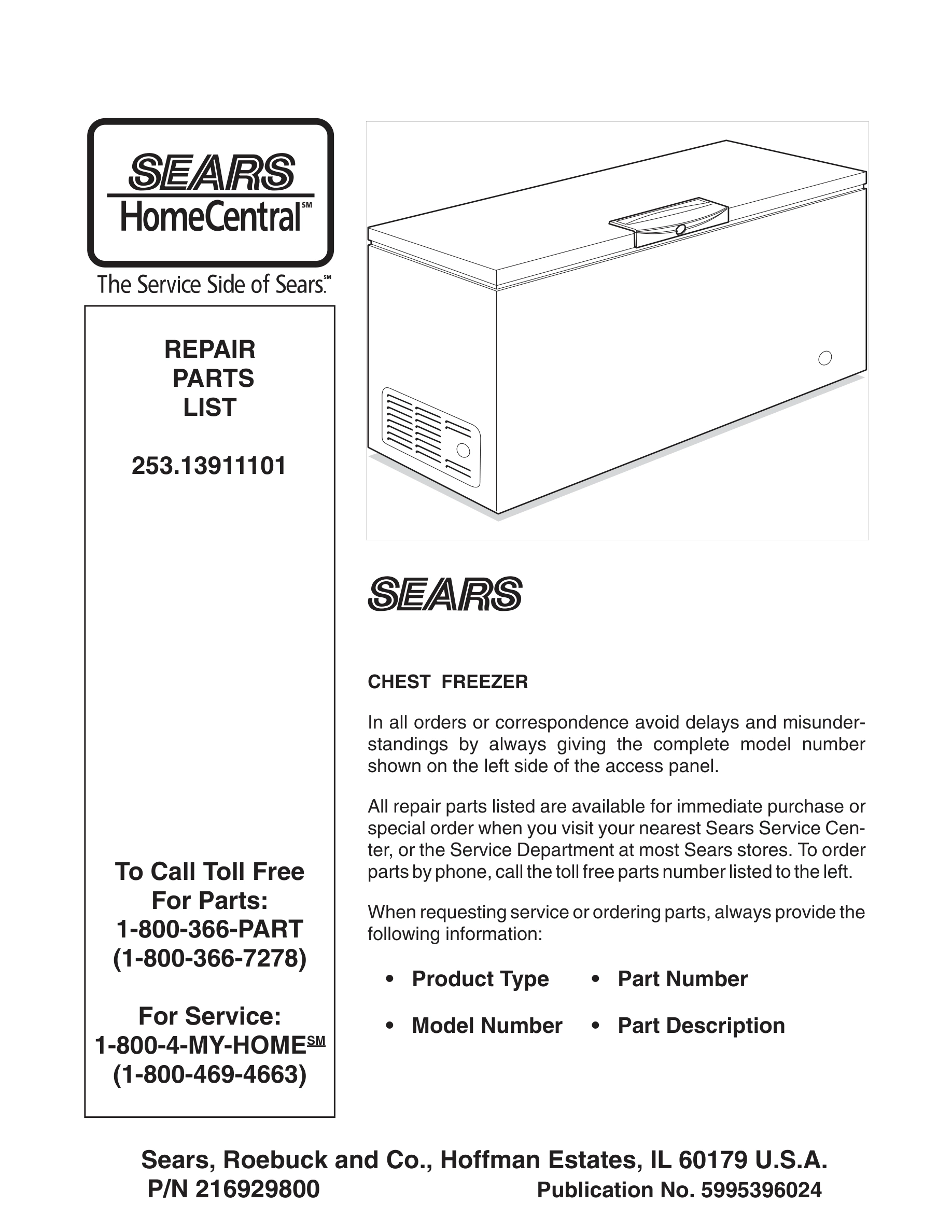

01 - COVER

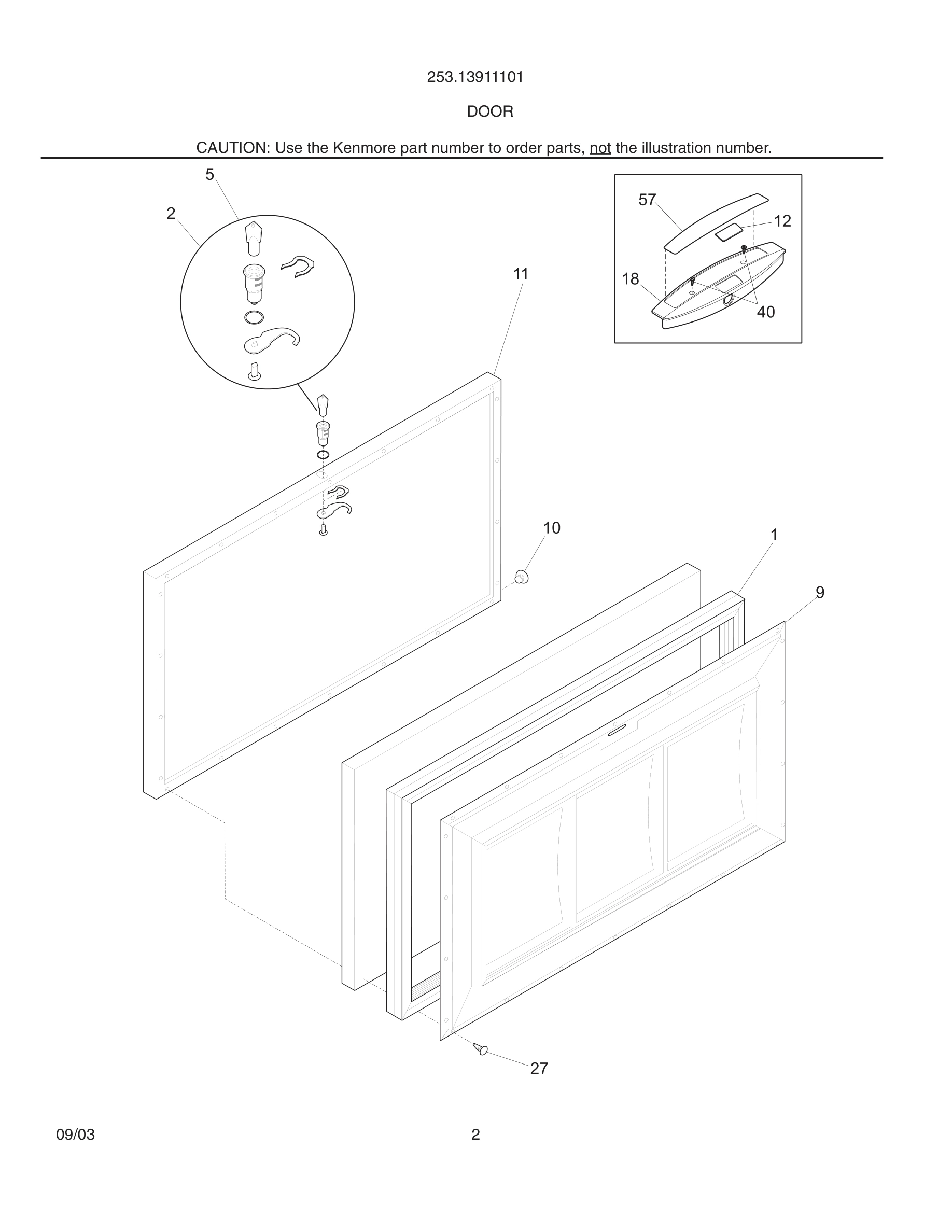

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.13911101 FREEZER
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Owners guide WCI 216902400 Contact Us For Availability
*
Service Data Sheet WCI 216929600 Contact Us For Availability
*
Energy Guide WCI 216794000 Contact Us For Availability
1
Gasket-door,white WCI 216481001 Contact Us For Availability
1
Catch-lock WCI 216117700 Contact Us For Availability
1#
Condenser WCI 5300120781 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
4
Plug,drain ,exterior WCI 216073900 Contact Us For Availability
5#
Harness-main WCI 216927400 Contact Us For Availability
6
Breaker-hinge side,white WCI 216117500 Contact Us For Availability
7
Breaker-lock side WCI 216117600 Contact Us For Availability
10
Plug button,1/4" ,white WCI 216923001 No Longer Available
11
Breaker-ends,white WCI 216105600 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
23
Light-signal,round WCI 216738400 Contact Us For Availability
28
Hinge Assy WCI 216478800 Contact Us For Availability
29#
Compressor,w/o electricals WCI 216888300 Contact Us For Availability
30
Breaker-corners,white WCI 216105500 Contact Us For Availability
30
Starter,relay WCI 216888500 Contact Us For Availability
31
Overload Protector WCI 216100113 Contact Us For Availability
40
Fastener,.330 dia stud ,handle ,(2) WCI 216922700 Contact Us For Availability
46
Screw,PH ,8-32 x 1/2 ,wiring harness WCI 216707800 Contact Us For Availability
53
Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability
75
Panel-access,white WCI 216782000 Contact Us For Availability
85
Wire-ground WCI 216818300 Contact Us For Availability
86
Screw,8-18 X 1/2 WCI 216707700 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
× ![]()
