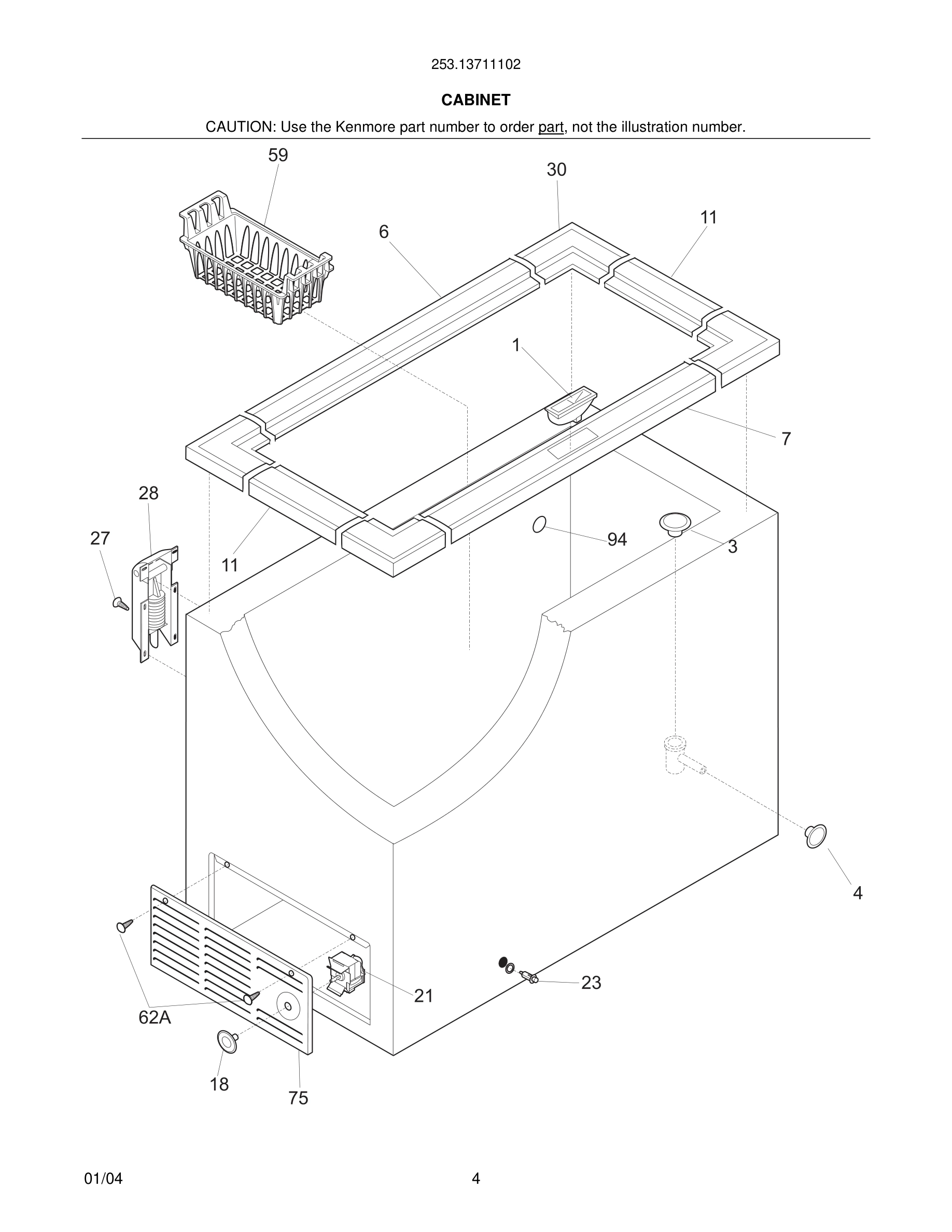

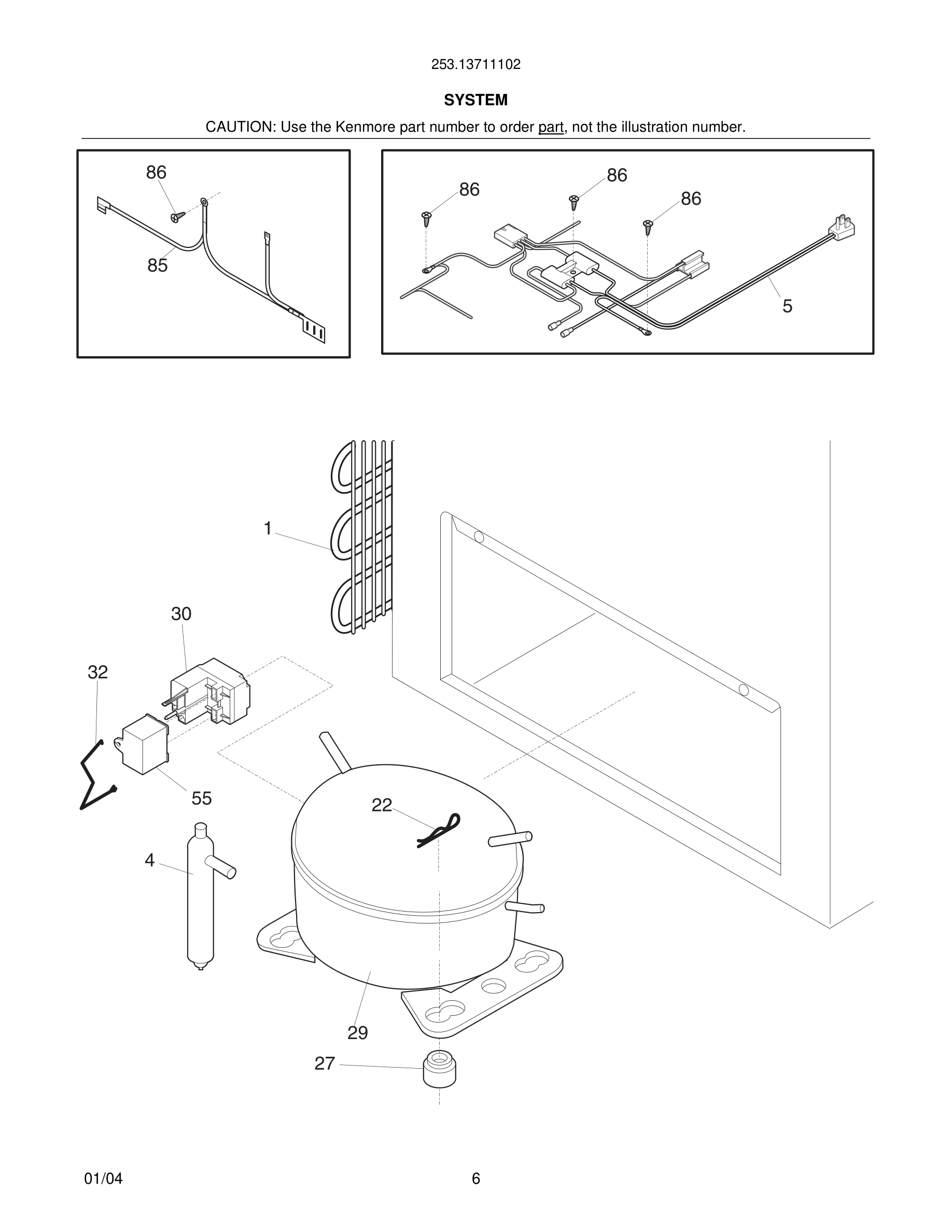

Model Kenmore 253.13711102 FREEZER – Common Parts & Diagrams

*
Insulation-door, fiberglass, (bulk)
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
View on Model
1
Catch-lock
Catch-lock WCI 216117700 Contact Us For Availability
View on Model
1#
Gasket, door seal, white
Gasket, door seal, white WCI 216480901 Contact Us For Availability
View on Model
1#
Condenser
Condenser WCI 5300120780 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
4
Plug, drain, exterior
Plug, drain, exterior WCI 216073900 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216808300 Contact Us For Availability
View on Model
6
Breaker, side
Breaker, side WCI 216855702 Contact Us For Availability
View on Model
7
Breaker-lock side, white
Breaker-lock side, white WCI 216855703 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
11
Breaker-ends, white
Breaker-ends, white WCI 216855706 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
23
Light-signal, round
Light-signal, round WCI 216738400 Contact Us For Availability
View on Model
28
Hinge Assy
Hinge Assy WCI 216478800 Contact Us For Availability
View on Model
30
Controller
Controller WCI 216649314 Contact Us For Availability
View on Model
30
Breaker-corners, white
Breaker-corners, white WCI 216105500 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
75
Panel-access, white
Panel-access, white WCI 216782000 Contact Us For Availability
View on Model
85
Wire-ground
Wire-ground WCI 216818300 Contact Us For Availability
View on Model
86
Screw, 8-18 X 1/2
Screw, 8-18 X 1/2 WCI 216707700 Contact Us For Availability
View on Model
94
Lens, frost indicator, blue
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
View on Model
