Model Kenmore 253.13711101 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

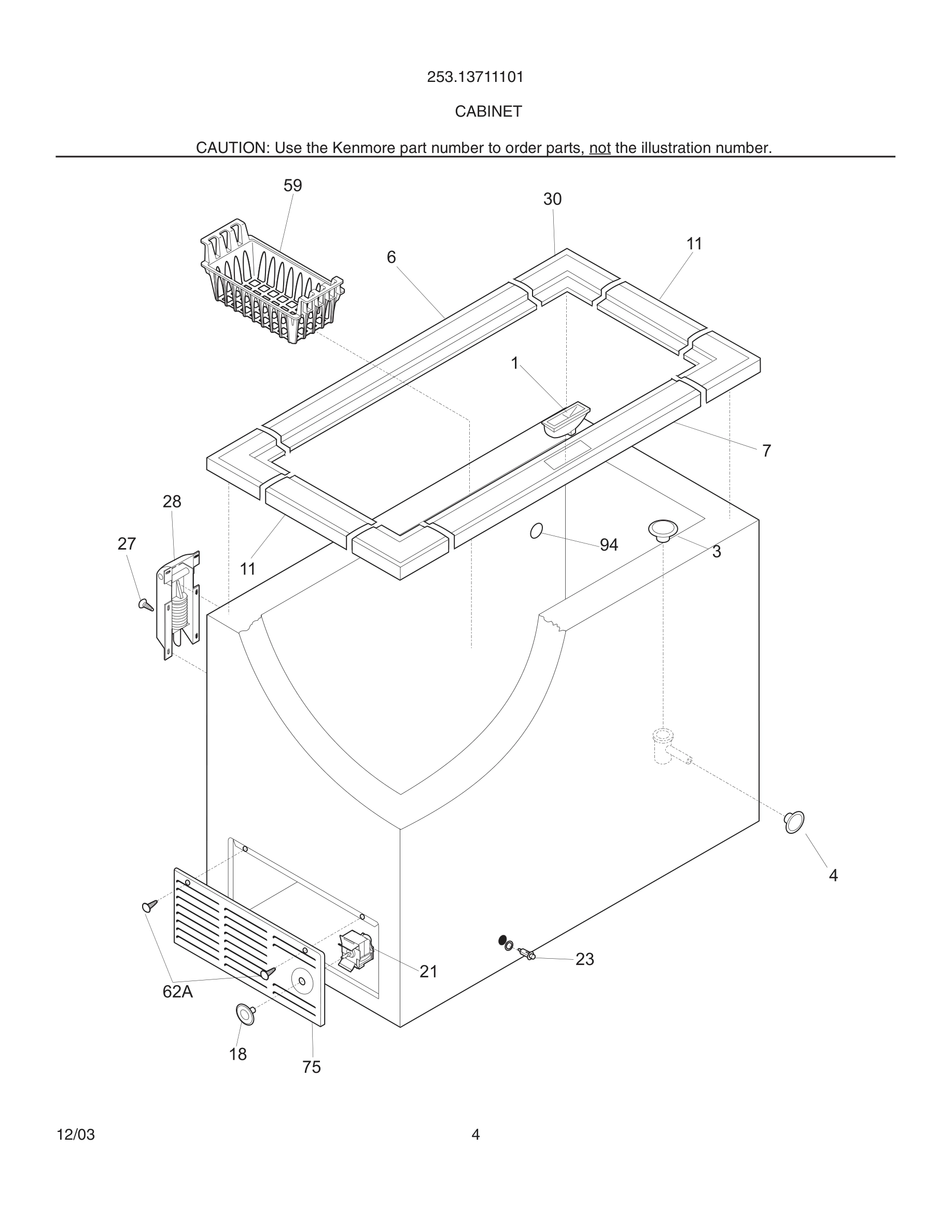

05 - CABINET

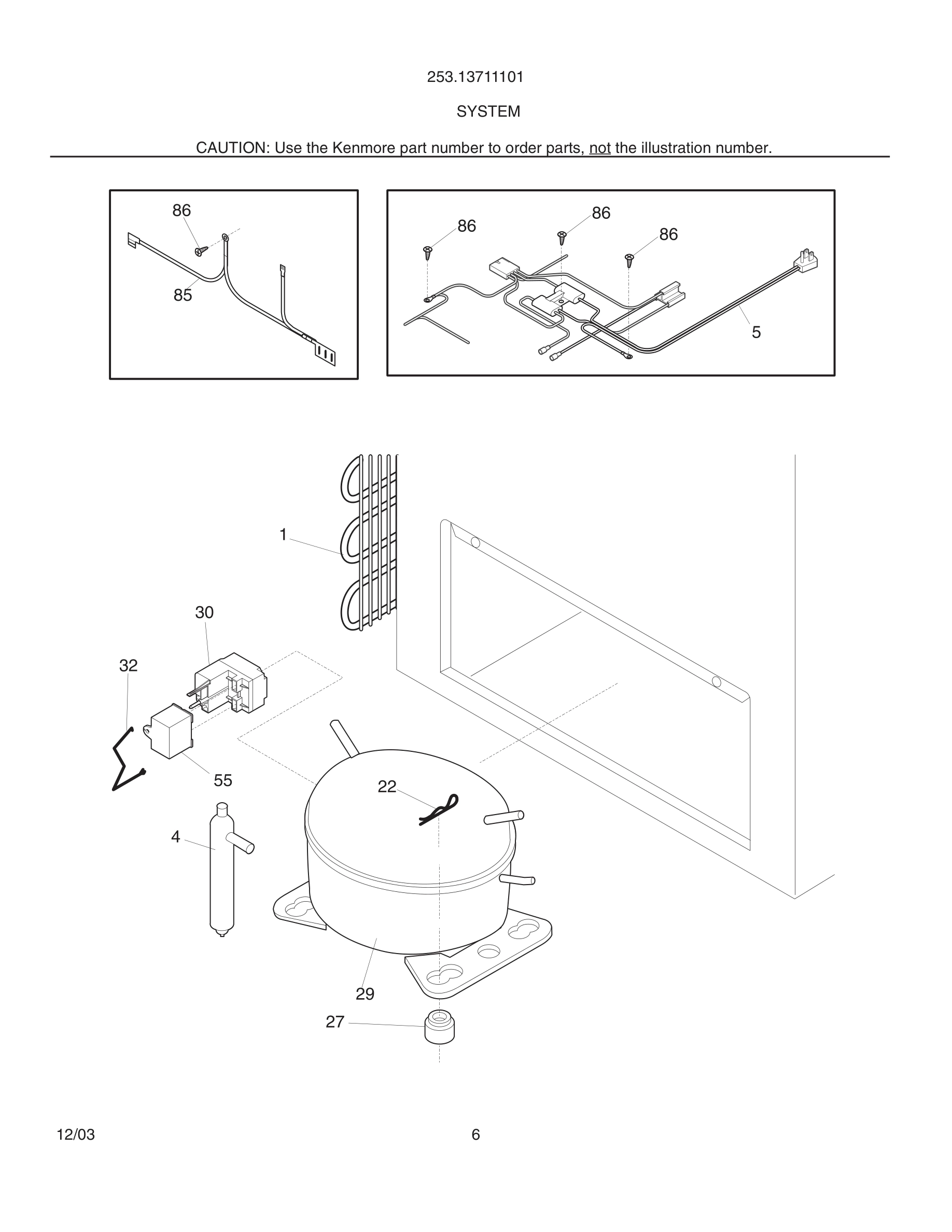

07 - SYSTEM
Common parts from model Kenmore 253.13711101 FREEZER
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
1
Catch-lock WCI 216117700 Contact Us For Availability
1#
Gasket,door seal ,white WCI 216480901 Contact Us For Availability
1#
Condenser WCI 5300120780 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
4
Plug,drain ,exterior WCI 216073900 Contact Us For Availability
5
Harness-main WCI 216808300 Contact Us For Availability
6
Breaker,side WCI 216855702 Contact Us For Availability
7
Breaker-lock side,white WCI 216855703 Contact Us For Availability
10
Plug button,1/4" ,white WCI 216923001 No Longer Available
11
Breaker-ends,white WCI 216855706 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
23
Light-signal,round WCI 216738400 Contact Us For Availability
28
Hinge Assy WCI 216478800 Contact Us For Availability
30
Controller WCI 216649314 Contact Us For Availability
30
Breaker-corners,white WCI 216105500 Contact Us For Availability
40
Fastener,.330 dia stud ,handle ,(2) WCI 216922700 Contact Us For Availability
75
Panel-access,white WCI 216782000 Contact Us For Availability
85
Wire-ground WCI 216818300 Contact Us For Availability
86
Screw,8-18 X 1/2 WCI 216707700 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
× ![]()
