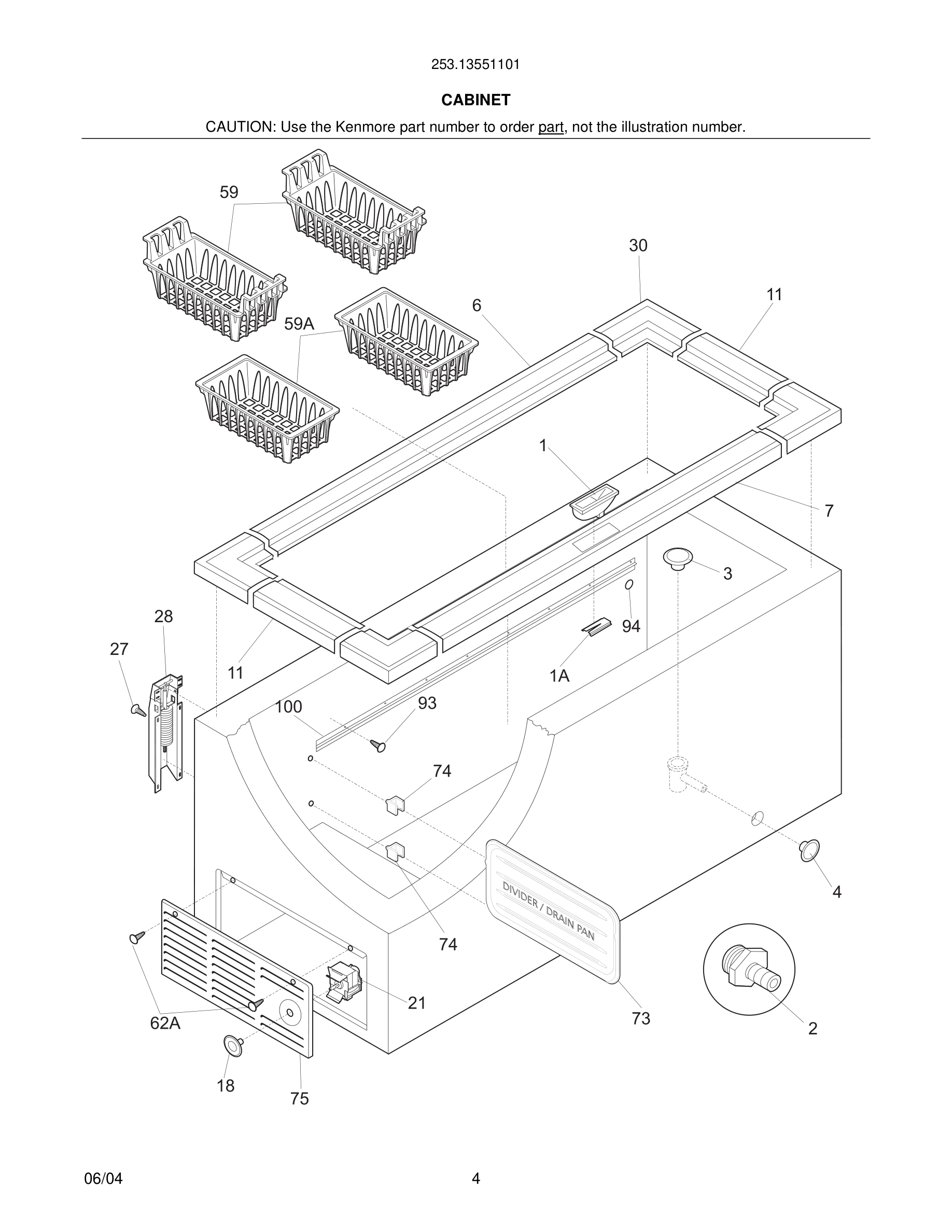

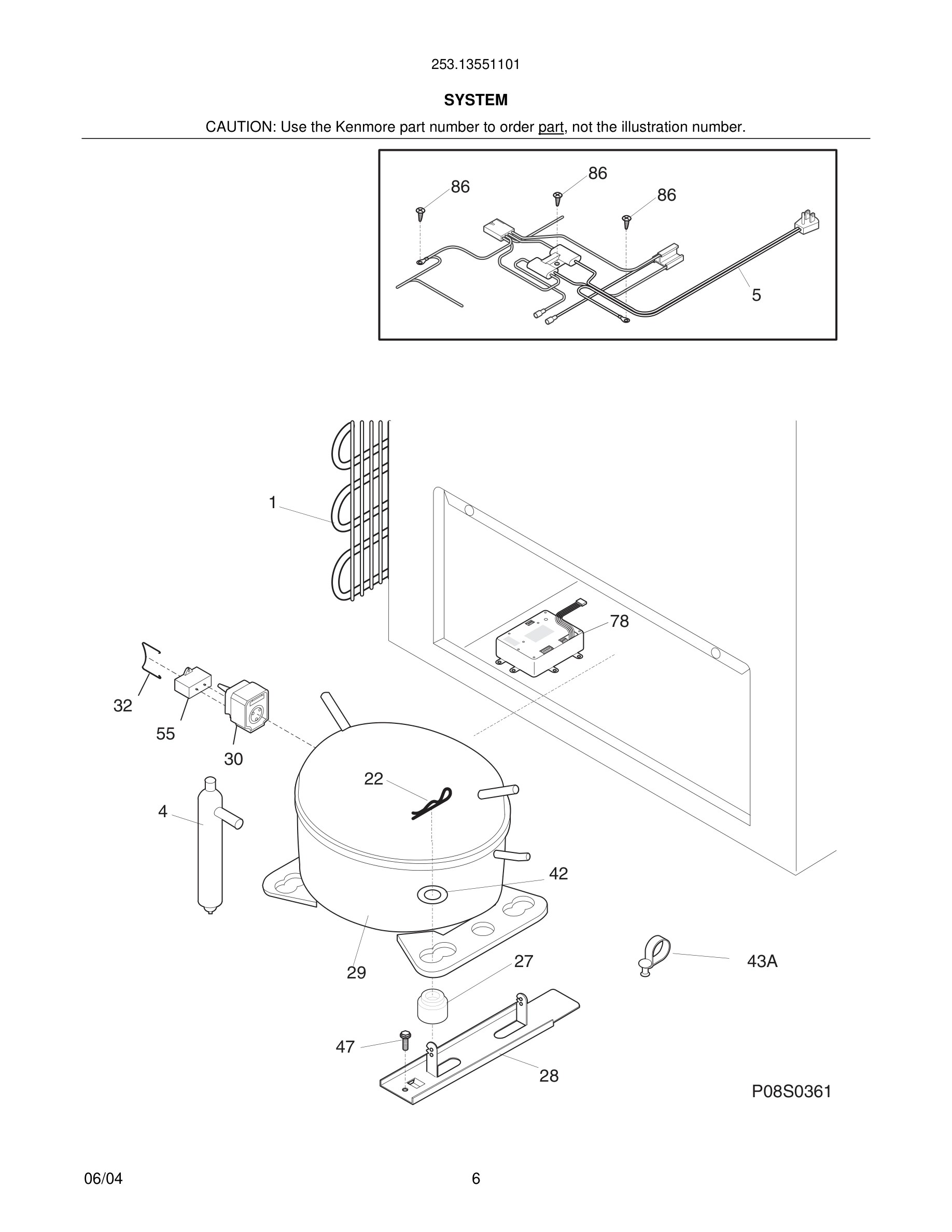

Model Kenmore 253.13551101 FREEZER – Common Parts & Diagrams

*
Insulation-door, fiberglass, (bulk)
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
View on Model
*
Spacer-tube, 0.237" ID
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
1
Gasket-door, white
Gasket-door, white WCI 216469301 Contact Us For Availability
View on Model
1
Catch-lock, white
Catch-lock, white WCI 216909800 Contact Us For Availability
View on Model
1A
Support, lock catch clip
Support, lock catch clip WCI 216818900 Contact Us For Availability
View on Model
2
Adapter, drain hose
Adapter, drain hose WCI 216269500 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216890300 Contact Us For Availability
View on Model
5*
Harness, low voltage-, w/thermistor
Harness, low voltage-, w/thermistor WCI 216890200 Contact Us For Availability
View on Model
9
Panel-inner\lid door, white
Panel-inner\lid door, white WCI 216910702 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
21#
Control-temperature
Control-temperature WCI 216844500 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
28
Support, compressor
Support, compressor WCI 5303212615 Contact Us For Availability
View on Model
32
Clamp, elec cont mtg, compressor
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
42
Washer, flat, 1"OD x 0.531"ID
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
View on Model
47#
Harness-lid
Harness-lid WCI 216889600 Contact Us For Availability
View on Model
59
Basket, upper, (3)
Basket, upper, (3) WCI 216916200 Contact Us For Availability
View on Model
62#
Control Board, electronic
Control Board, electronic WCI 216885100 Contact Us For Availability
View on Model
73
Divider/drain pan
Divider/drain pan WCI 216128200 Contact Us For Availability
View on Model
74
Support, divider, (4)
Support, divider, (4) WCI 216486700 Contact Us For Availability
View on Model
75
Panel, access, white
Panel, access, white WCI 216034301 Contact Us For Availability
View on Model
78
Assy-High Voltage
Assy-High Voltage WCI 216893100 Contact Us For Availability
View on Model
94
Lens, frost indicator, blue
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
View on Model
100
Track, basket
Track, basket WCI 216205100 Contact Us For Availability
View on Model
