Model Kenmore 253.13511100 FREEZER – Common Parts & Diagrams

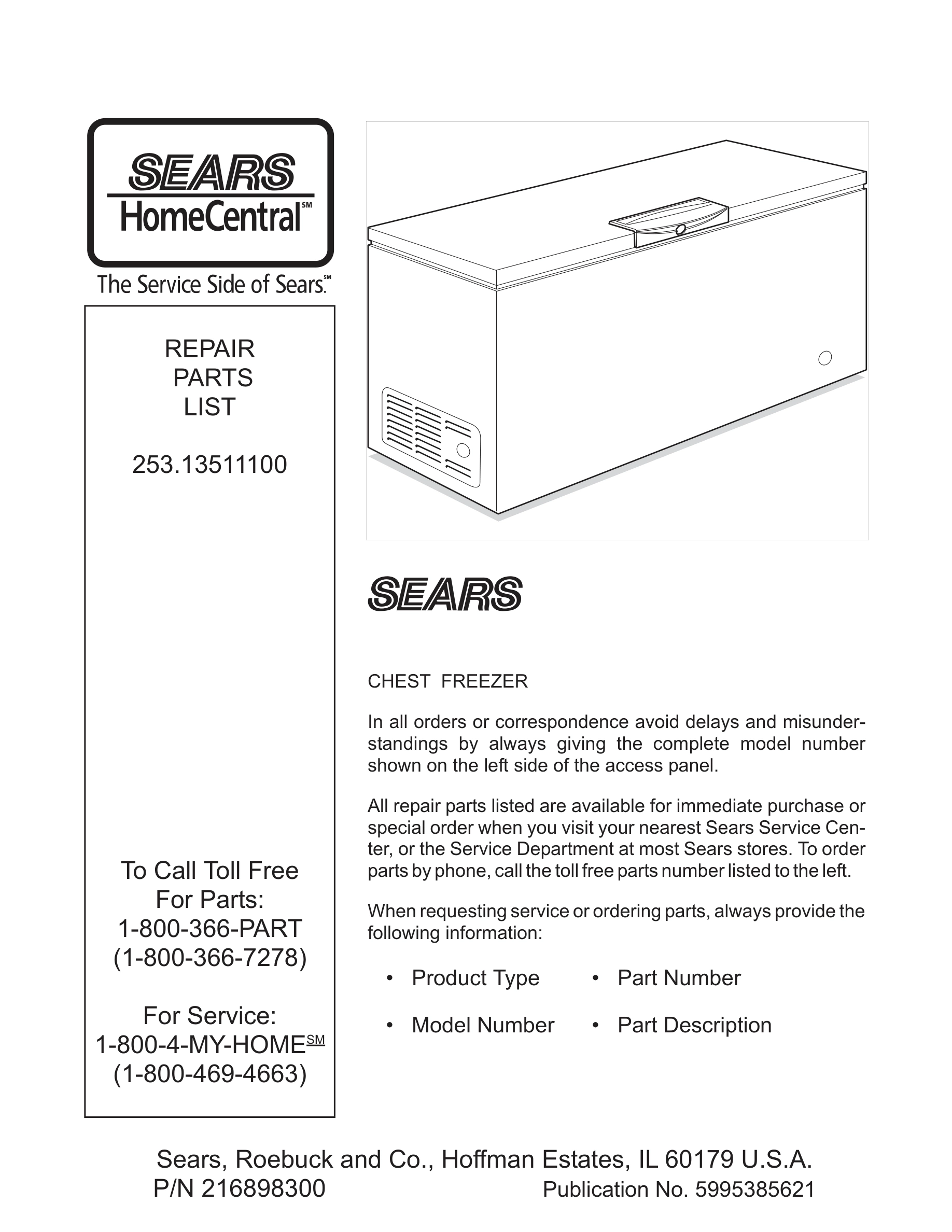

01 - COVER

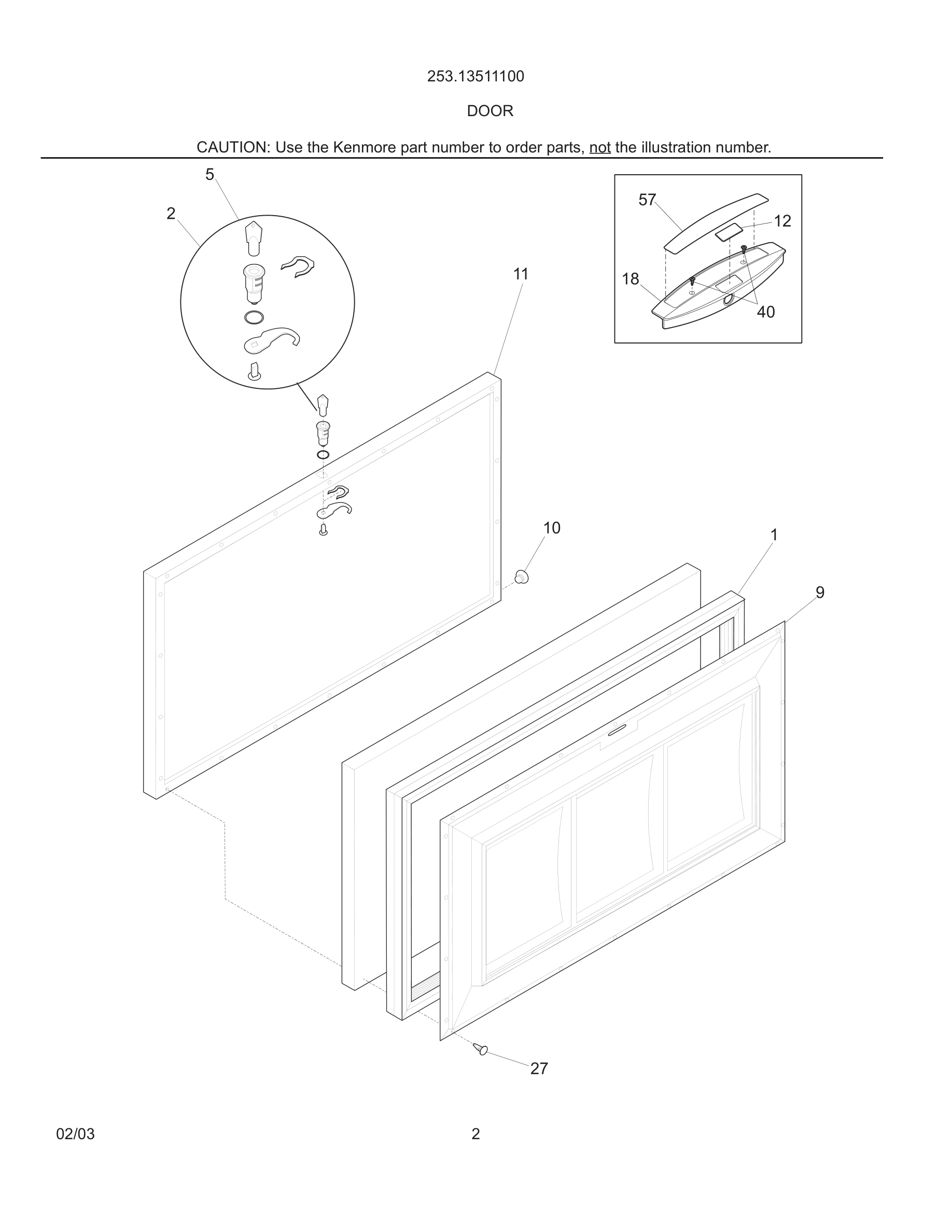

03 - DOOR

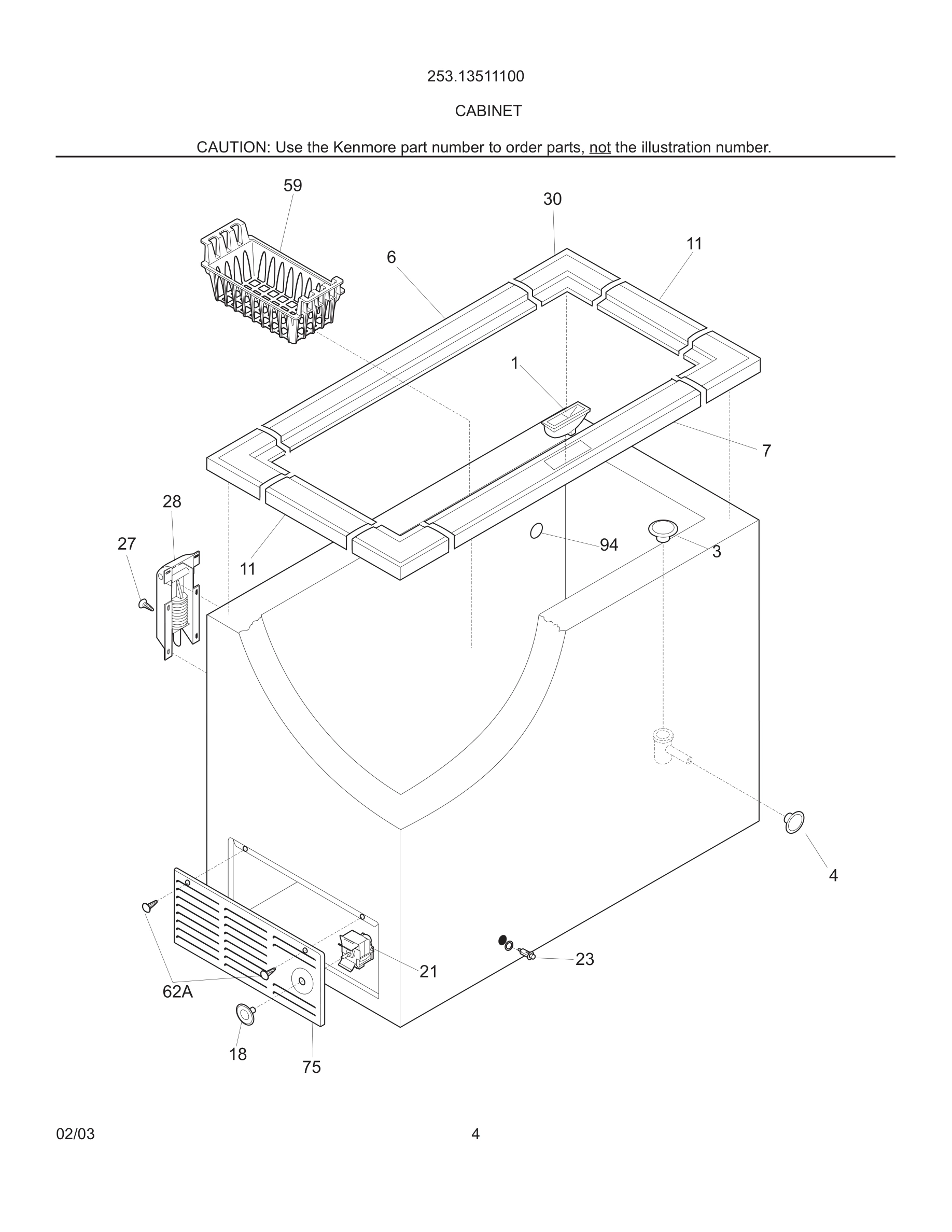

05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.13511100 FREEZER
*
Washer,signal light WCI 216205400 Contact Us For Availability
*
Parts List WCI 5995385621 Contact Us For Availability
*
Owners guide WCI 216902400 Contact Us For Availability
*
Energy Guide WCI 216793808 Contact Us For Availability
*
Service Data Sheet WCI 216800300 Contact Us For Availability
1
Gasket-door,white WCI 216480801 Contact Us For Availability
1
Catch-lock WCI 216117700 Contact Us For Availability
1
Condenser WCI 5300120779 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
4
Plug,drain ,exterior WCI 216073900 Contact Us For Availability
5
Harness-main WCI 216808300 Contact Us For Availability
6
Breaker-hinge\front,white WCI 216105700 Contact Us For Availability
7
Breaker-lock side WCI 216105800 Contact Us For Availability
11
Breaker-ends,white WCI 216105600 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
23
Light-signal,round WCI 216738400 Contact Us For Availability
28
Hinge Assy WCI 216478800 Contact Us For Availability
30
Controller WCI 216649304 Contact Us For Availability
30
Breaker-corners,white WCI 216105500 Contact Us For Availability
32
Clip,controller WCI 216694500 Contact Us For Availability
42
Washer,flat ,1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
55
Capacitor-run,180 VAC ,15 microfarad WCI 216696700 Contact Us For Availability
57
Overlay WCI 216885400 Contact Us For Availability
75
Panel-access,white WCI 216782000 Contact Us For Availability
85
Wire-ground WCI 216818300 Contact Us For Availability
86
Screw,8-18 X 1/2 WCI 216707700 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
× ![]()
