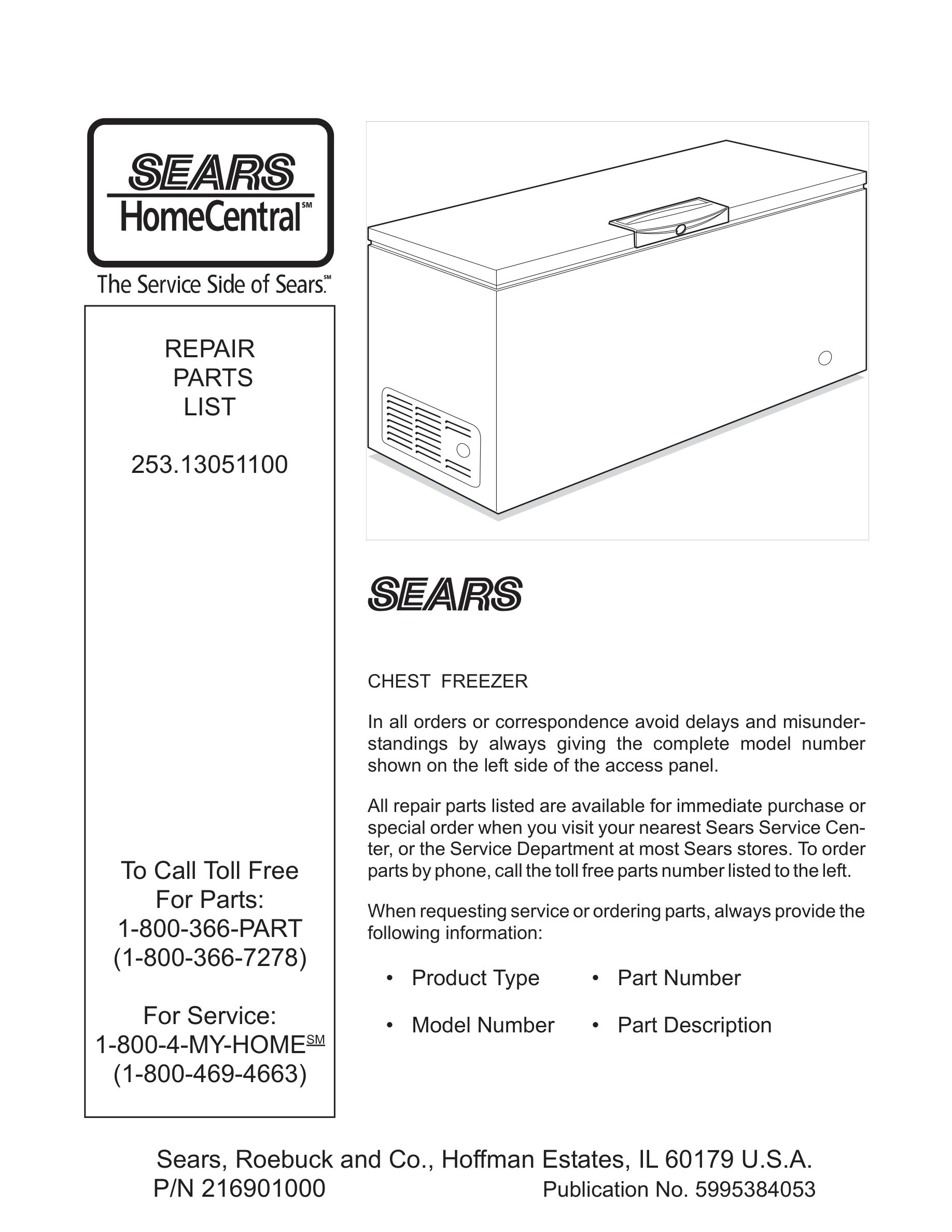

01 - COVER

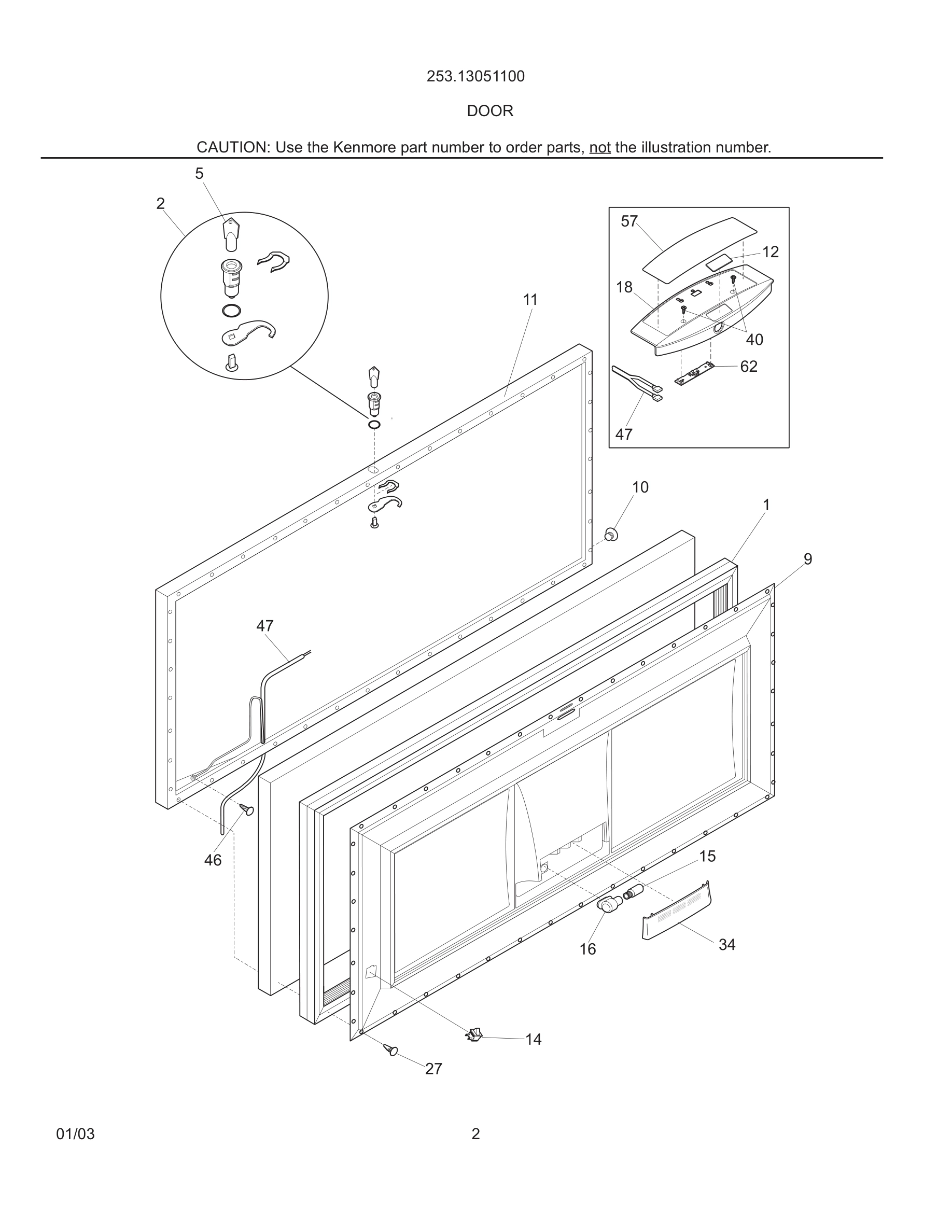

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.13051100 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Spacer-tube,0.237" ID WCI 5303298960 Contact Us For Availability
1#
Condenser WCI 5303280307 Contact Us For Availability
1A
Support,lock catch clip WCI 216818900 Contact Us For Availability
2
Adapter,drain hose WCI 216269500 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
5#
Harness-main WCI 216890300 Contact Us For Availability
5*
Harness,low voltage- ,w/thermistor WCI 216890200 Contact Us For Availability
9
Panel-lid WCI 216851304 Contact Us For Availability
11
Breaker,chest end ,(2) WCI 216110800 Contact Us For Availability
21#
Control-temperature WCI 216844500 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
28
Support,compressor WCI 5303212615 Contact Us For Availability
28*
Spring,hinge WCI 216592400 Contact Us For Availability
29#
Compressor,w/o electricals WCI 216640200 Contact Us For Availability
30
Breaker,corners WCI 216110700 Contact Us For Availability
32
Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability
42
Washer,flat ,1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
47#
Harness-lid WCI 216889600 Contact Us For Availability
59
Basket,upper ,(2) WCI 216867300 Contact Us For Availability
62#
Control Board,electronic WCI 216885100 Contact Us For Availability
73
Divider/drain pan WCI 216128200 Contact Us For Availability
74
Support,divider ,(4) WCI 216486700 Contact Us For Availability
75
Panel,access ,white WCI 216034301 Contact Us For Availability
78
Assy-High Voltage WCI 216893100 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
100
Track-basket WCI 216205102 Contact Us For Availability
× ![]()
