Model Kenmore 253.13009100 FREEZER – Common Parts & Diagrams
01 - COVER

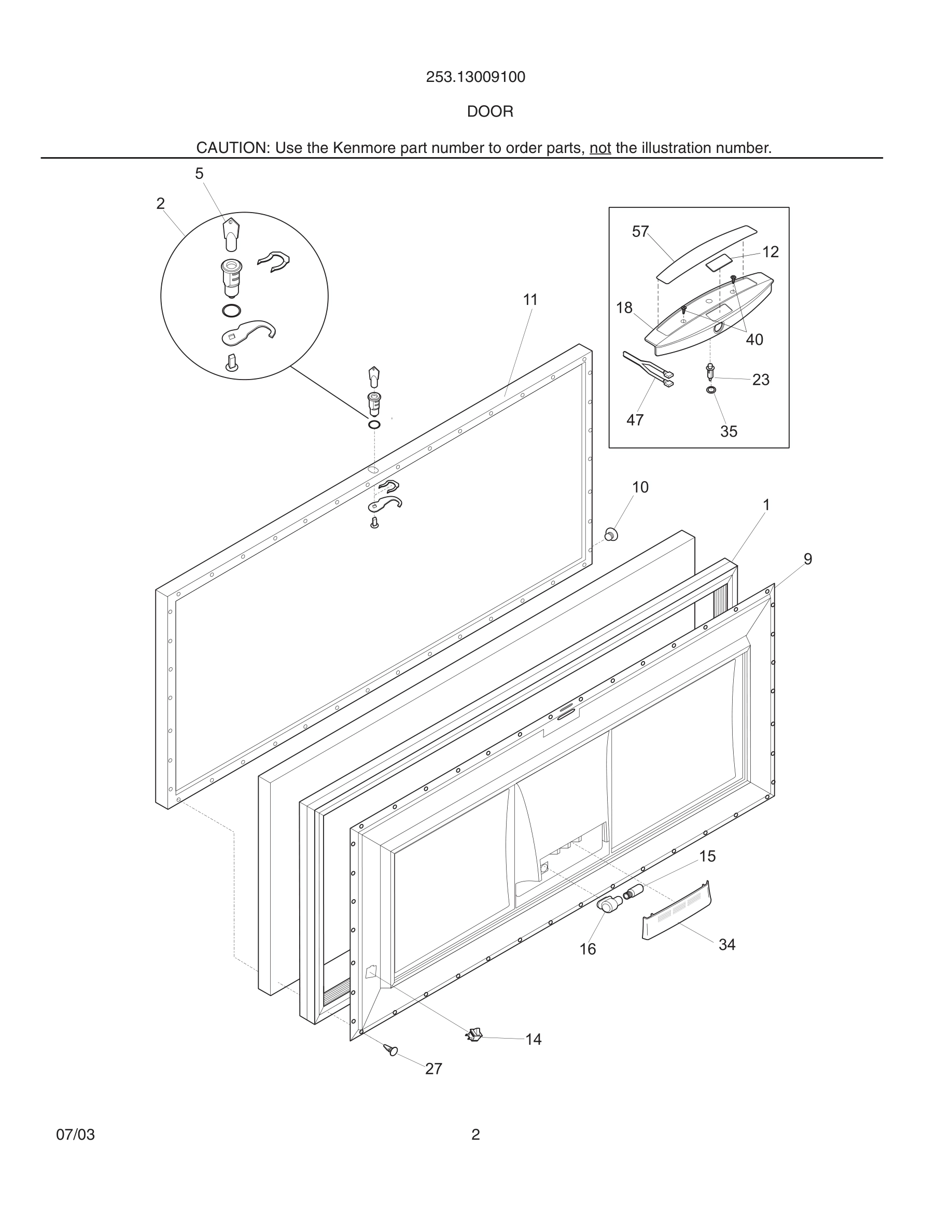

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.13009100 FREEZER
*
Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability
*
Label,energy guide WCI 216794405 Contact Us For Availability
*
Owners guide WCI 216902400 Contact Us For Availability
*
Service Data Sheet WCI 216924700 Contact Us For Availability
*
Spacer-tube,0.237" ID WCI 5303298960 Contact Us For Availability
1
Gasket,lid seal ,white WCI 216481401 Contact Us For Availability
1
Catch-lock,white WCI 216909800 Contact Us For Availability
1#
Condenser WCI 5303280307 Contact Us For Availability
1A
Support,lock catch clip WCI 216818900 Contact Us For Availability
2
Adapter,drain hose WCI 216269500 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
4
Plug,drain ,exterior WCI 216073900 Contact Us For Availability
5#
Harness-main WCI 216855900 Contact Us For Availability
6
Breaker,hinge side WCI 216111200 Contact Us For Availability
7
Breaker,lock side WCI 216111800 Contact Us For Availability
11
Breaker,chest end ,(2) WCI 216110800 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
28
Support,compressor WCI 5303212615 Contact Us For Availability
30
Breaker,corners WCI 216110700 Contact Us For Availability
32
Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability
42
Washer,flat ,1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
48#
Solenoid WCI 216799800 Contact Us For Availability
49
Screw-solenoid WCI 216730000 Contact Us For Availability
51#
Valve-formed WCI 216811300 Contact Us For Availability
59
Basket,upper ,(2) WCI 216916200 Contact Us For Availability
75
Panel,access ,white WCI 216034301 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
100
Track,basket WCI 216205101 Contact Us For Availability
× ![]()
