Model Kenmore 253.11541102 FREEZER – Common Parts & Diagrams

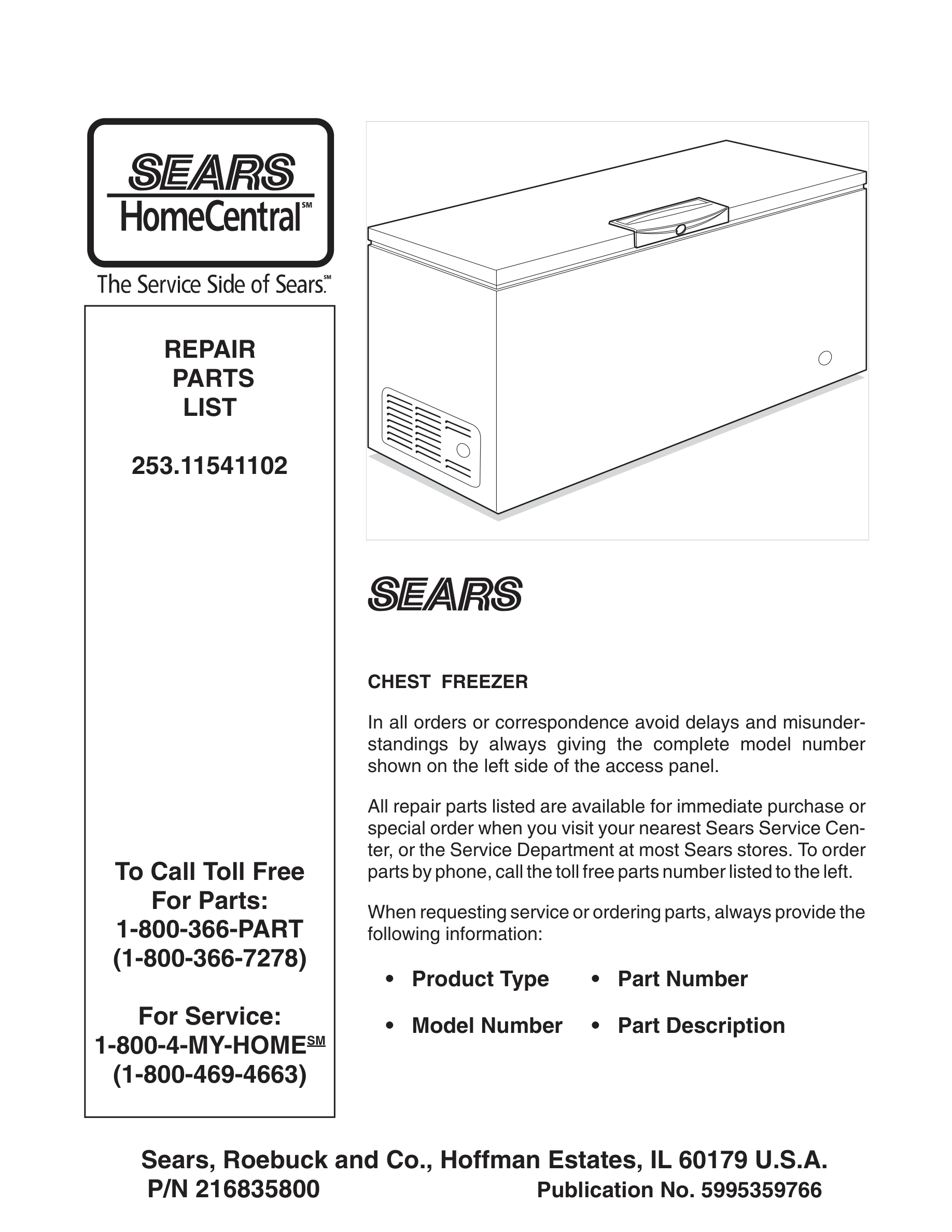

01 - COVER

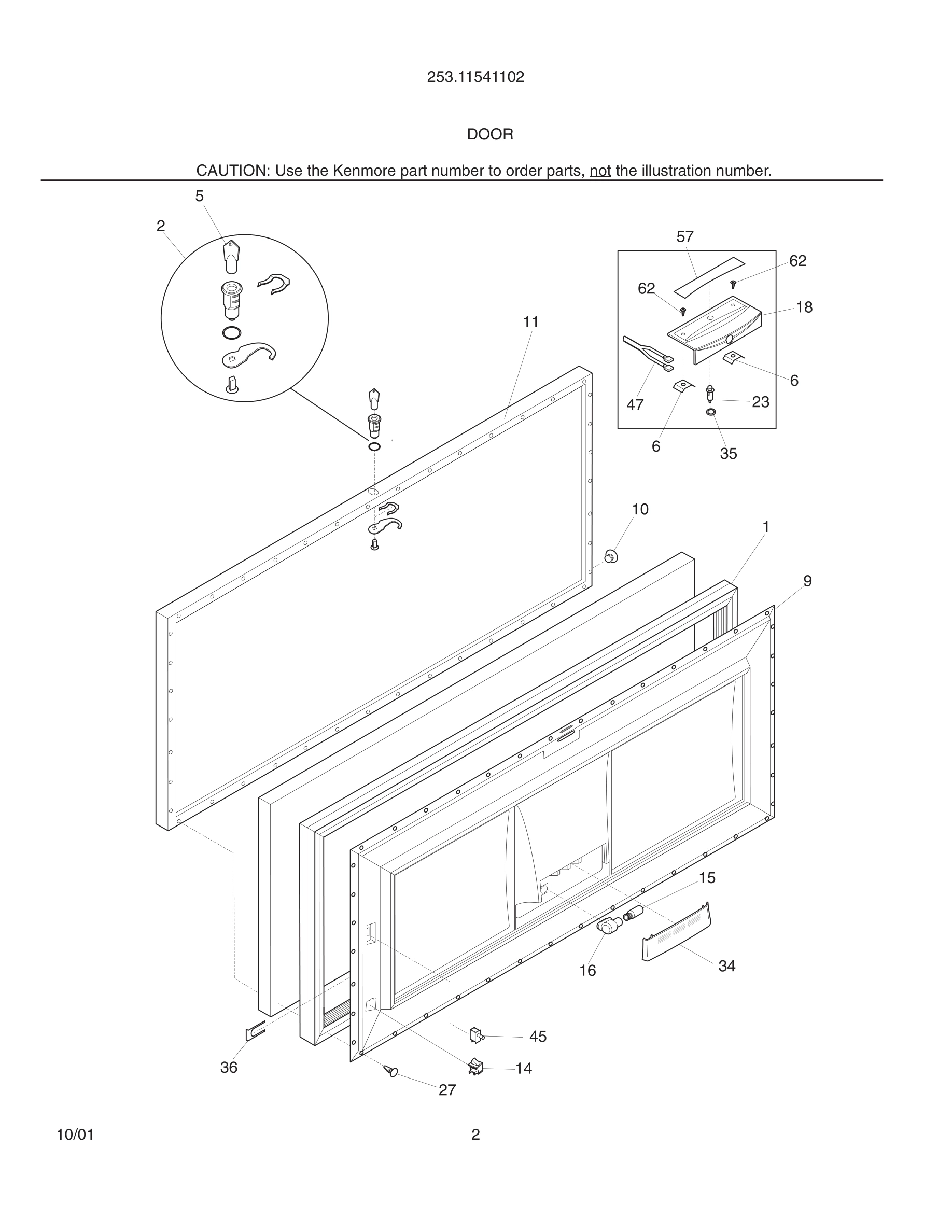

03 - DOOR

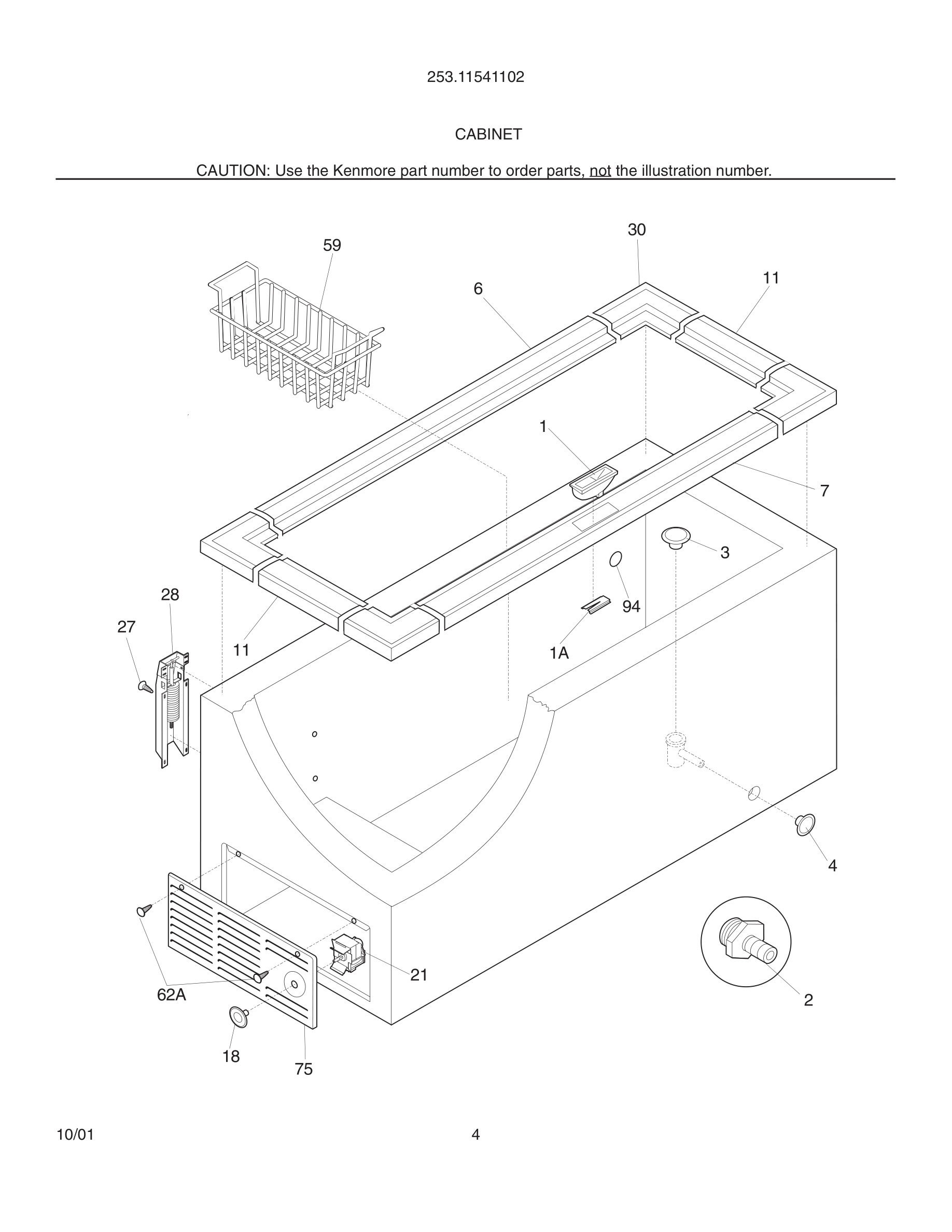

05 - CABINET

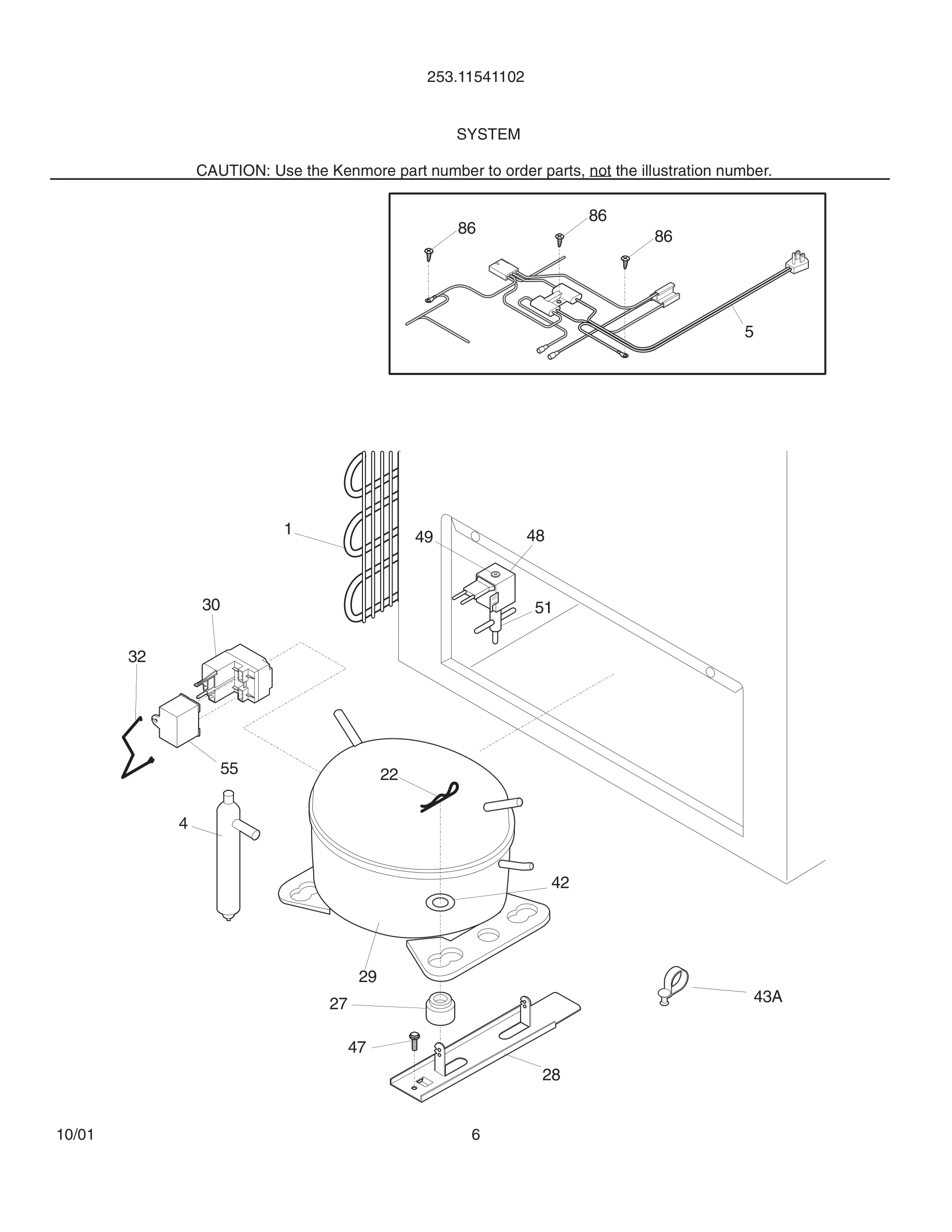

07 - SYSTEM
Common parts from model Kenmore 253.11541102 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
*
Parts List WCI 5995359766 Contact Us For Availability
*
Service Data Sheet WCI 216800900 Contact Us For Availability
1
Latch-door WCI 5303208488 Contact Us For Availability
1A
support-lock WCI 216818900 Contact Us For Availability
2
Adapter-drain WCI 216269500 Contact Us For Availability
3
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
4
Plug-drain,exterior WCI 216073900 Contact Us For Availability
5
Harness-main WCI 216792900 Contact Us For Availability
6
Breaker WCI 216110900 Contact Us For Availability
7
Breaker,lock side WCI 216111600 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
22
Clip-spring mtg WCI 216056400 Contact Us For Availability
28
Support-compressor WCI 5303212615 Contact Us For Availability
29#
Compressor,w/o electricals WCI 216784300 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
42
Washer-flat WCI 216232700 Contact Us For Availability
45#
Switch-defrost WCI 3201509 Contact Us For Availability
47
Harness-lid/defrost WCI 216792800 Contact Us For Availability
48#
Solenoid WCI 216799800 Contact Us For Availability
49
Screw-solenoid WCI 216730000 Contact Us For Availability
51
Valve,formed WCI 216718400 Contact Us For Availability
57
Overlay,decorative WCI 216508500 Contact Us For Availability
59
Basket WCI 216080300 Contact Us For Availability
75
Panel-access,white WCI 216034301 Contact Us For Availability
94
Lens,indicator ,frost WCI 216140400 Contact Us For Availability
× ![]()
