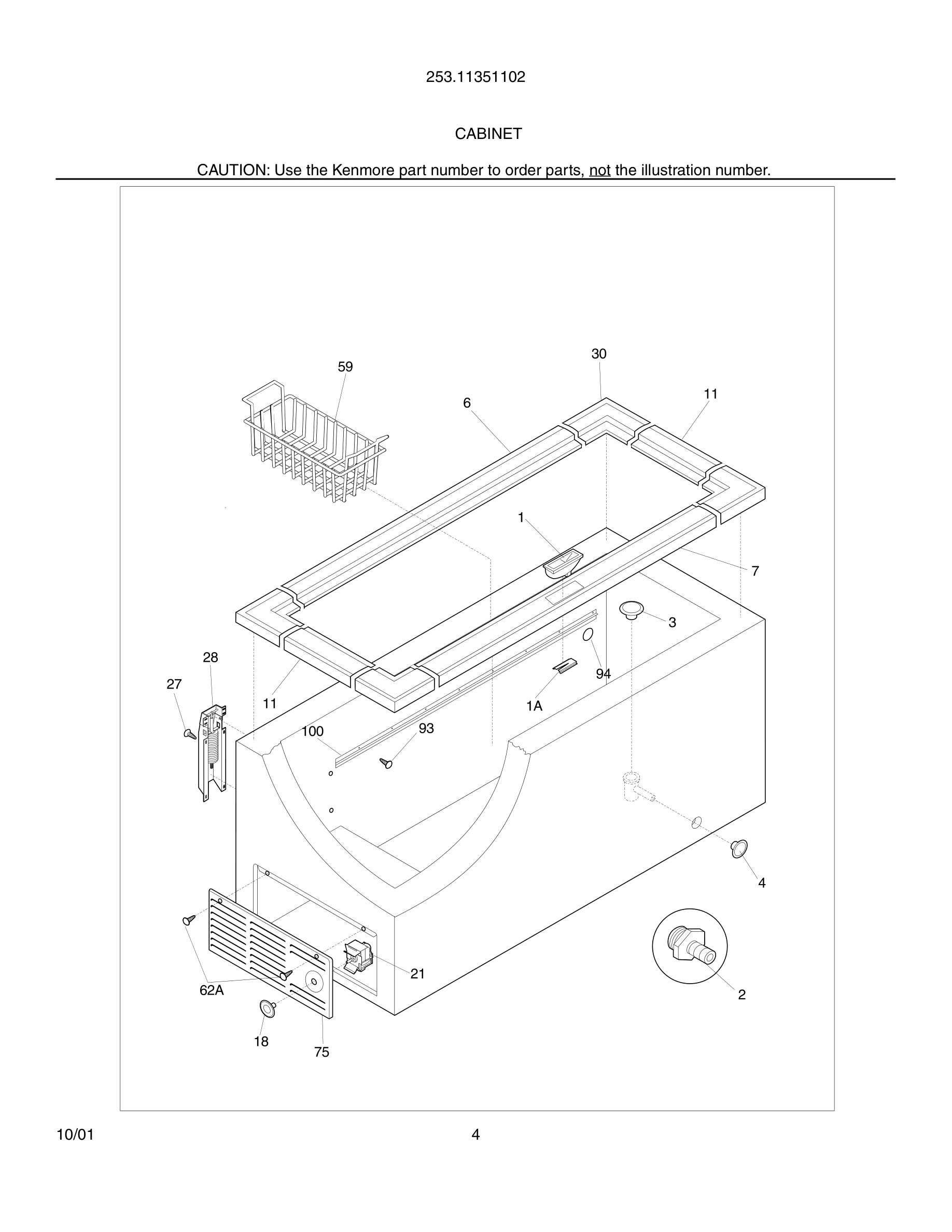

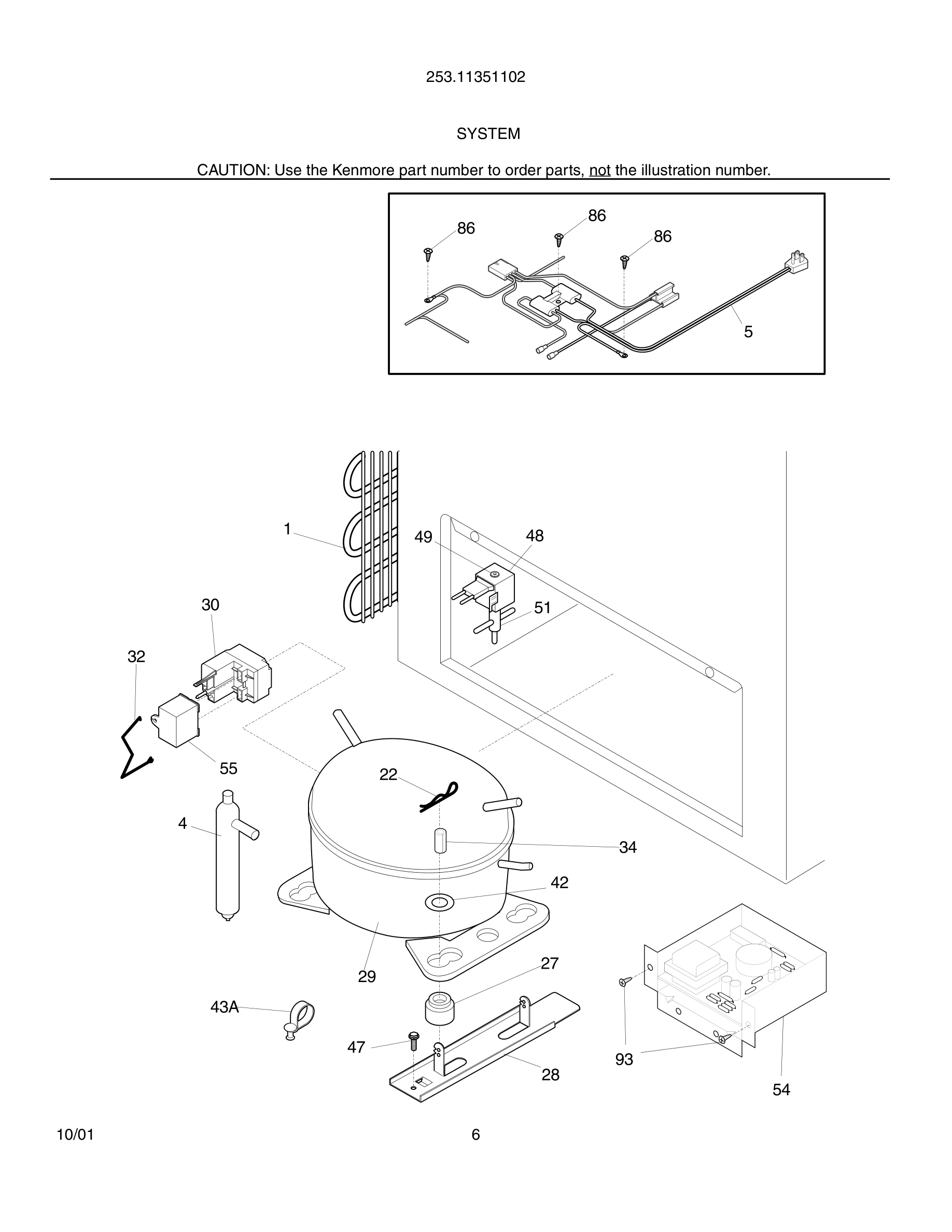

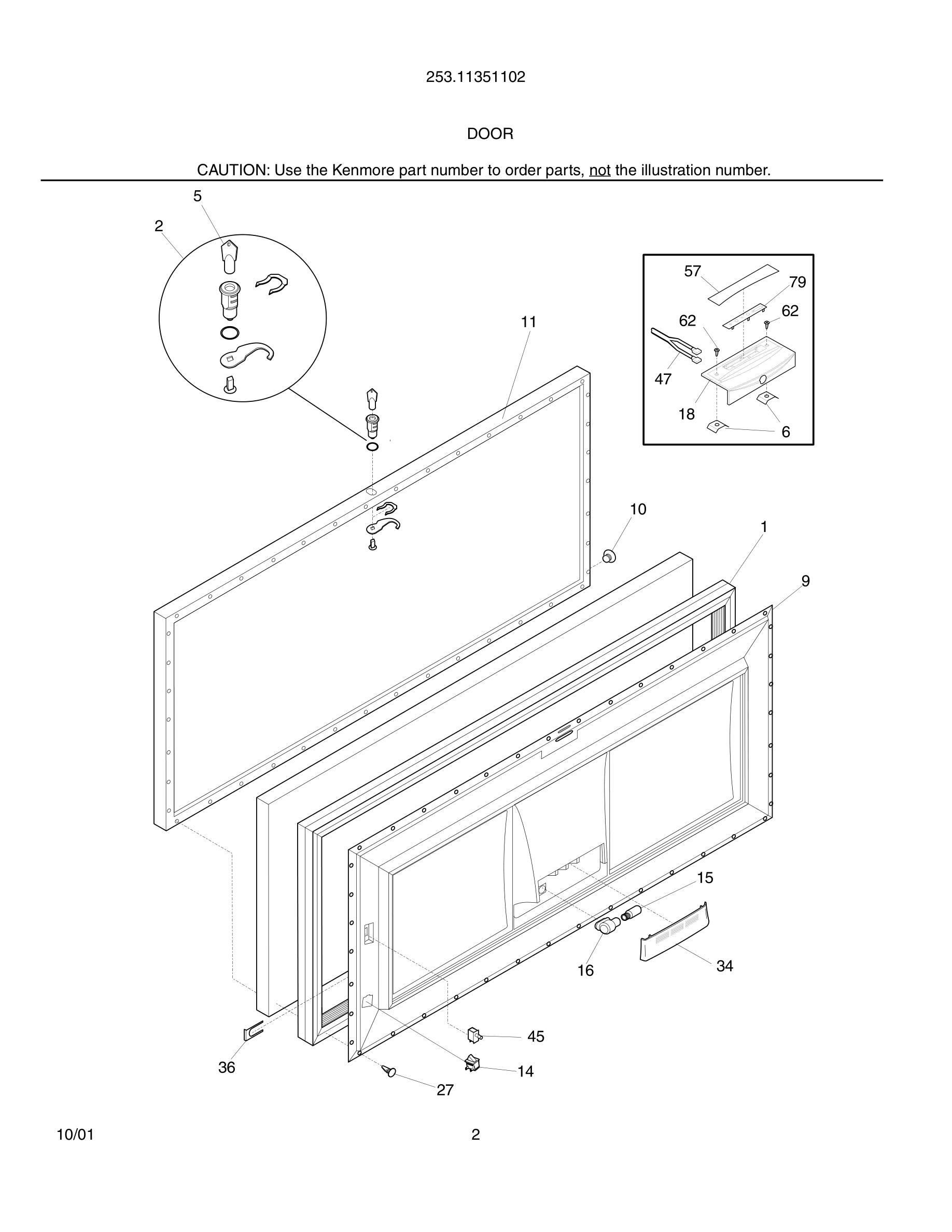

Model Kenmore 253.11351102 FREEZER – Common Parts & Diagrams

*
Insulation
Insulation WCI 5303925098 Contact Us For Availability
View on Model
*

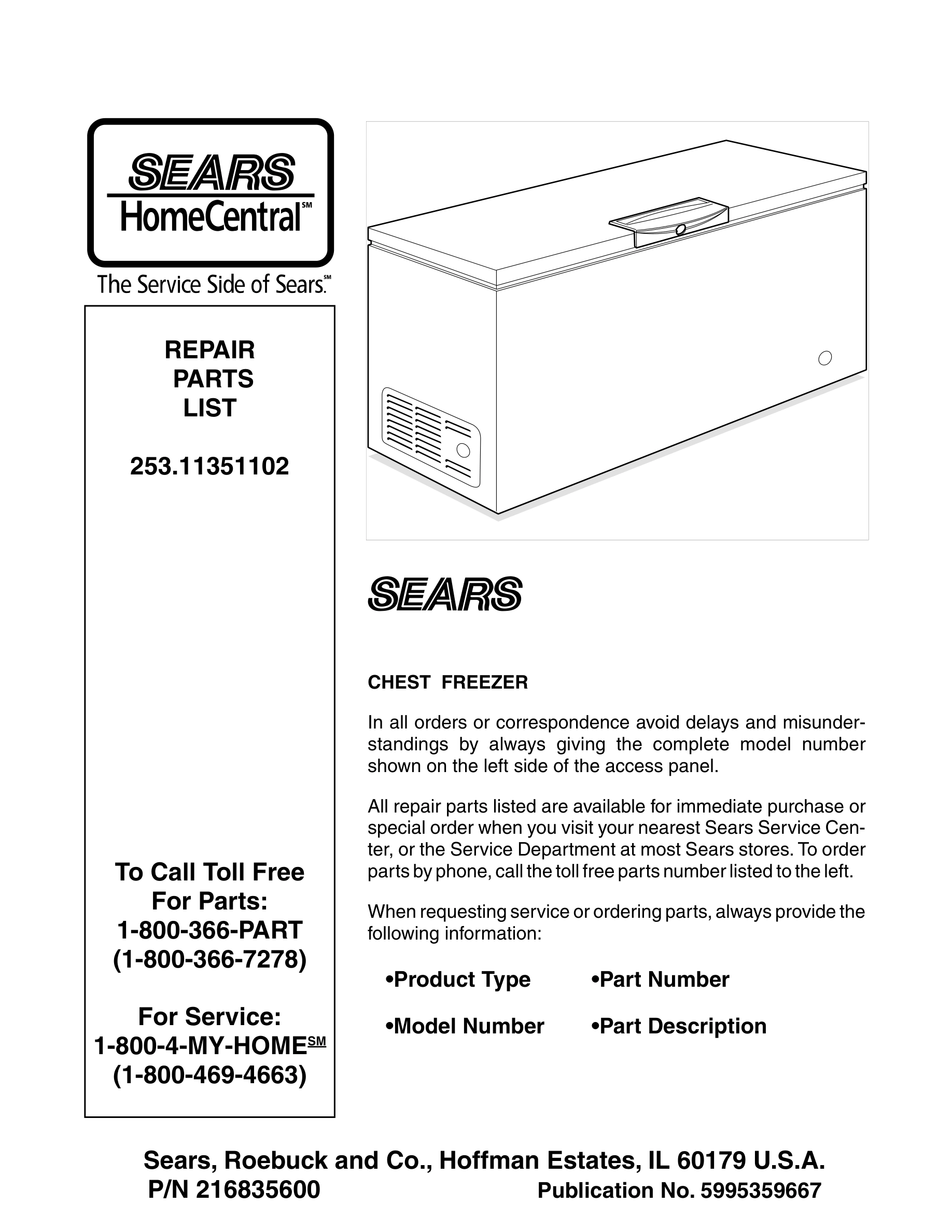

Parts-list
Parts-list WCI 5995359667 Contact Us For Availability
View on Model
*
Service Data Sheet
Service Data Sheet WCI 216801200 Contact Us For Availability
View on Model
1
Gasket-door,white
Gasket-door,white WCI 216469401 Contact Us For Availability
View on Model
1
Latch-door
Latch-door WCI 5303208488 Contact Us For Availability
View on Model
1A
support-lock
support-lock WCI 216818900 Contact Us For Availability
View on Model
2
Adapter-drain
Adapter-drain WCI 216269500 Contact Us For Availability
View on Model
3
Plug-drain,interior ,interior
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
View on Model
4
Plug-drain,exterior
Plug-drain,exterior WCI 216073900 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216793100 Contact Us For Availability
View on Model
6
Breaker,hinge side
Breaker,hinge side WCI 216111300 Contact Us For Availability
View on Model
7
Breaker,lock side
Breaker,lock side WCI 216111900 Contact Us For Availability
View on Model
11
Breaker,white ,ends
Breaker,white ,ends WCI 216110800 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216714700 Contact Us For Availability
View on Model
22
Clip-spring mtg
Clip-spring mtg WCI 216056400 Contact Us For Availability
View on Model
28
Support-compressor
Support-compressor WCI 5303212615 Contact Us For Availability
View on Model
30
Breaker,white ,corners
Breaker,white ,corners WCI 216110700 Contact Us For Availability
View on Model
32
Clamp,elec cont mtg ,compressor
Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability
View on Model
34
Spacer-tube,.75"
Spacer-tube,.75" WCI 5303298960 Contact Us For Availability
View on Model
42
Washer-flat
Washer-flat WCI 216232700 Contact Us For Availability
View on Model
45#
Switch-defrost
Switch-defrost WCI 3201509 Contact Us For Availability
View on Model
47
Harness-lid/defrost
Harness-lid/defrost WCI 216793000 Contact Us For Availability
View on Model
48#
Solenoid
Solenoid WCI 216799800 Contact Us For Availability
View on Model
49
Nut,self-threading ,1/8
Nut,self-threading ,1/8 WCI 216722800 Contact Us For Availability
View on Model
51
Valve,formed
Valve,formed WCI 216718400 Contact Us For Availability
View on Model
54#
Electronics,high voltage
Electronics,high voltage WCI 216264400 Contact Us For Availability
View on Model
57
Overlay,decorative
Overlay,decorative WCI 216508600 Contact Us For Availability
View on Model
59
Basket
Basket WCI 216080300 Contact Us For Availability
View on Model
59*
Basket,lower ,(2)
Basket,lower ,(2) WCI 216080700 Contact Us For Availability
View on Model
75
Panel-access,white
Panel-access,white WCI 216034301 Contact Us For Availability
View on Model
79
Electronics,low voltage
Electronics,low voltage WCI 216172100 Contact Us For Availability
View on Model
94
Lens,indicator ,frost
Lens,indicator ,frost WCI 216140400 Contact Us For Availability
View on Model
100
Track,basket
Track,basket WCI 216082000 Contact Us For Availability
View on Model
