Model Kenmore 253.11312102 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

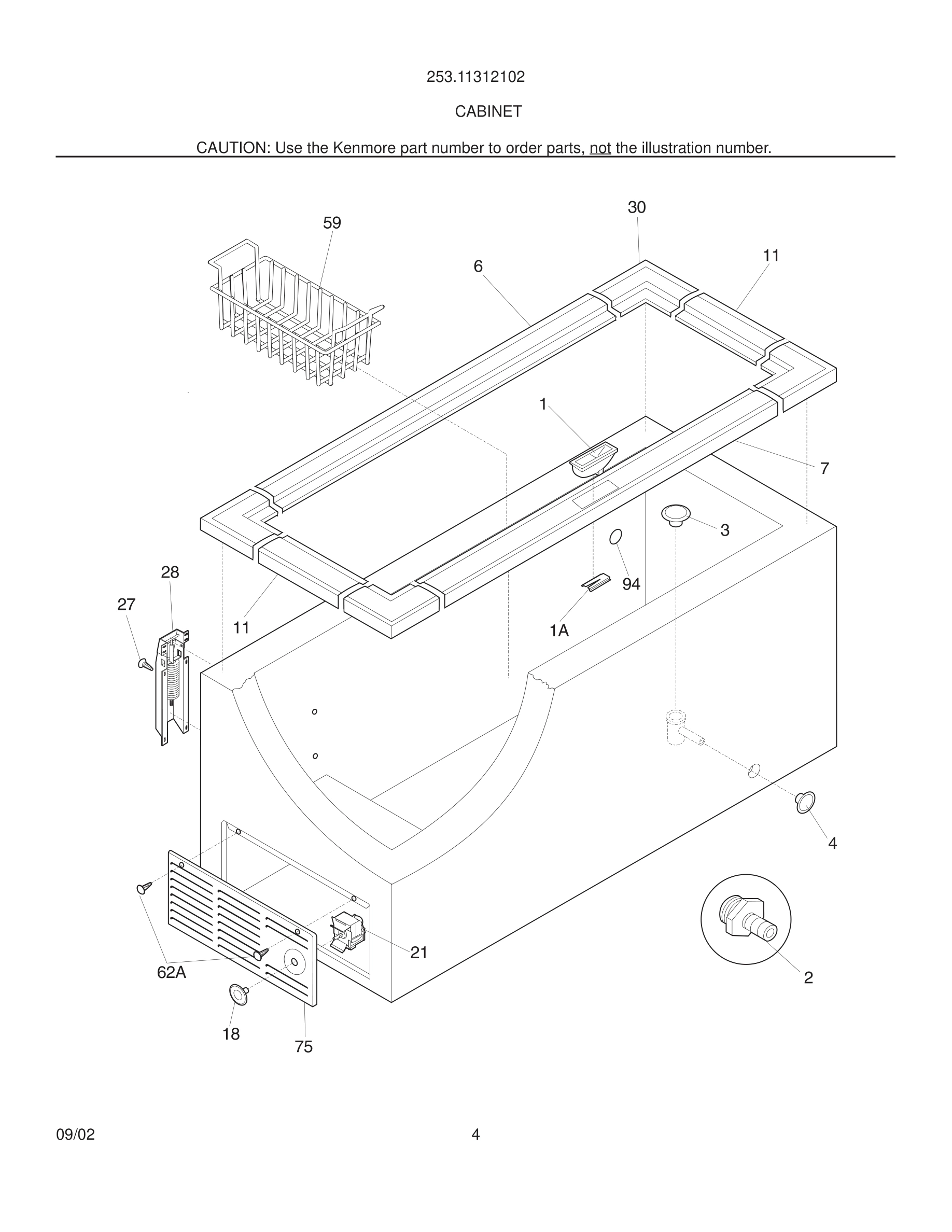

05 - CABINET

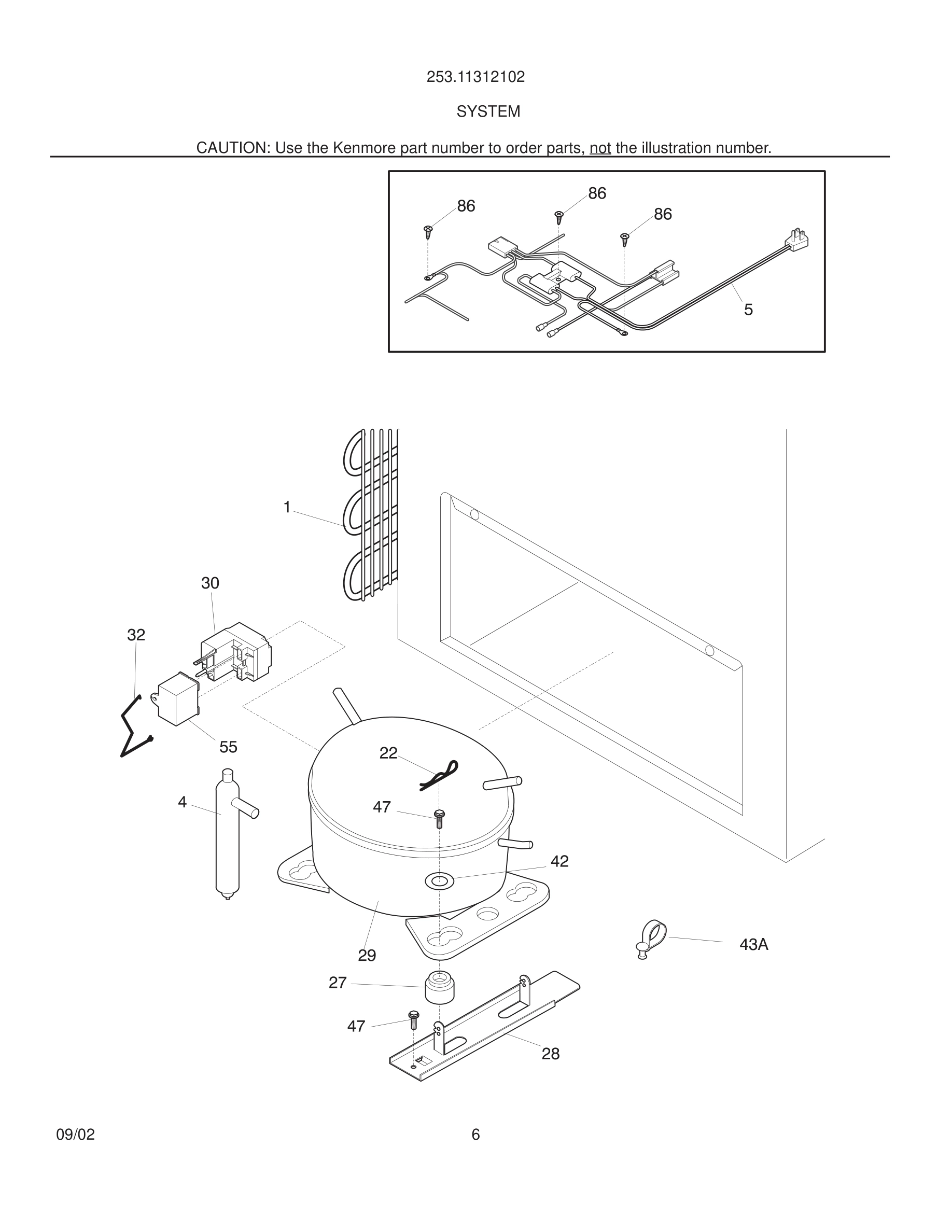

07 - SYSTEM
Common parts from model Kenmore 253.11312102 FREEZER
*
Insulation WCI 5303925098 Contact Us For Availability
*
Energy Guide WCI 216794100 Contact Us For Availability
*
Service Data Sheet WCI 216800700 Contact Us For Availability
1
Gasket-door,white WCI 216481101 Contact Us For Availability
1
Latch,lid catch WCI 5303208488 Contact Us For Availability
1A
Support,lock catch clip WCI 216818900 Contact Us For Availability
2
Adapter,drain hose WCI 216269500 Contact Us For Availability
3
Plug,drain ,interior WCI 216502600 Contact Us For Availability
4
Plug,drain ,exterior WCI 216073900 Contact Us For Availability
5#
Harness-main WCI 216792300 Contact Us For Availability
6
Breaker WCI 216110900 Contact Us For Availability
7
Breaker,lock side WCI 216111500 Contact Us For Availability
9
Panel-inner door,white ,frzr WCI 216829004 Contact Us For Availability
11
Breaker,chest end ,(2) WCI 216110800 Contact Us For Availability
22
Clip,compressor mtg ,SPRING WCI 216056400 Contact Us For Availability
28
Hinge WCI 216039600 Contact Us For Availability
28
Support,compressor WCI 5303212615 Contact Us For Availability
30
Controller WCI 216649319 Contact Us For Availability
30
Breaker,corners WCI 216110700 Contact Us For Availability
32
Clip,controller WCI 216694500 Contact Us For Availability
42
Washer,flat ,1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
59
Basket WCI 216080300 Contact Us For Availability
75
Panel,access ,white WCI 216034301 Contact Us For Availability
94
Lens,frost indicator ,blue WCI 216140400 Contact Us For Availability
× ![]()
