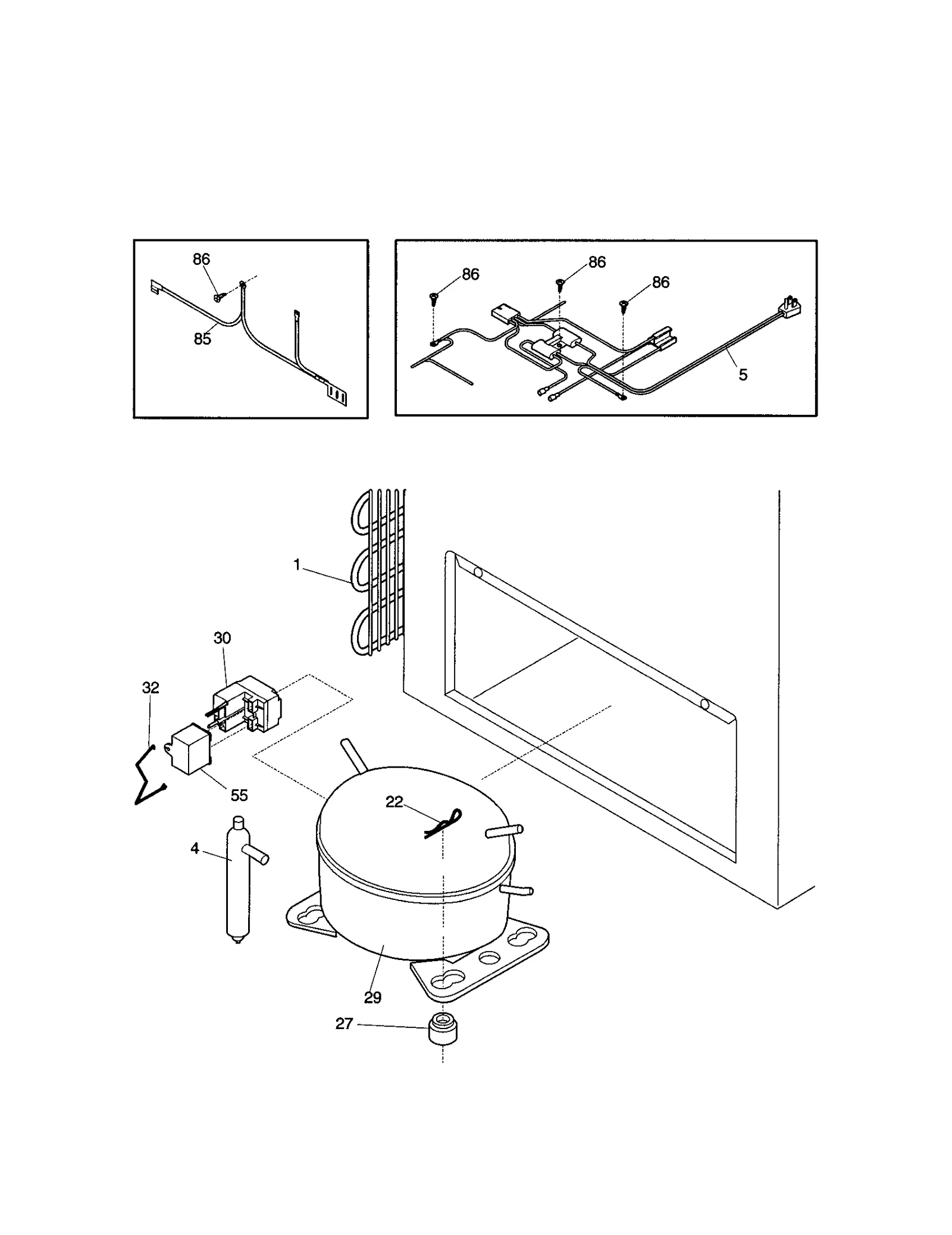

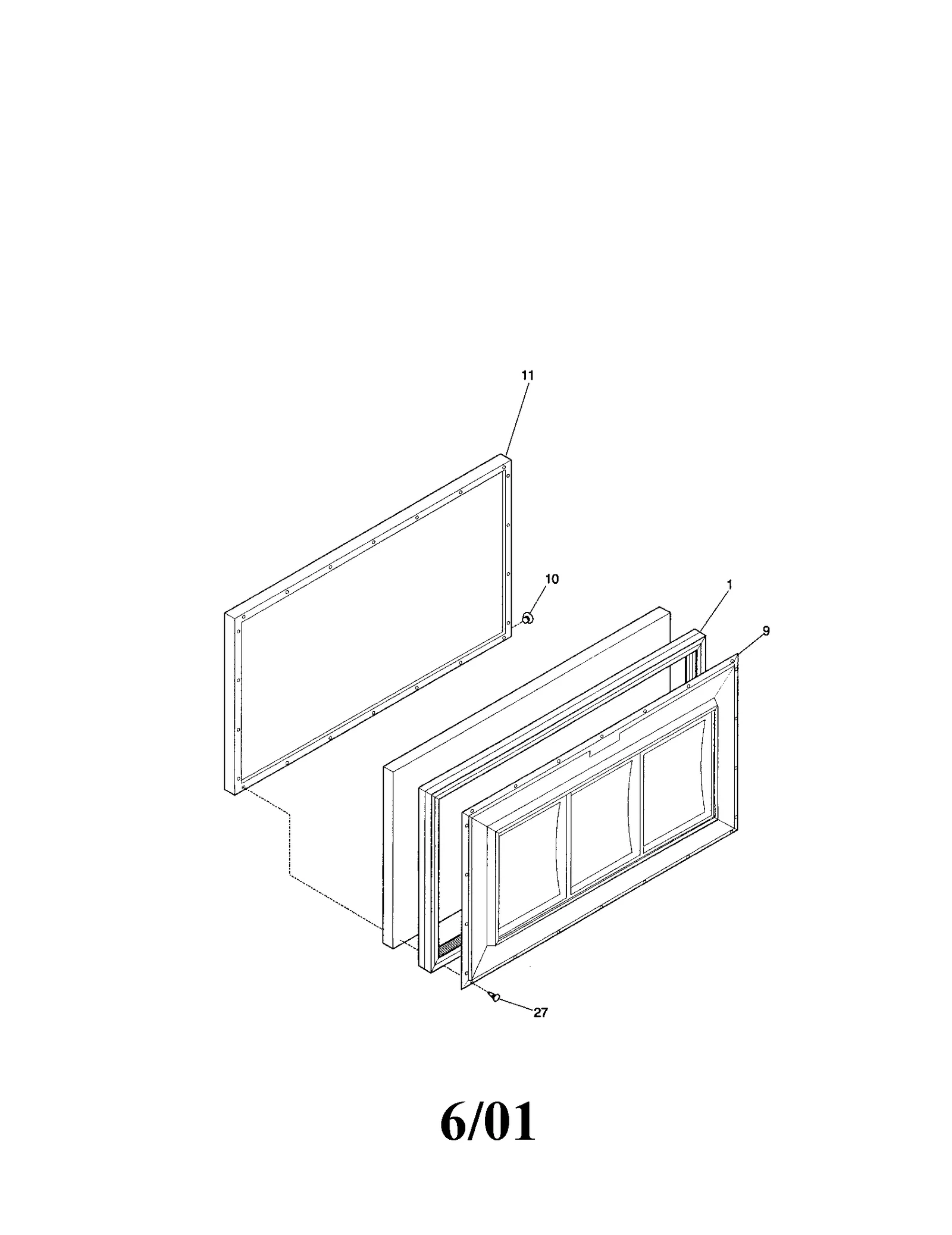

Model Electrolux 253.11301101 Freezer (Kenmore 25311301101) – Common Parts & Diagrams

1
Frigidaire Freezer Lid Gasket (White)
Frigidaire Freezer Lid Gasket (White) WCI 216480801 Contact Us For Availability
View on Model
1
Freezer Condenser Coil
Freezer Condenser Coil WCI 5300120779 Contact Us For Availability
View on Model
5
Electronic Harness
Electronic Harness WCI 216696400 Contact Us For Availability
View on Model
9
Freezer Door Inner Liner Screw
Freezer Door Inner Liner Screw WCI 216061502 Contact Us For Availability
View on Model
10
Plug Button (White)
Plug Button (White) WCI 216141101 Contact Us For Availability
View on Model
11
Kelvinator Freezer Lid Outer Panel (White)
Kelvinator Freezer Lid Outer Panel (White) WCI 216106014 Contact Us For Availability
View on Model
22
Clip
Clip WCI 216056400 Contact Us For Availability
View on Model
30
Freezer Compressor Start Relay
Freezer Compressor Start Relay WCI 216649304 Contact Us For Availability
View on Model
30
Freezer Corner Trim
Freezer Corner Trim WCI 216105500 Contact Us For Availability
View on Model
32
Clip
Clip WCI 216694500 Contact Us For Availability
View on Model
55
Capacitor
Capacitor WCI 216696700 Contact Us For Availability
View on Model
62
Screw
Screw WCI 1131168200 Contact Us For Availability
View on Model
75
Access Panel
Access Panel WCI 216329402 Contact Us For Availability
View on Model
85
Wire
Wire WCI 216533100 Contact Us For Availability
View on Model
86
Screw Rwh #8
Screw Rwh #8 WCI 216707700 Contact Us For Availability
View on Model
NI
Service Data
Service Data WCI 216814700 Contact Us For Availability
View on Model
NI
Repair Parts List
Repair Parts List WCI 5995352811 Contact Us For Availability
View on Model
