Model Kenmore 253-357400 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

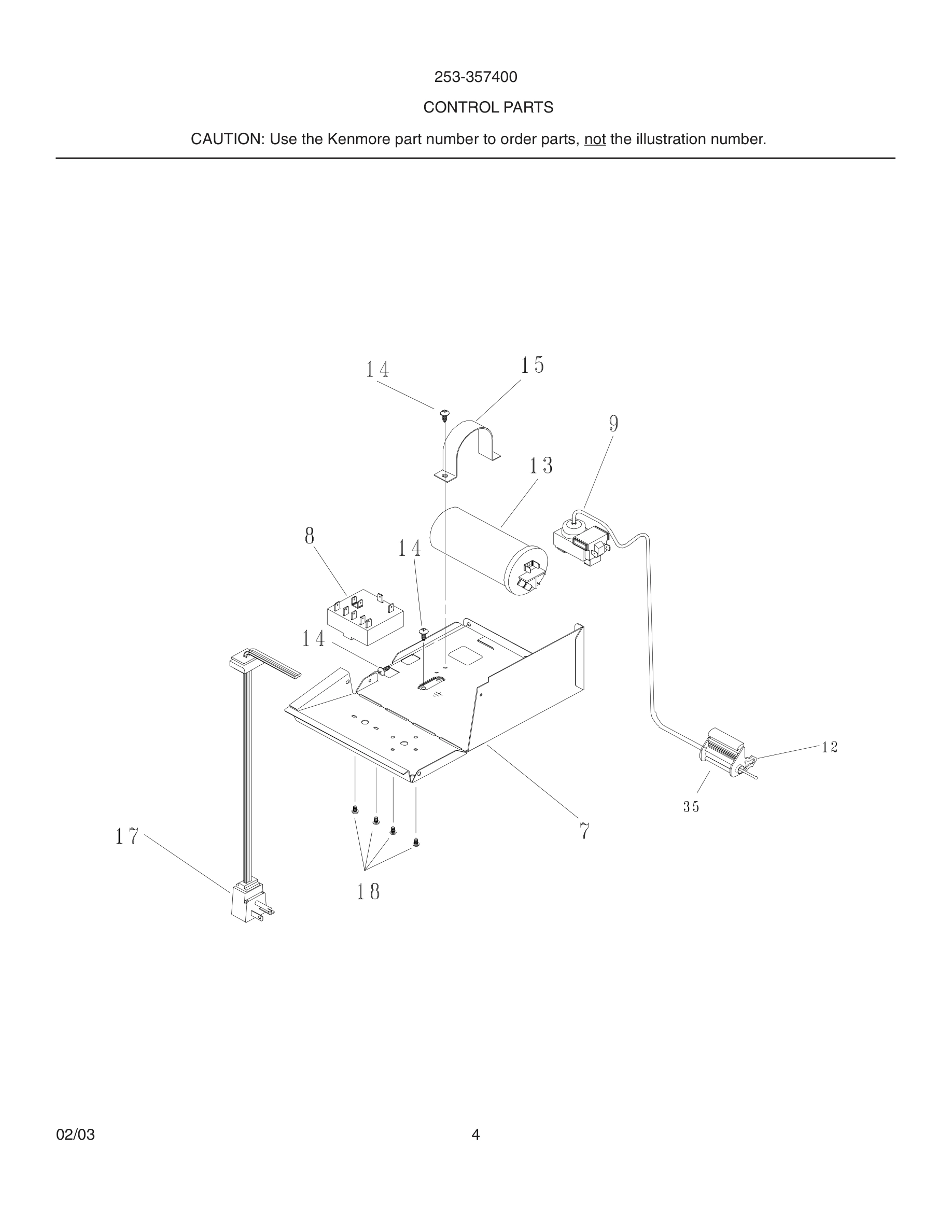

05 - CONTROL PARTS

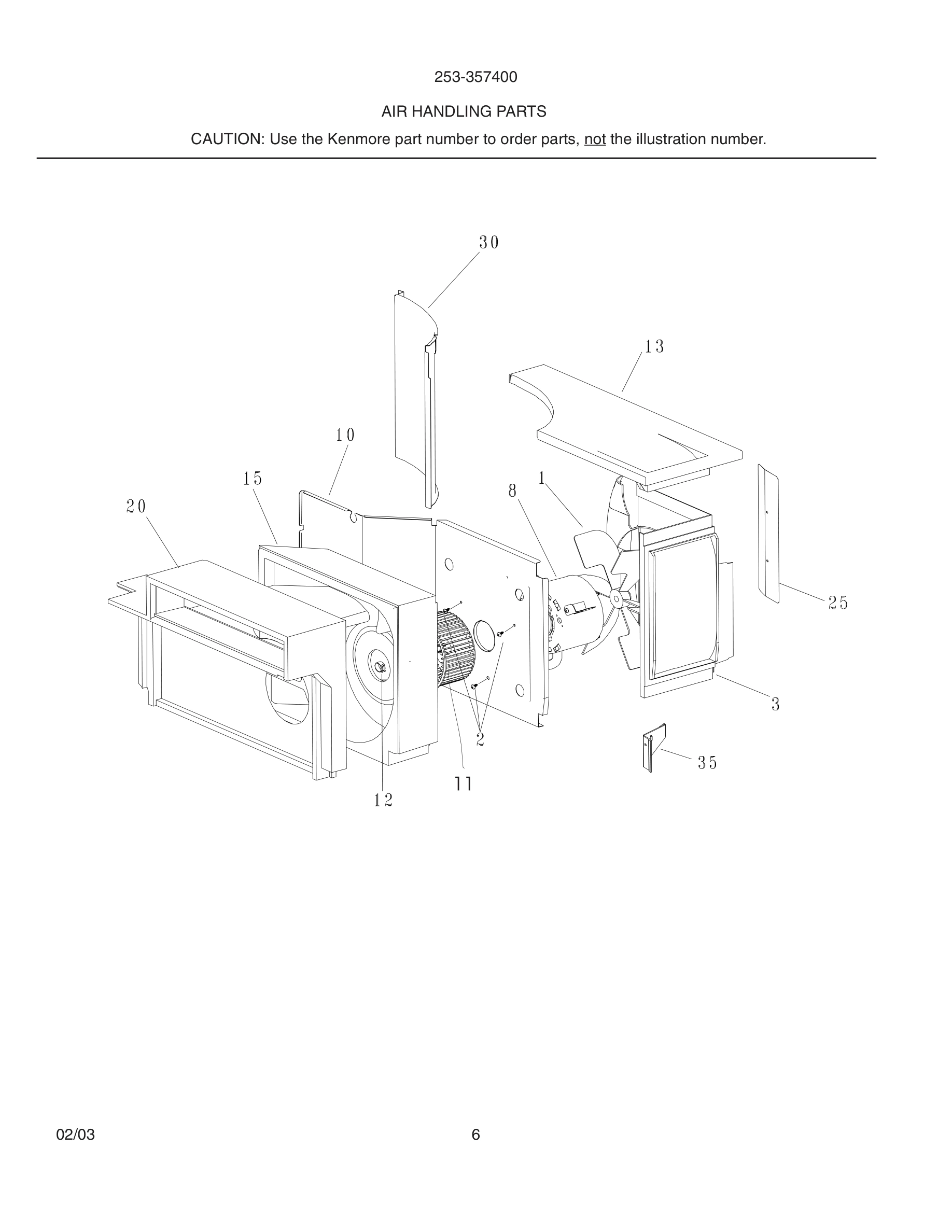

07 - AIR HANDLING PARTS

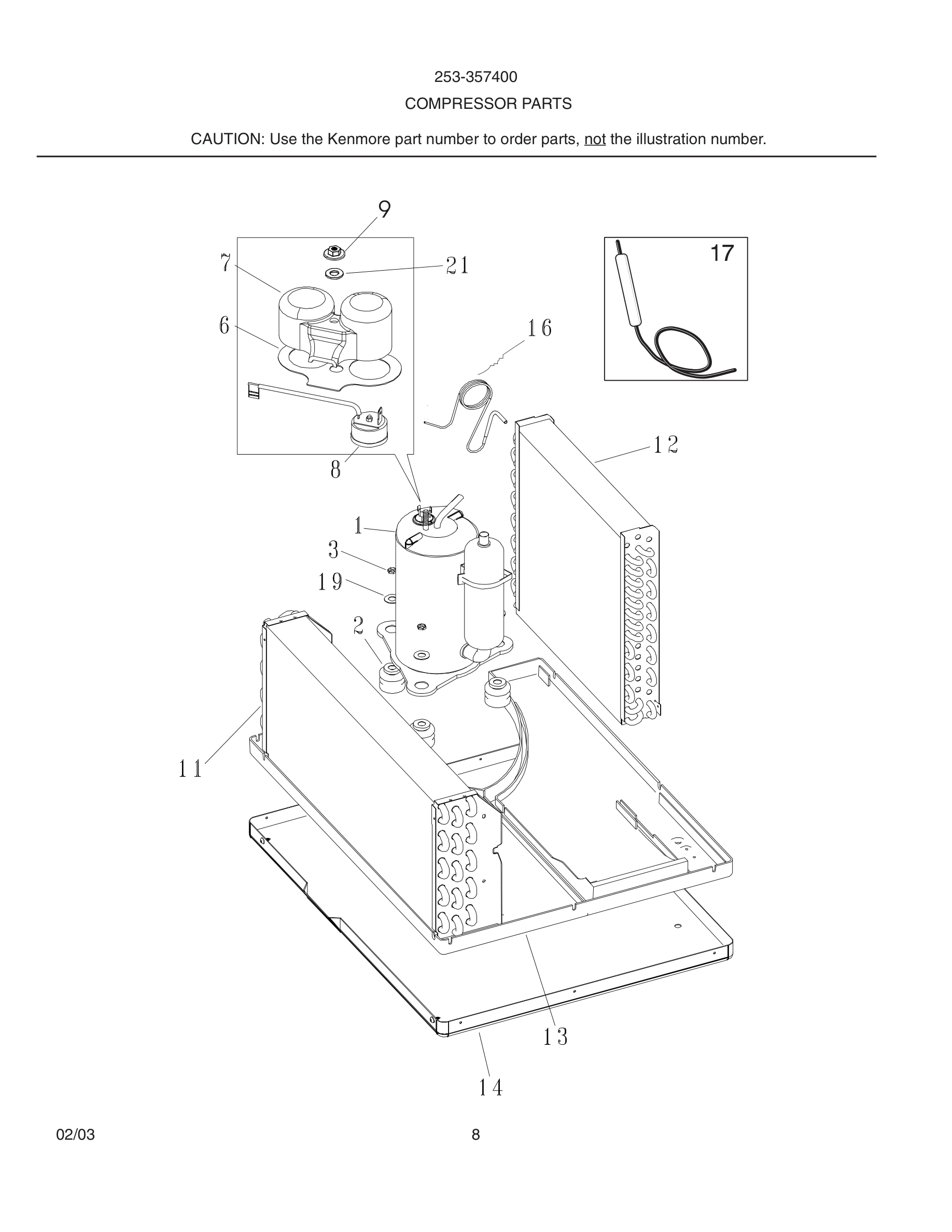

09 - COMPRESSOR PARTS

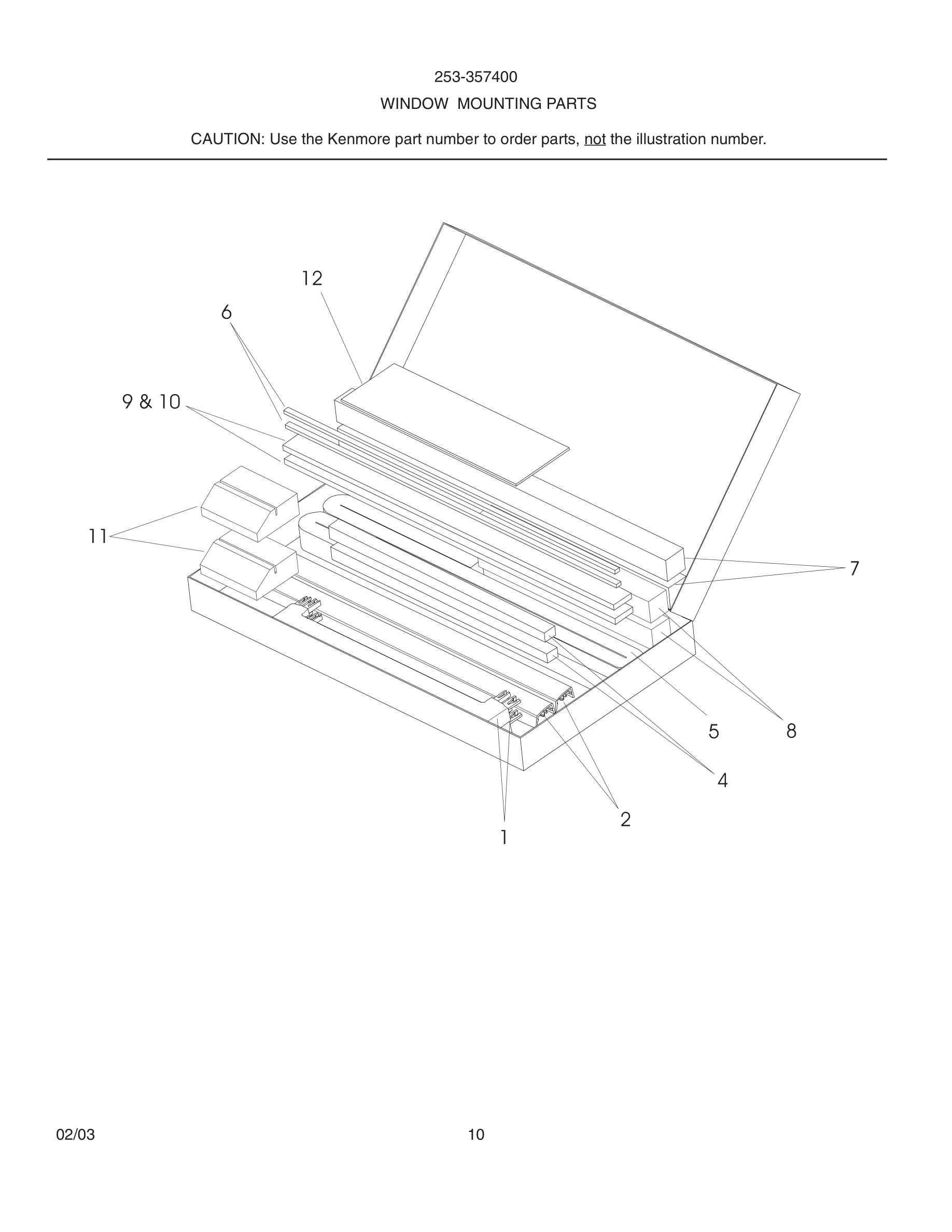

11 - WINDOW MOUNTING PARTS

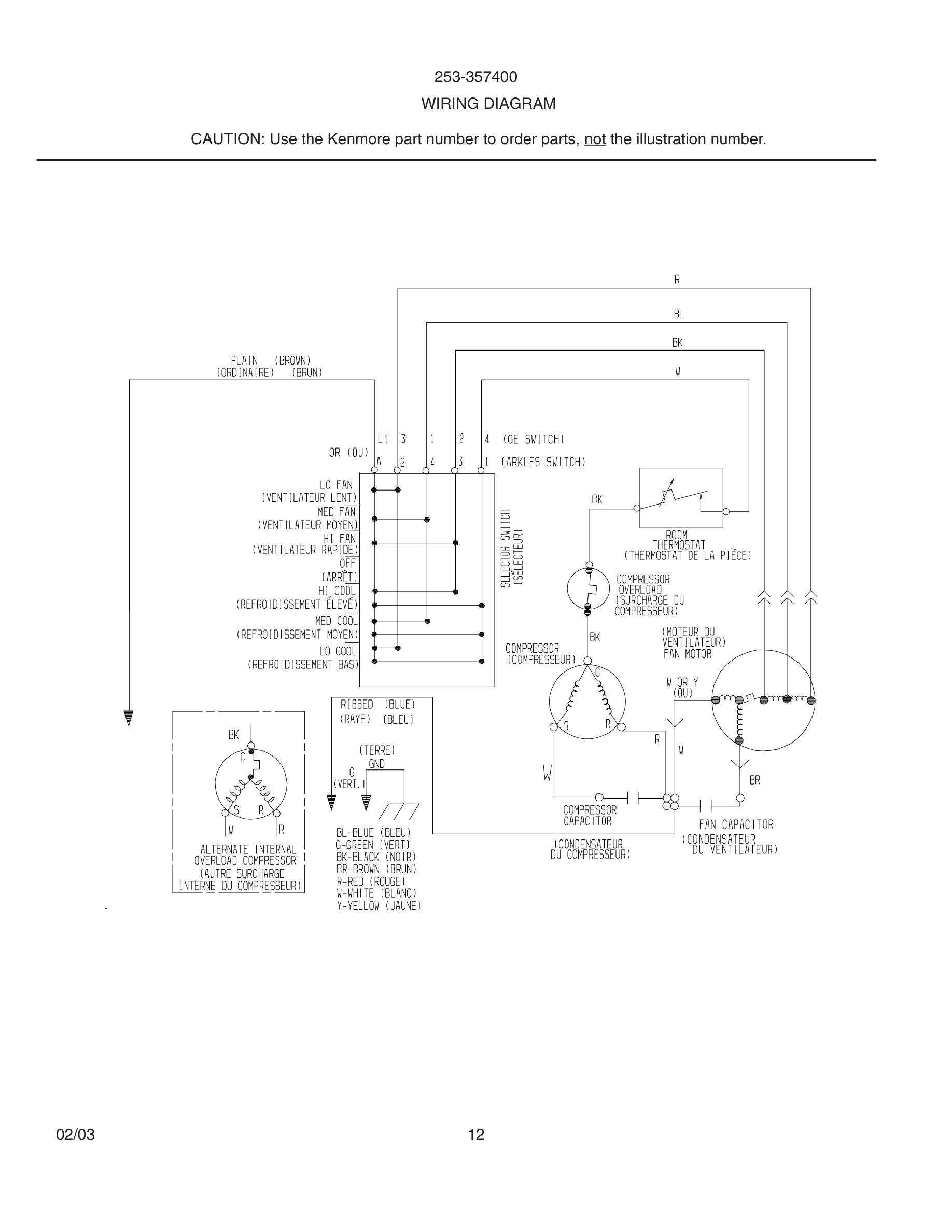

12 - WIRING DIAGRAM
Common parts from model Kenmore 253-357400 ROOM AIR CONDITIONER
*
Repair Parts List,253-35740 ,Sears Canada WCI 5995386546 Contact Us For Availability
*
Energy Guide,253-35740 WCI 309363211 Contact Us For Availability
*
Mounting Kit,complete WCI 309636002 Contact Us For Availability
*
Grounding Kit WCI 5304409303 Contact Us For Availability
*
Grille Mtg. Kit WCI 5304409311 Contact Us For Availability
1
Cabinet,wrapper WCI 309627504 Contact Us For Availability
1
Trim,frame ,side WCI 309628603 Contact Us For Availability
1#
Fan Blade WCI 309629102 Contact Us For Availability
1#
Compressor WCI 309603116 Contact Us For Availability
2
Screen,safety ,wire mesh ,cabinet rear WCI 309636101 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
2
Trim,frame ,top & bottom WCI 309628604 Contact Us For Availability
2*
Panel,plastic mesh ,cabinet rear WCI 5304408740 Contact Us For Availability
3
Shroud,fan WCI 309628901 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Block,tapered WCI 5304409304 Contact Us For Availability
5
Seal,stuffer ,wrapper WCI 5303301038 Contact Us For Availability
6
Louver Assy,includes 7,8,9 WCI 309629303 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
Seal,cond. end brkt ,rear panel WCI 5304409305 Contact Us For Availability
7
* Link,vertical louver ,with handle WCI 309324003 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
7
Seal,condenser ,26.5 x 1.5 x1.5 ,rear panel WCI 5304409306 Contact Us For Availability
7#
Control Box WCI 309628501 Contact Us For Availability
8
* Louver,horizontal WCI 309628003 Contact Us For Availability
8
Seal,condenser ,14 x 1.5 x 1.5 ,rear panel/si WCI 5304409307 Contact Us For Availability
8#
Motor,fan ,3 speed WCI 309647503 Contact Us For Availability
8#
Switch,selector ,7 posn,3 speed WCI 5304408739 Contact Us For Availability
8#
Overload Protector WCI 5304430489 Contact Us For Availability
9
* Louver,vertical WCI 309628102 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
9
Seal,condenser ,26.5 x 1.5 x.38 ,rear panel,t WCI 5304409308 Contact Us For Availability
9#
Control,temperature ,12 amp WCI 5304408746 Contact Us For Availability
10
Bulkhead WCI 309627401 Contact Us For Availability
10
Seal,condenser ,14 x 1.5 x 0.38 ,rear panel/s WCI 5304409309 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11
Block,chassis/cabinet WCI 5304409310 Contact Us For Availability
11#
Blower Wheel WCI 309631701 Contact Us For Availability
11#
Evaporator WCI 309632307 Contact Us For Availability
12
Filter,air ,molded plastic WCI 309628203 Contact Us For Availability
12
Clip,sensor retainer ,3/8 inch WCI 309329801 Contact Us For Availability
12
Clamp,blower wheel mt WCI 5303012110 Contact Us For Availability
12
Divider,14 x 4.5 x .12 ,plastic ,gray/black,c WCI 309335101 Contact Us For Availability
12#
Condenser WCI 309632501 Contact Us For Availability
13
Cover,fan ,top WCI 309628802 Contact Us For Availability
13
Tray,evap base WCI 309628705 Contact Us For Availability
13#
Capacitor,250 V ,50+10 mfd WCI 5304426337 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309632006 Contact Us For Availability
15
Strap,capacitor mtg. WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309622801 Contact Us For Availability
16
Capillary Tube,40 inch long ,cut-to-length WCI 5303289577 Contact Us For Availability
17
Front Assembly,cabinet ,with 6,12,43 WCI 309629403 Contact Us For Availability
17#
Cord-electric power,type A ,16 AWG ,115 V WCI 309343108 Contact Us For Availability
18
Screw,6-32 x 0.188 WCI 5303007754 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
20
Knob,control WCI 309307007 Contact Us For Availability
20
Plate,scroll cover WCI 309622901 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
25
Baffle,air WCI 309335201 Contact Us For Availability
30
Partition,shroud,galv-steel WCI 309629001 Contact Us For Availability
35
Spacer,control bulb ,rubber WCI 3200761 Contact Us For Availability
35
Baffle,splash/motor WCI 309335001 Contact Us For Availability
43
Frame,cabinet front ,w/control label WCI 309631803 Contact Us For Availability
× ![]()
