Model Kenmore 253-355462 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET, FRONT, CONTROLS

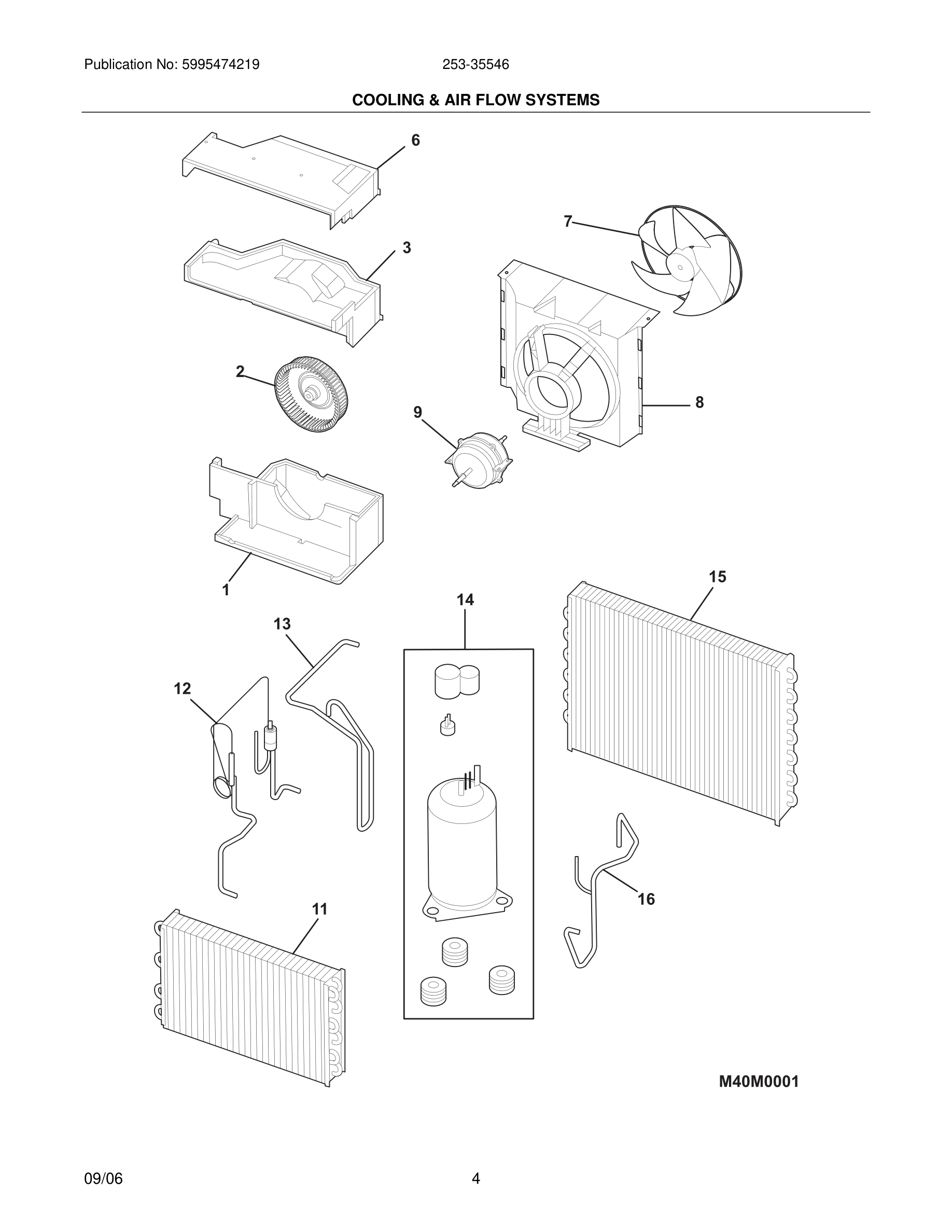

05 - COOLING & AIR FLOW SYSTEMS

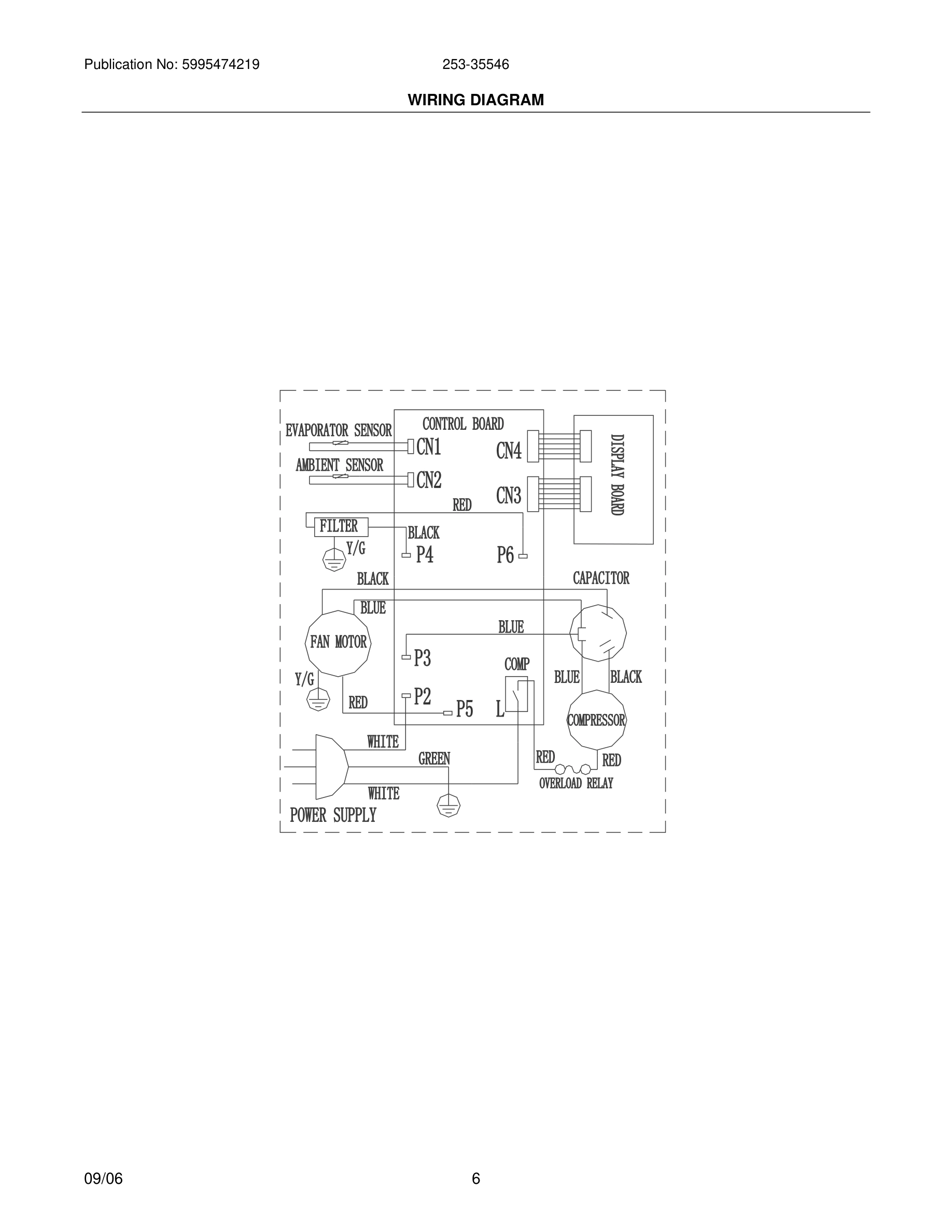

06 - WIRING DIAGRAM
Common parts from model Kenmore 253-355462 ROOM AIR CONDITIONER
*
Hardware Kit, installation WCI 5304458022 Contact Us For Availability
1
Base, unit chassis WCI 5304437072 Contact Us For Availability
1
Scroll, blower housing, bottom, w/drain tray WCI 5304437105 Contact Us For Availability
2
Rail, shutter track, bottom WCI 5304437068 Contact Us For Availability
2#
Blower Wheel, centrifugal fan WCI 5304437891 Contact Us For Availability
3
Frame, shutter panel, LH WCI 5304437055 Contact Us For Availability
3
Scroll, blower housing, top WCI 5304437104 Contact Us For Availability
4
Retainer, shutter lock WCI 5304437052 Contact Us For Availability
5
Shutter, accordion panel WCI 5304437053 Contact Us For Availability
6
Retainer, shutter mount, cabinet sides WCI 5304437057 Contact Us For Availability
6
Cover, blower scroll, top WCI 5304437103 Contact Us For Availability
7
Cabinet, wrapper/sleeve WCI 5304437071 Contact Us For Availability
7#
Fan Blade, propeller, axial flow WCI 5304437049 Contact Us For Availability
8
Rail, shutter track, top WCI 5304437069 Contact Us For Availability
8#
Shroud, fan housing WCI 5304437056 Contact Us For Availability
9
Frame, shutter panel, RH WCI 5304437054 Contact Us For Availability
9#
Motor, fan WCI 5304442360 Contact Us For Availability
10
Front Assembly, complete panel, includes WCI 5304437064 Contact Us For Availability
11
Panel, front grille, tilt-out WCI 5304437059 Contact Us For Availability
11#
Evaporator WCI 5304437091 Contact Us For Availability
12#
Filter, air, plastic frame WCI 5304437062 Contact Us For Availability
12#
Capillary Tube, assy w/strainer WCI 5304437097 Contact Us For Availability
13
Frame, front assembly WCI 5304437058 Contact Us For Availability
13#
Discharge Tube WCI 5304437099 Contact Us For Availability
14
Louver, horizontal WCI 5304437061 Contact Us For Availability
14#
Compressor Assy WCI 5304437079 Contact Us For Availability
15
Louver, vertical WCI 5304437060 Contact Us For Availability
15#
Condenser WCI 5304437090 Contact Us For Availability
16#
Remote Control, transmitter WCI 5304436598 Contact Us For Availability
16#
Suction Tube WCI 5304437098 Contact Us For Availability
17
Enclosure, control, pcb display WCI 5304436536 Contact Us For Availability
17
Control Panel, display, electronic WCI 5304436540 Contact Us For Availability
18#
PC Board, display/input WCI 5304437074 Contact Us For Availability
19
Panel, ctrl mtg board WCI 5304437066 Contact Us For Availability
20#
PC Board, control/power WCI 5304436532 Contact Us For Availability
22#
Sensor, ambient temp WCI 5304436543 Contact Us For Availability
23#
Sensor, evap temp, defrost WCI 5304436542 Contact Us For Availability
24#
Capacitor WCI 5304437111 Contact Us For Availability
25
Control Box WCI 5304437070 Contact Us For Availability
27#
Ionizer WCI 5304436529 Contact Us For Availability
45
Strap, capacitor clip WCI 5304436530 Contact Us For Availability
× ![]()
