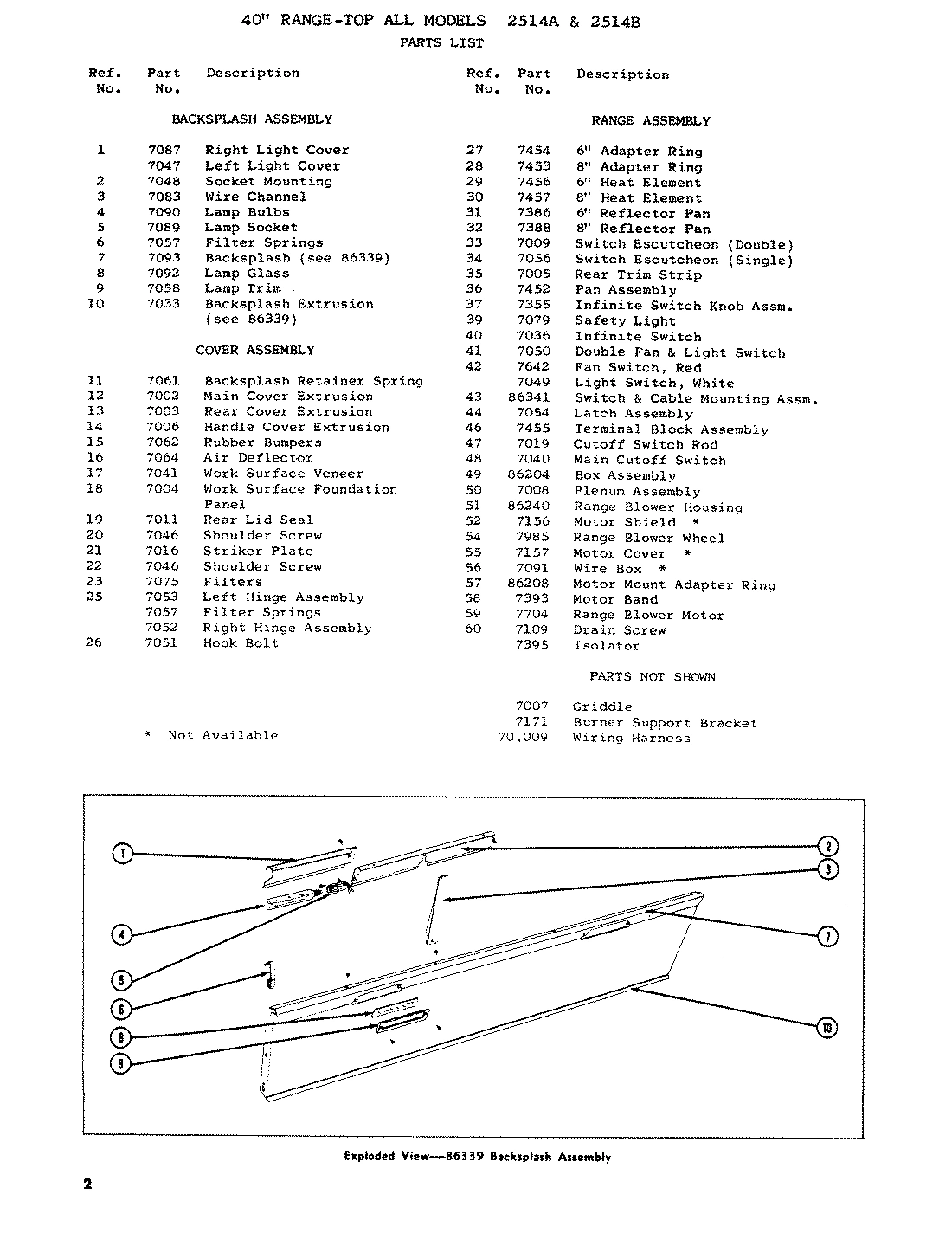

Model Whirlpool 2515 ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - COVER ASSEMBLY
01 - BACKSPLASH
03 - RANGE ASSEMBLY
Common parts from model Whirlpool 2515 ELECTRIC COOK-TOP
1
COVER, LIGHT WPL 707047 Contact Us For Availability
1
COVER, LIGHT (RT) WPL 707087 Contact Us For Availability
2
SOCKET WPL 707048 Contact Us For Availability
3
CHANNEL, WIRE WPL 707083 Contact Us For Availability
4
BULB, LIGHT WPL 707090 Contact Us For Availability
5
SOCKET, LAMP WPL 707089 Contact Us For Availability
6
SPRING WPL 707057 Contact Us For Availability
7
BACKSPLASH WPL 707093 Contact Us For Availability
8
GLASS, LAMP WPL 707092 Contact Us For Availability
9
ESCUTCHEON, SWITCH WPL 707058 Contact Us For Availability
10
EXTRUSION, BACKSPLASH WPL 707033 Contact Us For Availability
11
SPRING, BACKSPLASH WPL 707061 Contact Us For Availability
12
EXTRUSION WPL 707002 Contact Us For Availability
13
EXTRU RR COV WPL 707003 Contact Us For Availability
14
HNDLE. CUR. WPL 707006 Contact Us For Availability
15
BUMPER, RUBBER WPL 707062 Contact Us For Availability
16
DEFLECTOR, AIR WPL 707064 Contact Us For Availability
17
PANEL, COVER WPL 707041 Contact Us For Availability
18
PANEL, WORK SURFACE WPL 707004 Contact Us For Availability
19
SEAL WPL 707011 Contact Us For Availability
21
PLATE WPL 707016 Contact Us For Availability
22
STUD, PAL PVT WPL 707046 Contact Us For Availability
23
FILTER WPL 707075 Contact Us For Availability
25
HINGE (RT) WPL 707052 Contact Us For Availability
25
HINGE ASSY. WPL 707053 Contact Us For Availability
26
BOLT, HOOK WPL 707051 Contact Us For Availability
27
RING (6``) WPL Y707028 Contact Us For Availability
28
RING (9``) WPL Y707029 Contact Us For Availability
29
ELEMENT, CONV. WPL 708095 Contact Us For Availability
29
ELEMENT, CONV. (6``) WPL Y707456 Contact Us For Availability
30
ELEMENT, CONV. (8``) WPL 707457 Contact Us For Availability
31
PAN, DRIP (6``) WPL 707386 Contact Us For Availability
32
PAN, DRIP (8``) WPL 707388 Contact Us For Availability
33
SWITCH ESCUTCHEON (DOUBLE) WPL 707009 Contact Us For Availability
34
SWITCH, ESCUTCHEON (SINGLE) WPL 707056 Contact Us For Availability
35
STRIP, TRIM (REAR) WPL 707005 Contact Us For Availability
36
PAN, STAINLESS WPL 707001 Contact Us For Availability
36
TOP (40``) WPL Y707452 Contact Us For Availability
37
KNOB, INFINITE SWITCH ASSY. WPL 707355 Contact Us For Availability
39
LIGHT WPL Y707079 Contact Us For Availability
40
SWITCH, INFINITE WPL Y707036 Contact Us For Availability
41
SWITCH WPL Y707050 Contact Us For Availability
42
SWITCH, LIGHT(WHT) WPL 707049 Contact Us For Availability
42
SWITCH, FAN WPL 707642 Contact Us For Availability
43
SWITCH & CABLE MOUNTING ASSY WPL 786341 Contact Us For Availability
44
LOCK ASSY. WPL 707054 Contact Us For Availability
45
SWITCH, SENSOR (6``) WPL 707037 Contact Us For Availability
46
MEDALION WPL 707391 Contact Us For Availability
46
BLOCK, TERMINAL WPL 707401 Contact Us For Availability
46
BLOCK, TERMINAL WPL Y707455 Contact Us For Availability
47
ROD, CUT OFF WPL 707019 Contact Us For Availability
48
SWITCH, CUTOFF WPL 707040 Contact Us For Availability
49
BOX ASSEMBLY WPL 786204 Contact Us For Availability
50
PLENUM WPL 707008 Contact Us For Availability
51
HOUSING, BLOWER WPL 786240 Contact Us For Availability
52
SHIELD, MOTOR WPL 707156 Contact Us For Availability
55
COVER, MOTOR WPL 707157 Contact Us For Availability
56
BOX, WIRE WPL 707091 Contact Us For Availability
57
ADAPTER RING WPL 786208 Contact Us For Availability
60
SCREW, DRAIN WPL 707109 Contact Us For Availability
60
ISOLATOR MOTOR WPL Y707395 Contact Us For Availability
× ![]()
