Model LG 24U421A-B – Common Parts & Diagrams

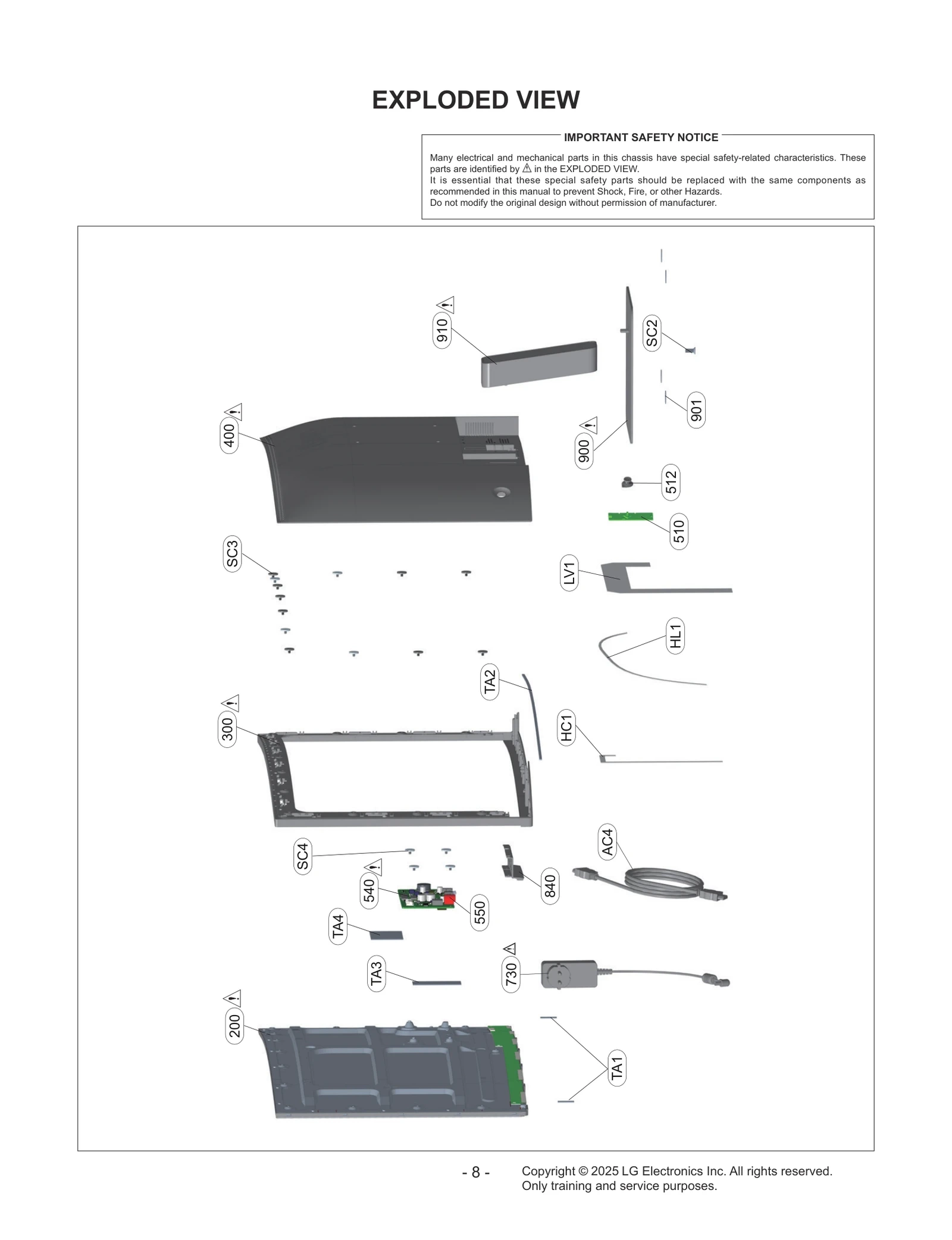

Diagram 0
Common parts from model LG 24U421A-B
200
Module,Outsourcing LGE COV30117601 Contact Us For Availability
300
Cover Assembly,Outsourcing LGE COV30128201 Contact Us For Availability
400
Cover Assembly,Outsourcing LGE COV30128301 Contact Us For Availability
512
Cover Assembly,Outsourcing LGE COV30128001 Contact Us For Availability
540
PCB Assembly,Main,Outsourcing LGE COV30117701 Contact Us For Availability
550
DC Power Jack,Outsourcing LGE COV37701301 Contact Us For Availability
730
Adapters LGE EAY65890005 Contact Us For Availability
840
Cover Assembly,Outsourcing LGE COV30128101 Contact Us For Availability
900
Base Assembly,Outsourcing LGE COV30127901 Contact Us For Availability
901
Base Assembly,Outsourcing LGE COV30127701 Contact Us For Availability
910
Cover Assembly,Outsourcing LGE COV30127601 Contact Us For Availability
AC4
Cable,Outsourcing LGE COV30116101 Contact Us For Availability
HC1
Harness,Single,Outsourcing LGE COV37857601 Contact Us For Availability
LV1
FFC Cable,Outsourcing LGE COV30117801 Contact Us For Availability
SC2
Base Assembly,Outsourcing LGE COV30127801 Contact Us For Availability
SC4
Base Assembly,Outsourcing LGE COV30127201 Contact Us For Availability
TA1
Tape,Outsourcing LGE COV30224701 Contact Us For Availability
TA3
Tape,Outsourcing LGE COV30144401 Contact Us For Availability
TA4
Tape,Outsourcing LGE COV37701101 Contact Us For Availability
× ![]()
