Model LG 24MP77HM-P – Common Parts & Diagrams

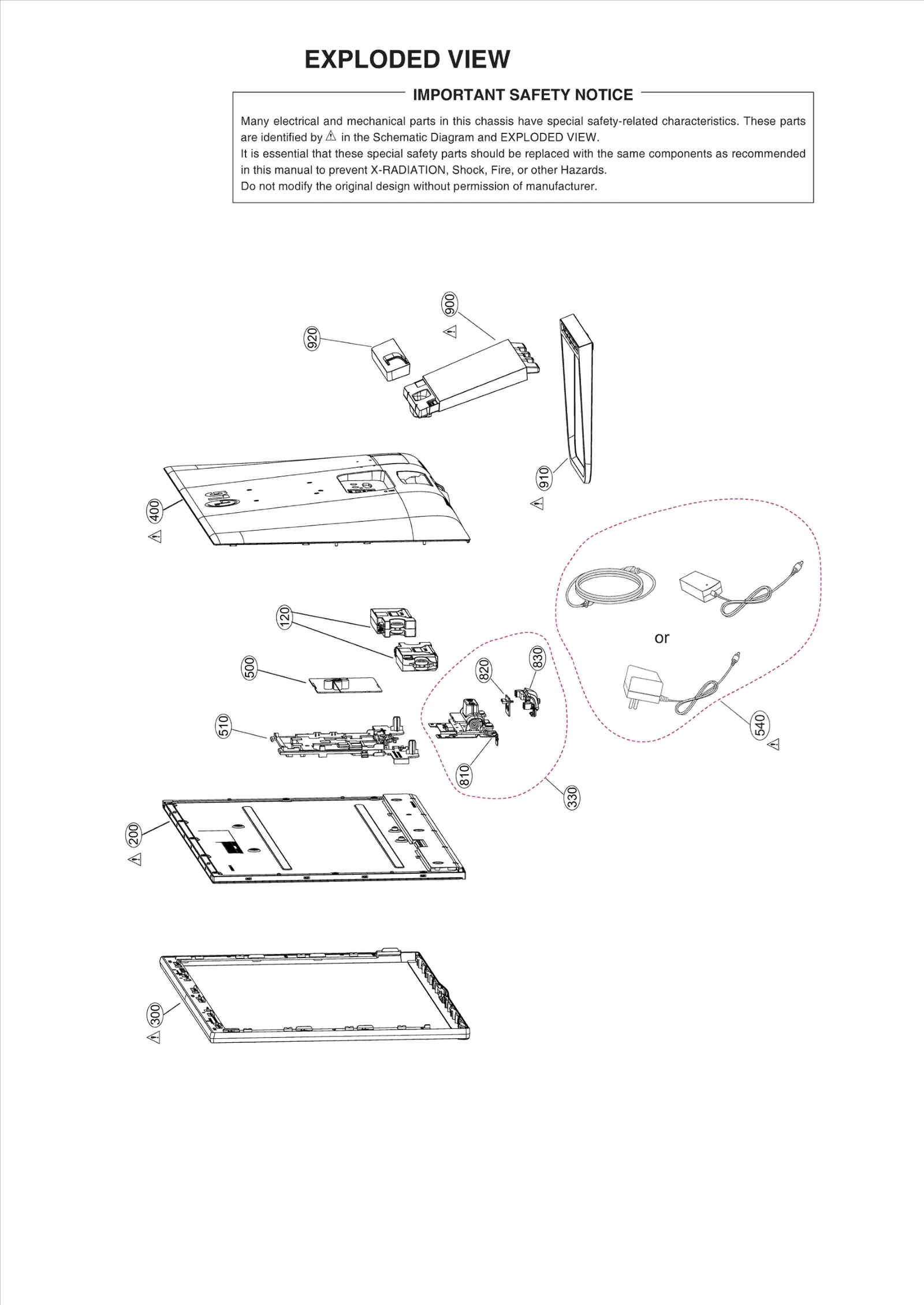

Diagram 0
Diagram 1
Common parts from model LG 24MP77HM-P
120
Speaker Assembly LGE EAB63628201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63147601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74627302 Contact Us For Availability
330
PCB Assembly LGE EBR79759903 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87592504 Contact Us For Availability
500
Main Board,BPR Total Assembly LGE EBU63023803 Contact Us For Availability
540
Adapters LGE EAY62710707 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
810
Frame Assembly LGE ADV75226802 Contact Us For Availability
820
Hand Insert PCB Assembly LGE EBR79760201 Contact Us For Availability
830
Cover Assembly,Rear LGE ACQ87752001 Contact Us For Availability
900
Base Assembly LGE AAN75049402 Contact Us For Availability
920
Cover Assembly LGE ACQ87680101 Contact Us For Availability
A1
Manual Assembly LGE AFN76832321 Contact Us For Availability
A4
Card LGE MBM64176630 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE 3840TWL061C Contact Us For Availability
C10
Harness,Single LGE EAD61646211 Contact Us For Availability
C11
Harness,Single LGE EAD62186003 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C136
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C300
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C303
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CK273CK56A Contact Us For Availability
C311
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
IC101
S/W,Firmware LGE SAA37640909 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
LV1
Cable,FFC LGE EAD63169811 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R179
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R197
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ0561C678 Contact Us For Availability
R338
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R352
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
× ![]()
