Model LG 24MP58VQ-P – Common Parts & Diagrams

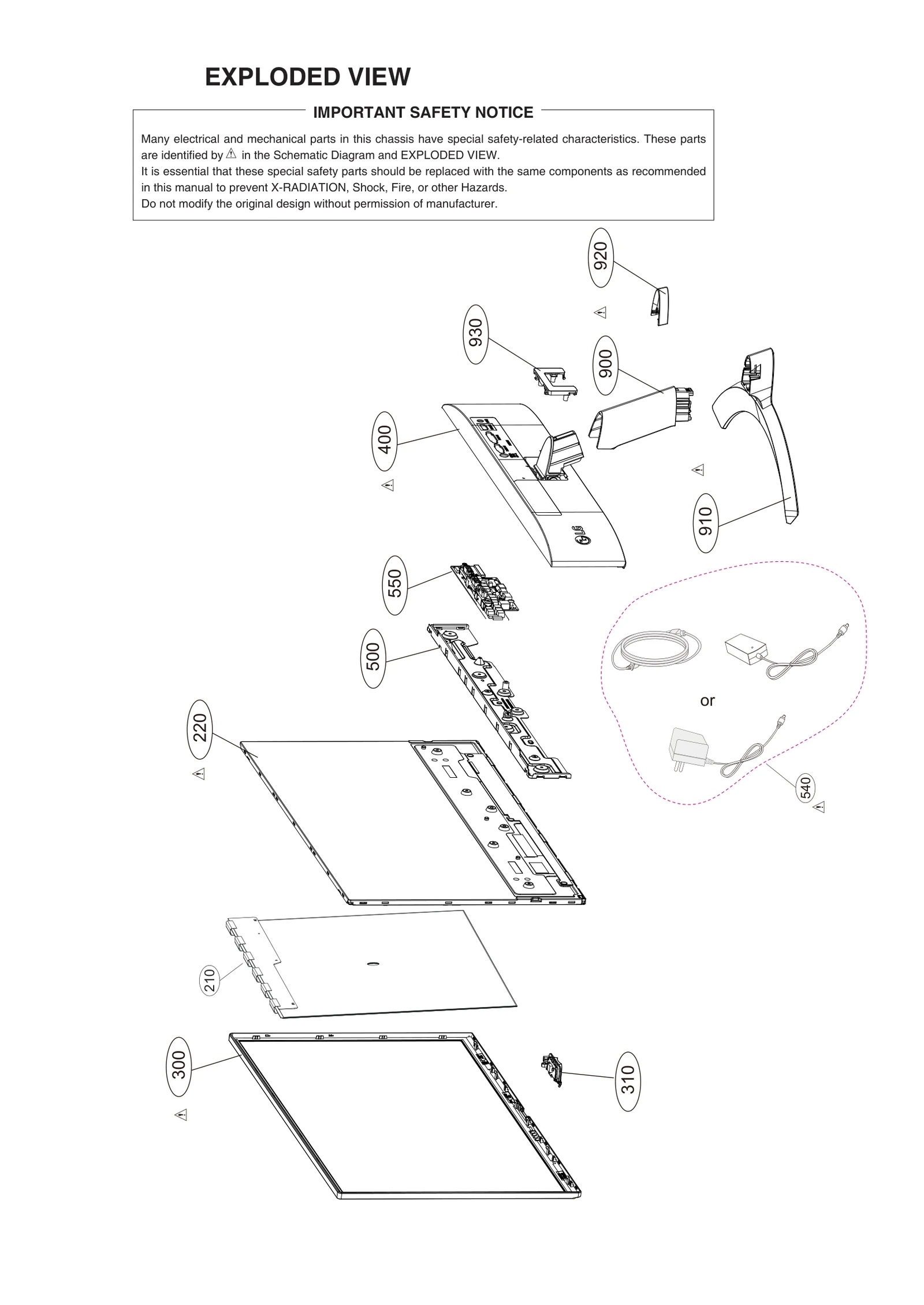

Diagram 0
Diagram 1
Common parts from model LG 24MP58VQ-P
200
Module,Assembly LGE EAT63400104 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ63908401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75467501 Contact Us For Availability
310
PCB Assembly,Sub LGE EBR81775913 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89400701 Contact Us For Availability
540
Adapters LGE EAY62768613 Contact Us For Availability
550
Main Board,BPR Total Assembly LGE EBU63171621 Contact Us For Availability
910
Base Assembly LGE AAN75690001 Contact Us For Availability
920
Package Assembly LGE AGF77182226 Contact Us For Availability
930
Cover LGE MCK69085401 Contact Us For Availability
A1
Manual Assembly LGE AFN77464921 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE MBM65364009 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C135
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C141
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C155
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C208
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099H Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072907 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072905 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63249804 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63249803 Contact Us For Availability
LV1
Cable,FFC LGE EAD63169827 Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
S220
Back Light Assembly LGE EBV61158025 Contact Us For Availability
× ![]()
