Model LG 24MC57HQ-P – Common Parts & Diagrams
Diagram 0

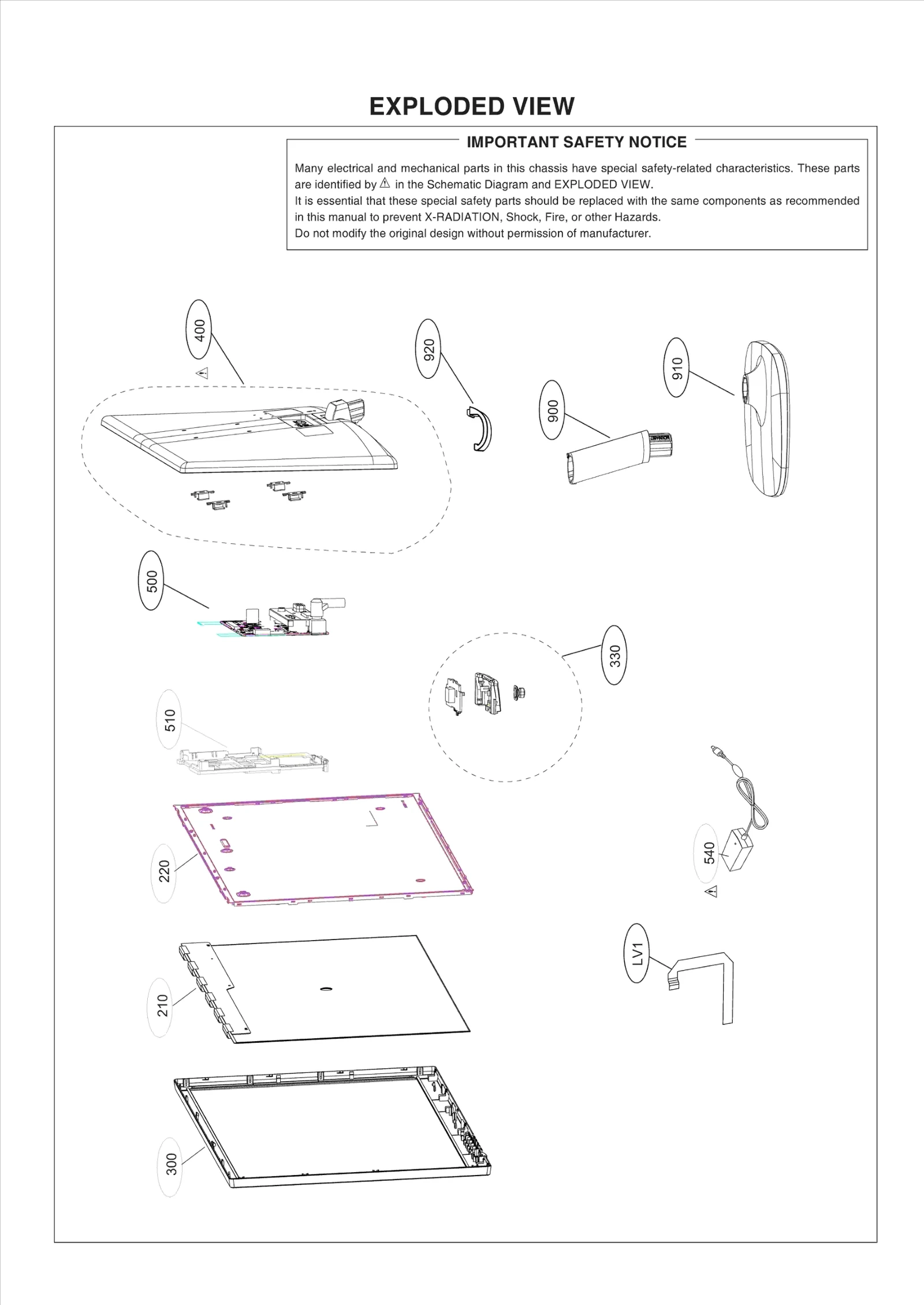

Diagram 1
Common parts from model LG 24MC57HQ-P
210
LCD,Panel-TFT LGE EAJ62570001 Contact Us For Availability
220
Back Light Assembly LGE EBV61158005 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74687106 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR79824901 Contact Us For Availability
500
BPR Total Assembly LGE EBU62909301 Contact Us For Availability
510
Bracket LGE MAZ64584702 Contact Us For Availability
540
Adapters LGE EAY62708908 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
900
Base Assembly LGE AAN75088701 Contact Us For Availability
910
Base Assembly LGE AAN75048801 Contact Us For Availability
920
Package Assembly LGE AGF77744201 Contact Us For Availability
A1
Manual Assembly LGE AFN76755721 Contact Us For Availability
A4
Card LGE MBM64718771 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE 3840TWL061C Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
IC101
S/W,Firmware LGE SAA37778001 Contact Us For Availability
IC200
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099H Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389094 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R330
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
× ![]()
