Model LG 24M38H-B – Common Parts & Diagrams
Diagram 0

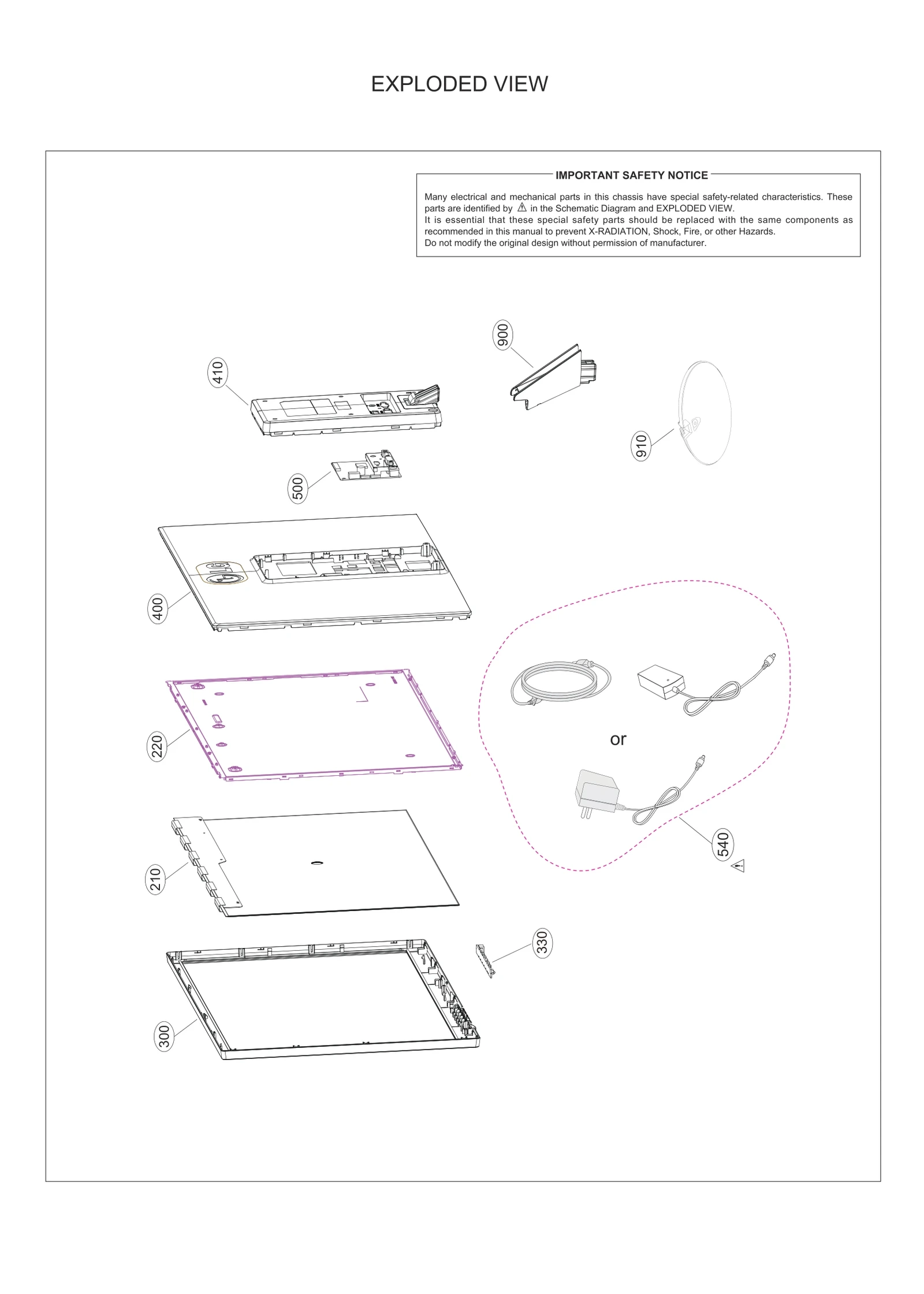

Diagram 1
Common parts from model LG 24M38H-B
200
Module,Assembly LGE EAT63194301 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ63429301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73790415 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86047801 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ85953105 Contact Us For Availability
500
BPR Total Assembly LGE EBU63641811 Contact Us For Availability
540
Adapters LGE EAY62768613 Contact Us For Availability
900
Base Assembly LGE AAN74131901 Contact Us For Availability
910
Base Assembly LGE AAN74310601 Contact Us For Availability
A1
Manual Assembly LGE AFN77467721 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE MBM65356117 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
IC200
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC200
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122582 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
Connector,Wafer LGE EAG64509801 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
× ![]()
