Model LG 24M37H-B – Common Parts & Diagrams

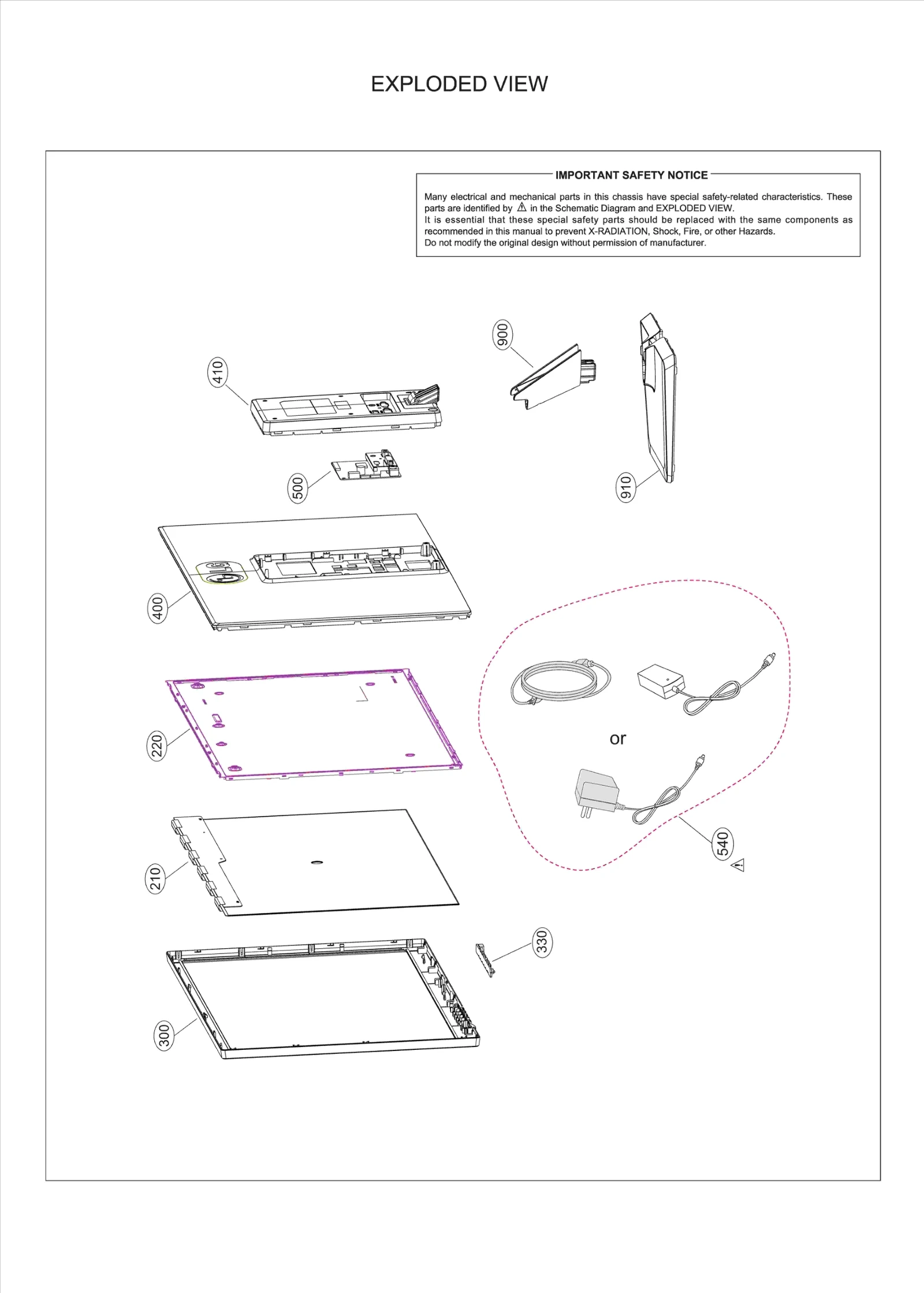

Diagram 0
Diagram 1
Common parts from model LG 24M37H-B
210
LCD,Panel-TFT LGE EAJ62131901 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ62131902 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73790415 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86047801 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ85953105 Contact Us For Availability
500
BPR Total Assembly LGE EBU61994625 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
540
Adapters LGE EAY62708908 Contact Us For Availability
900
Base Assembly LGE AAN74131901 Contact Us For Availability
910
Base Assembly LGE AAN74132201 Contact Us For Availability
A1
Manual Assembly LGE AFN76912021 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE MBM64176646 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
IC200
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC200
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122582 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
Q109
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
