Model Electrolux 24KPMAWAN7 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

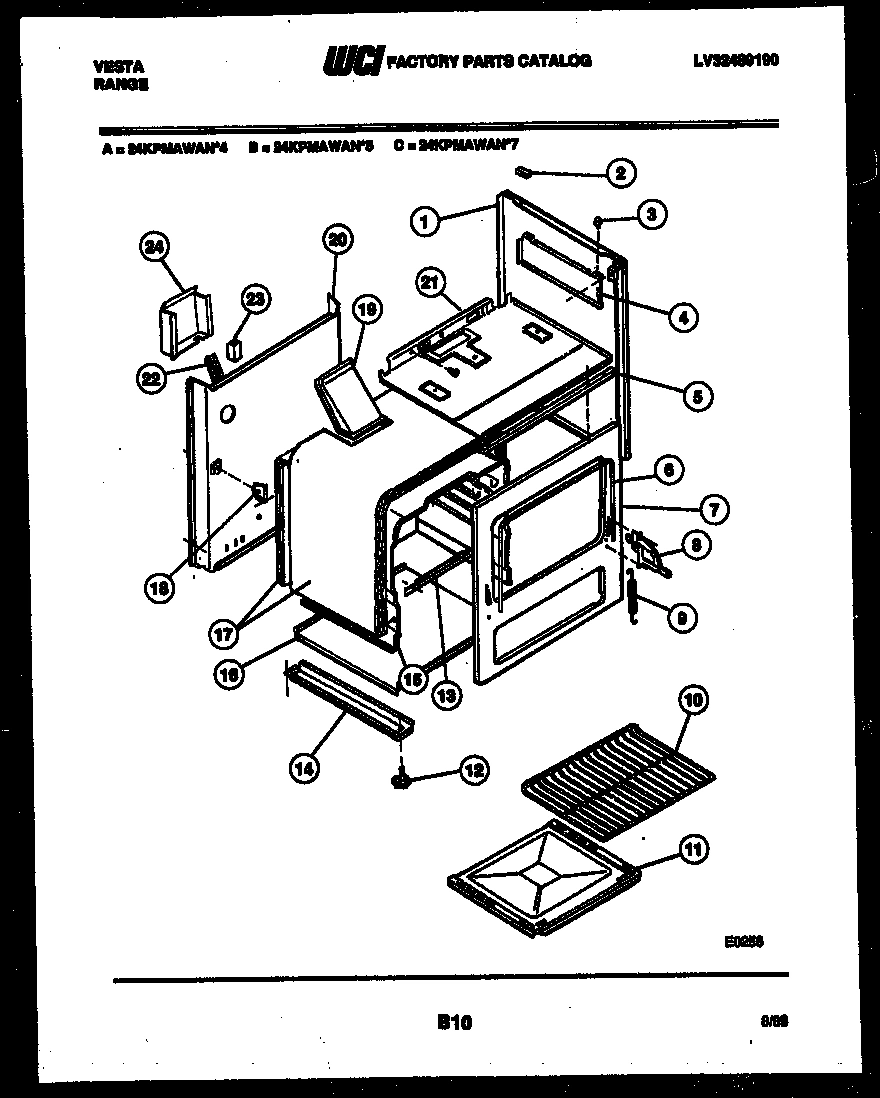

04 - BODY PARTS

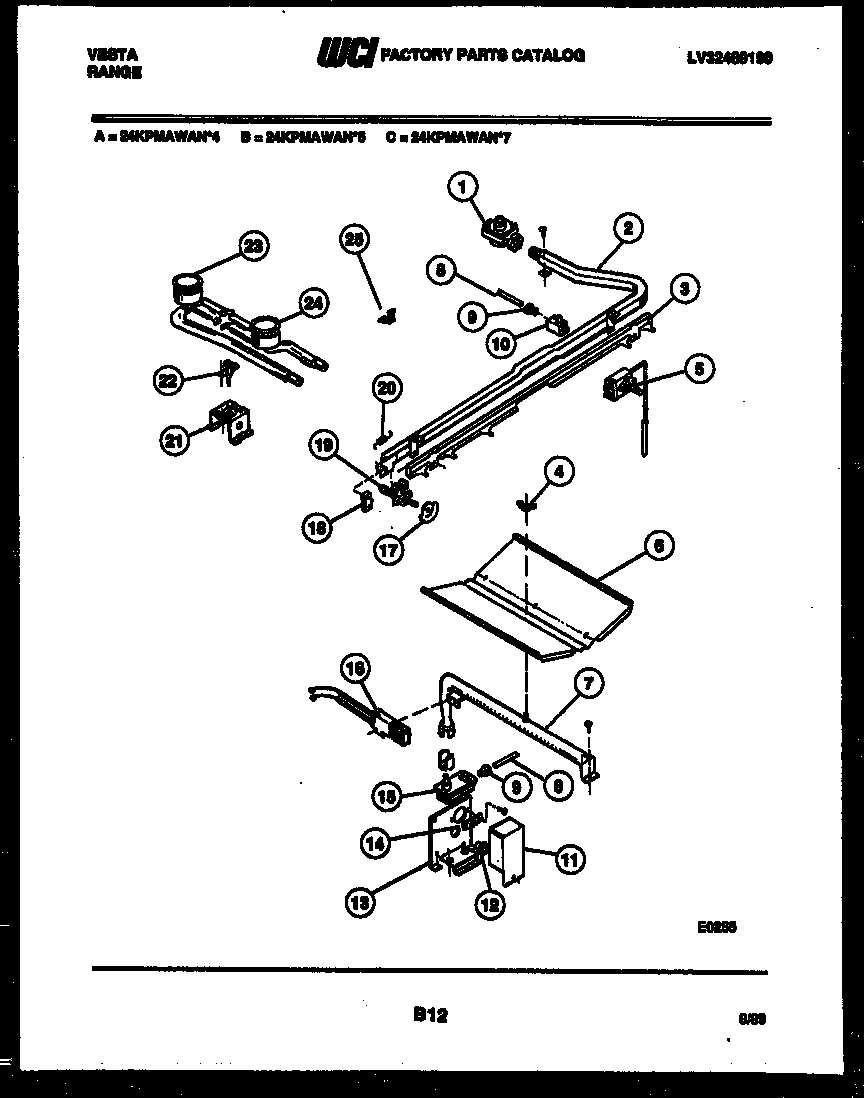

05 - BURNER, MANIFOLD AND GAS CONTROL

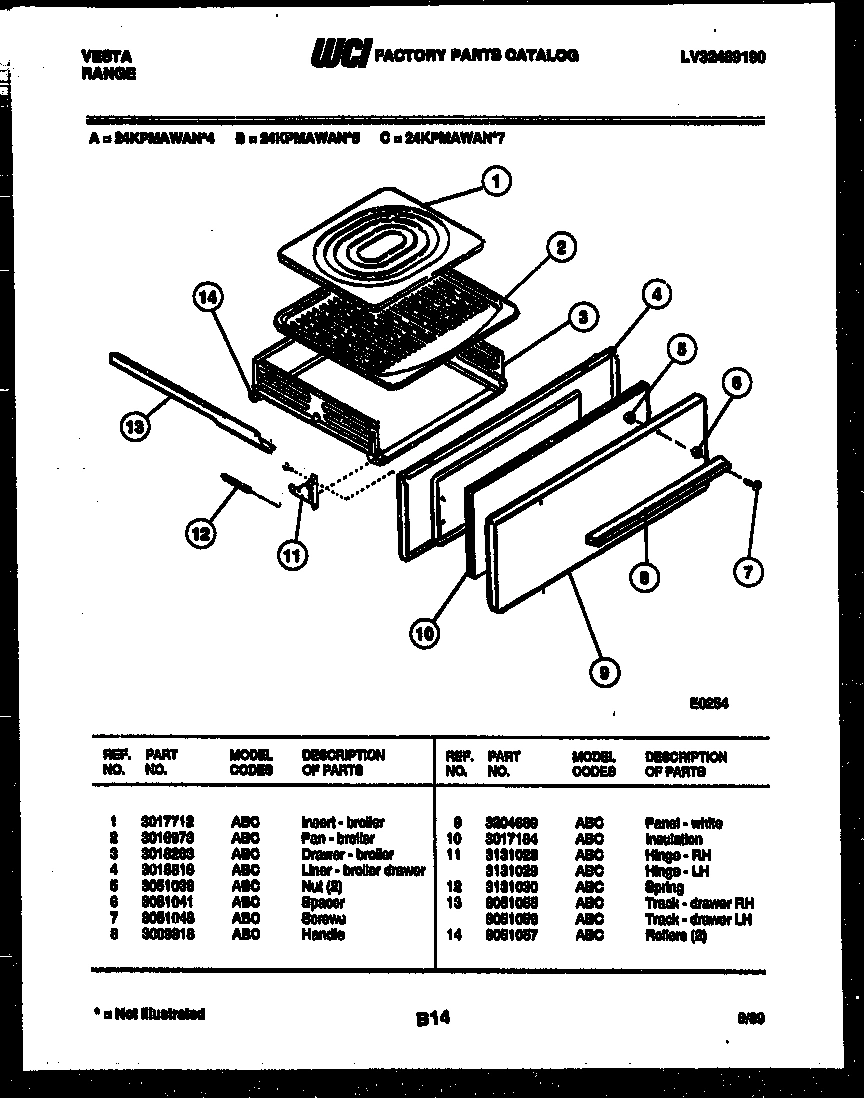

06 - BROILER DRAWER PARTS
Common parts from model Electrolux 24KPMAWAN7 RANGE
1
BACKGUARD (WHITE) WCI 3205690 Contact Us For Availability
1
LINER-DOOR WCI 3017596 Contact Us For Availability
1
PNL - B/S (WHITE) WCI 3051061 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
2
WCI 08014030 WCI 08014030 Contact Us For Availability
2
WCI 3203023 WCI 3203023 Contact Us For Availability
2
INSULATION WCI 3016955 Contact Us For Availability
2
GROMMET-TOP REAR (4) WCI 3205587 Contact Us For Availability
2
MANIFOLD WCI 3017725 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
3
PNL - MANIFOLD (WHITE) WCI 54198007 Contact Us For Availability
3
GROMMET-TOP FRONT (2) WCI 3051063 Contact Us For Availability
3
SLIDE BAR WCI 3017726 Contact Us For Availability
4
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
4
WCI 3131053 WCI 3131053 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
WCI 3018816 WCI 3018816 Contact Us For Availability
4A
WCI 3131054 WCI 3131054 Contact Us For Availability
5
WCI 3131019 WCI 3131019 Contact Us For Availability
5
SUPPORT - CONT PNL WCI 3016950 Contact Us For Availability
5
WCI 08013926 WCI 08013926 Contact Us For Availability
6
GRATE (4) WCI 3009309 Contact Us For Availability
6
SPACER WCI 3051041 Contact Us For Availability
6
SEAL - DOOR WCI 08013916 Contact Us For Availability
6
WCI 3131061 WCI 3131061 Contact Us For Availability
7
WCI 3015249 WCI 3015249 Contact Us For Availability
7
PANEL-WHITE WCI 3205693 Contact Us For Availability
7
FRAME-FRONT WCI 3203612 Contact Us For Availability
7
WCI 3202752 WCI 3202752 Contact Us For Availability
8
WCI 3131007 WCI 3131007 Contact Us For Availability
8
WCI 3009313 WCI 3009313 Contact Us For Availability
8
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
8
WCI 3009495 WCI 3009495 Contact Us For Availability
9
WCI 3051079 WCI 3051079 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
9
WCI 3204669 WCI 3204669 Contact Us For Availability
10
RACK (2) WCI 3016128 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
11
PANEL-BOTTOM WCI 3018815 Contact Us For Availability
11
WCI 3131088 WCI 3131088 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11A
HINGE - LH WCI 3131029 Contact Us For Availability
12
SCREW - LEVELLING (4) WCI 3051080 Contact Us For Availability
12
WCI 3051101 WCI 3051101 Contact Us For Availability
12
SPRING WCI 3131030 Contact Us For Availability
13
WCI 3131038 WCI 3131038 Contact Us For Availability
13
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
13
TRACK DRAWER RH WCI 3051055 Contact Us For Availability
13A
TRACK DRAWER LH WCI 3051056 Contact Us For Availability
14
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
14
WCI 3131087 WCI 3131087 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
15
WCI 3018284 WCI 3018284 Contact Us For Availability
15
WCI 3131089 WCI 3131089 Contact Us For Availability
15A
WCI 3018285 WCI 3018285 Contact Us For Availability
15B
WCI 3018818 WCI 3018818 Contact Us For Availability
15C
WCI 3018817 WCI 3018817 Contact Us For Availability
16
BOTTOM-OVEN WCI 3017448 Contact Us For Availability
17
WCI 3202740 WCI 3202740 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17A
INSULATION-BACK WCI 3202741 Contact Us For Availability
18
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
WCI 3131094 WCI 3131094 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
20
BACK-MAIN WCI 3017449 Contact Us For Availability
20
WCI 3131096 WCI 3131096 Contact Us For Availability
21
BOX - BURNER WCI 3202742 Contact Us For Availability
21
WCI 3203964 WCI 3203964 Contact Us For Availability
21A
ANTI - TIP BRACKET (NON-ILLUSTRATED) WCI 3934059 Contact Us For Availability
21B
CLIP - B/S COVER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
22
WCI 3131046 WCI 3131046 Contact Us For Availability
22
WCI 3203970 WCI 3203970 Contact Us For Availability
23
WCI 3131079 WCI 3131079 Contact Us For Availability
24
WCI 3131047 WCI 3131047 Contact Us For Availability
24
WCI 3131080 WCI 3131080 Contact Us For Availability
25
CLIP-CAPILLARY WCI 9126 Contact Us For Availability
× ![]()
