Model LG 24EN31TW-B – Common Parts & Diagrams

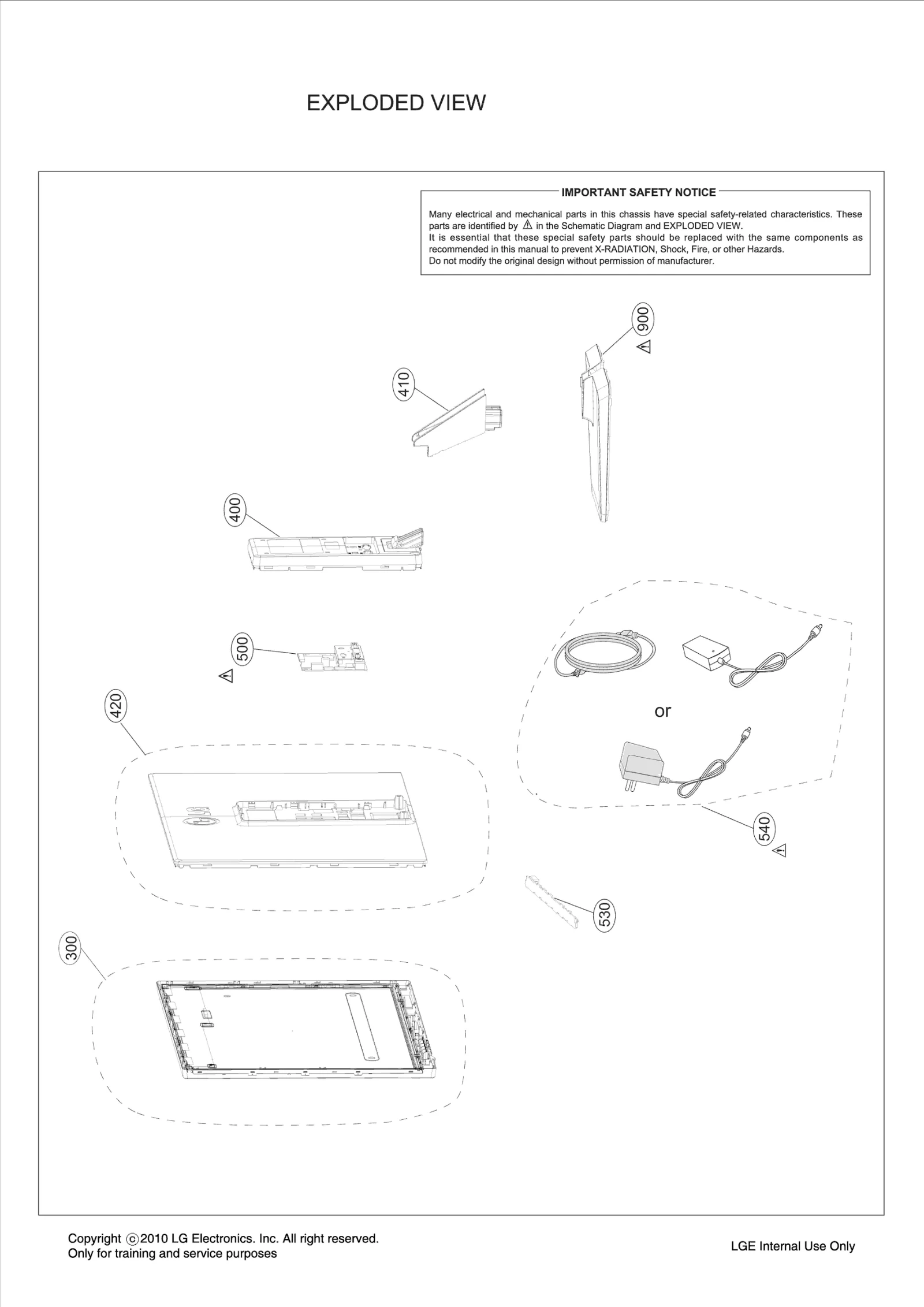

Diagram 0
Diagram 1
Common parts from model LG 24EN31TW-B
300
DMS Chassis Assembly LGE EBT62834401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85953101 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
420
Cover Assembly,Rear LGE ACQ86047801 Contact Us For Availability
500
BPR Total Assembly LGE EBU62282001 Contact Us For Availability
530
PCB Assembly LGE EBR76474101 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
900
Base Assembly LGE AAN74132201 Contact Us For Availability
A1
S/W Package LGE SAB35379021 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D105
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D105
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36760601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63252001 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122582 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R139
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
