Model LG 24EB23PY-B – Common Parts & Diagrams

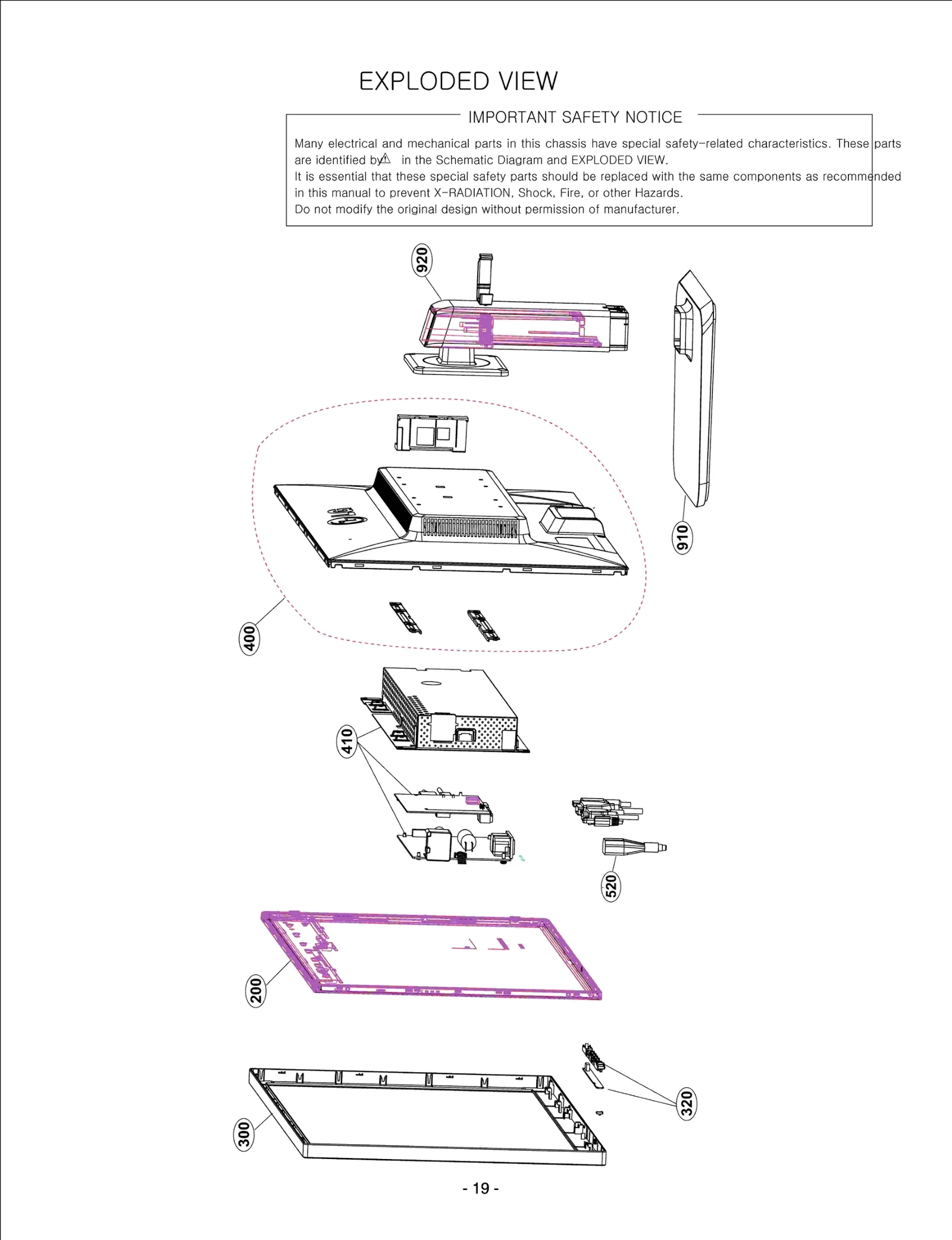

Diagram 0
Diagram 1
Common parts from model LG 24EB23PY-B
200
LCD,Module-TFT LGE EAJ62350001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73989203 Contact Us For Availability
320
Package Assembly LGE AGF76656001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86371208 Contact Us For Availability
410
Package Assembly LGE AGF76655701 Contact Us For Availability
520
Cable,Assembly LGE EAD57760001 Contact Us For Availability
910
Base Assembly LGE AAN74291803 Contact Us For Availability
C803
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C815
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C816
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C831
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
D600
Diode,Schottky LGE EAH44241601 Contact Us For Availability
L804
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD3
LED,Chip LGE EAV60793102 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90220L Contact Us For Availability
P450
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P600
Connector,DSUB LGE EAG61073003 Contact Us For Availability
P800
Connector,USB LGE 6630SK00804 Contact Us For Availability
P801
Connector,USB LGE 6630SK00704 Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
S4
Cable Tie,Common LGE 347-080A Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
× ![]()
