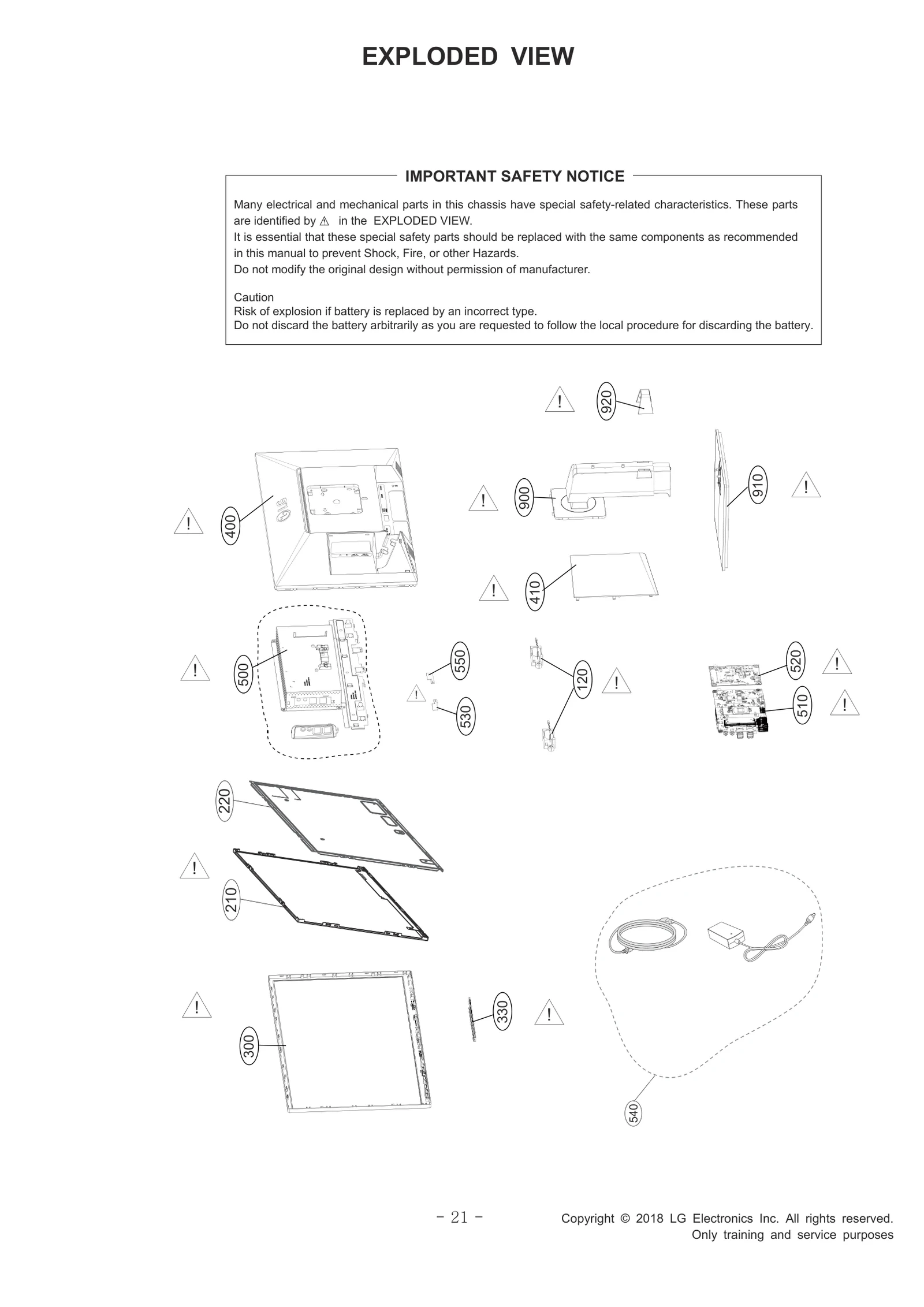

Model LG 24CK550W-AC – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB62728505 Contact Us For Availability
View on Model
200
Module,Assembly
Module,Assembly LGE EAT62113805 Contact Us For Availability
View on Model
210
LCD,Panel-TFT
LCD,Panel-TFT LGE EAJ63989601 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ75427501 Contact Us For Availability
View on Model
330
PCB Assembly
PCB Assembly LGE EBR86258101 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ90374601 Contact Us For Availability
View on Model
410
Package Assembly
Package Assembly LGE AGF78666804 Contact Us For Availability
View on Model
500
Frame Assembly
Frame Assembly LGE ADV76865901 Contact Us For Availability
View on Model
510
PCB Assembly,Main
PCB Assembly,Main LGE EBR86770714 Contact Us For Availability
View on Model
520
BPR Total Assembly
BPR Total Assembly LGE EBU64398301 Contact Us For Availability
View on Model
530
PIFA Antenna,WiFi
PIFA Antenna,WiFi LGE EAA65324703 Contact Us For Availability
View on Model
550
PIFA Antenna,WiFi
PIFA Antenna,WiFi LGE EAA65324704 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75908913 Contact Us For Availability
View on Model
A1
Manual Assembly
Manual Assembly LGE AFN78354441 Contact Us For Availability
View on Model
A3
Power Cord,Detach
Power Cord,Detach LGE EAD62348801 Contact Us For Availability
View on Model
A4
Card
Card LGE MBM65382222 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63667617 Contact Us For Availability
View on Model
