Model Electrolux 24CGMCWBN1 RANGE – Common Parts & Diagrams

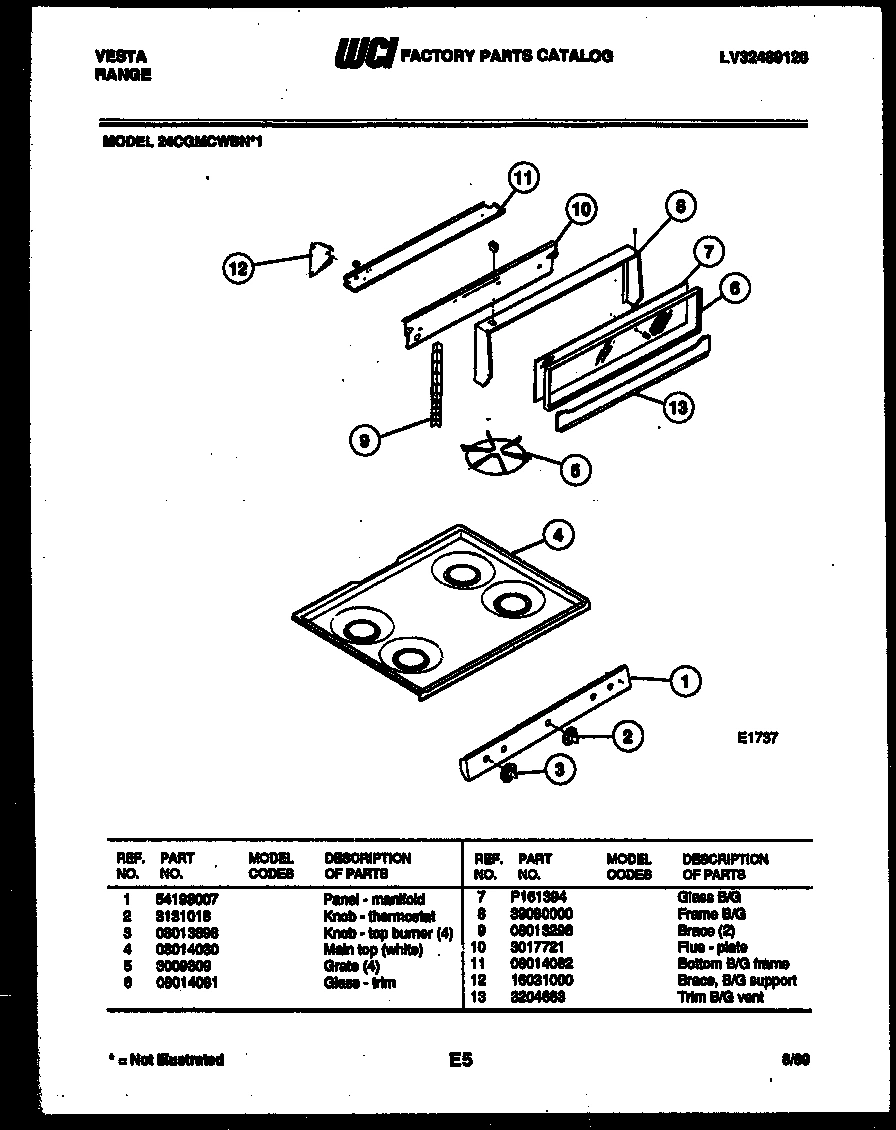

02 - BACKGUARD AND COOKTOP PARTS

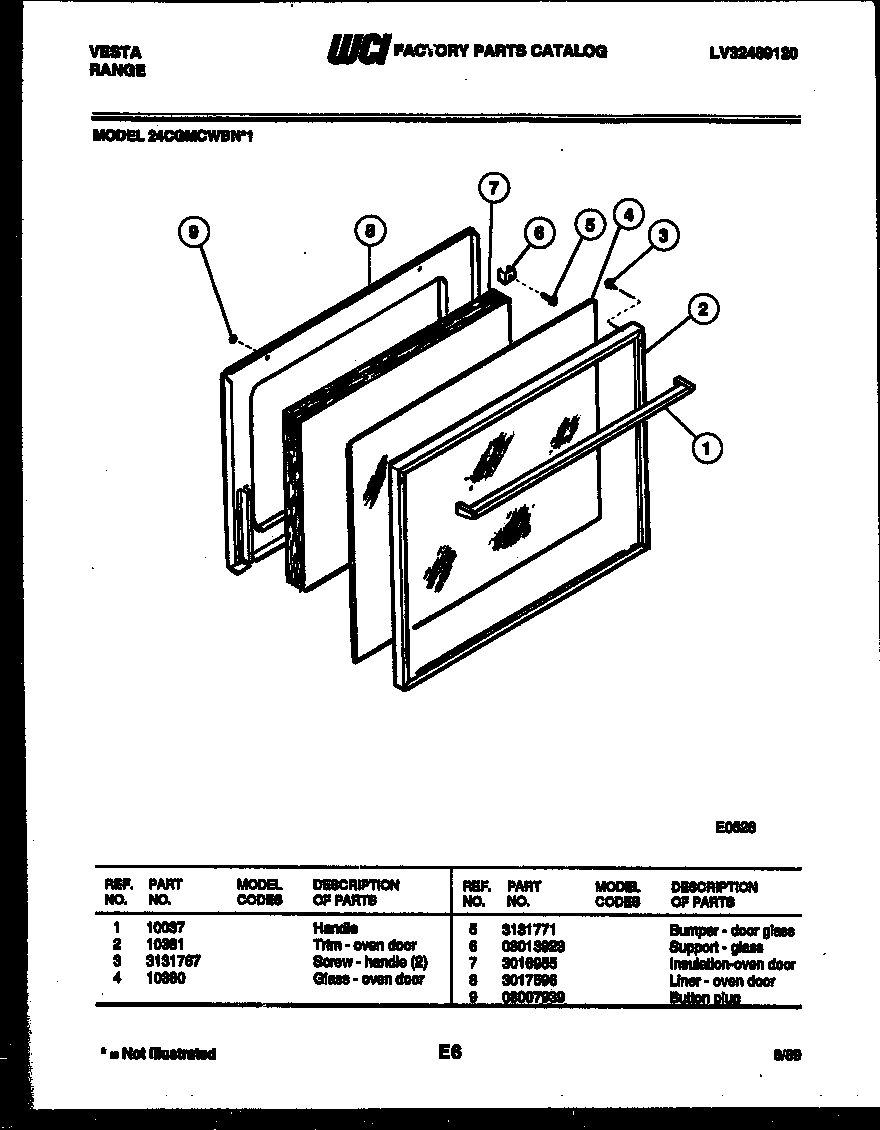

03 - DOOR PARTS

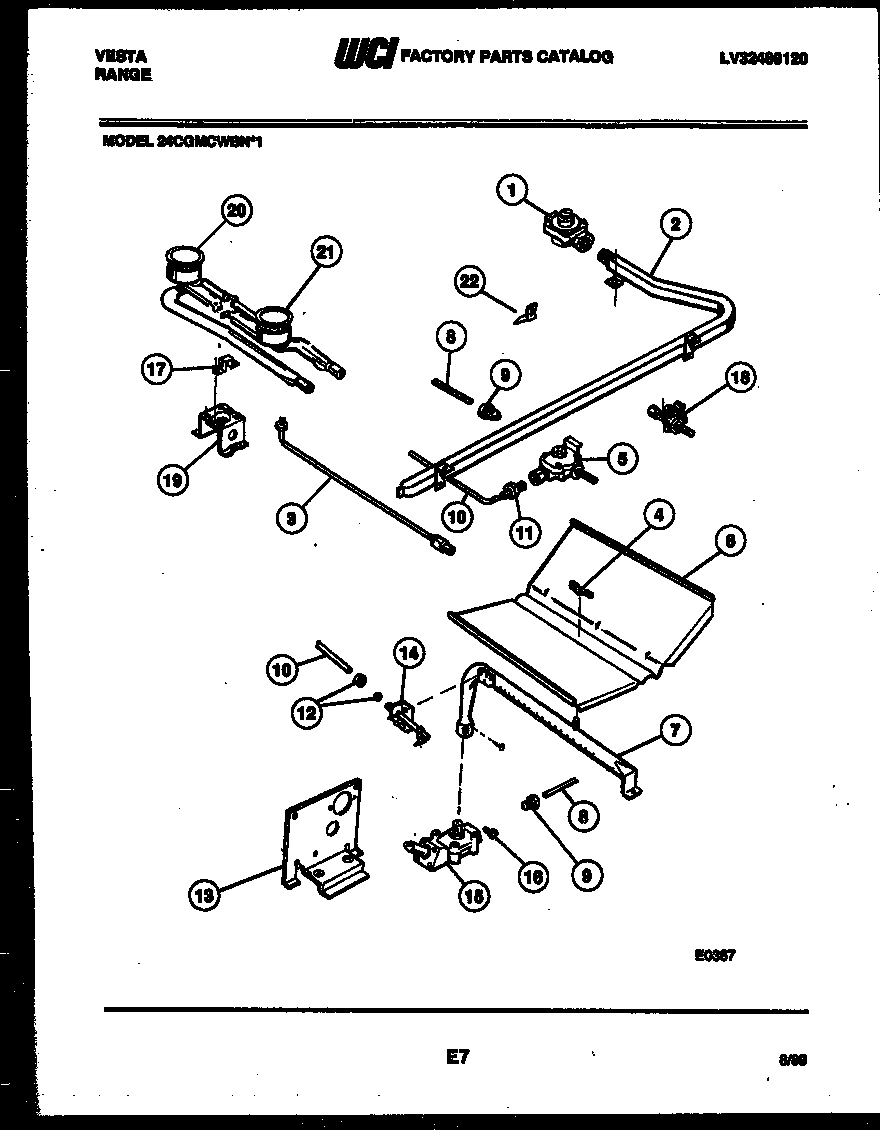

04 - BURNER PARTS

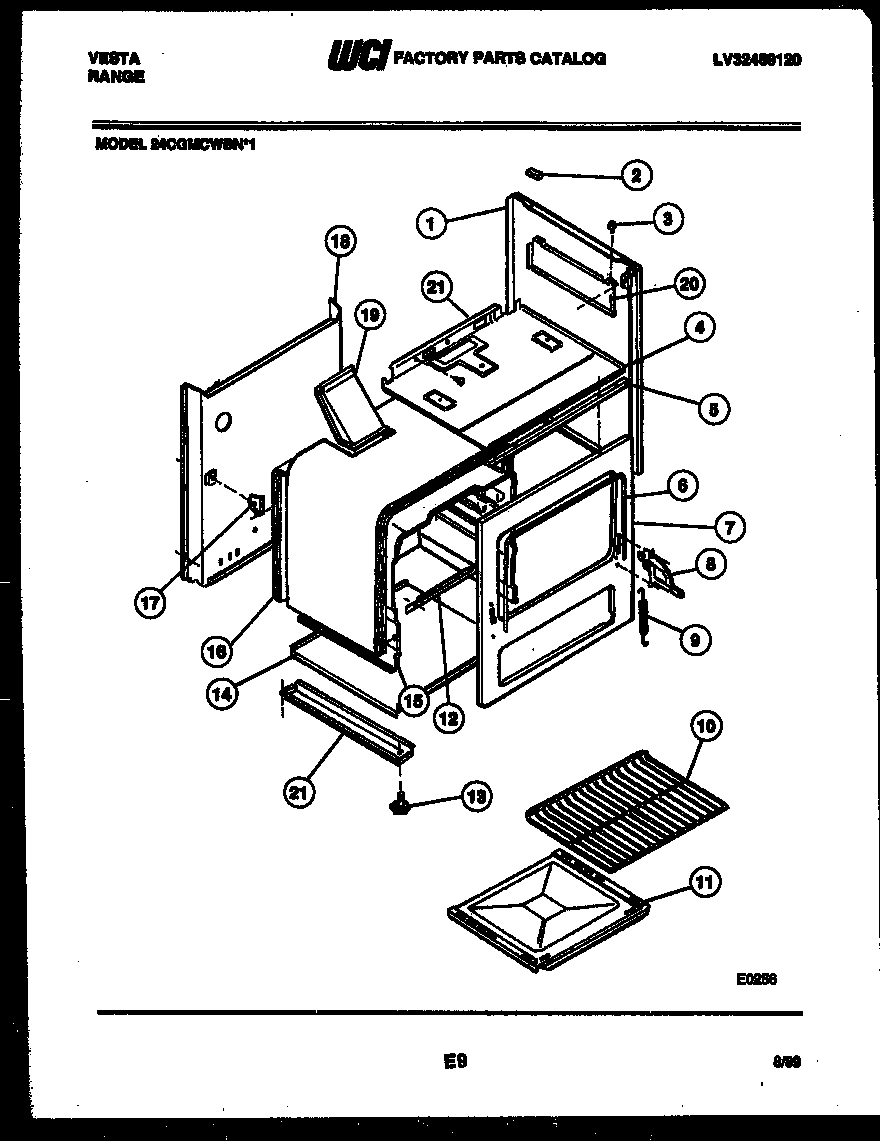

05 - BODY PARTS

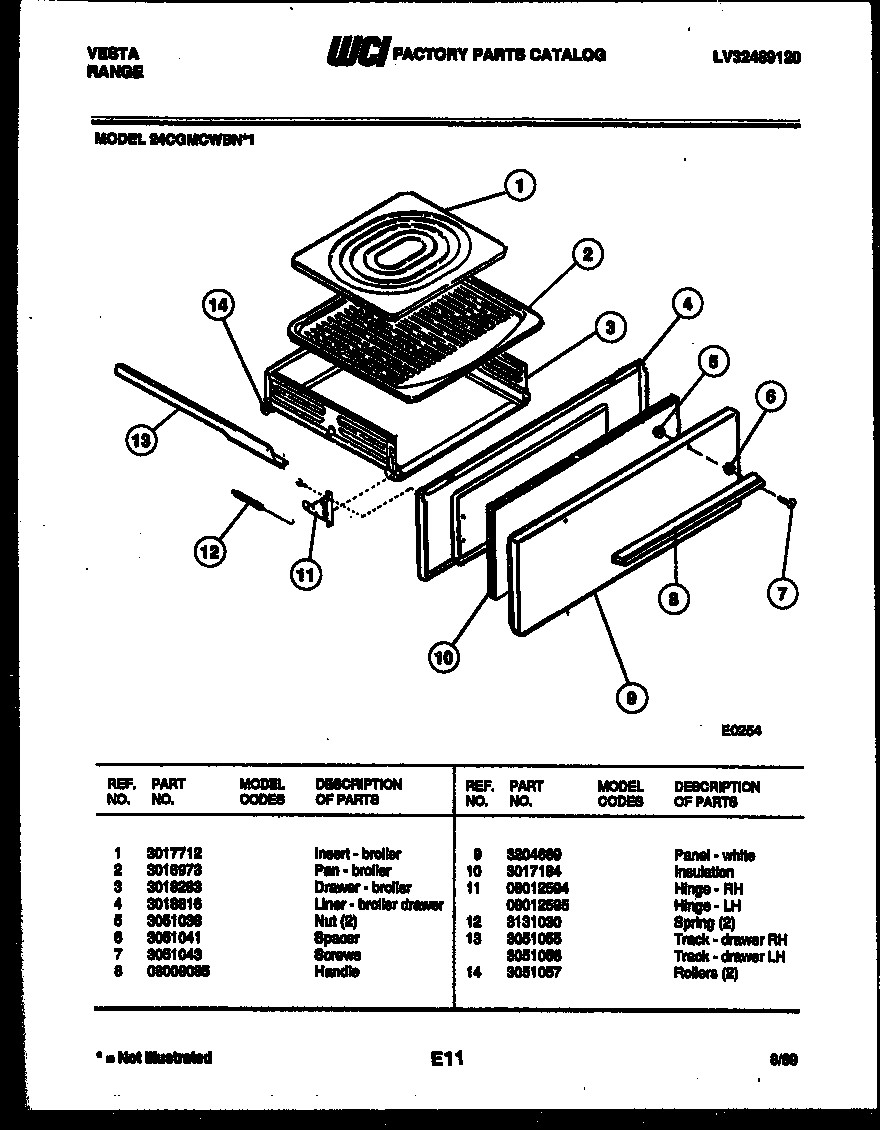

06 - BROILER DRAWER PARTS
Common parts from model Electrolux 24CGMCWBN1 RANGE
*29719
CLIP - BACKSPLASH (2) WCI 3131791 Contact Us For Availability
*29719
WCI 3934059 WCI 3934059 Contact Us For Availability
1
WCI 54198007 WCI 54198007 Contact Us For Availability
1
WCI 10037 WCI 10037 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
INSERT-BROILER WCI 3017712 Contact Us For Availability
2
WCI 3131018 WCI 3131018 Contact Us For Availability
2
WCI 10381 WCI 10381 Contact Us For Availability
2
WCI 08014560 WCI 08014560 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
3
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
3
WCI 3131075 WCI 3131075 Contact Us For Availability
3
SIDE BODY WHITE (2) WCI 3051061 Contact Us For Availability
4
WCI 08014030 WCI 08014030 Contact Us For Availability
4
WCI 10380 WCI 10380 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4
WCI 3202742 WCI 3202742 Contact Us For Availability
4
WCI 3018816 WCI 3018816 Contact Us For Availability
5
GRATE (4) WCI 3009309 Contact Us For Availability
5
WCI 3131771 WCI 3131771 Contact Us For Availability
5
WCI 08013927 WCI 08013927 Contact Us For Availability
5
WCI 3016950 WCI 3016950 Contact Us For Availability
6
WCI 08014081 WCI 08014081 Contact Us For Availability
6
WCI 08013923 WCI 08013923 Contact Us For Availability
6
WCI 3131061 WCI 3131061 Contact Us For Availability
6
WCI 3203612 WCI 3203612 Contact Us For Availability
6
SPACER WCI 3051041 Contact Us For Availability
7
WCI P161394 WCI P161394 Contact Us For Availability
7
WCI 3016955 WCI 3016955 Contact Us For Availability
7
WCI 08013855 WCI 08013855 Contact Us For Availability
7
WCI 08013916 WCI 08013916 Contact Us For Availability
8
WCI 39080000 WCI 39080000 Contact Us For Availability
8
WCI 3017596 WCI 3017596 Contact Us For Availability
8
WCI 3131063 WCI 3131063 Contact Us For Availability
8
HINGE ASSY RH WCI 3204670 Contact Us For Availability
8
WCI 08008085 WCI 08008085 Contact Us For Availability
9
WCI 08013296 WCI 08013296 Contact Us For Availability
9
WCI 08007939 WCI 08007939 Contact Us For Availability
9
WCI 08008363 WCI 08008363 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 3051079 Contact Us For Availability
9
WCI 3204669 WCI 3204669 Contact Us For Availability
10
WCI 3017721 WCI 3017721 Contact Us For Availability
10
WCI 3009490 WCI 3009490 Contact Us For Availability
10
WCI 3016128 WCI 3016128 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
11
WCI 08014082 WCI 08014082 Contact Us For Availability
11
WCI 3131074 WCI 3131074 Contact Us For Availability
11
WCI 3018815 WCI 3018815 Contact Us For Availability
11
WCI 08012594 WCI 08012594 Contact Us For Availability
11A
WCI 08012595 WCI 08012595 Contact Us For Availability
12
WCI 16031000 WCI 16031000 Contact Us For Availability
12
NUT WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12
SPRING (2) WCI 3131030 Contact Us For Availability
13
WCI 3204663 WCI 3204663 Contact Us For Availability
13
WCI 3131069 WCI 3131069 Contact Us For Availability
13
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
13
TRACK DRAWER RH WCI 3051055 Contact Us For Availability
13A
TRACK DRAWER LH WCI 3051056 Contact Us For Availability
14
WCI 3205598 WCI 3205598 Contact Us For Availability
14
WCI 3017448 WCI 3017448 Contact Us For Availability
14
ROLLERS (2) WCI 3051057 Contact Us For Availability
15
WCI 08013942 WCI 08013942 Contact Us For Availability
15
LINER LH WCI 3018285 Contact Us For Availability
15A
LINER RH WCI 3018284 Contact Us For Availability
15B
WCI 3018818 WCI 3018818 Contact Us For Availability
15C
WCI 3018817 WCI 3018817 Contact Us For Availability
16
WCI 3131067 WCI 3131067 Contact Us For Availability
16
WCI 3202740 WCI 3202740 Contact Us For Availability
16A
WCI 3202741 WCI 3202741 Contact Us For Availability
17
WCI 3131078 WCI 3131078 Contact Us For Availability
17
SUPPORT-OVEN REAR (2) WCI 3051096 Contact Us For Availability
18
WCI 3131057 WCI 3131057 Contact Us For Availability
18
WCI 3017449 WCI 3017449 Contact Us For Availability
19
WCI 3016870 WCI 3016870 Contact Us For Availability
19
VENT BOX WCI 3017173 Contact Us For Availability
20
WCI 3131079 WCI 3131079 Contact Us For Availability
20
SHIELD-BURNER BOX RH WCI 3131053 Contact Us For Availability
20A
SHIELD-BURNER BOX LH WCI 3131054 Contact Us For Availability
21
WCI 3131080 WCI 3131080 Contact Us For Availability
21
BASE RAIL WCI 08068047 Contact Us For Availability
22
WCI 9126 WCI 9126 Contact Us For Availability
× ![]()
