Model LG 24BK750Y-B – Common Parts & Diagrams

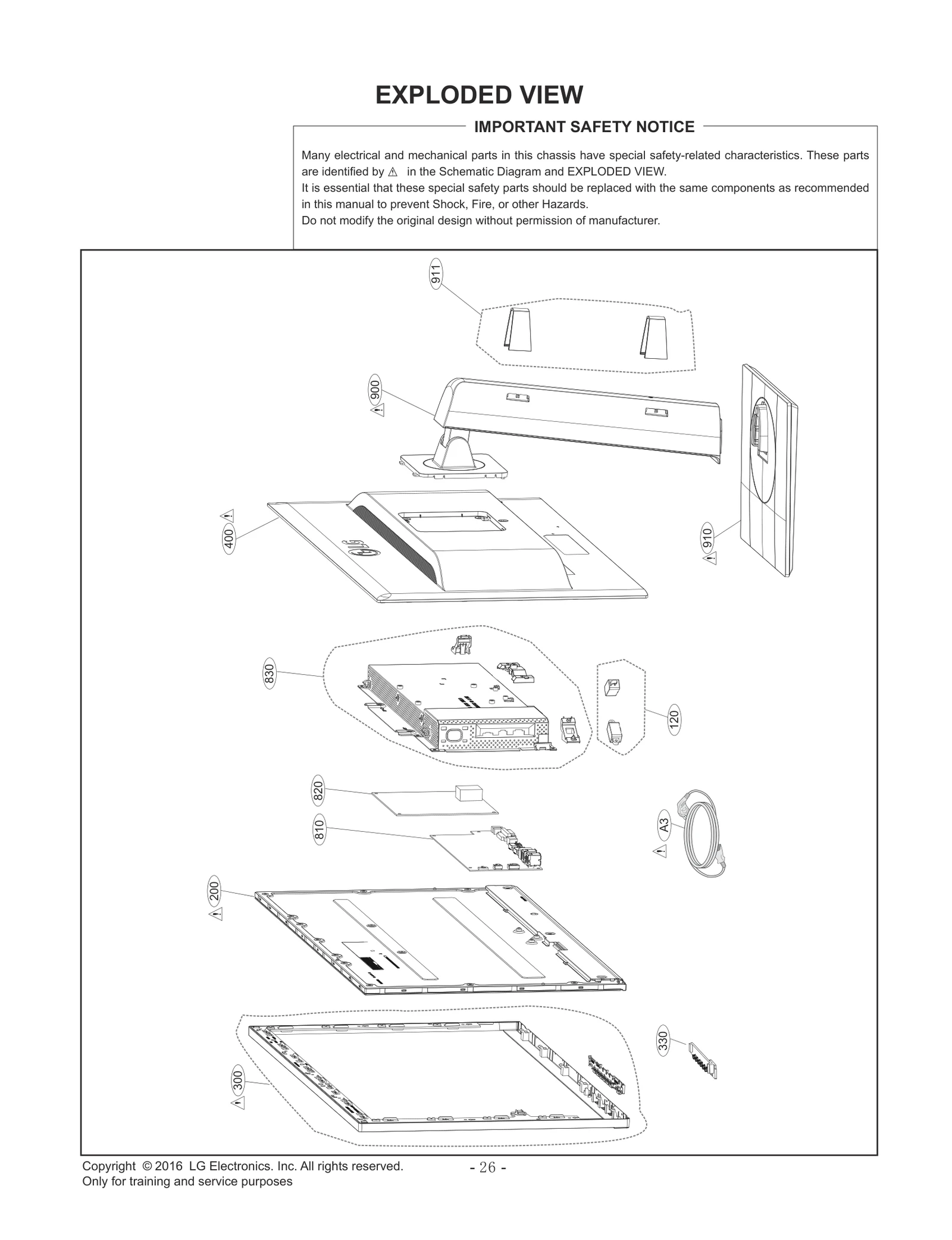

Diagram 0
Diagram 1
Common parts from model LG 24BK750Y-B
120
Speaker Assembly LGE EAB51749310 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ64450101 Contact Us For Availability
330
PCB Assembly LGE EBR76451104 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89274201 Contact Us For Availability
810
BPR Total Assembly LGE EBU62029992 Contact Us For Availability
820
Power Supply Assembly LGE EAY64569101 Contact Us For Availability
910
Base Assembly LGE AAN75908801 Contact Us For Availability
911
Package Assembly LGE AGF77182250 Contact Us For Availability
A1
Manual Assembly LGE AFN77672121 Contact Us For Availability
A4
Card LGE 3840TWL001S Contact Us For Availability
A7
Card LGE MBM65499812 Contact Us For Availability
A8
Cable,Assembly LGE EAD63954403 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A11
Card LGE MBM65386401 Contact Us For Availability
C10
Harness,Single LGE EAD63969501 Contact Us For Availability
C823
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63169859 Contact Us For Availability
P800
CONNECTOR (CIRC),WAF LGE 6602T20009G Contact Us For Availability
R203
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R319
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
× ![]()
