Model LG 24BK430H-B – Common Parts & Diagrams

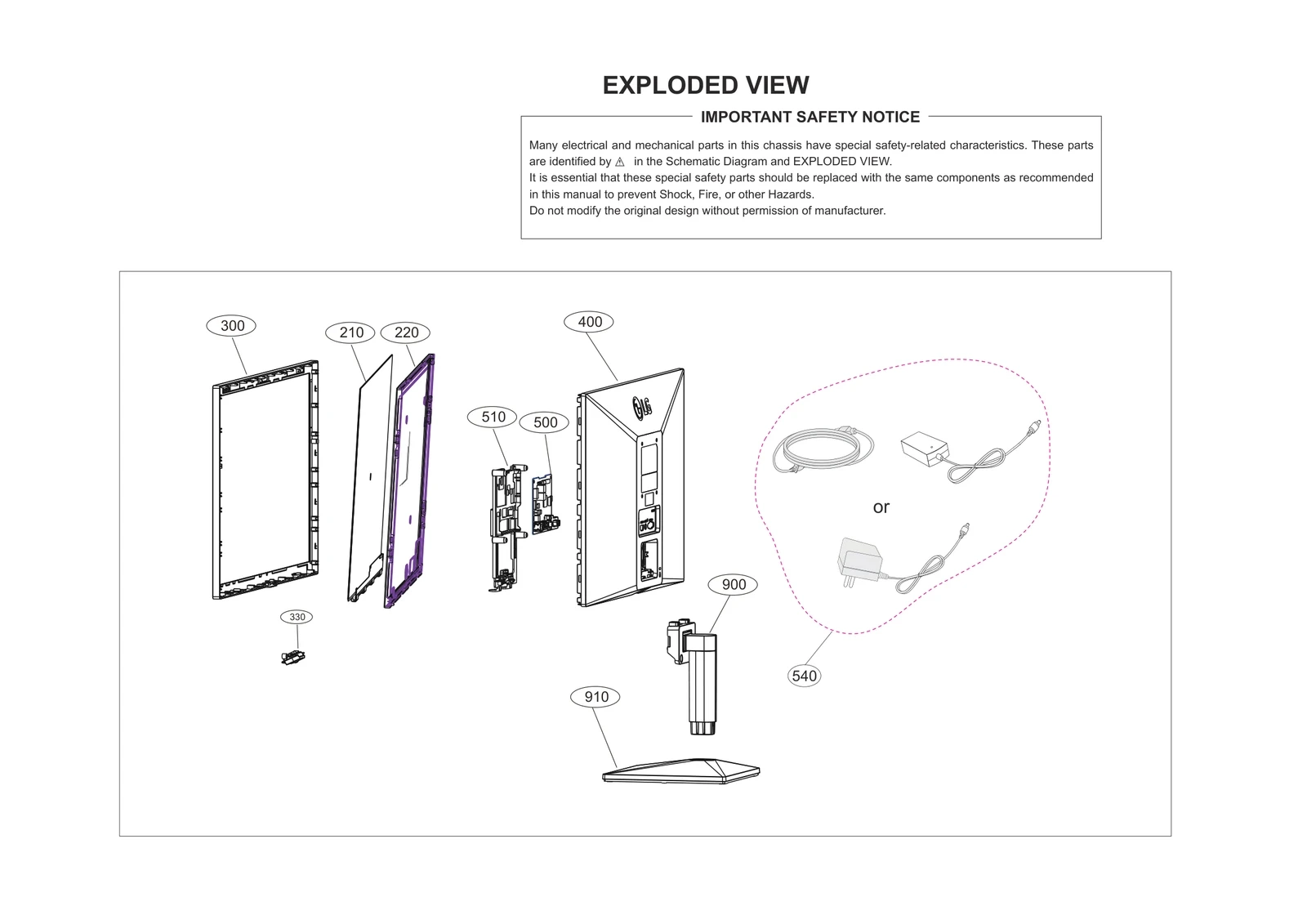

Diagram 0
Diagram 1
Common parts from model LG 24BK430H-B
200
Module,Assembly LGE EAT62953226 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ64771101 Contact Us For Availability
220
Back Light Assembly LGE EBV61158027 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75807101 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR85378901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90034504 Contact Us For Availability
500
Main Board,BPR Total Assembly LGE EBU64792501 Contact Us For Availability
540
Adapters LGE EAY62648704 Contact Us For Availability
540
Adapters LGE EAY64949501 Contact Us For Availability
540
Adapters LGE EAY62549205 Contact Us For Availability
910
Base Assembly LGE AAN76349401 Contact Us For Availability
A1
Manual Assembly LGE AFN78138880 Contact Us For Availability
A4
Card LGE 3840TWL001S Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A8
Cable,Assembly LGE EAD63954403 Contact Us For Availability
A9
Card LGE MBM66205727 Contact Us For Availability
C137
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099H Contact Us For Availability
LV1
Cable,FFC LGE EAD63169880 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R10
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R300
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
× ![]()
