Model LG 24BA450-B – Common Parts & Diagrams

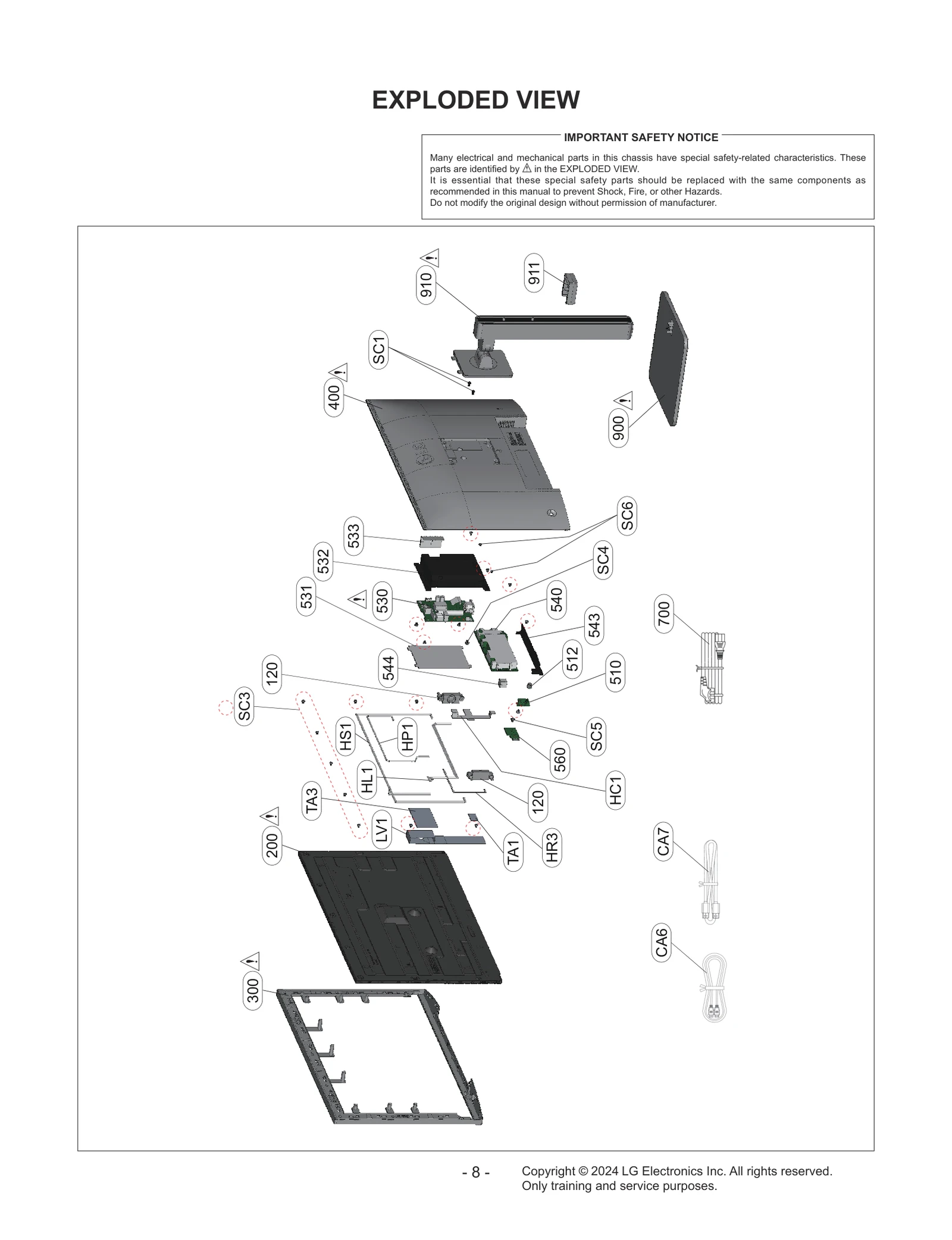

Diagram 0
Common parts from model LG 24BA450-B
200
Module,Outsourcing LGE COV37825701 Contact Us For Availability
300
Cover Assembly,Outsourcing LGE COV38086201 Contact Us For Availability
400
Cover Assembly,Outsourcing LGE COV38062001 Contact Us For Availability
510
PCB,Sub,Outsourcing LGE COV37863001 Contact Us For Availability
512
Cover Assembly,Outsourcing LGE COV37858801 Contact Us For Availability
530
Power Supply Assembly LGE EAY65899202 Contact Us For Availability
531
Sheet,Outsourcing LGE COV37879201 Contact Us For Availability
532
Cover Assembly,Outsourcing LGE COV37859001 Contact Us For Availability
533
Sheet,Outsourcing LGE COV37879101 Contact Us For Availability
540
PCB Assembly,Main,Outsourcing LGE COV37863802 Contact Us For Availability
543
Cover Assembly,Outsourcing LGE COV38062201 Contact Us For Availability
560
PCB,Sub,Outsourcing LGE COV37863502 Contact Us For Availability
700
Power Cord,Detach LGE EAD61728001 Contact Us For Availability
910
Base Assembly,Outsourcing LGE COV37858501 Contact Us For Availability
911
Cover Assembly,Outsourcing LGE COV37858701 Contact Us For Availability
HC1
FFC Cable,Outsourcing LGE COV37865001 Contact Us For Availability
HL1
Harness Assembly,Outsourcing LGE COV37878801 Contact Us For Availability
HP1
Harness Assembly,Outsourcing LGE COV37864701 Contact Us For Availability
HR3
FFC Cable,Outsourcing LGE COV37864901 Contact Us For Availability
HS1
Harness Assembly,Outsourcing LGE COV37865301 Contact Us For Availability
LV1
FFC Cable,Outsourcing LGE COV37864301 Contact Us For Availability
SC1
Screw,Outsourcing LGE COV38035701 Contact Us For Availability
TA1
Tape,Outsourcing LGE COV38081301 Contact Us For Availability
TA3
Tape,Outsourcing LGE COV38078201 Contact Us For Availability
× ![]()
