Model Whirlpool 2485 ELECTRIC COOK-TOP – Common Parts &amp; Diagrams

1

WPY700854 Whirlpool Oven Burner Knob In Stock WPL WPY700854 $10.89

1

PAN, GRILL WPL 700028 Contact Us For Availability

1

GR PAN WIRES WPL 700038 Contact Us For Availability

1

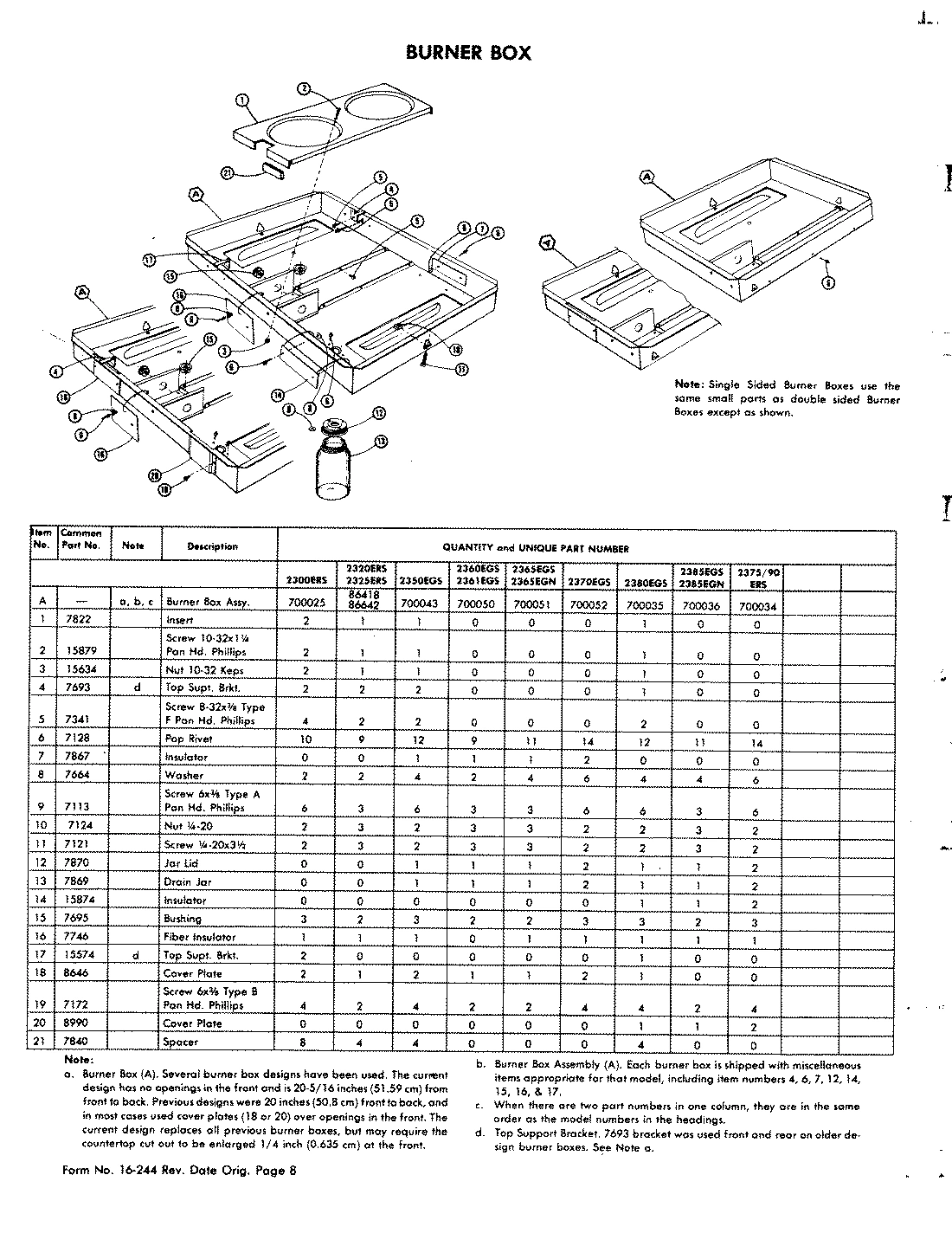

BOX, BURNER ASSY WPL Y700036 Contact Us For Availability

1

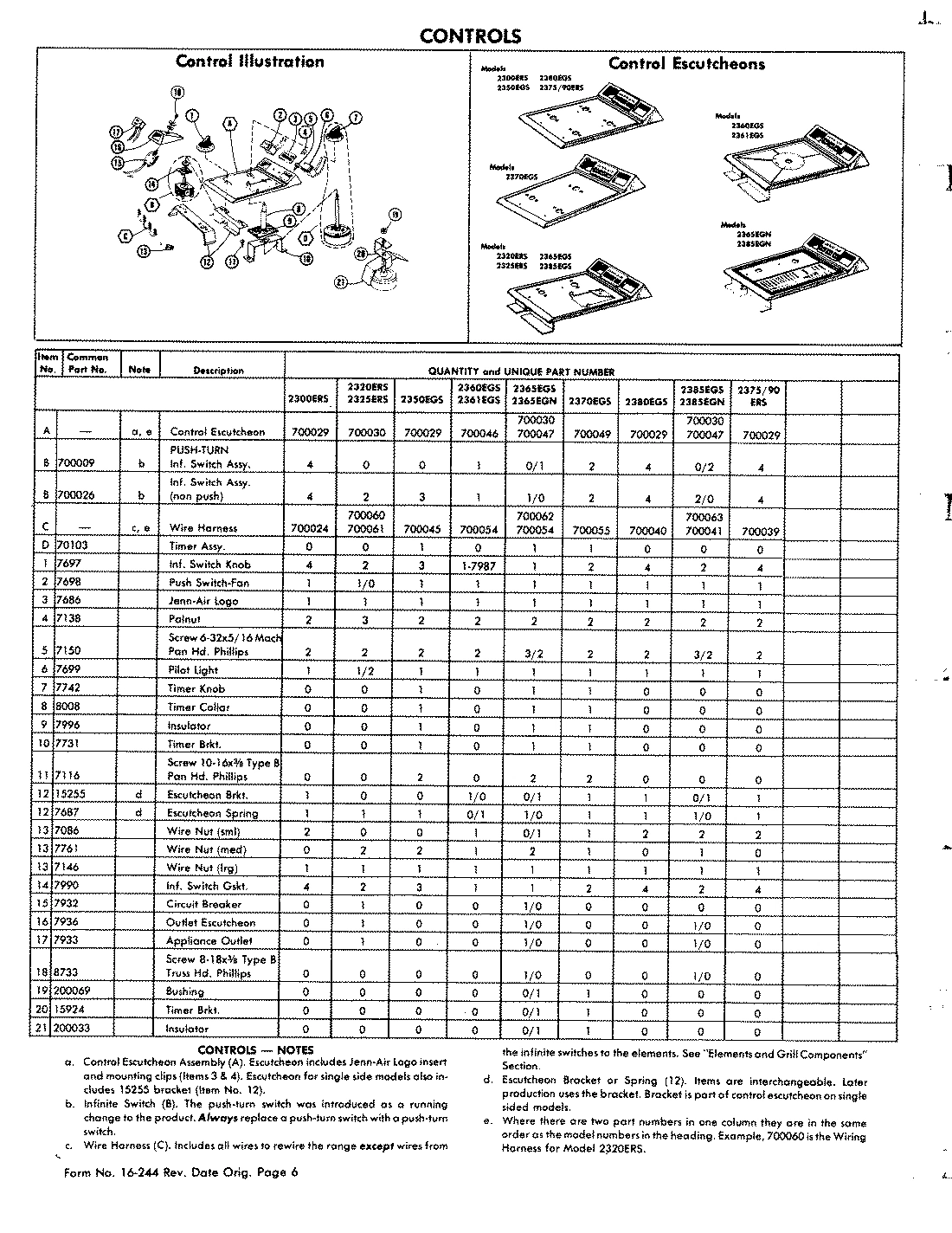

SWITCH ESCUT WPL 700030 Contact Us For Availability

1

WIRE KIT WPL 700041 Contact Us For Availability

1

RIGHT HAND ASSEMBLY WPL 700047 Contact Us For Availability

1

WIRE HARNESS WPL 700063 Contact Us For Availability

1

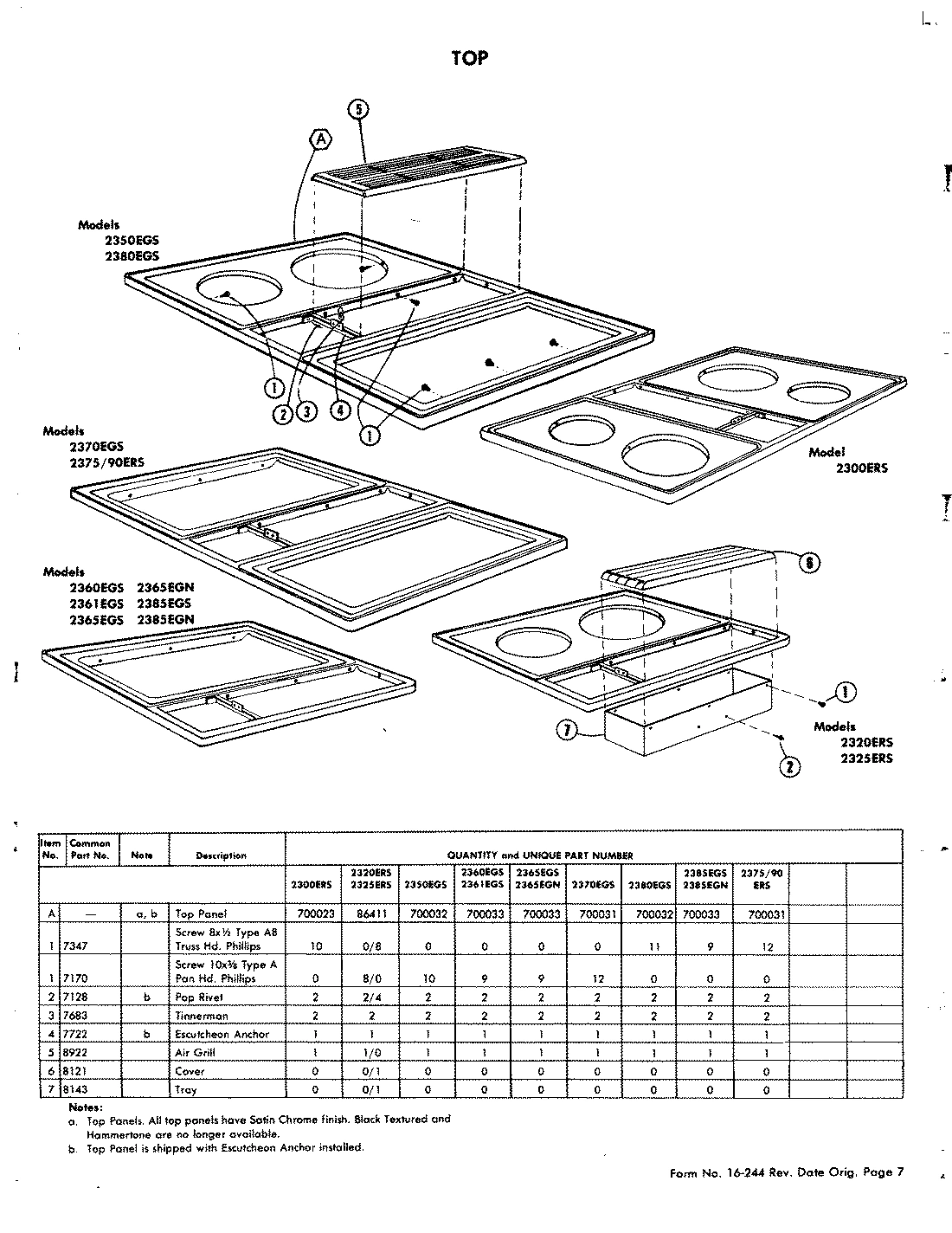

TOP, RANGE WPL 700033 Contact Us For Availability

1

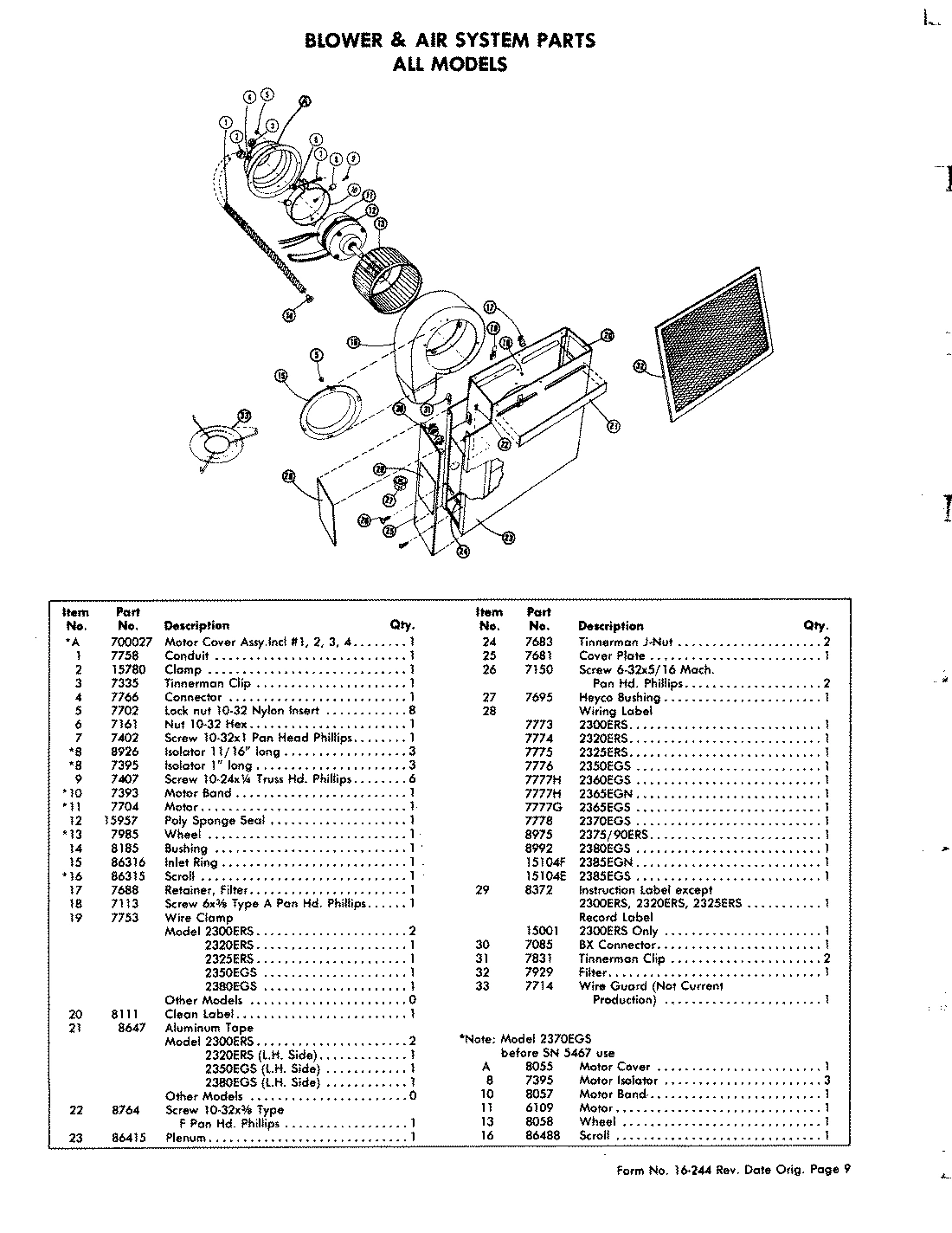

MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability

1

CONDUIT WPL Y707758 Contact Us For Availability

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.59

2

SWITCH, PUSH WPL Y707698 Contact Us For Availability

2

CLAMP, CABLE WPL 715780 Contact Us For Availability

3

INSERT, LOGO----NA WPL 707686 Contact Us For Availability

3

CLIP WPL Y707335 Contact Us For Availability

4

PALNUT WPL 707138 Contact Us For Availability

4

ANCHOR WPL 707722 Contact Us For Availability

4

CONNECTOR WPL 707766 Contact Us For Availability

5

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.51

5

VENT GRILL WPL Y708922 Contact Us For Availability

6

WIRE KIT WPL 700155 Contact Us For Availability

6

GRILL ELEMENT ASSEMBLY WPL 887834 Contact Us For Availability

6

GRILL ELEMENT ASSEMBLY WPL 887855 Contact Us For Availability

6

LIGHT, PILOT WPL Y707699 Contact Us For Availability

6

NUT WPL 707161 Contact Us For Availability

7

SCREW WPL Y707402 Contact Us For Availability

8

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.23

8

WASHER WPL Y707664 Contact Us For Availability

8

ISOLATOR MOTOR WPL Y707395 Contact Us For Availability

9

SCREW WPL 707407 No Longer Available

10

3415F003-51 Whirlpool Motor Band Backorder WPL 3415F003-51 $27.27

10

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $9.59

10

GRATE WPL 707886 Contact Us For Availability

707704K Whirlpool Range Blower Fan Motor Kit Backorder WPL 707704K $219.33

ELEMENT, GRILL WPL 787834 Contact Us For Availability

GRILL ELEMENT ASSEMBLY WPL 787855 Contact Us For Availability

SCREW WPL Y707121 Contact Us For Availability

ELEMENT, COMPLETE, 240V WPL 787868 Contact Us For Availability

GRILL ELEMENT ASSEMBLY WPL 787869 Contact Us For Availability

LID, JAR WPL Y707870 Contact Us For Availability

FOAM, URETHANE WPL Y715957 Contact Us For Availability

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $31.79

WPY707985 Whirlpool Wheel Assembly In Stock WPL WPY707985 $74.57

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $36.12

NUT, WIRE WPL 707086 Contact Us For Availability

NUT, WIRE WPL 707146 Contact Us For Availability

NUT WIRE WPL Y707761 Contact Us For Availability

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $10.65

INSULATOR WPL 715874 Contact Us For Availability

BUSHING WPL 708185 Contact Us For Availability

15

PLATE, ROCK WPL 708929 Contact Us For Availability

15

RING, INLET (WITH STUDS) WPL 786316 Contact Us For Availability

16

ELEMENT SUPPORT WPL 715579 Contact Us For Availability

16

INSULATOR WPL 707746 Contact Us For Availability

16

SCROLL WPL Y786315 Contact Us For Availability

17

INSULATION WPL 707912 Contact Us For Availability

17

RETAINER, FILTER WPL Y707688 Contact Us For Availability

18

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $2.51

18

INSULATION WPL 707913 Contact Us For Availability

19

74004835 Whirlpool Clip In Stock WPL 74004835 $4.92

20

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

20

BRACKET WPL 708990 Contact Us For Availability

20

CLEANING LABEL WPL 708111 Contact Us For Availability

21

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

22

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

22

RECEPTACLE CONTACTS WPL Y708558 Contact Us For Availability

23

RECEPTACLE WPL Y715120 Contact Us For Availability

23

PLENUM WPL Y786415 Contact Us For Availability

24

BRACKET WPL 708839 Contact Us For Availability

24

NUT WPL 707683 Contact Us For Availability

25

PLATE, COVER WPL Y707681 Contact Us For Availability

26

SCREW WPL Y707150 Contact Us For Availability

27

BUSHING WPL Y707695 Contact Us For Availability

28

WIRING LABEL WPL 715104 Contact Us For Availability

29

INSTRUCTION LABEL WPL 708372 Contact Us For Availability

30

CONNECTOR, CONDUIT WPL 707085 Contact Us For Availability

31

CLIP WPL Y707831 Contact Us For Availability

32

WP707929 Whirlpool Grease Filter In Stock WPL WP707929 $13.60

33

AIR GRILL WPL 707714 Contact Us For Availability
