Model Whirlpool 2454X0A ELECTRIC RANGE – Common Parts & Diagrams

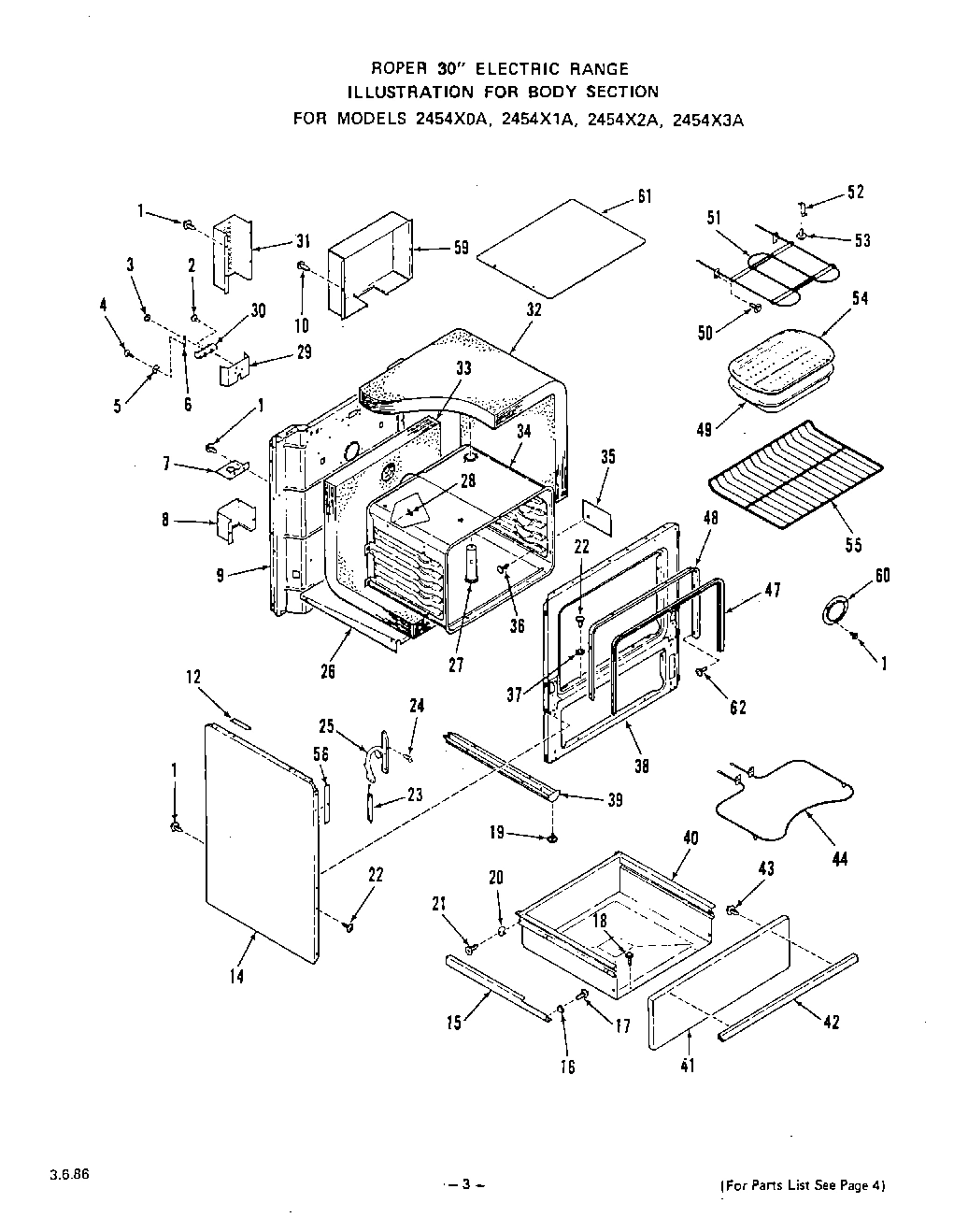

04 - BODY

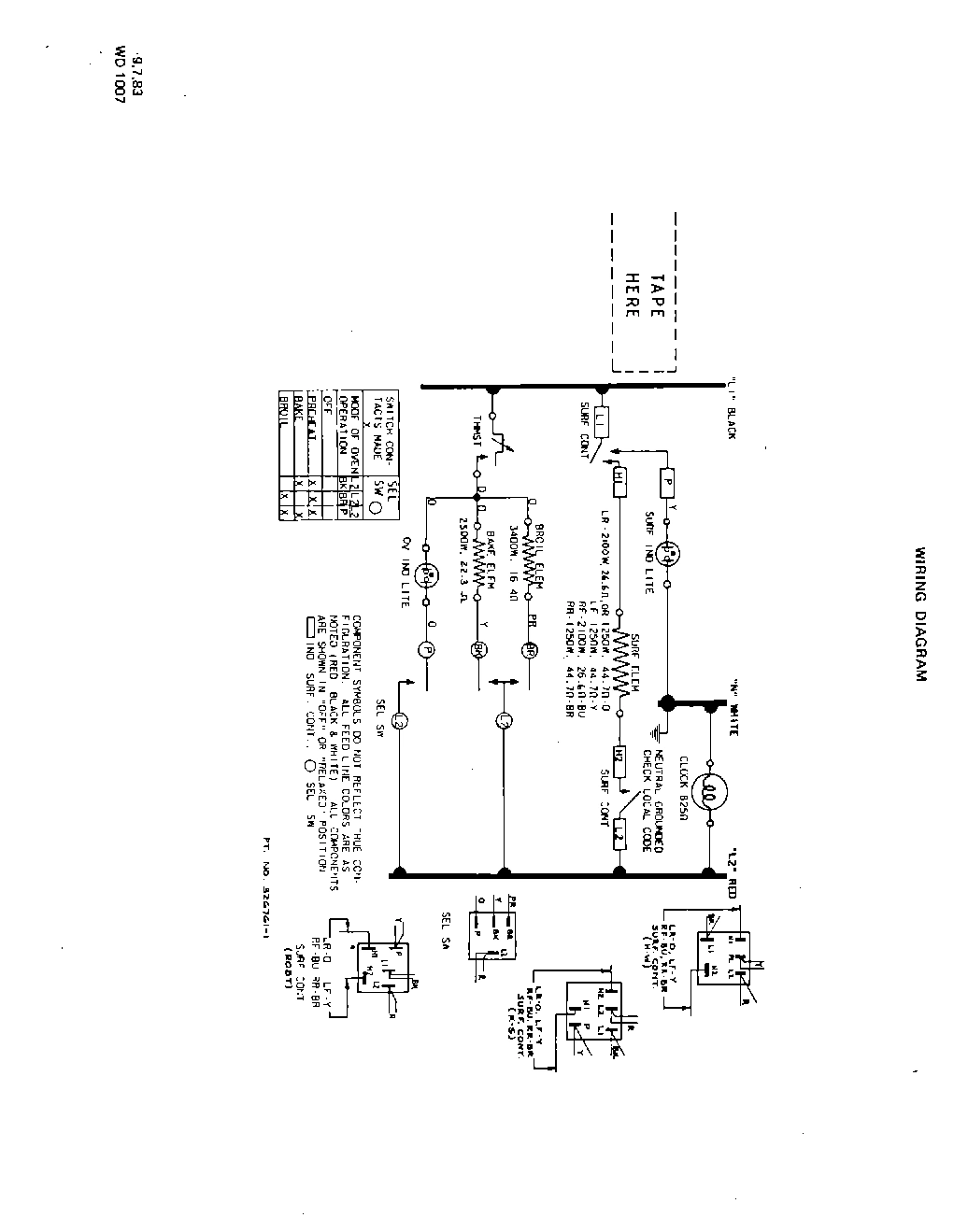

06 - WIRING DIAGRAM

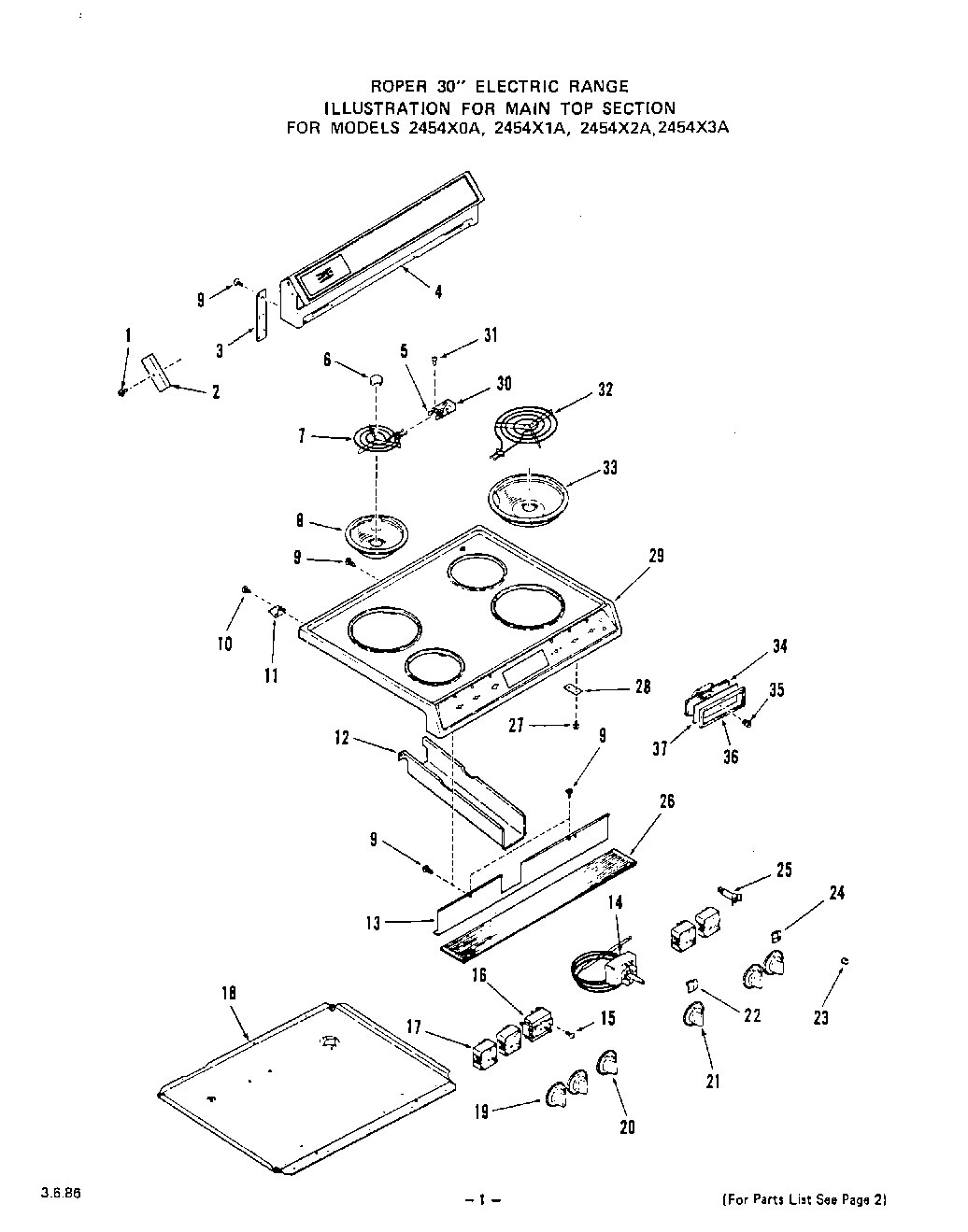

02 - MAIN TOP

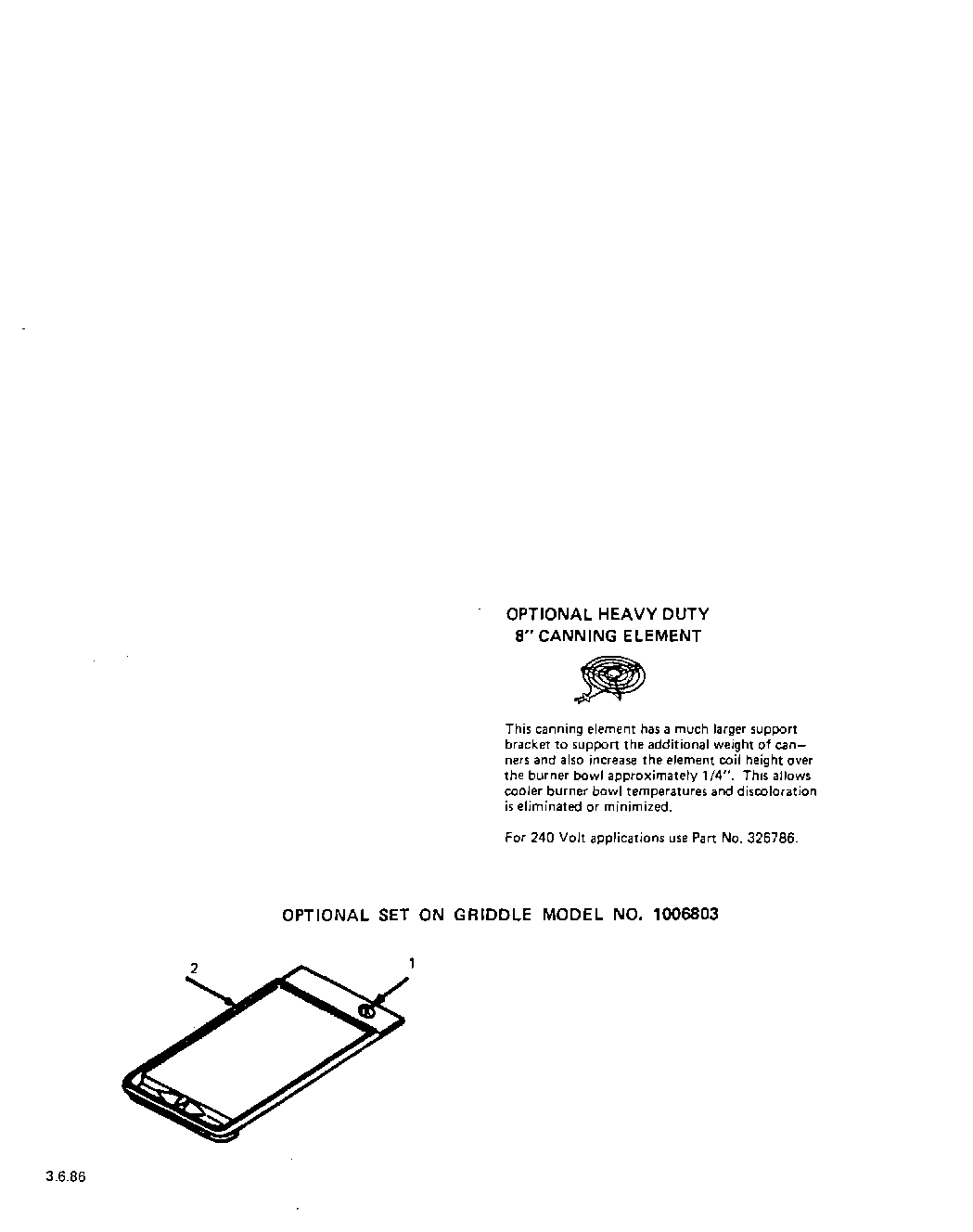

03 - SECTION

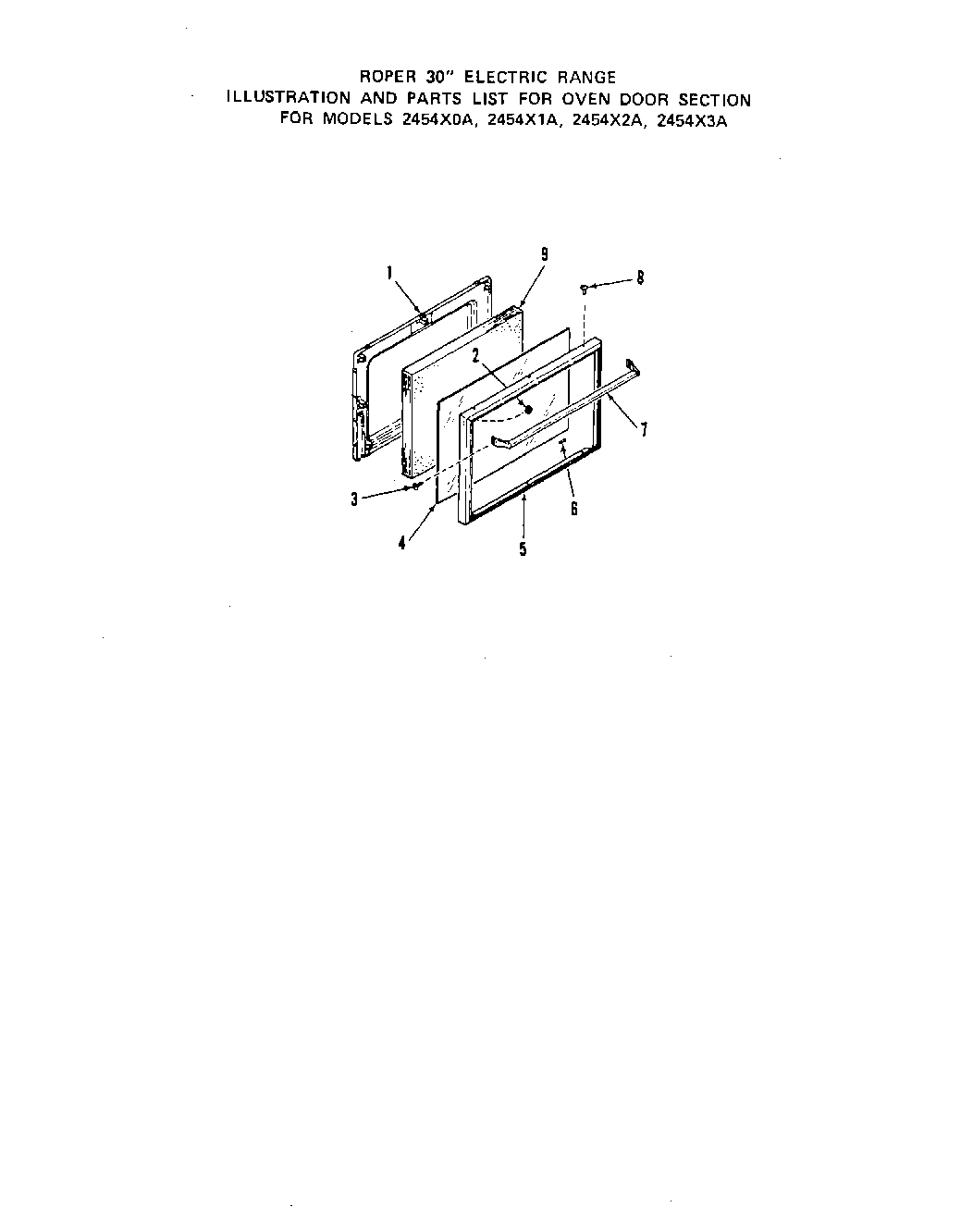

05 - OVEN DOOR
Common parts from model Whirlpool 2454X0A ELECTRIC RANGE
xWire Harness WPL ARI11214A5 Contact Us For Availability
1
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Lining-Oven Door WPL 325937 Contact Us For Availability
2
Screw 10-32x1`` WPL 313190 Contact Us For Availability
2
End Cap-Backguard (Lt. or Rt.) WPL 288860 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
Keps Nut 8-32 WPL 239764 Contact Us For Availability
3
Hex Nut 10-32 WPL 97816 Contact Us For Availability
3
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
4
Crosstie-Backguard WPL 326771 Contact Us For Availability
4
Outer Glass-Oven Door WPL 320736 Contact Us For Availability
5
Washer WPL 299425 Contact Us For Availability
5
Bracket-Terminal Block WPL 318872 Contact Us For Availability
5
Frame-Oven Door WPL 326141 Contact Us For Availability
6
Ground Strap WPL 327255 Contact Us For Availability
6
2454XOA, 1A, 2A Models WPL 318579 Contact Us For Availability
6
2454X3A Models WPL 319704 Contact Us For Availability
6
Medallion (4 Req) WPL ARI11202A9 Contact Us For Availability
6
Cushion WPL 112370 Contact Us For Availability
7
Range Service Mounting Plate WPL 327259 Contact Us For Availability
7
2454X0A, 1A, 2A Models WPL 318580 Contact Us For Availability
7
2454X3A Models WPL 319266 Contact Us For Availability
7
6`` Surface Element-Lt. Front & Rt. Rear WPL ARI11203A2 Contact Us For Availability
7
Handle WPL 303342 Contact Us For Availability
8
Wire Shield-Lower WPL 327258 Contact Us For Availability
8
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
8
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
9
Main Back WPL 325879 Contact Us For Availability
9
Screw 10-167/16`` WPL 327320 Contact Us For Availability
9
Selector Switch WPL 326762 Contact Us For Availability
9
Controls WPL 326763 Contact Us For Availability
9
Insulation WPL 327625 Contact Us For Availability
9
Main Top WPL 327914 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
Retainer-Main Top (2 Req) WPL 301672 Contact Us For Availability
12
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
13
Wire Cover-Controls WPL 306571 Contact Us For Availability
14
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
14
2454X0A, 1A Models WPL 320938 Contact Us For Availability
14
2454X2A, 3A Models WPL 321959 Contact Us For Availability
14
Oven Thermostat WPL ARI11204A1 Contact Us For Availability
15
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
15
Screw 8-32x3/16`` (2 Ea. For Keys 14, 16 & 17 WPL 78565 Contact Us For Availability
16
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
16
Selector Switch WPL 320927 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
17
4 Req. 2454X0A WPL 320944 Contact Us For Availability
17
Rt. Rear & Lt. Front 2454X1A,2A,3A WPL 320945 Contact Us For Availability
17
Rt. Front & Lt. Rear 2454X1A,2A,3A WPL 320946 Contact Us For Availability
17
Infinite Control Switch WPL ARI11205A4 Contact Us For Availability
18
2454X0A, 1A Models WPL 326359 Contact Us For Availability
18
2454X2A, 3A Models WPL 331742 Contact Us For Availability
18
Burner Box Bottom WPL ARI11206A6 Contact Us For Availability
19
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
19
Knob-Infinite Control Switch (4 Req) WPL 322966 Contact Us For Availability
20
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
20
Knob-Selector Switch WPL 326947 Contact Us For Availability
21
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
21
Knob-Oven Thermostat WPL 326671 Contact Us For Availability
22
I.D.-Button (Oven & Selector) WPL 301774 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 326961 Contact Us For Availability
23
Lens-Indicator Light WPL 325677 Contact Us For Availability
24
Screw WPL 331704 Contact Us For Availability
24
I.D.-Button (Infinite Switch) WPL 301772 Contact Us For Availability
25
Right WPL 326012 Contact Us For Availability
25
Left WPL 326013 Contact Us For Availability
25
Hinge-Oven Door WPL ARI11209A6 Contact Us For Availability
25
Surface WPL 323228 Contact Us For Availability
25
Oven WPL 326871 Contact Us For Availability
25
Indicator Light WPL ARI11207A5 Contact Us For Availability
26
Insulation Retainer-Lower WPL 313281 Contact Us For Availability
26
Insulation WPL 327049 Contact Us For Availability
27
Vent Tube WPL 326584 Contact Us For Availability
27
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
28
Thermostat Bulb Clip (2 Req) WPL 115533 Contact Us For Availability
28
Strap-Hold Down (2 Req) WPL 302360 Contact Us For Availability
29
Insulator-Service Cord WPL 327242 Contact Us For Availability
29
Main Top WPL 324087 Contact Us For Availability
30
Junction Block WPL 290105 Contact Us For Availability
30
Terminal Block w/Wire Lead WPL 318960 Contact Us For Availability
31
Wire Shield-Upper WPL 327235 Contact Us For Availability
31
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
32
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
32
2454X0A,1A,2A Models WPL 318582 Contact Us For Availability
32
2454X3A Models WPL 319268 Contact Us For Availability
32
8`` Surface WPL ARI11208A5 Contact Us For Availability
33
Insulation-Oven Back & Bottom (1 Piece) WPL 326049 Contact Us For Availability
33
WPL 304969 WPL 304969 Contact Us For Availability
34
Oven Body WPL 325772 Contact Us For Availability
34
WPL 324088 WPL 324088 Contact Us For Availability
35
Insulation Retainer-Rt. or Lt. WPL 326768 Contact Us For Availability
35
WPL 109225 WPL 109225 Contact Us For Availability
36
Button Dart (2 Req) WPL 296097 Contact Us For Availability
36
WPL 293498 WPL 293498 Contact Us For Availability
37
Washer WPL 21067 Contact Us For Availability
37
WPL 298767 WPL 298767 Contact Us For Availability
38
2454X0A & 2454X1A Models WPL 326042 Contact Us For Availability
38
2454X2A & 2454X3A Models WPL 332687 Contact Us For Availability
38
Front Frame WPL ARI11210A8 Contact Us For Availability
39
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
40
Storage Drawer WPL 296150 Contact Us For Availability
41
Front Panel-Storage Drawer WPL 326078 Contact Us For Availability
42
Handle-Storage Drawer WPL 292240 Contact Us For Availability
43
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
44
Bake Element WPL 325883 Contact Us For Availability
47
Oven Door Seal WPL 326293 Contact Us For Availability
48
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
49
2454X0A & 2454X1A Models WPL 293098 Contact Us For Availability
49
2454X2A & 2454X3A Mod WPL 331592 Contact Us For Availability
49
WPL ARI11211A2 WPL ARI11211A2 Contact Us For Availability
51
WPL 326360 WPL 326360 Contact Us For Availability
52
WPL 324808 WPL 324808 Contact Us For Availability
54
WPL 293099 WPL 293099 Contact Us For Availability
54
WPL 326297 WPL 326297 Contact Us For Availability
54
WPL ARI11212A9 WPL ARI11212A9 Contact Us For Availability
55
WPL 326068 WPL 326068 Contact Us For Availability
56
WPL 327378 WPL 327378 Contact Us For Availability
59
WPL 326495 WPL 326495 Contact Us For Availability
60
WPL 326935 WPL 326935 Contact Us For Availability
61
WPL 319163 WPL 319163 Contact Us For Availability
61
WPL 331867 WPL 331867 Contact Us For Availability
61
WPL ARI11213A8 WPL ARI11213A8 Contact Us For Availability
62
WPL 69014 WPL 69014 Contact Us For Availability
× ![]()
