Model Whirlpool 2453W0A ELECTRIC RANGE – Common Parts & Diagrams

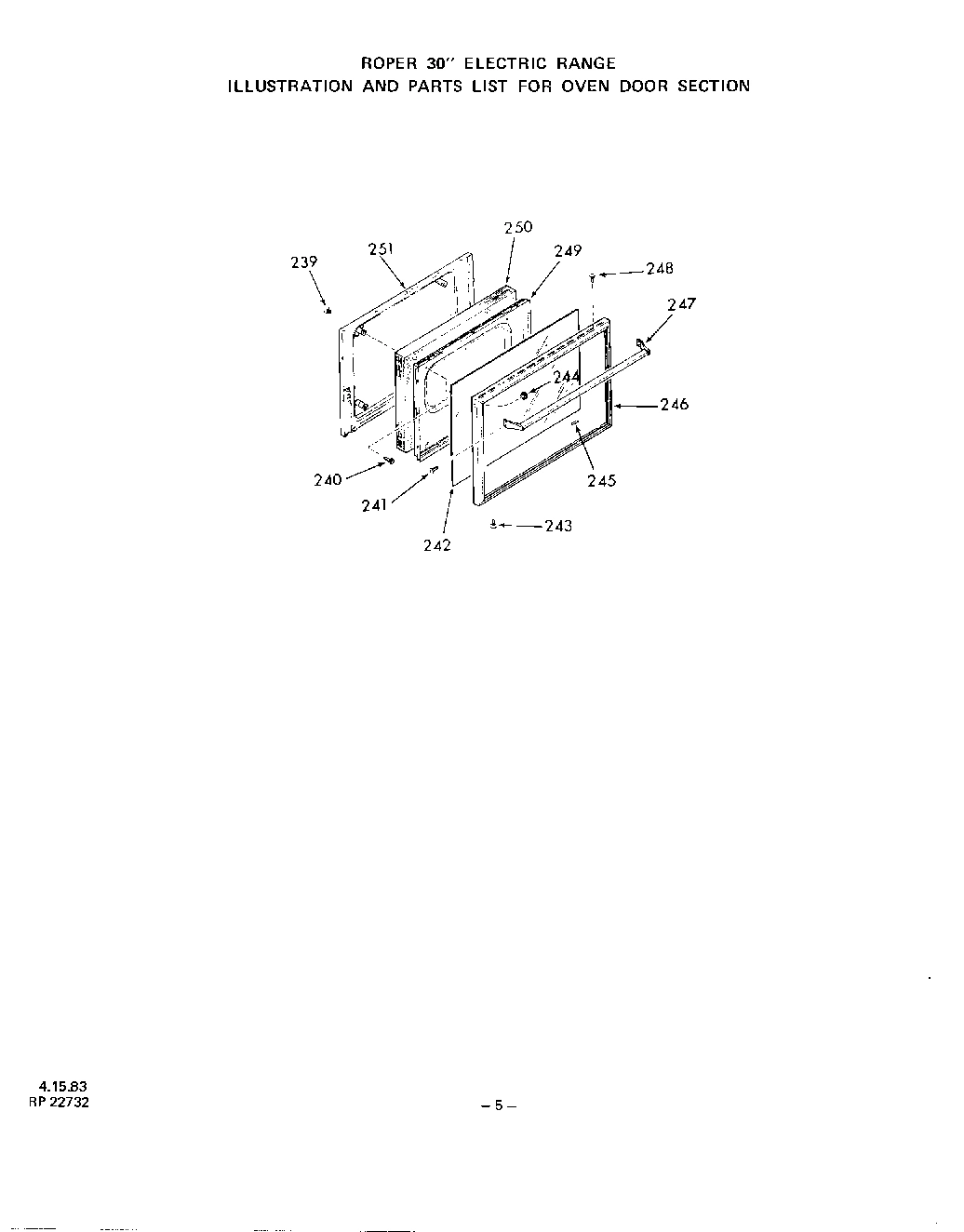

03 - OVEN DOOR

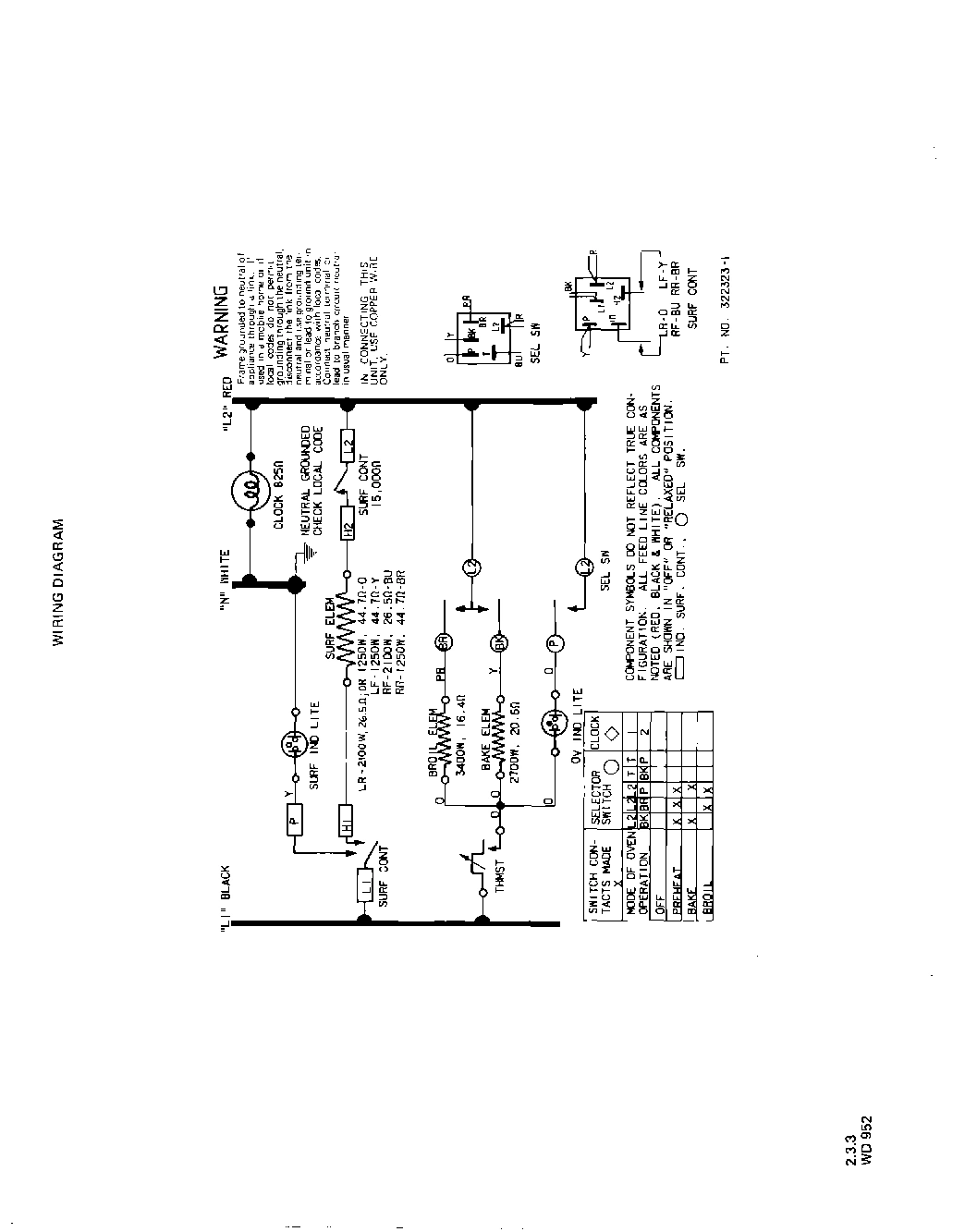

06 - SECTION

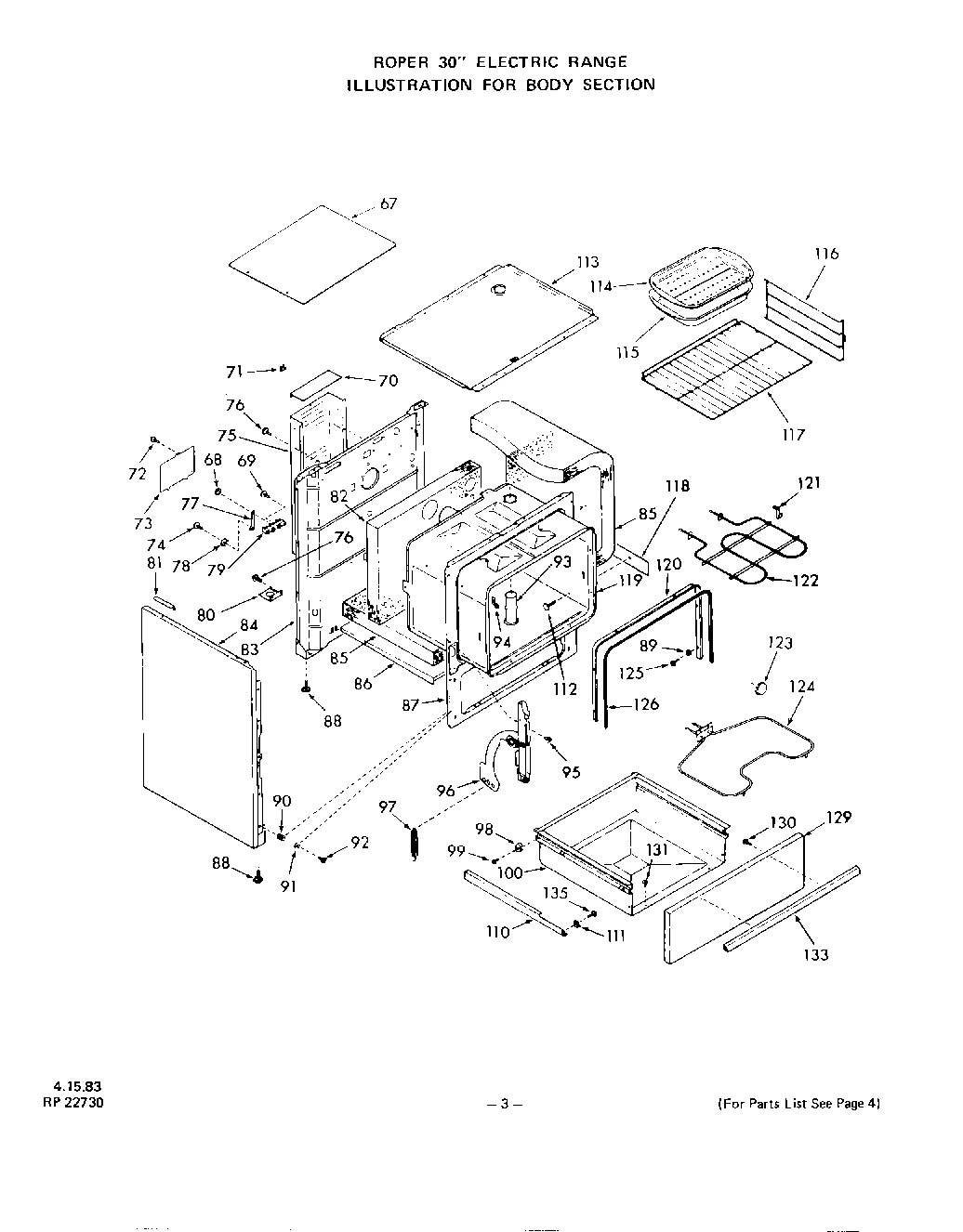

02 - BODY
04 - ROTISSERIE , GRIDDLE

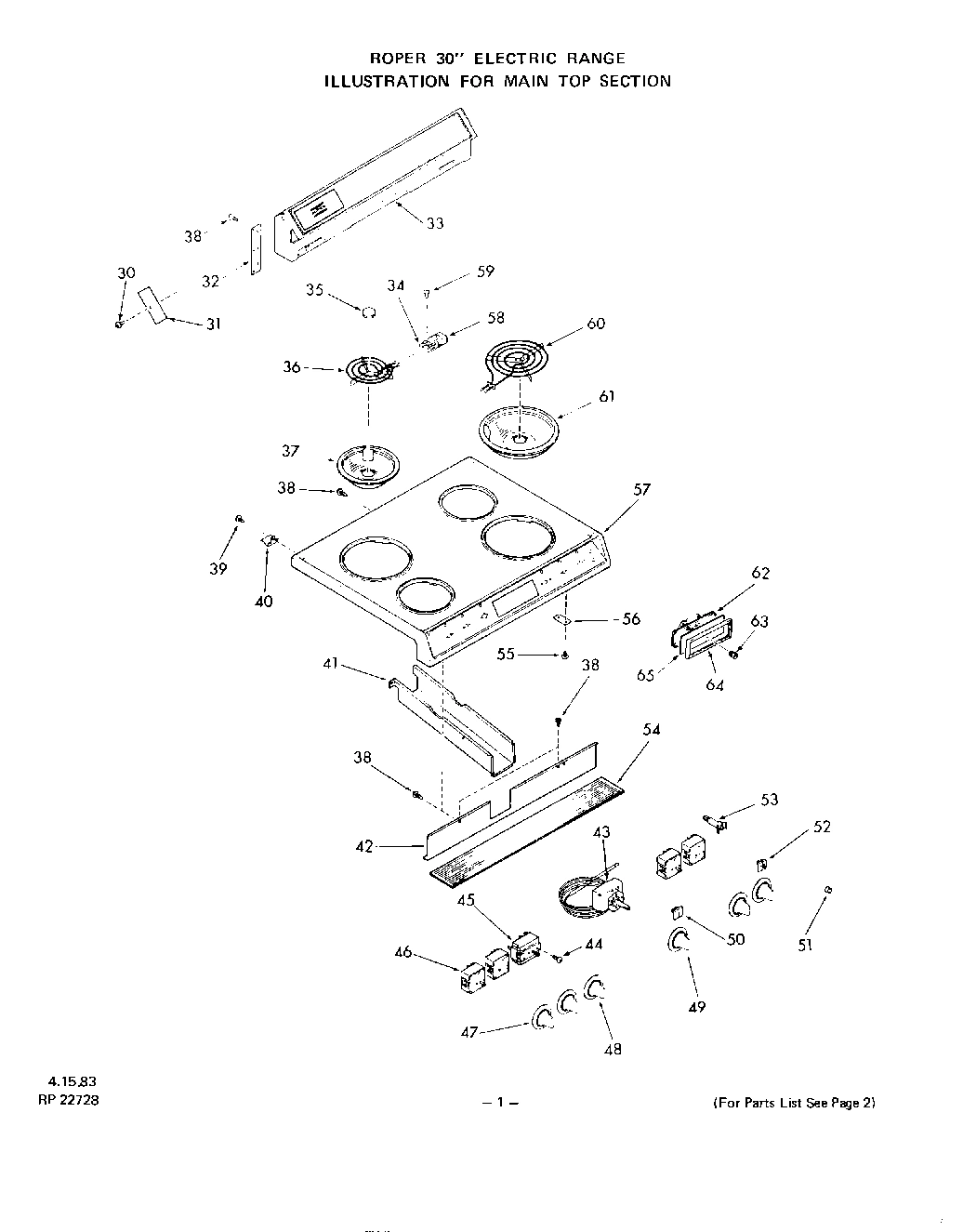

01 - MAIN TOP
Common parts from model Whirlpool 2453W0A ELECTRIC RANGE
30
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
31
End Cap-Backguard (Lt. or Rt.) WPL 288860 Contact Us For Availability
32
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
33
Crosstie-Backguard WPL 324083 Contact Us For Availability
34
Bracket-Terminal Block WPL 318872 Contact Us For Availability
35
Medallion (4 Required) WPL 319704 Contact Us For Availability
36
6`` Surface Element (Lt. Front & Rt. Rear) WPL 319266 Contact Us For Availability
37
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
39
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
40
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
42
Wire Cover-Controls WPL 306571 Contact Us For Availability
43
Oven Thermostat WPL 320938 Contact Us For Availability
44
Screw 8-32x3/16`` (2 Ea. for Keys 43, 45 & 46 WPL 78565 Contact Us For Availability
45
Selector Switch WPL 320927 Contact Us For Availability
46
Infinite Control Switch (4 Required) WPL 320944 Contact Us For Availability
47
Knob-Infinite Control Switch (4 Required) WPL 320894 Contact Us For Availability
48
Knob-Selector Switch WPL 324161 Contact Us For Availability
49
Knob-Oven Thermostat WPL 320896 Contact Us For Availability
50
I.D.-Button (Oven & Selector) WPL 301774 Contact Us For Availability
51
Lens-Indicator Light WPL 325677 Contact Us For Availability
52
I.D.-Button (Infinite Switch) WPL 301772 Contact Us For Availability
53
Indicator Light (Oven) WPL 323227 Contact Us For Availability
53
Indicator Light (Surface) WPL 323228 Contact Us For Availability
54
Insulation-Corrugated Asbestos WPL 303046 Contact Us For Availability
55
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
56
Strap-Hold Down (2 Required) WPL 302360 Contact Us For Availability
57
Main Top (Chrome) WPL 324087 Contact Us For Availability
57
Main Top (White) WPL 324476 Contact Us For Availability
57
Main Top (Golden Wheat) WPL 324477 Contact Us For Availability
57
Main Top (Almond) WPL 324478 Contact Us For Availability
58
Terminal Block w/Wire Lead WPL 318960 Contact Us For Availability
59
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
60
8`` Surface Element (Rt. Front & Lt. Rear) WPL 319268 Contact Us For Availability
61
8`` Burner Bowl-Rt. Front & Lt. Rear WPL 304969 Contact Us For Availability
62
Clock w/4 Hr. Timer WPL 324088 Contact Us For Availability
63
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
64
Bezel-Clock WPL 293498 Contact Us For Availability
65
Glass-Clock WPL 298767 Contact Us For Availability
67
Oven Bottom Liner WPL 319163 Contact Us For Availability
68
Hex Nut 10-32 WPL 97816 Contact Us For Availability
69
Screw 10-32x1`` WPL 313190 Contact Us For Availability
70
Top-Wire Cover WPL 302111 Contact Us For Availability
71
Clip WPL 70588 Contact Us For Availability
73
Access Plate WPL 299472 Contact Us For Availability
74
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
75
Wire Cover-Main Back WPL 296026 Contact Us For Availability
77
Ground Strap WPL 304987 Contact Us For Availability
78
Washer WPL 299425 Contact Us For Availability
79
Junction Block WPL 290105 Contact Us For Availability
80
Range Service Mounting Plate WPL 281903 Contact Us For Availability
81
Spacer-Main Top WPL 303513 Contact Us For Availability
82
Insulation - Oven Back WPL 296140 Contact Us For Availability
83
Main Back WPL 322229 Contact Us For Availability
84
Body Side (White-Right) WPL 323084 Contact Us For Availability
84
Body Side (White-Left) WPL 323085 Contact Us For Availability
84
Body Side (Golden Wheat-Right) WPL 323090 Contact Us For Availability
84
Body Side (Golden Wheat-Left) WPL 323091 Contact Us For Availability
84
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
84
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
84
Body Side (Black-Right) WPL 325806 Contact Us For Availability
84
Body Side (Black-Left) WPL 325807 Contact Us For Availability
85
Insulation-Oven Top, Bottom & Sides WPL 296138 Contact Us For Availability
86
Retainer-Lower Insulation WPL 313281 Contact Us For Availability
87
Front Frame WPL 316996 Contact Us For Availability
88
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
89
Washer WPL 21067 Contact Us For Availability
90
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
91
Washer WPL 303963 Contact Us For Availability
93
Oven Vent Tube WPL 308726 Contact Us For Availability
94
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
95
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
96
Oven Door Hinge (Right) WPL 303132 Contact Us For Availability
96
Oven Door Hinge (Left) WPL 303133 Contact Us For Availability
97
Spring-Oven Door (2 Required) WPL 308735 Contact Us For Availability
98
Rear Slide Block - Lt. or Rt. WPL 281913 Contact Us For Availability
99
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
100
Storage Drawer WPL 296150 Contact Us For Availability
110
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
111
Front Slide Block-(Lt. or Rt.) WPL 281914 Contact Us For Availability
112
Dart-Button Head WPL 296097 Contact Us For Availability
113
Burner Box Bottom WPL 321164 Contact Us For Availability
114
Broiler Pan Grid WPL 293099 Contact Us For Availability
115
Broiler Pan WPL 293098 Contact Us For Availability
116
Oven Rack Guide-Rt. or Lt. WPL 305409 Contact Us For Availability
117
Oven Rack (2 Required) WPL 305408 Contact Us For Availability
118
Re WPL 314487 Contact Us For Availability
119
WPL 315353 WPL 315353 Contact Us For Availability
120
WPL 296103 WPL 296103 Contact Us For Availability
121
WPL 324808 WPL 324808 Contact Us For Availability
122
WPL 319487 WPL 319487 Contact Us For Availability
123
WPL 101063 WPL 101063 Contact Us For Availability
125
WPL 321162 WPL 321162 Contact Us For Availability
126
WPL 296102 WPL 296102 Contact Us For Availability
129
WPL 312230 WPL 312230 Contact Us For Availability
130
WPL 295850 WPL 295850 Contact Us For Availability
131
WPL 316365 WPL 316365 Contact Us For Availability
133
WPL 292240 WPL 292240 Contact Us For Availability
135
WPL 295849 WPL 295849 Contact Us For Availability
241
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
242
Glass-Oven Door WPL 320736 Contact Us For Availability
243
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
244
Keps Nut 8-32 WPL 239764 Contact Us For Availability
245
Cushion-Door Glass WPL 112370 Contact Us For Availability
246
Frame-Door Glass WPL 296473 Contact Us For Availability
247
Handle-Oven Door WPL 303342 Contact Us For Availability
248
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
249
Retainer-Oven Door Insulation WPL 320735 Contact Us For Availability
250
Insulation-Oven Door WPL 296142 Contact Us For Availability
251
Main Top WPL 318874 Contact Us For Availability
251
Lining-Oven Door WPL 321411 Contact Us For Availability
251
Selector Switch WPL 324091 Contact Us For Availability
251
Control WPL 324142 Contact Us For Availability
× ![]()
