Model Whirlpool 2414W1A ELECTRIC RANGE – Common Parts & Diagrams

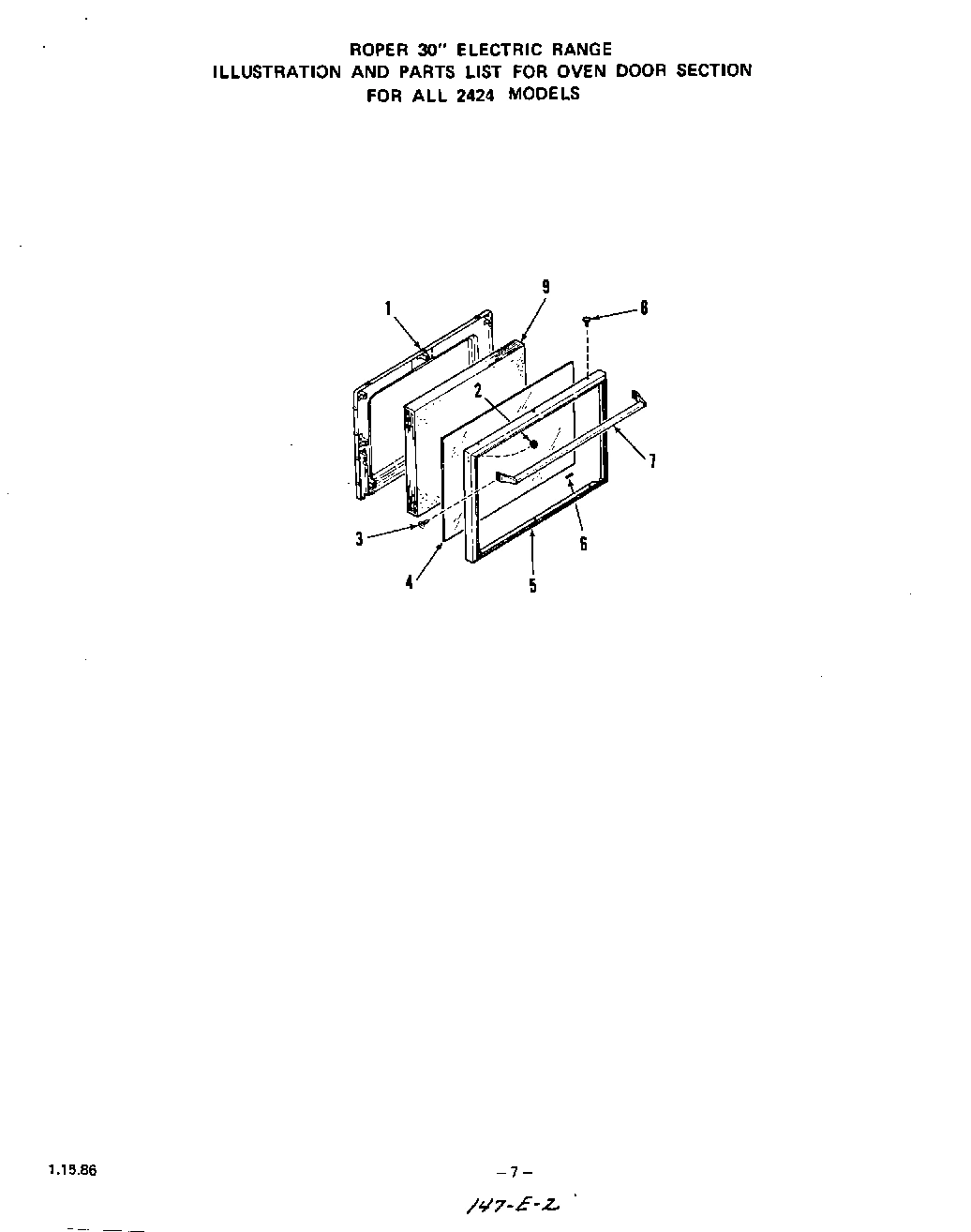

07 - SECTION

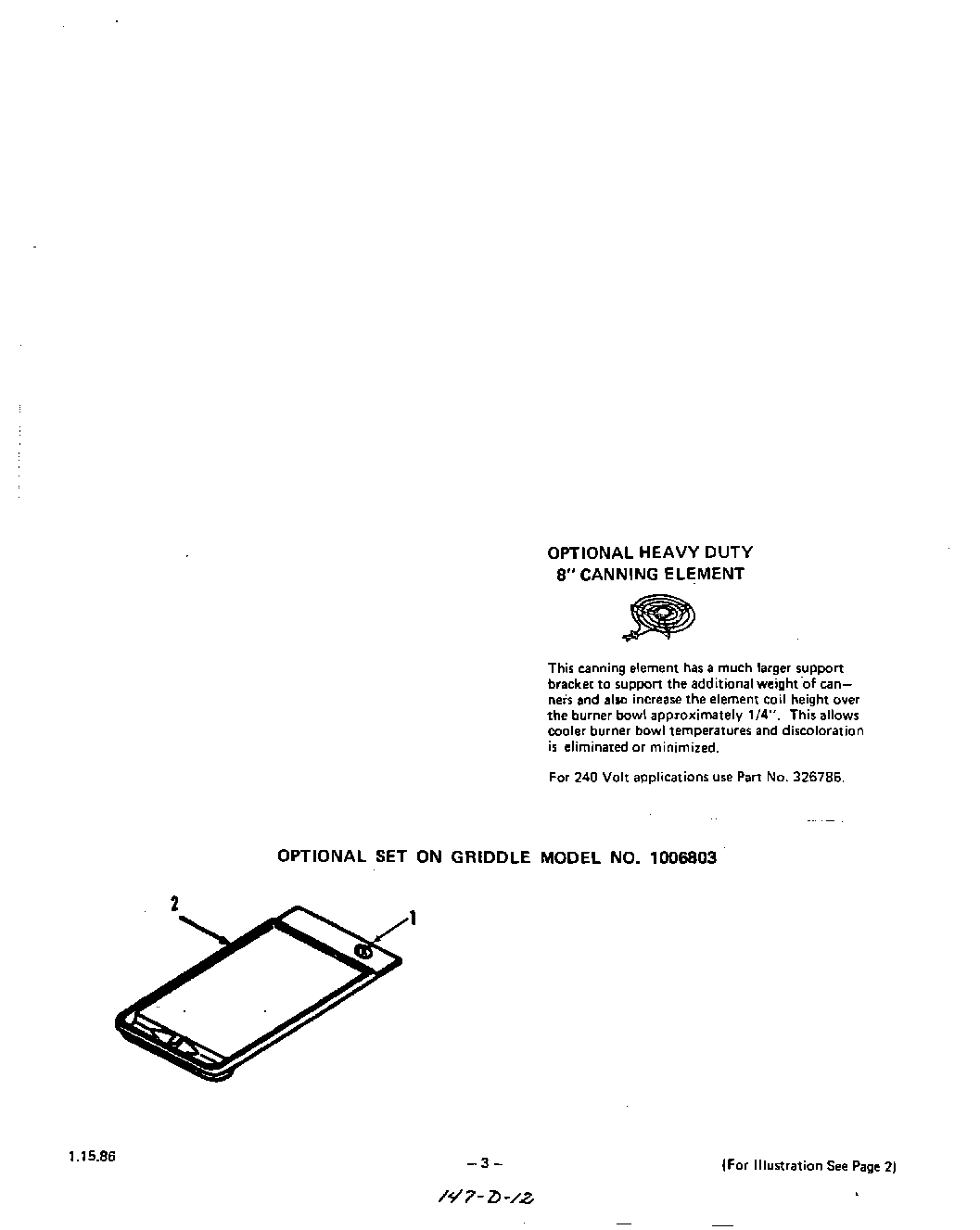

04 - CANNING ELEMENT , GRIDDLE

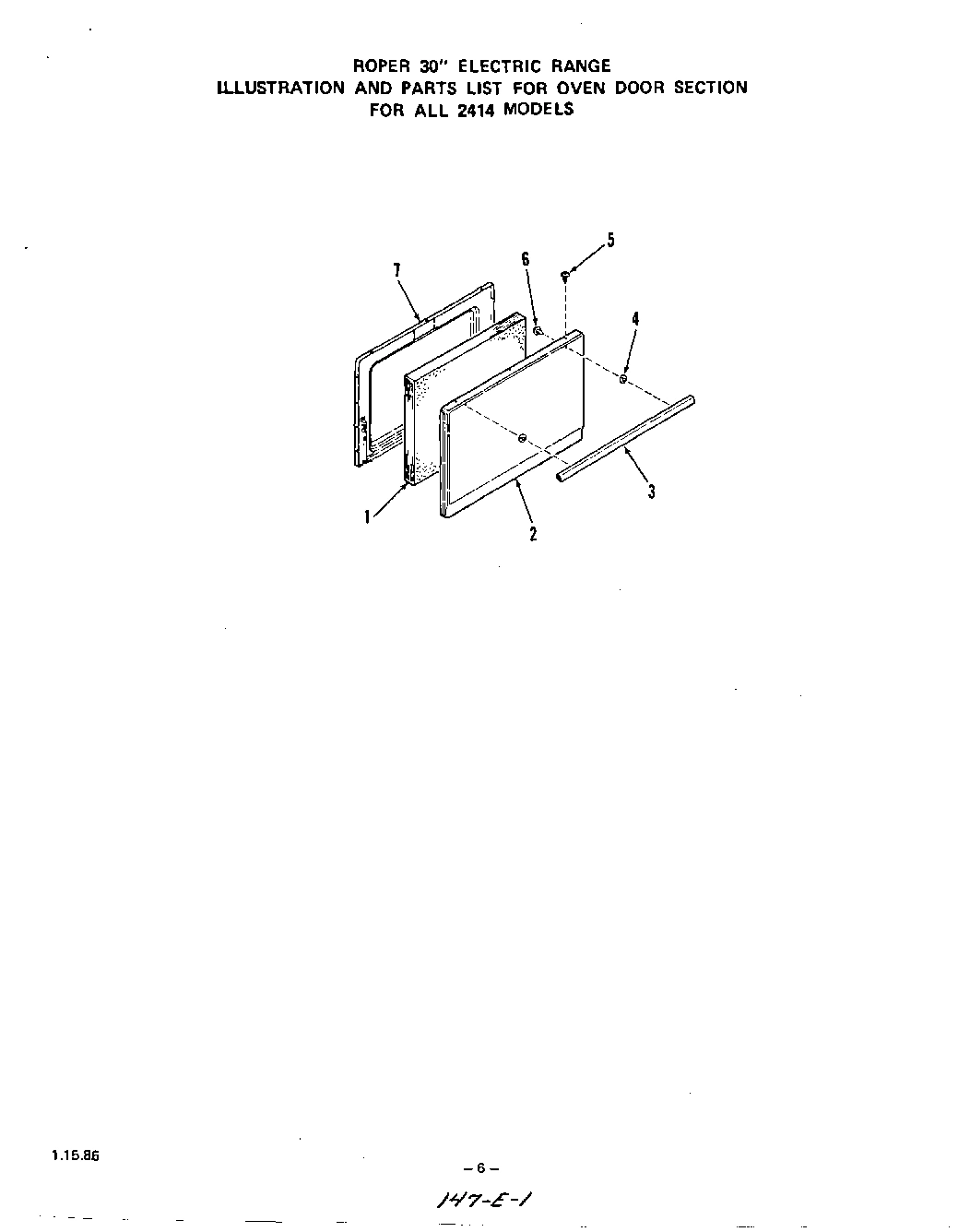

06 - OVEN DOOR

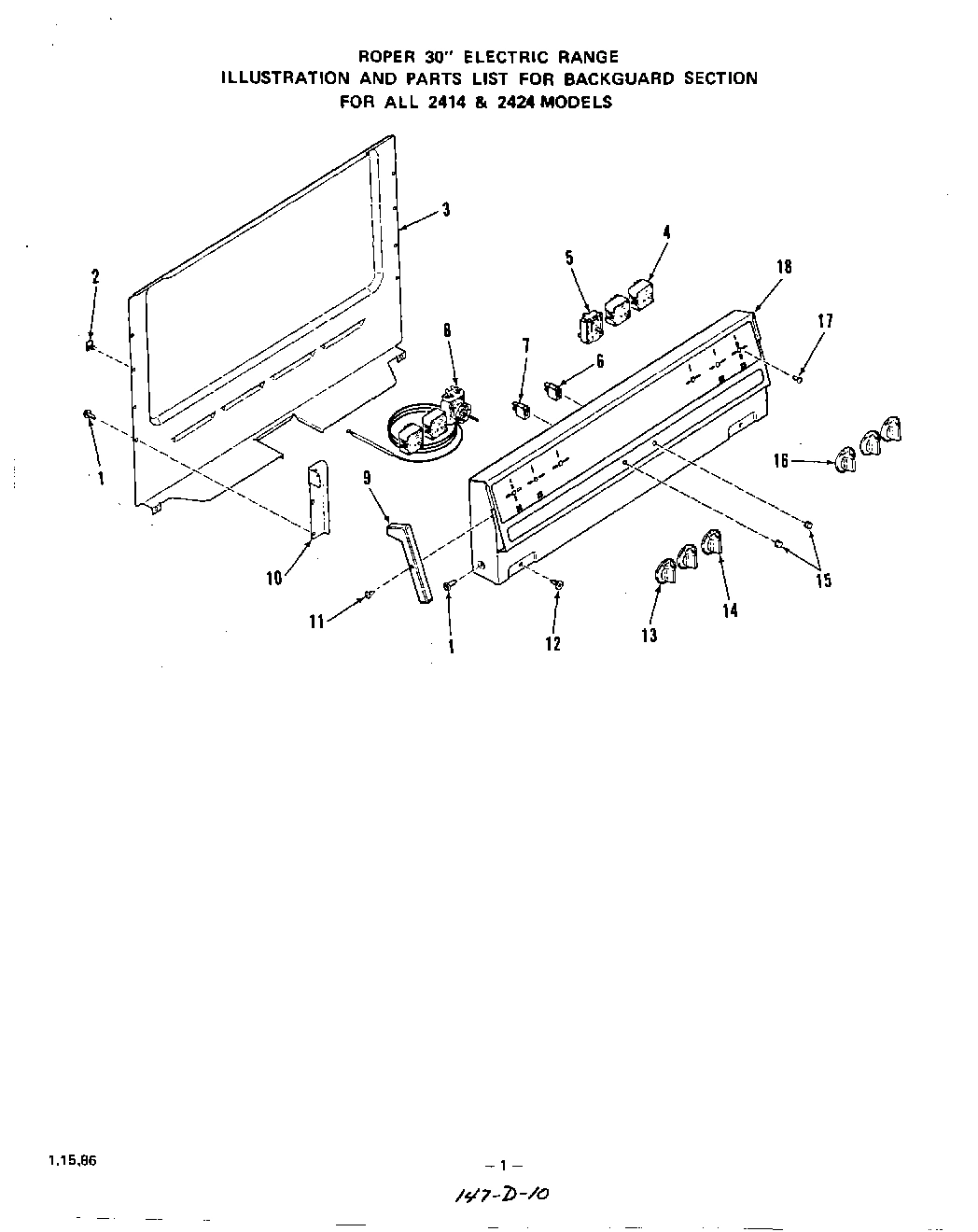

02 - BACKGUARD

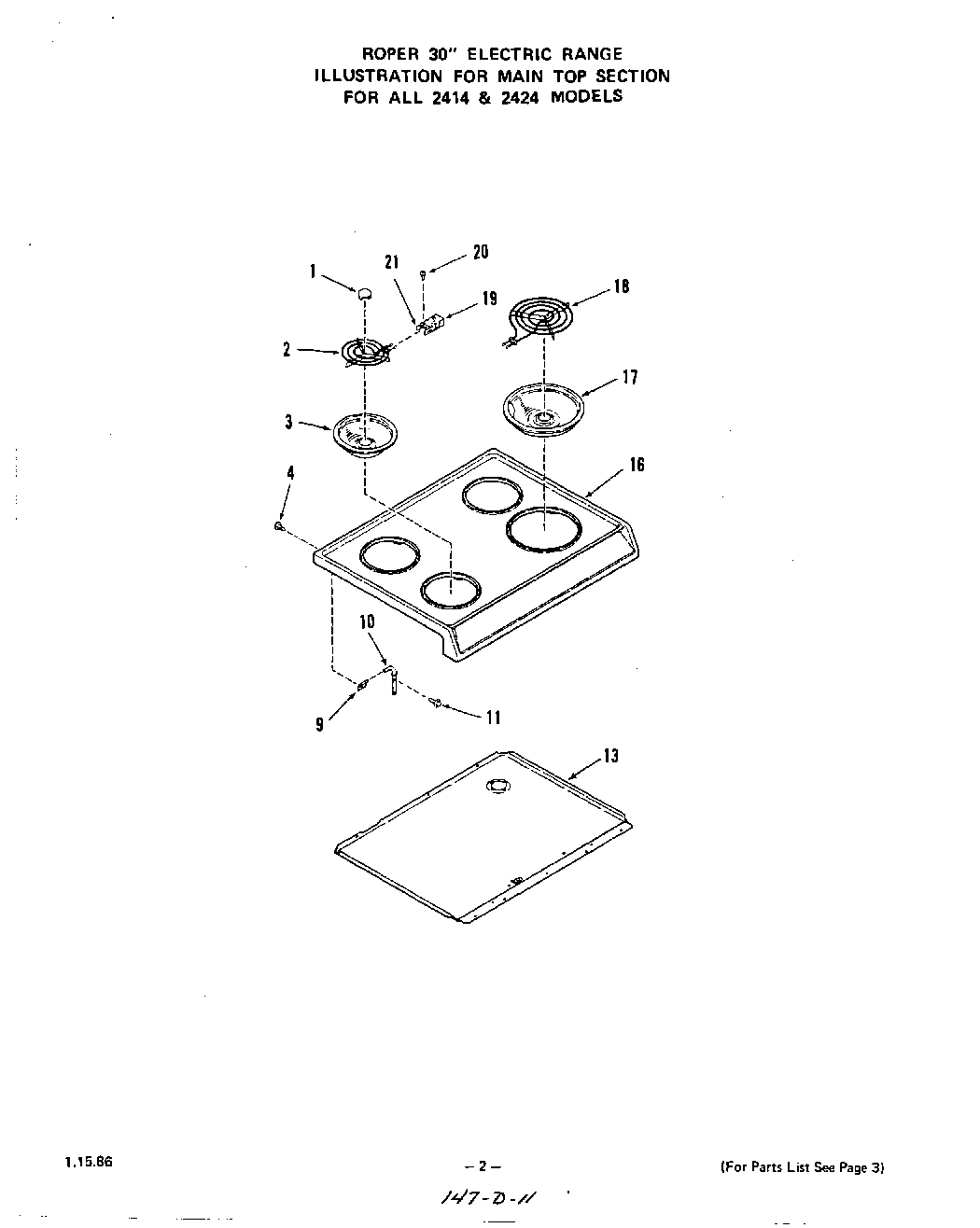

03 - MAIN TOP

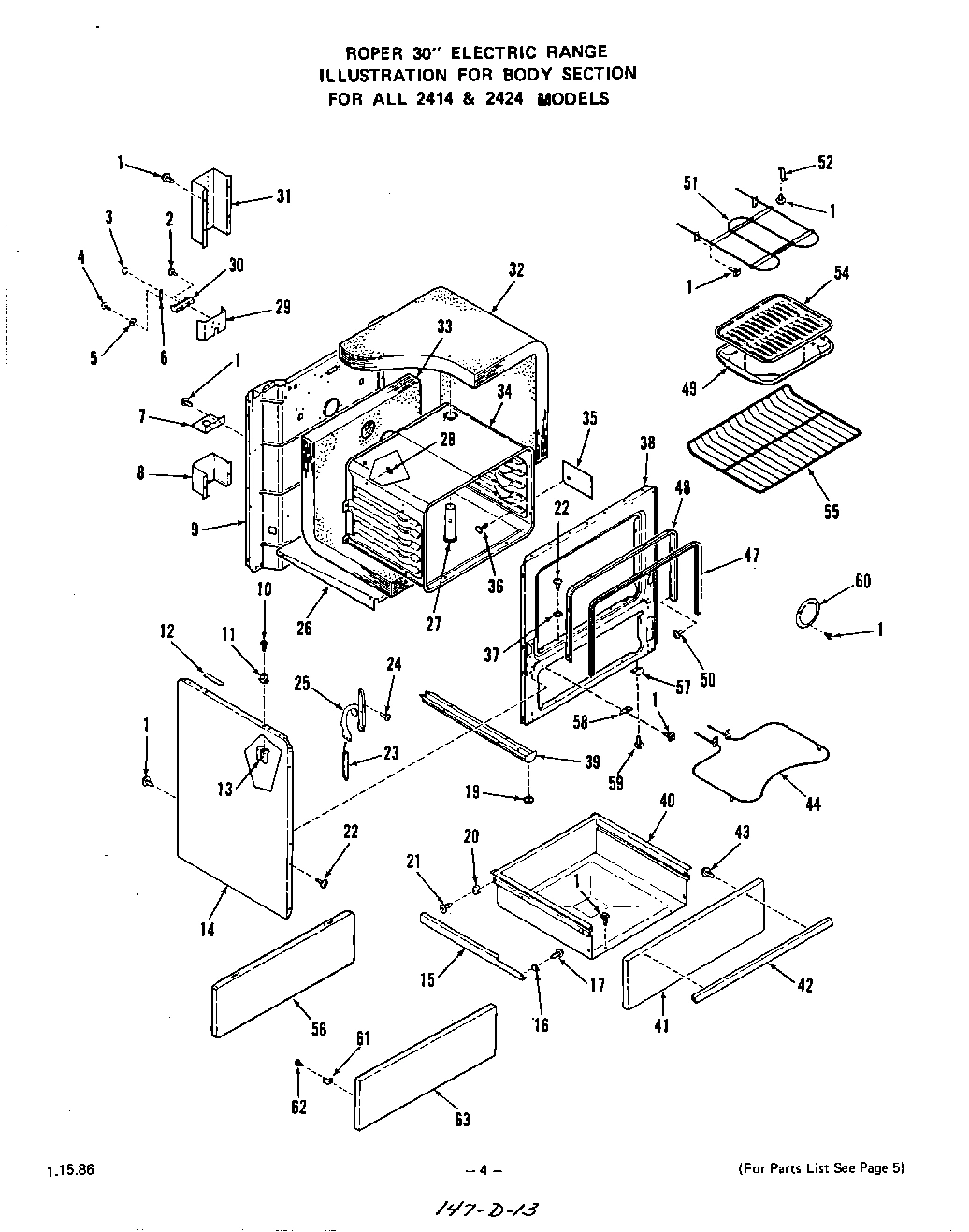

05 - BODY

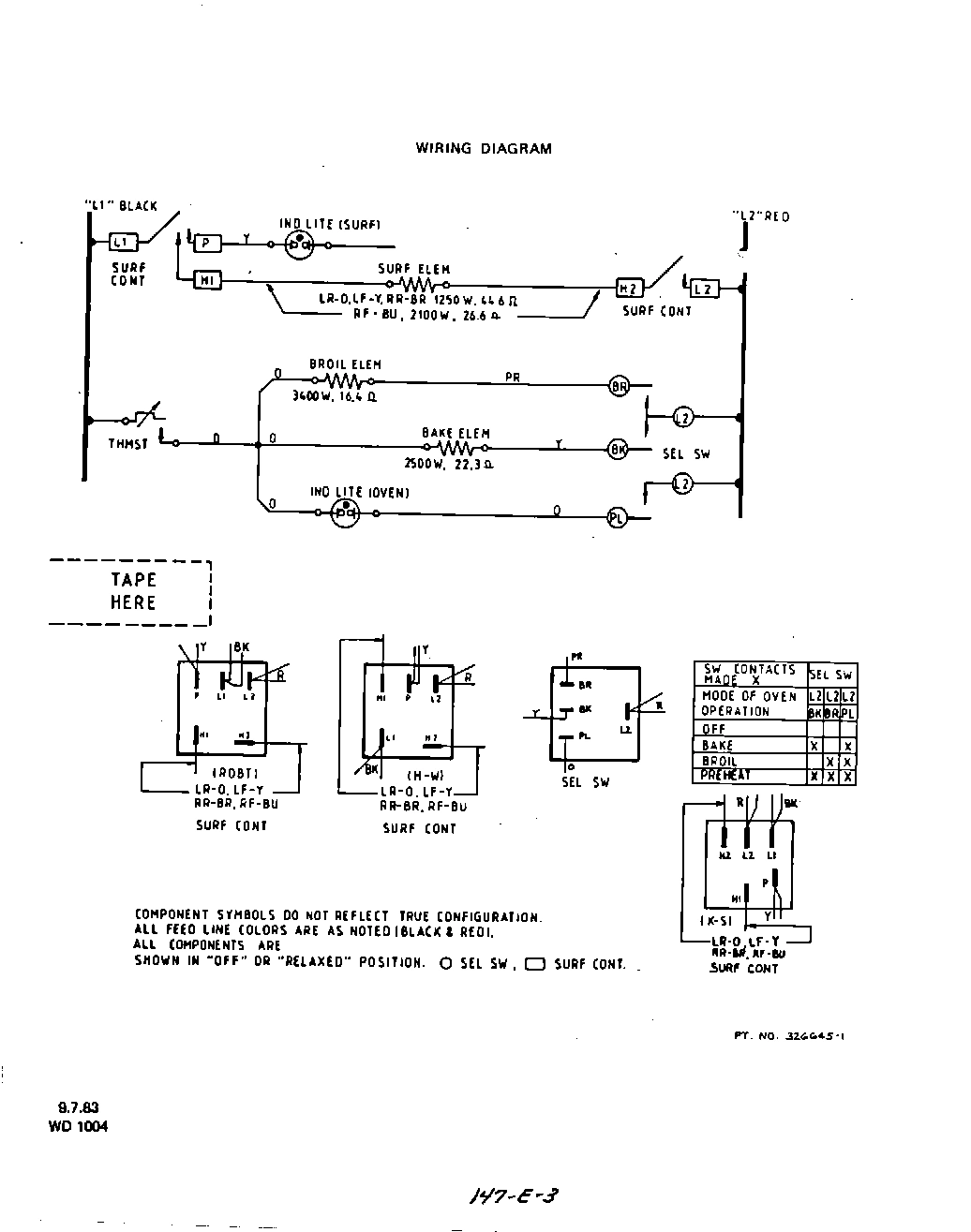

08 - WIRING DIAGRAM
Common parts from model Whirlpool 2414W1A ELECTRIC RANGE
xWire Harness WPL ARI10977A5 Contact Us For Availability
1
24240A Models WPL 325938 Contact Us For Availability
1
24241A Models WPL 331580 Contact Us For Availability
1
Lining-Oven Door WPL ARI10976A5 Contact Us For Availability
1
Insulation-Oven Door WPL 327625 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Medallion WPL 318586 Contact Us For Availability
2
Keps Nut 8-32 WPL 239764 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
White WPL 325961 Contact Us For Availability
2
Almond WPL 325963 Contact Us For Availability
2
Front Panel-Oven Door WPL ARI10974A9 Contact Us For Availability
2
Clip WPL 70588 Contact Us For Availability
2
6`` Surface Unit-Lt., Rt. Rear & Lt. Front WPL 325507 Contact Us For Availability
2
Screw 10-32x1`` WPL 313190 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Wire Cover-Backguard WPL 326122 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Hex Nut 10-32 WPL 97816 Contact Us For Availability
4
Outer Glass-Oven Door WPL 320736 Contact Us For Availability
4
Spacer-Door Handle WPL 302343 Contact Us For Availability
4
4 Req. All 2414, 24240A Models WPL 320944 Contact Us For Availability
4
Lt., Rt. Rear & Lt. Frt. All 2414, 24241A & 2 WPL 320945 Contact Us For Availability
4
Rt. Front All 2414, 24241A & 2A Mod. WPL 320946 Contact Us For Availability
4
Infinite Control WPL ARI10956A7 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
5
Frame-Oven Door WPL 326141 Contact Us For Availability
5
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
5
Selector Switch WPL 320927 Contact Us For Availability
5
Washer WPL 299425 Contact Us For Availability
6
Cushion WPL 112370 Contact Us For Availability
6
Indicator Light-Surface WPL 327326 Contact Us For Availability
6
Ground Strap WPL 327255 Contact Us For Availability
7
Handle WPL 303342 Contact Us For Availability
7
24140A & 1A Models WPL 325930 Contact Us For Availability
7
24142A Models WPL 331579 Contact Us For Availability
7
Lining-Oven Door WPL ARI10975A7 Contact Us For Availability
7
Indicator Light-Oven WPL 326871 Contact Us For Availability
7
Range Service Mounting Plate WPL 327259 Contact Us For Availability
8
24140A & 1A, 24240A Models WPL 320937 Contact Us For Availability
8
24142A & 24241A Models WPL 321958 Contact Us For Availability
8
Thermostat WPL ARI10957A7 Contact Us For Availability
8
Wire Shield-Lower WPL 327258 Contact Us For Availability
9
Controls WPL 326371 Contact Us For Availability
9
Thermostat WPL 326646 Contact Us For Availability
9
Main Top WPL 331377 Contact Us For Availability
9
Right WPL 326284 Contact Us For Availability
9
Left WPL 326285 Contact Us For Availability
9
End Cap WPL ARI10958A6 Contact Us For Availability
9
Bracket-Mian Top Hinge (Lt. or Rt.) WPL 320931 Contact Us For Availability
9
Main Back WPL 325879 Contact Us For Availability
10
Right WPL 327106 Contact Us For Availability
10
Left WPL 327107 Contact Us For Availability
10
Support-Backguard WPL ARI10959A2 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI10961A8 Contact Us For Availability
10
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
11
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
11
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
11
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
12
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
13
Knob-Infinite Control (4 Req) WPL 322966 Contact Us For Availability
13
24140A & 1A, 24240A Models WPL 326062 Contact Us For Availability
13
24142A & 24241A Models WPL 331590 Contact Us For Availability
13
Burner Box Bottom WPL ARI10962A9 Contact Us For Availability
13
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
14
Knob-Thermostat WPL 326671 Contact Us For Availability
14
White WPL 326055 Contact Us For Availability
14
Almond WPL 326059 Contact Us For Availability
14
Platinum WPL 327939 Contact Us For Availability
14
Toast WPL 327940 Contact Us For Availability
14
Body Side (Lt. or Rt.) WPL ARI10964A8 Contact Us For Availability
15
Lens-Indicator Light (2 Req) WPL 325677 Contact Us For Availability
15
Support-Storage Drawer (Lt. or Rt.) - All 242 WPL 311441 Contact Us For Availability
16
Knob-Selector Switch WPL 326947 Contact Us For Availability
16
White WPL 326523 Contact Us For Availability
16
Almond WPL 326524 Contact Us For Availability
16
Toast WPL 328349 Contact Us For Availability
16
Platinum WPL 328624 Contact Us For Availability
16
Main Top WPL ARI10963A1 Contact Us For Availability
16
Slide Block-Front (Lt. or Rt.) - All 2424 M WPL 281914 Contact Us For Availability
17
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
17
8`` Chrome Bowl (Rt. Front) WPL 304969 Contact Us For Availability
17
Screw 10-32x17/32`` - All 2424 Models WPL 295849 Contact Us For Availability
18
Screw 10-16x7/16``-All 2424 Models WPL 327320 Contact Us For Availability
18
White WPL 326640 Contact Us For Availability
18
Almond WPL 326641 Contact Us For Availability
18
Toast WPL 328413 Contact Us For Availability
18
Platinum WPL 329338 Contact Us For Availability
18
Crosstie-Backguard WPL ARI10960A8 Contact Us For Availability
18
8`` Surface Unit-Rt. Front WPL 325503 Contact Us For Availability
19
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
19
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
20
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
20
Slide Block-Rear (Lt. or Rt.)-All 2424 M. WPL 281913 Contact Us For Availability
21
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
21
Screw 8 - 32 x 3/8`` - All 2424 Models WPL 102563 Contact Us For Availability
22
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 326961 Contact Us For Availability
24
Screw WPL 331704 Contact Us For Availability
25
Right WPL 326012 Contact Us For Availability
25
Left WPL 326013 Contact Us For Availability
25
Hinge-Oven Door WPL ARI10965A7 Contact Us For Availability
26
Insulation Retainer-Lower WPL 313281 Contact Us For Availability
27
Vent Tube WPL 326584 Contact Us For Availability
28
Thermostat Bulb Clip (2 Req) WPL 115533 Contact Us For Availability
29
Insulator-Service Cord WPL 327242 Contact Us For Availability
30
Junction Block WPL 290105 Contact Us For Availability
31
Wire Shield-Upper WPL 327235 Contact Us For Availability
32
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
33
Insulation-Oven Back & Bottom (1 Piece) WPL 326049 Contact Us For Availability
34
24140A & 1A, 24240A Models WPL 325771 Contact Us For Availability
34
24142A & 24241A Models WPL 331583 Contact Us For Availability
34
Oven Body WPL ARI10966A3 Contact Us For Availability
35
Insulation Retainer-Rt. or Lt. WPL 327887 Contact Us For Availability
36
Button Dart (2 Req) WPL 296097 Contact Us For Availability
37
Washer WPL 21067 Contact Us For Availability
38
24140A & 1A, 24241A Models WPL 326046 Contact Us For Availability
38
24142A & 24241A Models WPL 332687 Contact Us For Availability
38
Fr WPL ARI10967A8 Contact Us For Availability
39
WPL 326050 WPL 326050 Contact Us For Availability
40
WPL 296150 WPL 296150 Contact Us For Availability
41
WPL 326073 WPL 326073 Contact Us For Availability
41
WPL 326077 WPL 326077 Contact Us For Availability
41
WPL 328347 WPL 328347 Contact Us For Availability
41
WPL 328355 WPL 328355 Contact Us For Availability
41
WPL ARI10968A9 WPL ARI10968A9 Contact Us For Availability
42
WPL 292240 WPL 292240 Contact Us For Availability
43
WPL 295850 WPL 295850 Contact Us For Availability
44
WPL 325883 WPL 325883 Contact Us For Availability
47
WPL 326047 WPL 326047 Contact Us For Availability
48
WPL 327875 WPL 327875 Contact Us For Availability
49
WPL 293098 WPL 293098 Contact Us For Availability
49
WPL 331592 WPL 331592 Contact Us For Availability
49
WPL ARI10969A2 WPL ARI10969A2 Contact Us For Availability
50
WPL 69014 WPL 69014 Contact Us For Availability
51
WPL 326360 WPL 326360 Contact Us For Availability
52
WPL 324808 WPL 324808 Contact Us For Availability
54
WPL 293099 WPL 293099 Contact Us For Availability
54
WPL 326297 WPL 326297 Contact Us For Availability
54
WPL ARI10970A8 WPL ARI10970A8 Contact Us For Availability
55
WPL 326068 WPL 326068 Contact Us For Availability
55
WPL ARI10971A5 WPL ARI10971A5 Contact Us For Availability
56
WPL 329566 WPL 329566 Contact Us For Availability
56
WPL 329570 WPL 329570 Contact Us For Availability
56
WPL ARI10972A9 WPL ARI10972A9 Contact Us For Availability
57
WPL 331121 WPL 331121 Contact Us For Availability
58
WPL 331122 WPL 331122 Contact Us For Availability
60
WPL 326935 WPL 326935 Contact Us For Availability
61
WPL 112948 WPL 112948 Contact Us For Availability
62
WPL 102429 WPL 102429 Contact Us For Availability
63
WPL 326429 WPL 326429 Contact Us For Availability
63
WPL 326433 WPL 326433 Contact Us For Availability
63
WPL ARI10973A5 WPL ARI10973A5 Contact Us For Availability
× ![]()
