Model Whirlpool 2406^3A ELECTRIC RANGE – Common Parts & Diagrams
04 - BODY

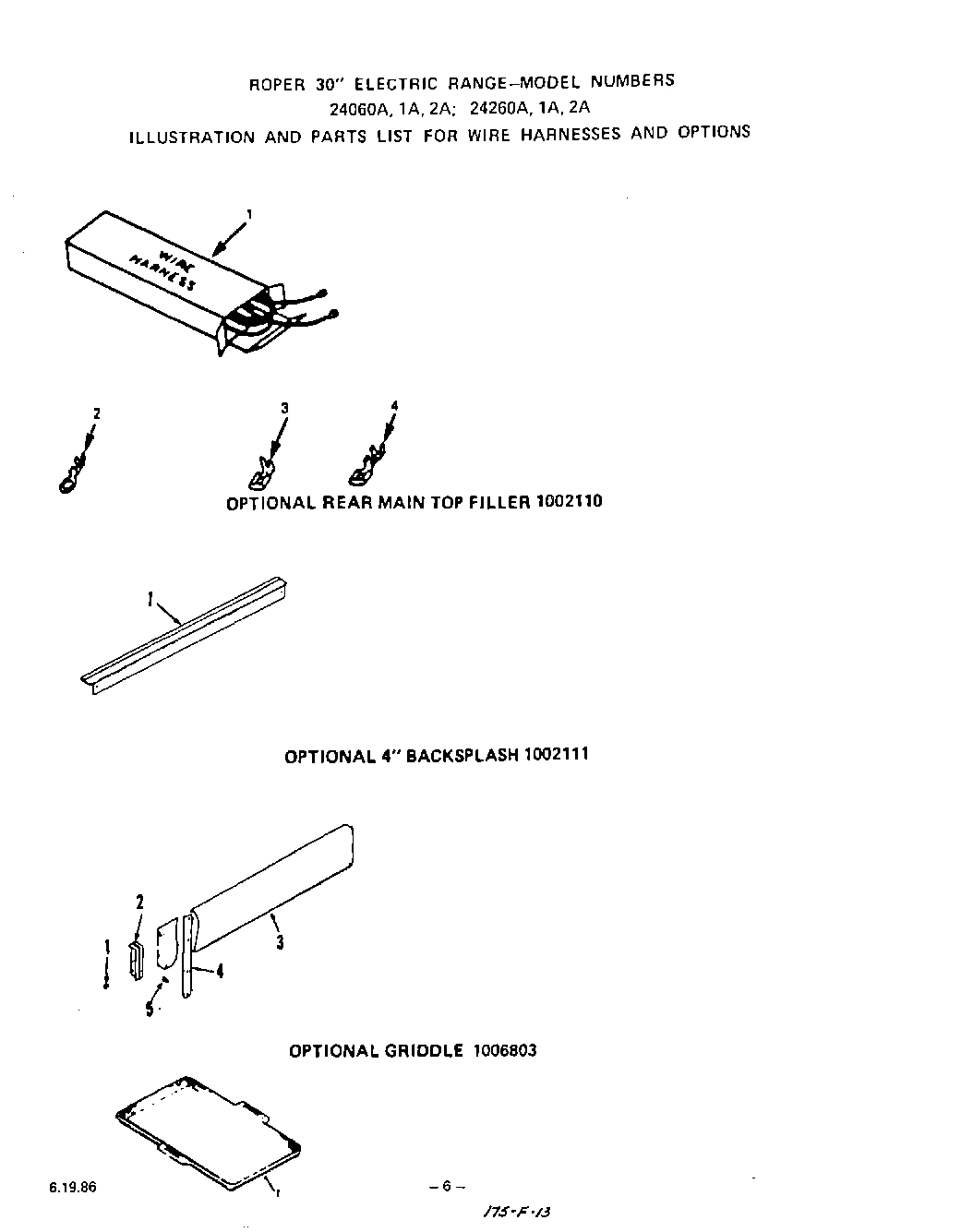

06 - WIRE HARNESS , REAR MAIN TOP FILLE

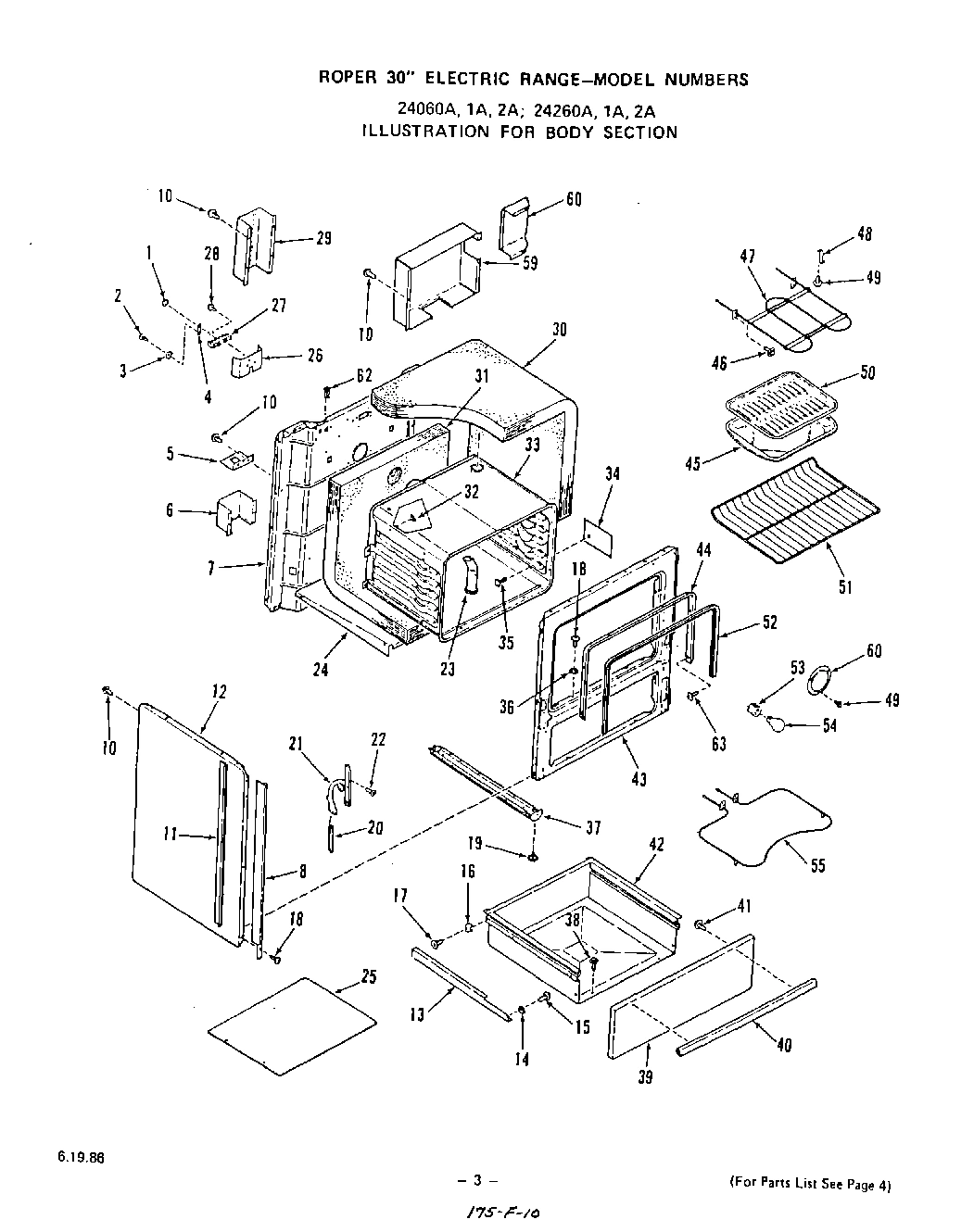

02 - MAIN TOP, HEAVY DUTY CANNING UNIT

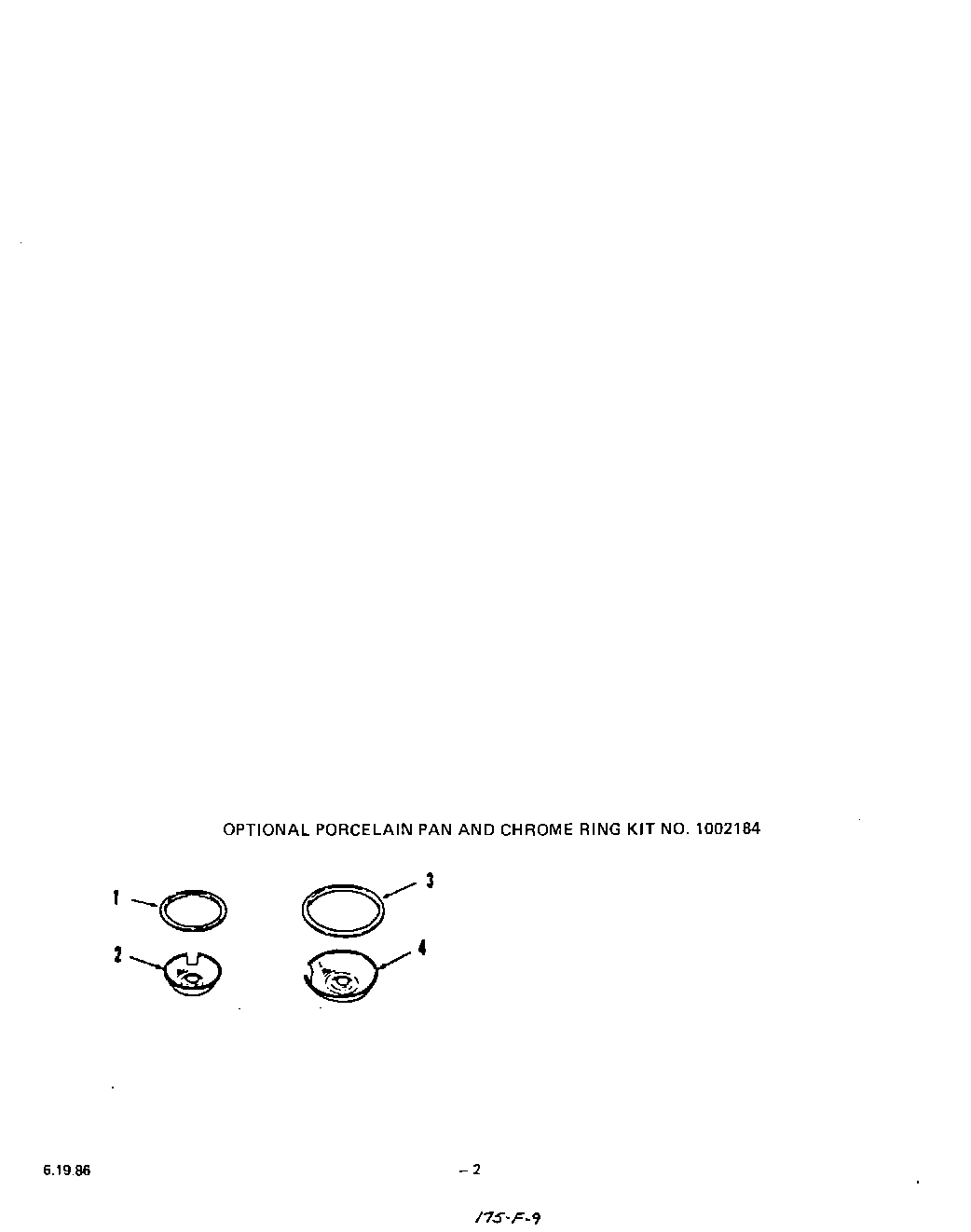

03 - LIT/OPTIONAL PORCELAIN PAN AND CHRO

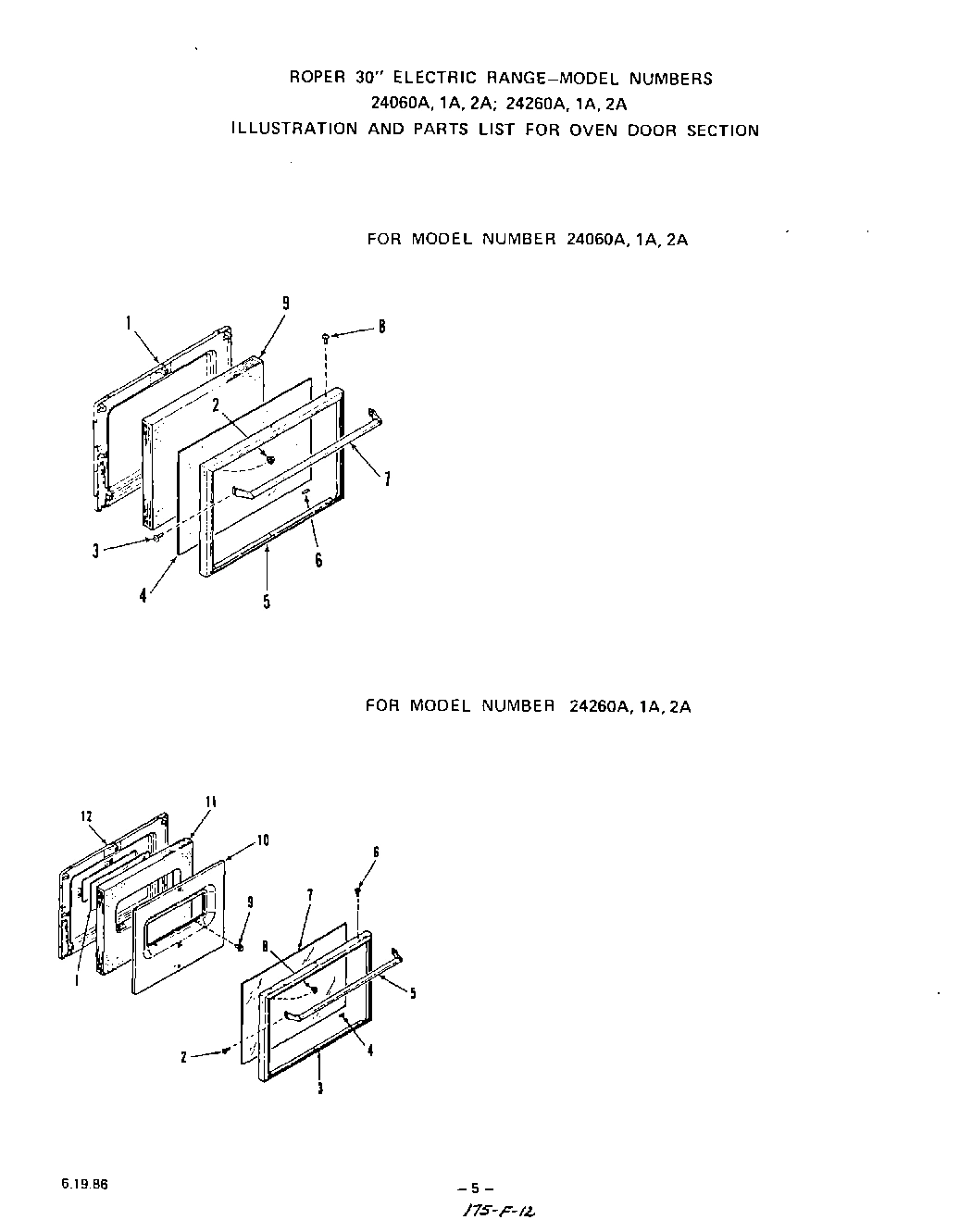

05 - OVEN DOOR

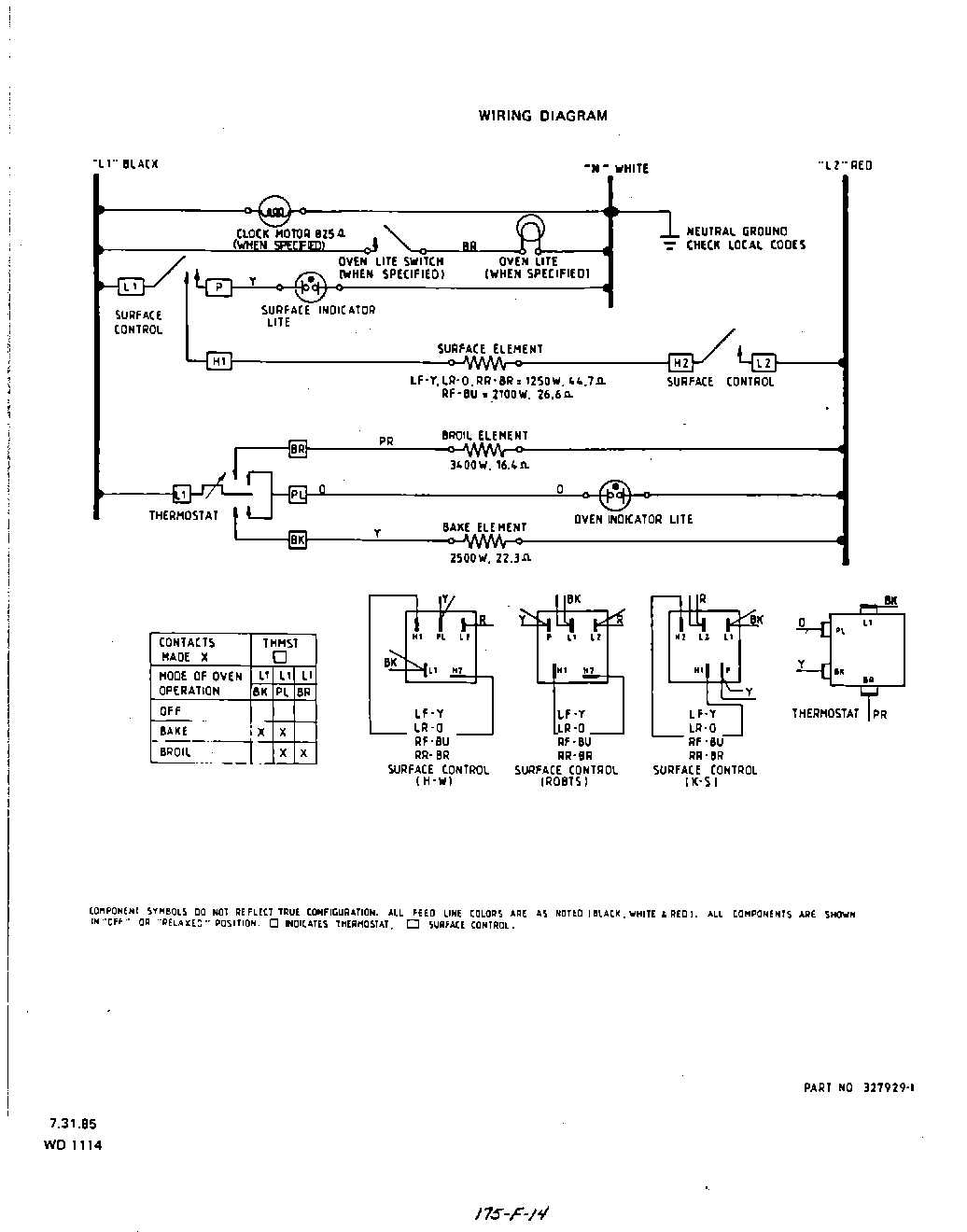

07 - WIRING DIAGRAM
Common parts from model Whirlpool 2406^3A ELECTRIC RANGE
xInstructions Installation WPL 331267 Contact Us For Availability
xSheet Instruction WPL 331389 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI10794A7 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI10795A6 Contact Us For Availability
WPL ARI10785A3 WPL ARI10785A3 Contact Us For Availability
1
Main Top WPL 331036 Contact Us For Availability
1
Main WPL 331037 Contact Us For Availability
1
Wire Harness WPL ARI10793A2 Contact Us For Availability
1
Medallion WPL 318586 Contact Us For Availability
1
Small Ring (3 Req) WPL 285573 Contact Us For Availability
1
Lining-Oven Door WPL 331580 Contact Us For Availability
2
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Clip-Terminal Block WPL 318872 Contact Us For Availability
2
Small Pan (3 Req) WPL 331865 Contact Us For Availability
3
Large Ring (2 Req) WPL 285574 Contact Us For Availability
3
Washer WPL 299425 Contact Us For Availability
3
Flag Terminal WPL STD374251 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
4
Ground Strap WPL 327255 Contact Us For Availability
4
Faston Terminal WPL STD374250 Contact Us For Availability
4
Block-Terminal w/Wires WPL 318960 Contact Us For Availability
4
Large Pan (2 Req) WPL 331866 Contact Us For Availability
4
Glass-Oven Door WPL 320736 Contact Us For Availability
5
Range Service Mounting Plate WPL 327259 Contact Us For Availability
5
Element-Surface 6`` WPL 325507 Contact Us For Availability
5
Frame-Oven Door WPL 326141 Contact Us For Availability
6
Wire Shield-Lower WPL 327258 Contact Us For Availability
6
Element-Surface 8`` WPL 325503 Contact Us For Availability
7
Main Back WPL 330675 Contact Us For Availability
7
Bowl-Burner 6`` WPL 296481 Contact Us For Availability
8
Left WPL 330340 Contact Us For Availability
8
Right WPL 330341 Contact Us For Availability
8
Trim-Side WPL ARI10786A5 Contact Us For Availability
8
Bowl-Burner 8`` WPL 304969 Contact Us For Availability
9
Chrome 2426X0A Models WPL 330376 Contact Us For Availability
9
White 2406W0A Models WPL 331319 Contact Us For Availability
9
Almond 2406L0A Models WPL 331320 Contact Us For Availability
9
White 2426W0A Models WPL 331350 Contact Us For Availability
9
Almond 2426L0A Models WPL 331351 Contact Us For Availability
9
Chrome 2426X1A, 2A Models WPL 334866 Contact Us For Availability
9
White 2406W1A, 2A Models WPL 334869 Contact Us For Availability
9
Almond 2406L1A, 2A Models WPL 334870 Contact Us For Availability
9
White 2426W1A, 2A Models WPL 334873 Contact Us For Availability
9
Almond 2426L1A, 2A Models WPL 334874 Contact Us For Availability
9
Top-Main WPL ARI10778A9 Contact Us For Availability
9
Insulation WPL 327625 Contact Us For Availability
11
Extension Side Trim WPL 331512 Contact Us For Availability
11
Right 24060A, 24260A Models WPL 331513 Contact Us For Availability
11
Left 24060A, 24260A Models WPL 331514 Contact Us For Availability
11
Right 24061A, 2A, 24261A,2A WPL 334843 Contact Us For Availability
11
Left 24061A, 2A, 24261A,2A WPL 334844 Contact Us For Availability
11
Hinge-Main Top WPL ARI10779A5 Contact Us For Availability
12
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
12
Bracket-Hinge WPL 335161 Contact Us For Availability
13
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
13
Bottom-Burner Box WPL 330389 Contact Us For Availability
14
Side Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
24060A, 24260A Models WPL 330343 Contact Us For Availability
15
24061A, 2A, 24261A, 2A Models WPL 334877 Contact Us For Availability
15
Extension-Burner Box Side WPL ARI10780A2 Contact Us For Availability
16
Side Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
Left WPL 330344 Contact Us For Availability
16
Right WPL 330345 Contact Us For Availability
16
Cap-End WPL ARI10781A4 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
Surface WPL 331716 Contact Us For Availability
17
Oven WPL 331717 Contact Us For Availability
17
Light-Indicator WPL ARI10782A7 Contact Us For Availability
18
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
18
Thermostat WPL 326322 Contact Us For Availability
19
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
19
Switch-Infinite (For 8`` Element) WPL 320946 Contact Us For Availability
20
All 2406 Models WPL 326961 Contact Us For Availability
20
All 2426 Models WPL 326962 Contact Us For Availability
20
Spring-Oven Door WPL ARI10787A2 Contact Us For Availability
20
Switch-Infinite (For 6`` Element) WPL 320945 Contact Us For Availability
21
Right WPL 326012 Contact Us For Availability
21
Left WPL 326013 Contact Us For Availability
21
Hinge-Oven Door WPL ARI10788A5 Contact Us For Availability
21
Insulation WPL 331071 Contact Us For Availability
22
Screw WPL 331704 Contact Us For Availability
23
Vent Tube WPL 330736 Contact Us For Availability
23
Lens-Indicator Light WPL 331705 Contact Us For Availability
24
Retainer-Bottom Insulation WPL 313281 Contact Us For Availability
24
Panel-Control WPL 331324 Contact Us For Availability
25
Liner-Oven Bottom WPL 331867 Contact Us For Availability
25
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
26
Insulator-Service Cord WPL 327242 Contact Us For Availability
26
Knob-Infinite WPL 322966 Contact Us For Availability
27
Junction Block WPL 290105 Contact Us For Availability
27
Knob-Thermostat WPL 326343 Contact Us For Availability
28
Screw 10-32x1`` WPL 313190 Contact Us For Availability
28
24060A, 1A, 24260A, 1A Models WPL 334564 Contact Us For Availability
28
24062A, 24262A Models WPL 334649 Contact Us For Availability
28
Switch-Oven Light WPL ARI10783A3 Contact Us For Availability
29
Wire Shield-Upper WPL 327235 Contact Us For Availability
30
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
30
Bracket-Clock WPL 330337 Contact Us For Availability
31
Insulation-Oven Back & Bottom (1 Piece) WPL 326049 Contact Us For Availability
31
Cover-Wire WPL 330726 Contact Us For Availability
32
Clip-Thermotat Bulb (2 Req) WPL 335535 Contact Us For Availability
32
Screw 10-16 WPL 327320 Contact Us For Availability
33
All 2426 Models WPL 325772 Contact Us For Availability
33
All 2406 Models WPL 331583 Contact Us For Availability
33
Oven Body WPL ARI10789A4 Contact Us For Availability
33
WPL 320725 WPL 320725 Contact Us For Availability
34
Insulation Retainer-Rt. or Lt. WPL 326768 Contact Us For Availability
34
WPL 330839 WPL 330839 Contact Us For Availability
35
Dart-Button Head (2 Req) WPL 296097 Contact Us For Availability
35
WPL 283296 WPL 283296 Contact Us For Availability
36
Washer WPL 21067 Contact Us For Availability
36
WPL 323176 WPL 323176 Contact Us For Availability
37
24060A, 1A, 24260A, 1A Models WPL 334811 Contact Us For Availability
37
24062A, 24262A Models WPL 336546 Contact Us For Availability
37
Base w/Levelers (Lt. or Rt.) WPL ARI10790A2 Contact Us For Availability
37
WPL 109225 WPL 109225 Contact Us For Availability
38
WPL 326786 WPL 326786 Contact Us For Availability
38
WPL ARI10784A3 WPL ARI10784A3 Contact Us For Availability
39
Front Panel-Storage Drawer WPL 326078 Contact Us For Availability
39
WPL 335073 WPL 335073 Contact Us For Availability
40
Handle WPL 318969 Contact Us For Availability
40
WPL 286628 WPL 286628 Contact Us For Availability
40
WPL 326570 WPL 326570 Contact Us For Availability
40
WPL 331334 WPL 331334 Contact Us For Availability
40
WPL 331335 WPL 331335 Contact Us For Availability
40
WPL 335190 WPL 335190 Contact Us For Availability
40
WPL 335202 WPL 335202 Contact Us For Availability
41
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
42
Storage Drawer WPL 296150 Contact Us For Availability
43
Front Frame WPL 332687 Contact Us For Availability
44
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
47
WPL 326360 WPL 326360 Contact Us For Availability
47
WPL 326361 WPL 326361 Contact Us For Availability
47
WPL ARI10791A9 WPL ARI10791A9 Contact Us For Availability
48
WPL 324808 WPL 324808 Contact Us For Availability
50
WPL 326397 WPL 326397 Contact Us For Availability
51
WPL 326068 WPL 326068 Contact Us For Availability
52
WPL 326047 WPL 326047 Contact Us For Availability
53
WPL 87883 WPL 87883 Contact Us For Availability
54
WPL 111257 WPL 111257 Contact Us For Availability
55
WPL 325883 WPL 325883 Contact Us For Availability
55
WPL 326364 WPL 326364 Contact Us For Availability
55
WPL ARI10792A2 WPL ARI10792A2 Contact Us For Availability
59
WPL 333128 WPL 333128 Contact Us For Availability
60
WPL 327808 WPL 327808 Contact Us For Availability
63
WPL 69014 WPL 69014 Contact Us For Availability
A1
Filler-Main Top Rear WPL 331228 Contact Us For Availability
A1
inner glass-oven door WPL 326010 Contact Us For Availability
A2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
A3
frame-oven door WPL 326002 Contact Us For Availability
A4
Cushion - Door Glass (5 Req) WPL 112370 Contact Us For Availability
A5
Handle-Oven Door WPL 303342 Contact Us For Availability
A6
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
A7
outer glass-oven door WPL 326367 Contact Us For Availability
A8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
A9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
A10
Retainer-Oven Door Insulation WPL 325996 Contact Us For Availability
A11
Insulation-Oven Door WPL 325999 Contact Us For Availability
A12
Lining-Oven Door WPL 325946 Contact Us For Availability
B1
Screw TC 6-32x3/8`` WPL 295268 Contact Us For Availability
B2
End Cap WPL 330339 Contact Us For Availability
B3
Backsplash WPL 331387 Contact Us For Availability
B4
Backplash Support WPL 330331 Contact Us For Availability
C1
Set-On Griddle WPL 309844 Contact Us For Availability
× ![]()
