Model LG 23ET63V-W – Common Parts & Diagrams

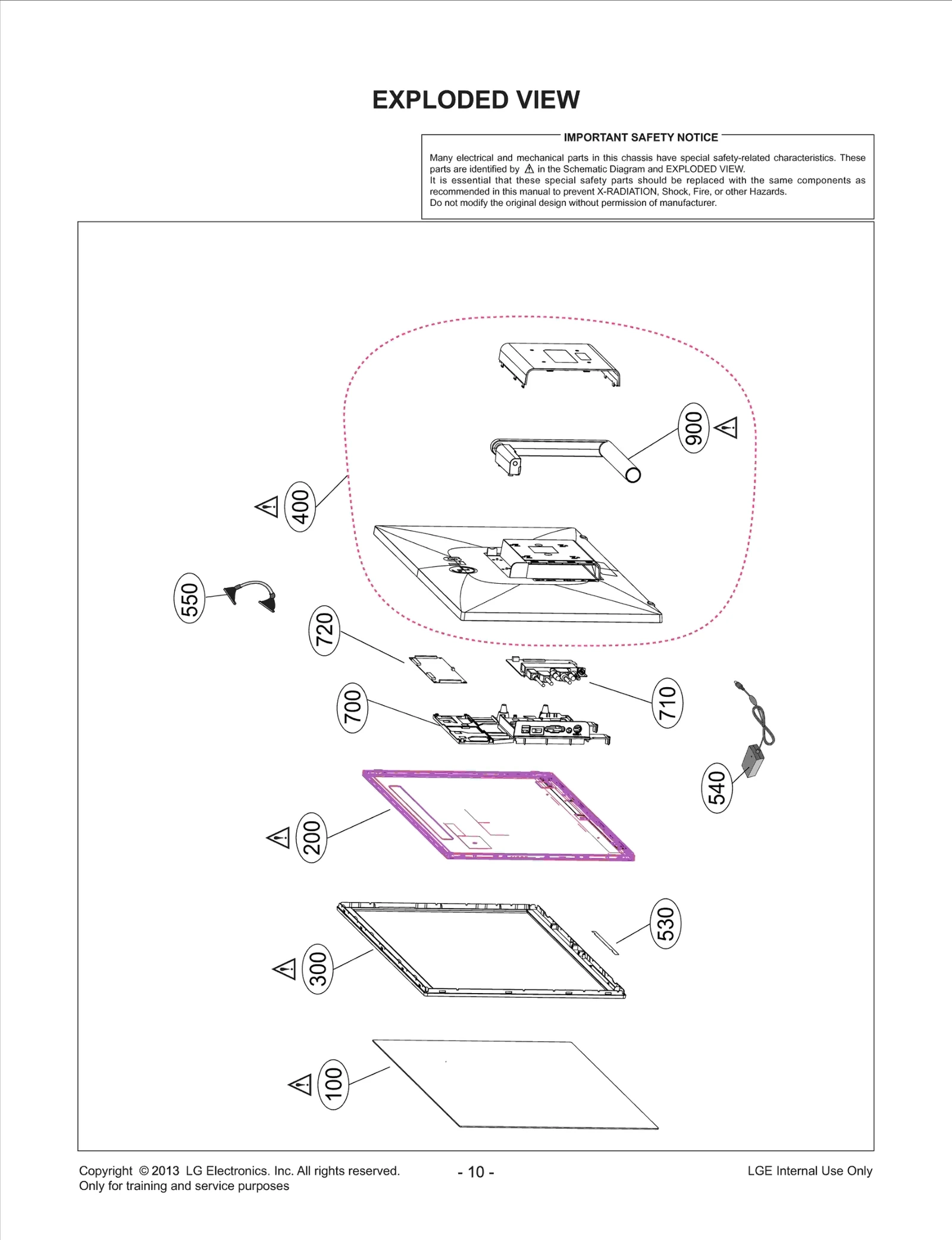

Diagram 0
Diagram 1
Common parts from model LG 23ET63V-W
100
Touch Panel LGE EBD61545505 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62311001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73950501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86448801 Contact Us For Availability
540
Adapters LGE EAY62768606 Contact Us For Availability
540
Adapters LGE EAY62830304 Contact Us For Availability
550
Harness,Single LGE EAD62094406 Contact Us For Availability
700
Bracket LGE MAZ63675401 Contact Us For Availability
710
BPR Total Assembly LGE EBU62122201 Contact Us For Availability
720
PCB Assembly,Sensor LGE EBR76228701 Contact Us For Availability
900
Bracket Assembly LGE ABA74432701 Contact Us For Availability
A1
S/W Package LGE SAB35264601 Contact Us For Availability
A4
Card LGE MBM63862812 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A7
Card LGE MBM63862815 Contact Us For Availability
A8
Cable,Assembly LGE EAD60949001 Contact Us For Availability
A8
Cable,Assembly LGE EAD60949002 Contact Us For Availability
A8
Cable,Assembly LGE EAD61273114 Contact Us For Availability
C10
Harness,Single LGE EAD62186003 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C140
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C141
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D202
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36372901 Contact Us For Availability
JK203
Connector,USB LGE 6630SK00804 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122586 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141B Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R110
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
