Model LG 23ET63B-W – Common Parts & Diagrams

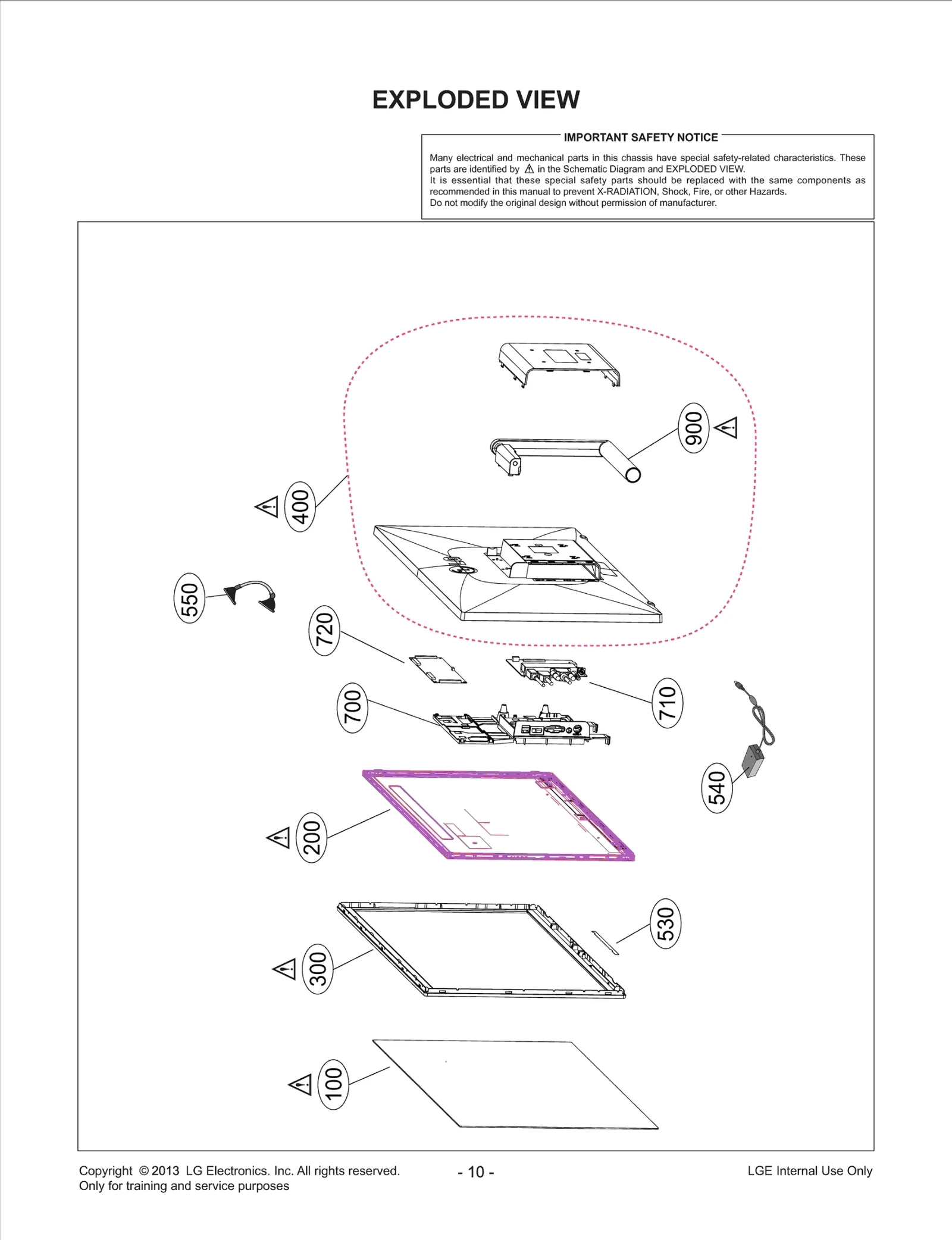

Diagram 0
Diagram 1
Common parts from model LG 23ET63B-W
100
Touch Panel LGE EBD61545505 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62311001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73950501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86448801 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
540
Adapters LGE EAY62830303 Contact Us For Availability
550
Harness,Single LGE EAD62094406 Contact Us For Availability
700
Bracket LGE MAZ63675401 Contact Us For Availability
710
BPR Total Assembly LGE EBU62122201 Contact Us For Availability
720
PCB Assembly,Sensor LGE EBR76228712 Contact Us For Availability
900
Bracket Assembly LGE ABA74432701 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C10
Harness,Single LGE EAD62186003 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C142
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C145
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D202
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36704301 Contact Us For Availability
JK203
Connector,USB LGE 6630SK00804 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122586 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141B Contact Us For Availability
R100
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R110
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
