Model LG 23EN43T-B – Common Parts & Diagrams
Diagram 0

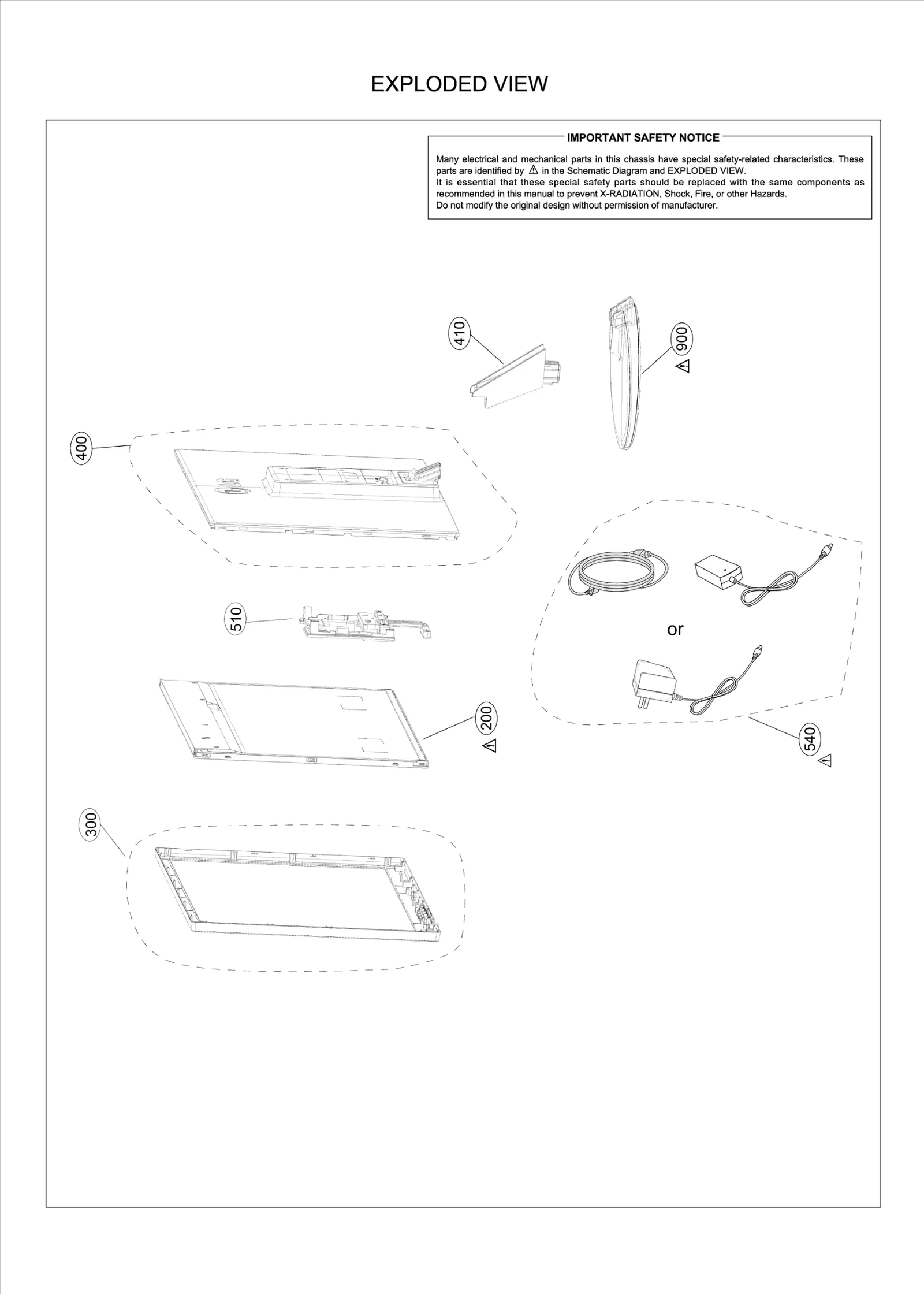

Diagram 1
Common parts from model LG 23EN43T-B
200
LCD,Module-TFT LGE EAJ62090601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73808424 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85921202 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
510
BPR Total Assembly LGE EBU61996101 Contact Us For Availability
520
Bracket LGE MAZ63429701 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
900
Base Assembly LGE AAN74310601 Contact Us For Availability
A4
Card LGE MBM63802306 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C10
Harness,Single LGE EAD62186002 Contact Us For Availability
C112
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C140
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D2
Diode,TVS LGE EAH42720601 Contact Us For Availability
D105
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D105
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36524001 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
JK203
Connector,DSUB LGE EAG63252001 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R190
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
